Panasonic LCD Projector Pt Tw340 Operating Instructions

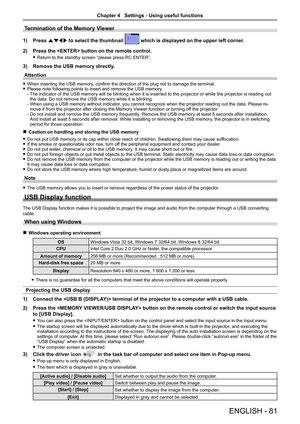

ENGLISH - 81
Termination of the Memory Viewer
1) Press asqw to select the thumbnail  which is displayed on the upper left corner.
2) Press the  button on the remote control.
 fReturn to the standby screen “please press RC ENTER”.
3) Remove the USB memory directly.
Attention
 fWhen inserting the USB memory, confirm the direction of the plug not to damage the terminal. fPlease note following points to insert and remove the USB memory. -
The indicator of the USB memory will be blinking when it is inserted...

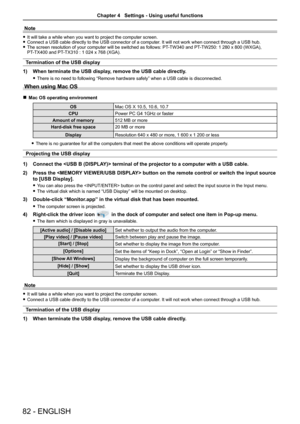

82 - ENGLISH
Note
 fIt will take a while when you want to project the computer screen. fConnect a USB cable directly to the USB connector of a computer. It will not work when connect through a USB hub. fThe screen resolution of your computer will be switched as follows: PT-TW340 and PT-TW250: 1 280 x 800 (WXGA),  PT-TX400 and PT-TX310 : 1 024 x 768 (XGA).
Termination of the USB display
1) When terminate the USB display, remove the USB cable directly.
 fThere is no need to following “Remove hardware...

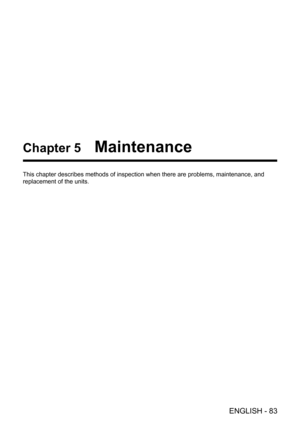

ENGLISH - 83
Chapter 5   Maintenance
This chapter describes methods of inspection when there are problems, ma\
intenance, and
replacement of the units.

84 - ENGLISH
Power/Warning Indicators
When an indicator lights up
If a problem should occur inside the projector, the power indicator  and the warning indicator
 will inform you by lighting or blinking. Check the status of the indicators and remedy the indicated problems as
follows.
Attention
 fBefore you take a remedial measure, follow the procedure of switching the power off indicated in “Powering Off the
Projector” (x page 36).
Power indicator
Warning  indicator StatusCauseSolution
OffOffThe...

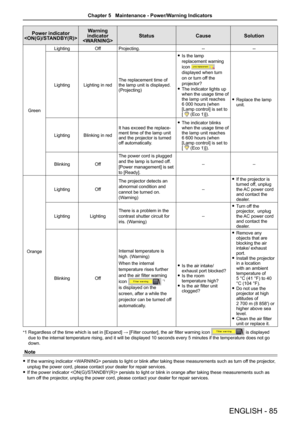

ENGLISH - 85
Power indicator
Warning  indicator StatusCauseSolution
Green
LightingOffProjecting.----
LightingLighting in redThe replacement time of the lamp unit is displayed. (Projecting)
 fIs the lamp
replacement warning
icon
displayed when turn
on or turn off the
projector?
 fThe indicator lights up when the usage time of the lamp unit reaches  6 000 hours (when [Lamp control] is set to  [  (Eco 1)]).
 fReplace the lamp unit.
LightingBlinking in red
It has exceed the replace-ment time of the...

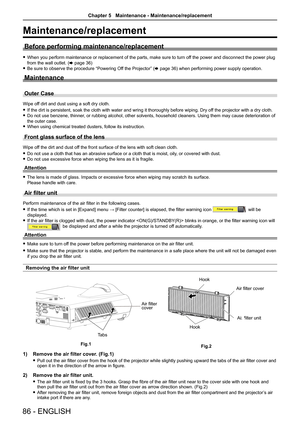

86 - ENGLISH
Maintenance/replacement
Before performing maintenance/replacement
 fWhen you perform maintenance or replacement of the parts, make sure to t\
urn off the power and disconnect the power plug
from the wall outlet. (x page 36)
 fBe sure to observe the procedure “Powering Off the Projector” (x page 36) when performing power supply operation.
Maintenance
Outer Case
Wipe off dirt and dust using a soft dry cloth.
 fIf the dirt is persistent, soak the cloth with water and wring it thorou\
ghly...

ENGLISH - 87

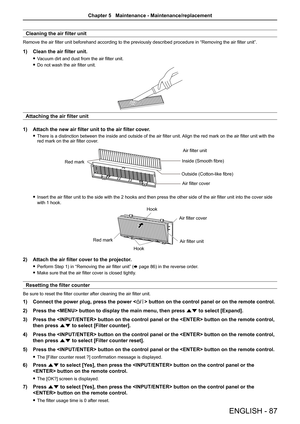

Cleaning the air filter unit
Remove the air filter unit beforehand according to the previously described procedure in “Removing the air filter unit”.
1) Clean the air filter unit.
 fVacuum dirt and dust from the air filter unit.
 fDo not wash the air filter unit.
Attaching the air filter unit
1) Attach the new air filter unit to the air filter cover.
 fThere is a distinction between the inside and outside of the air filter unit. Align the red mark on the air filter unit with the red mark on...

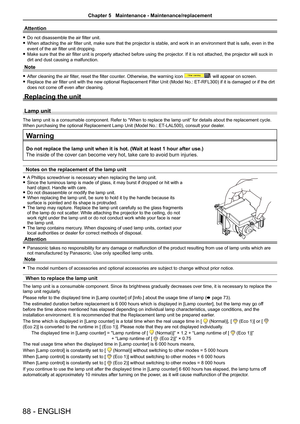

88 - ENGLISH
Attention
 fDo not disassemble the air filter unit.
 fWhen attaching the air filter unit, make sure that the projector is stable, and work in an environment that is safe, even in the
event of the air filter unit dropping.
 fMake sure that the air filter unit is properly attached before using the projector. If it is not attached, the projector will suck in
dirt and dust causing a malfunction.
Note
 fAfter cleaning the air filter, reset the filter counter. Otherwise, the warning icon  will...

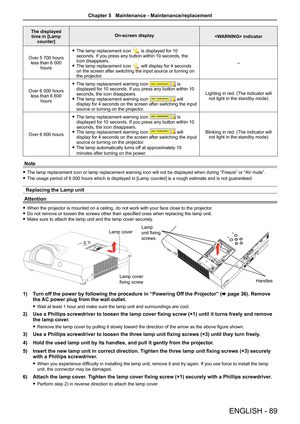

ENGLISH - 89
The displayed time in [Lamp counter]
On-screen display indicator
Over 5 700 hours less than 6 000 hours
 fThe lamp replacement icon  is displayed for 10 seconds. If you press any button within 10 seconds, the icon disappears. fThe lamp replacement icon  will display for 4 seconds on the screen after switching the input source or turning on the projector.
--
Over 6 000 hours less than 6 600 hours
 fThe lamp replacement warning icon  is displayed for 10 seconds. If you press any button...

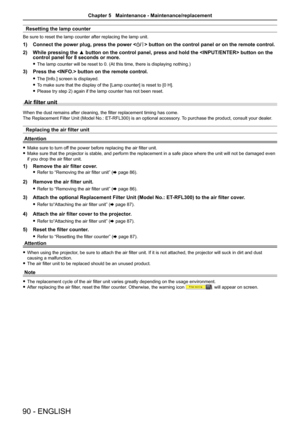

90 - ENGLISH
Resetting the lamp counter
Be sure to reset the lamp counter after replacing the lamp unit.
1) Connect the power plug, press the power  button on the control panel or on the remote control.
2) While pressing the ▲ button on the control panel, press and hold the  button on the control panel for 8 seconds or more.
 fThe lamp counter will be reset to 0. (At this time, there is displaying nothing.)
3) Press the  button on the remote control.
 fThe [Info.] screen is displayed.
 fTo make sure that...
