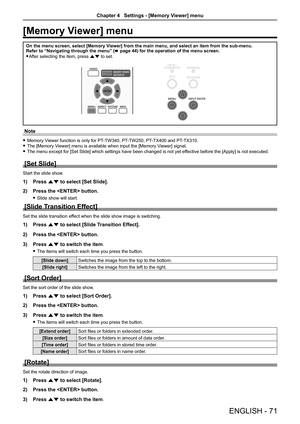

[Memory Viewer] menu
On the menu screen, select [Memory Viewer] from the main menu, and select an item from the sub-menu.Refer to “Navigating through the menu” (x page 44) for the operation of the menu screen.
 fAfter selecting the item, press as to set.
Note
 fMemory Viewer function is only for PT-TW340, PT-TW250, PT-TX400 and PT-TX310.
 fThe [Memory Viewer] menu is available when input the [Memory Viewer] signal.
 fThe menu except for [Set Slide] which settings have been changed is not yet...

72 - ENGLISH
 fThe items will switch each time you press the button.

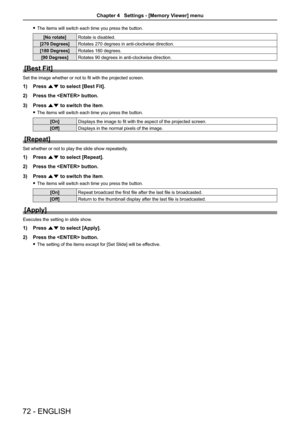

[No rotate]Rotate is disabled.
[270 Degrees]Rotates 270 degrees in anti-clockwise direction.
[180 Degrees]Rotates 180 degrees.
[90 Degrees]Rotates 90 degrees in anti-clockwise direction.
[Best Fit]
Set the image whether or not to fit with the projected screen.
1) Press as to select [Best Fit].
2) Press the  button.
3) Press as to switch the item.
 fThe items will switch each time you press the button.
[On]Displays the image to fit with...

ENGLISH - 73

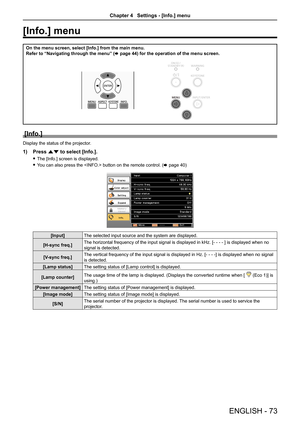

[Info.] menu
On the menu screen, select [Info.] from the main menu.
Refer to “Navigating through the menu” (x page 44) for the operation of the menu screen.
[Info.]
Display the status of the projector.
1) Press as to select [Info.].
 fThe [Info.] screen is displayed.
 fYou can also press the  button on the remote control. (x page 40)
[Input]The selected input source and the system are displayed.
[H-sync freq.]The horizontal frequency of the input signal is displayed in kHz. [- - - - ] is...

74 - ENGLISH
Network control

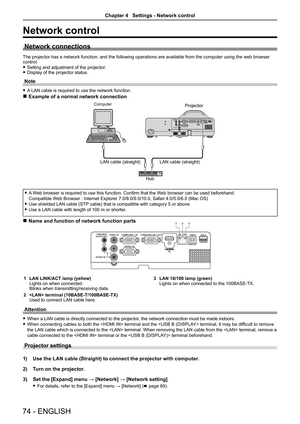

Network connections
The projector has a network function, and the following operations are available from the computer using the web browser control.
 fSetting and adjustment of the projector. fDisplay of the projector status.
Note
 fA LAN cable is required to use the network function.
 rExample of a normal network connection
AC IN
 fA Web browser is required to use this function. Confirm that the Web browser can be used beforehand.
Compatible Web Browser : Internet...

ENGLISH - 75
Note
 fPlease confirm with your network administrator before you connect to an existing network.
 fThe following settings are set before the projector leaves the factory.
[DHCP]Off
[IP address]192.168.1.100
[Subnet]255.255.255.0
[Gateway]192.168.1.1
[DNS]192.168.1.1
Computer operation

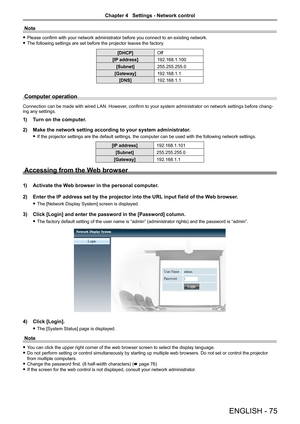

Connection can be made with wired LAN. However, confirm to your system administrator on network settings before chang-ing any settings.
1) Turn on the computer.
2) Make the network setting according to your...

76 - ENGLISH
Description of each item
12
3
4
5

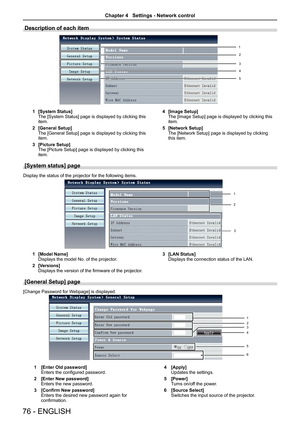

1 [System Status]The [System Status] page is displayed by clicking this item.
2 [General Setup]The [General Setup] page is displayed by clicking this item.
3 [Picture Setup]The [Picture Setup] page is displayed by clicking this item.
4 [Image Setup]The [Image Setup] page is displayed by clicking this item.
5 [Network Setup]The [Network Setup] page is displayed by clicking this item.
[System status] page
Display the status of the projector for the following...

ENGLISH - 77

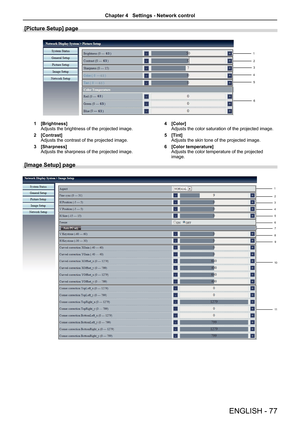

[Picture Setup] page
1
2
3
4
5
6
1 [Brightness]Adjusts the brightness of the projected image.
2 [Contrast]Adjusts the contrast of the projected image.
3 [Sharpness]Adjusts the sharpness of the projected image.
4 [Color]Adjusts the color saturation of the projected image.
5 [Tint]Adjusts the skin tone of the projected image.
6 [Color temperature]Adjusts the color temperature of the projected image.
[Image Setup] page
1
2
3
4
8
9
10
11
5
6
7
Chapter 4   Settings - Network control

78 - ENGLISH

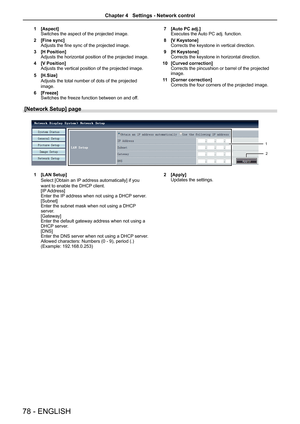

1 [Aspect]Switches the aspect of the projected image.
2 [Fine sync]Adjusts the fine sync of the projected image.
3 [H Position]Adjusts the horizontal position of the projected image.
4 [V Position]Adjusts the vertical position of the projected image.
5 [H.Size]
Adjusts the total number of dots of the projected
image.
6 [Freeze]Switches the freeze function between on and off.
7 [Auto PC adj.]Executes the Auto PC adj. function.
8 [V Keystone]Corrects the keystone in vertical direction.
9 [H...

ENGLISH - 79
Using useful functions

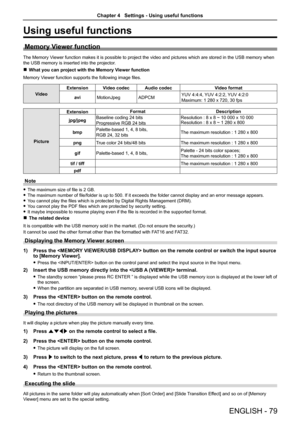

Memory Viewer function
The Memory Viewer function makes it is possible to project the video and pictures wh\
ich are stored in the USB memory when
the USB memory is inserted into the projector.
 rWhat you can project with the Memory Viewer function
Memory Viewer function supports the following image files.
Video
ExtensionVideo codecAudio codecVideo format
aviMotionJpegADPCMYUV 4:4:4, YUV 4:2:2, YUV 4:2:0
Maximum: 1 280 x 720, 30 fps
ExtensionFormatDescription...

80 - ENGLISH

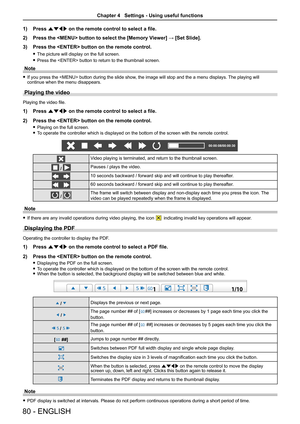

1) Press asqw on the remote control to select a file.
2) Press the  button to select the [Memory Viewer] → [Set Slide].
3) Press the  button on the remote control.
 fThe picture will display on the full screen.
 fPress the  button to return to the thumbnail screen.
Note
 fIf you press the  button during the slide show, the image will stop and the a menu displays. The playing will continue when the menu disappears.
Playing the video
Playing the video file.
1) Press asqw on the remote control...
