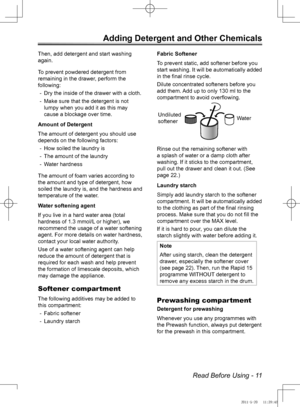

Page 11
Read Before Using - 11 Adding Detergent and Other Chemicals Then, add detergent and start washing again. To prevent powdered detergent from remaining in the drawer, perform the following:Dry the inside of the drawer with a cloth. - Make sure that the detergent is not - lumpy when you add it as this may cause a blockage over time. Amount of Detergent The amount of detergent you should use depends on the following factors: How soiled the laundry is - The amount of the laundry - Water...

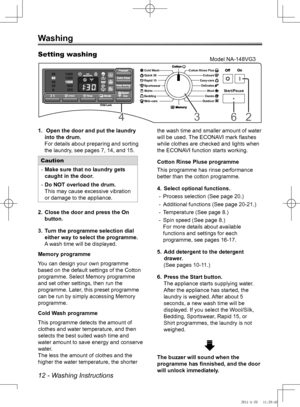

Page 12
12 - Washing Instructions Washing Open the door and put the laundry 1. into the drum. For details about preparing and sorting the laundry, see pages 7, 14, and 15. Caution Make sure that no laundry gets - caught in the door. Do NOT overload the drum. - This may cause excessive vibration or damage to the appliance. Close the door and press the On 2. button. Turn the programme selection dial 3. either way to select the programme. A wash time will be displayed. Memory programme You can design...

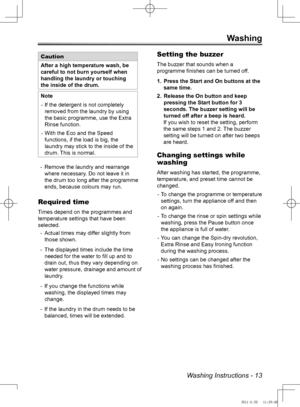

Page 13
Washing Instructions - 13 Washing Caution After a high temperature wash, be careful to not burn yourself when handling the laundry or touching the inside of the drum. NoteIf the detergent is not completely - removed from the laundry by using the basic programme, use the Extra Rinse function. With the Eco and the Speed - functions, if the load is big, the laundry may stick to the inside of the drum. This is normal. Remove the laundry and rearrange - where necessary. Do not leave it in the...

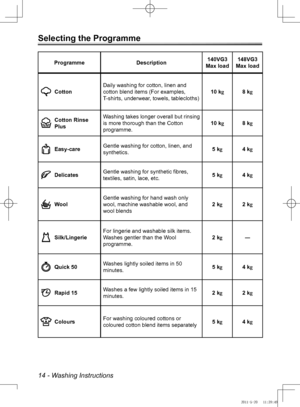

Page 14
14 - Washing Instructions Selecting the Programme ProgrammeDescription140VG3 Max load 148VG3 Max load Cotton Daily washing for cotton, linen and cotton blend items (For examples, T-shirts, underwear, towels, tablecloths) 10 kg 8 kg Cotton Rinse Plus Washing takes longer overall but rinsing is more thorough than the Cotton programme. 10 kg 8 kg Easy-care Gentle washing for cotton, linen, and synthetics. 5 kg 4 kg Delicates Gentle washing for synthetic fibres, textiles, satin, lace, etc. 5 kg 4...

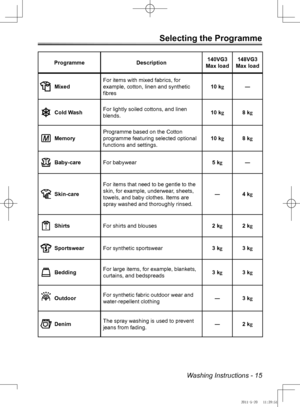

Page 15
Washing Instructions - 15 Selecting the Programme ProgrammeDescription140VG3 Max load 148VG3 Max load Mixed For items with mixed fabrics, for example, cotton, linen and synthetic fibres 10 kg ― Cold Wash For lightly soiled cottons, and linen blends. 10 kg 8 kg Memory Programme based on the Cotton programme featuring selected optional functions and settings. 10 kg 8 kg Baby-care For babywear 5 kg― Skin-care For items that need to be gentle to the skin, for example, underwear, sheets, towels, and...

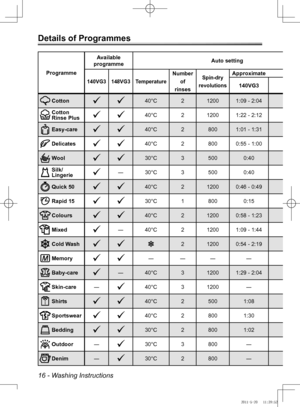

Page 16
16 - Washing Instructions Details of Programmes ProgrammeAvailable programme Auto setting Manual settingAdditional functions 140VG3148VG3 Temperature Number of rinsesSpin-dry revolutionsApproximate time TemperatureSpin-dry revolutionsEco Speed Extra RinsePrewashEasy Ironing140VG3 148VG3 140VG3 148VG3 Cotton 40°C 21200 1:09 - 2:04 1:09 - 1:49Cold - 90°C 500 - 1400 Cotton Rinse Plus40°C 21200 1:22 - 2:12 1:22 - 1:57Cold - 90°C 500 - 1400 Easy-care40°C 2800 1:01 - 1:31 1:01 - 1:21Cold - 60°C...

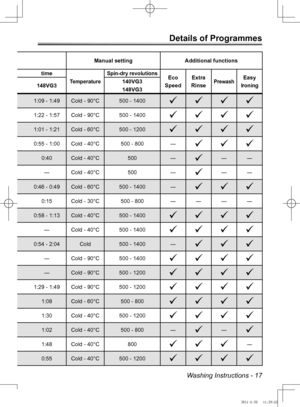

Page 17
Washing Instructions - 17 Details of Programmes ProgrammeAvailable programme Auto setting Manual settingAdditional functions 140VG3148VG3 Temperature Number of rinsesSpin-dry revolutionsApproximate time TemperatureSpin-dry revolutionsEco Speed Extra RinsePrewashEasy Ironing140VG3 148VG3 140VG3 148VG3 Cotton 40°C 21200 1:09 - 2:04 1:09 - 1:49Cold - 90°C 500 - 1400 Cotton Rinse Plus40°C 21200 1:22 - 2:12 1:22 - 1:57Cold - 90°C 500 - 1400 Easy-care40°C 2800 1:01 - 1:31 1:01 - 1:21Cold - 60°C...

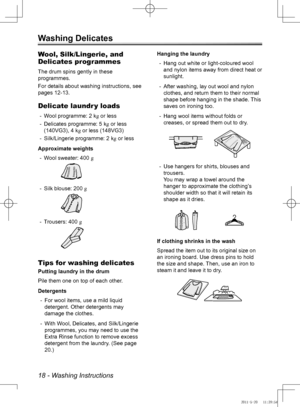

Page 18
18 - Washing Instructions Washing Delicates Wool, Silk/Lingerie, and Delicates programmes The drum spins gently in these programmes. For details about washing instructions, see pages 12-13. Delicate laundr y loads Wool programme: 2 k - g or less Delicates programme: 5 k - g or less (140VG3), 4 kg or less (148VG3) Silk/Lingerie programme: 2 k - g or less Approximate weights Wool sweater: 400 - g Silk blouse: 200 - g Trousers: 400 - g Tips for washing delicates Putting laundry in...

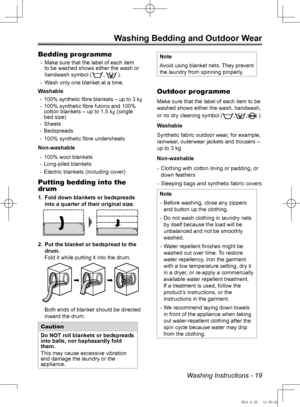

Page 19
Washing Instructions - 19 Washing Bedding and Outdoor Wear Bedding programme Make su - re that the label of each item to be washed shows either the wash or handwash sy mbol ( ,). W - ash only one blanket at a time. Washable 10 - 0% synthetic fibre blankets – up to 3 kg 100% synthetic fibre futons and 100% - cotton blankets – up to 1.5 kg (single bed size) Sheets - Bedspreads - 100% synthetic - fibre undersheets Non-washable 100% wool - blankets Long-piled blankets - Electric...

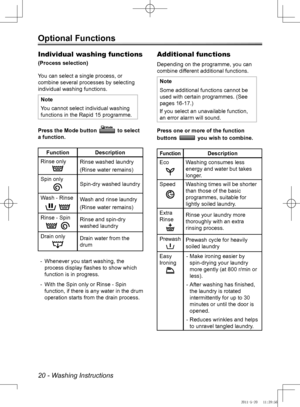

Page 20
20 - Washing Instructions Optional Functions Individual washing functions (Process selection) You can select a single process, or combine several processes by selecting individual washing functions. Note You cannot select individual washing functions in the Rapid 15 programme. Press the Mode button to select a function. Function Description Rinse only Rinse washed laundry (Rinse water remains) Spin only Spin-dry washed laundry Wash - Rinse Wash and rinse laundry (Rinse water remains) Rinse -...
