Panasonic Na 140vg3w Operating Instructions

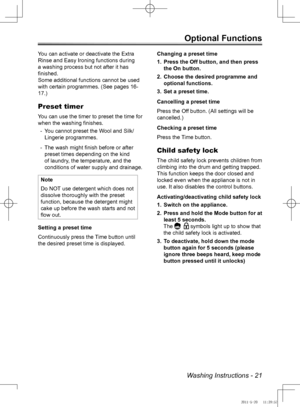

Washing Instructions - 21
Optional Functions
You can activate or deactivate the Extra
Rinse and Easy Ironing functions during
a washing process but not after it has
finished.
Some additional functions cannot be used
with certain programmes. (See pages 16-
17.)
Preset timer
You can use the timer to preset the time for
when the washing finishes.
You cannot preset the Wool and Silk/

-
Lingerie programmes.
The wash might finish before or after

-
preset times depending on the kind
of laundry, the...

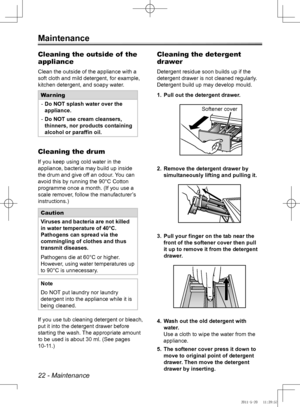

22 - Maintenance
Maintenance
Cleaning the outside of  the
appliance
Clean the outside of the appliance with a
soft cloth and mild detergent, for example,
kitchen detergent, and soapy water.
WarningDo NOT splash water over the

-
appliance.
Do NOT use cream cleansers,

-
thinners, nor products containing
alcohol or paraffin oil.
Cleaning the drum
If you keep using cold water in the
appliance, bacteria may build up inside
the drum and give off an odour. You can
avoid this by running the 90°C...

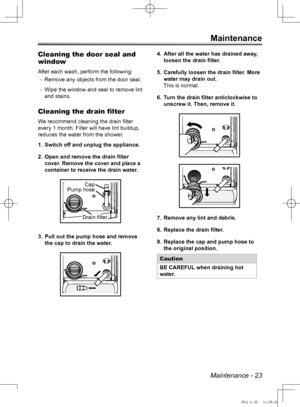

Maintenance - 23
Maintenance
Cleaning the door seal and
window
After each wash, perform the following:Remove any objects from the door seal.

-
Wipe the window and seal to remove lint

-
and stains.
Cleaning the drain filter
We recommend cleaning the drain filter
every 1 month. Filter will have lint buildup,
reduces the water from the shower.
Switch off and unplug the appliance.
1.
Open and remove the drain filter
2.
cover. Remove the cover and place a
container to receive the drain water.
Pull...

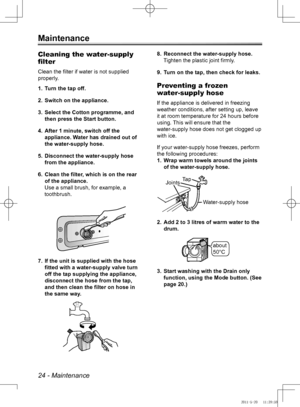

24 - Maintenance
Maintenance
Cleaning the water-supply
filter
Clean the filter if water is not supplied
properly.Turn the tap off.
1.
Switch on the appliance.
2.
Select the Cotton programme, and
3.
then press the Start button.
After 1 minute, switch off the
4.
appliance. Water has drained out of
the water-supply hose.
Disconnect the water-supply hose
5.
from the appliance.
Clean the filter, which is on the rear
6.
of the appliance.
Use a small brush, for example, a
toothbrush.
If the unit...

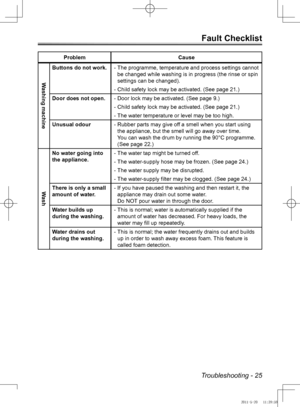

Troubleshooting - 25
Fault Checklist
ProblemCause
Washing machine
Buttons do not work.The programme, temperature and process settings cannot

-
be changed while washing is in progress (the rinse or spin
settings can be changed).
Child safety lock may be activated. (See page 21.)

-
Door does not open. Door lock may be activated. (See page 9.)

-
Child safety lock may be activated. (See page 21.)

-
The water temperature or level may be too high.

-
Unusual odour Rubber parts may give off a smell...

26 - Troubleshooting
Fault Checklist
ProblemCause
Rinse/Spin
No water flows into
the appliance during
the rinsing process.Before rinsing, the appliance spins to drain out remaining

-
water. The water will fill up after that.
Rinsing begins
before the spin
process finishes. The appliance may have detected an unbalanced load,

-
which is caused by the laundry shifting to one side of
the drum, so rinsing started automatically to correct the
imbalance.
After washing, excess foam may remain, so...

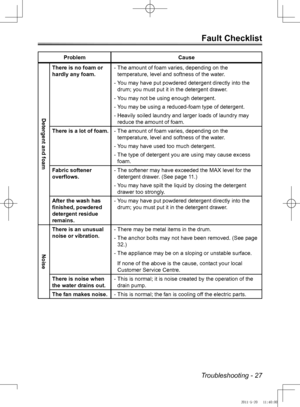

Troubleshooting - 27
Fault Checklist
ProblemCause
Detergent and foam
There is no foam or
hardly any foam.The amount of foam varies, depending on the

-
temperature, level and softness of the water.
You may have put powdered detergent directly into the

-
drum; you must put it in the detergent drawer.
You may not be using enough detergent.

-
You may be using a reduced-foam type of detergent.

-
Heavily soiled laundry and larger loads of laundry may

-
reduce the amount of foam.
There is a lot...

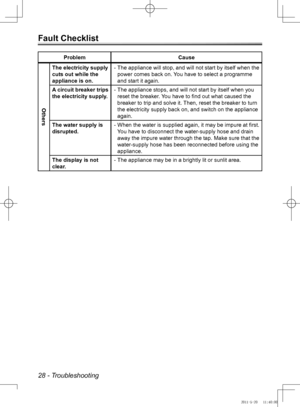

28 - Troubleshooting
Fault Checklist
ProblemCause
Others
The electricity supply
cuts out while the
appliance is on.The appliance will stop, and will not start by itself when the

-
power comes back on. You have to select a programme
and start it again.
A circuit breaker trips
the electricity supply. The appliance stops, and will not start by itself when you

-
reset the breaker. You have to find out what caused the
breaker to trip and solve it. Then, reset the breaker to turn
the electricity...

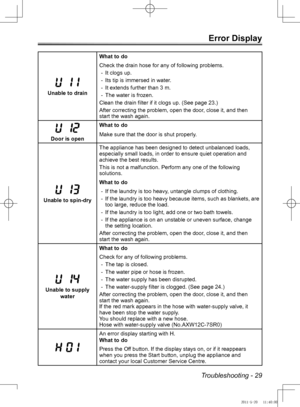

Troubleshooting - 29
Error Display
Unable to drainWhat to do
Check the drain hose for any of following problems.
It clogs up.

-
Its tip is immersed in water.

-
It extends further than 3 m.

-
The water is frozen.

-
Clean the drain filter if it clogs up. (See page 23.)
After correcting the problem, open the door, close it, and then
start the wash again.
Door is open What to do
Make sure that the door is shut properly.
Unable to spin-dry The appliance has been designed to detect unbalanced loads,...

30 - Installation Instructions
Choosing the Right Location
Carr ying the appliance
The appliance must be carried by 2 or
more people.
Start by tilting the appliance backwards.
One person should stand behind it, holding
the rear of the top panel. The other person
should grip the bottom stands in the front.
The right place for the
appliance
Make sure that there is enough space for
the appliance and that openings on the
base are not obstructed by a carpet.
582596
240
516594625
38
845
Dimension in...
