Panasonic Na 140vg3w Operating Instructions

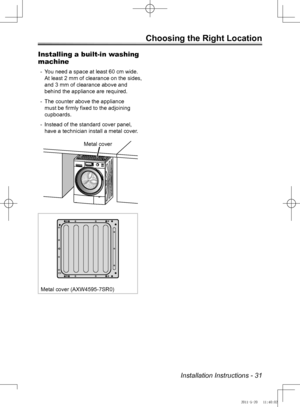

Installation Instructions - 31
Choosing the Right Location
Installing a built-in washing
machine
You need a space at least 60 cm wide.

-
At least 2 mm of clearance on the sides,
and 3 mm of clearance above and
behind the appliance are required.
The counter above the appliance

-
must be firmly fixed to the adjoining
cupboards.
Instead of the standard cover panel,

-
have a technician install a metal cover.
Metal cover (AXW4595-7SR0) Metal cover
NA-140VG3_Australia.indb   312011-5-20   11:40:02

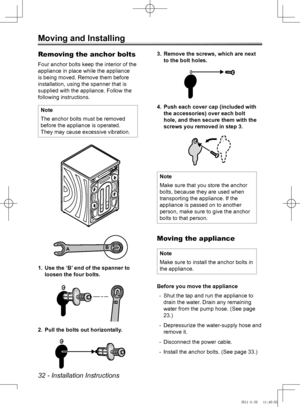

32 - Installation Instructions
Moving and Installing
Removing the anchor bolts
Four anchor bolts keep the interior of the
appliance in place while the appliance
is being moved. Remove them before
installation, using the spanner that is
supplied with the appliance. Follow the
following instructions.
Note
The anchor bolts must be removed
before the appliance is operated.
They may cause excessive vibration.
B
A
Use the ‘B’ end of the spanner to
1.
loosen the four bolts.
B
Pull the bolts out...

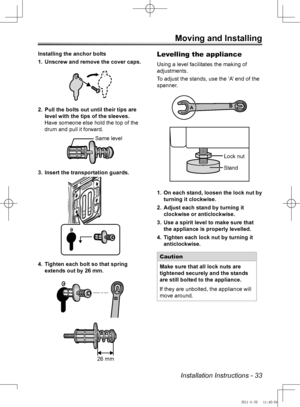

Installation Instructions - 33
Moving and Installing
Installing the anchor boltsUnscrew and remove the cover caps.
1.
Pull the bolts out until their tips are
2.
level with the tips of the sleeves.
Have someone else hold the top of the
drum and pull it forward.
Insert the transportation guards.
3.
Tighten each bolt so that spring
4.
extends out by 26 mm.
B
Levelling the appliance
Using a level facilitates the making of
adjustments.
To adjust the stands, use the ‘A’ end of the
spanner.
B
A
On each...

34 - Installation Instructions

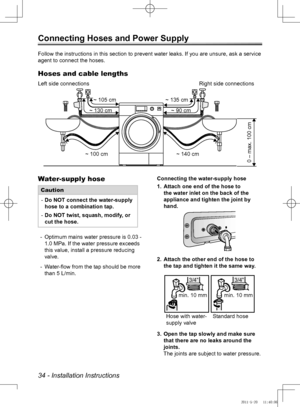

Connecting Hoses and Power Supply
Water-supply hose
CautionDo NOT connect the water-supply

-
hose to a combination tap.
Do NOT twist, squash, modify, or

-
cut the hose.
Optimum mains water pressure is 0.03 -

-
1.0 MPa. If the water pressure exceeds
this value, install a pressure reducing
valve.
Water-flow from the tap should be more

-
than 5 L/min. Connecting the water-supply hose
Attach one end of the hose to
1.
the water inlet on the back of the...

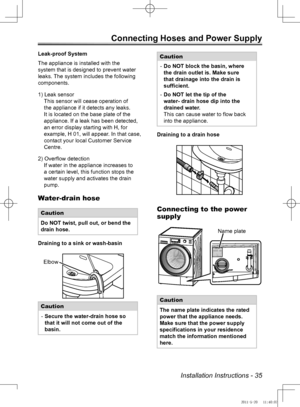

Installation Instructions - 35
Connecting Hoses and Power Supply
Leak-proof System
The appliance is installed with the
system that is designed to prevent water
leaks. The system includes the following
components.
1) Leak sensorThis sensor will cease operation of
the appliance if it detects any leaks.
It is located on the base plate of the
appliance. If a leak has been detected,
an error display starting with H, for
example, H 01, will appear. In that case,
contact your local Customer Service...

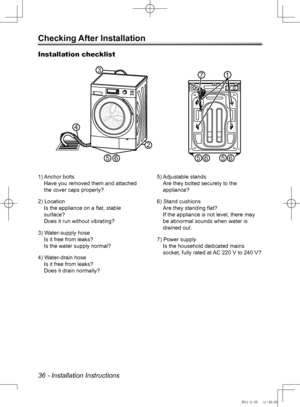

36 - Installation Instructions
Checking After Installation
Installation checklist
3
2
4
65
71
5656
5) Adjustable standsAre they bolted securely to the
appliance?
6) Stand cushions Are they standing flat?
If the appliance is not level, there may
be abnormal sounds when water is
drained out.
7) Power supply Is the household dedicated mains
socket, fully rated at AC 220 V to 240 V?
1) Anchor bolts
Have you removed them and attached
the cover caps properly?
2) Location Is the...

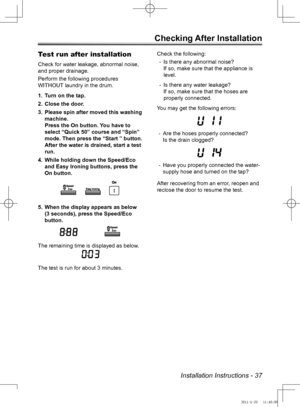

Installation Instructions - 37
Checking After Installation
Test run after installation
Check for water leakage, abnormal noise,
and proper drainage.
Perform the following procedures
WITHOUT laundry in the drum.Turn on the tap.
1.
Close the door.
2.
Please spin after moved this washing
3.
machine.
Press the On button. You have to
select “Quick 50” course and “Spin”
mode. Then press the “Start ” button.
After the water is drained, start a test
run.
While holding down the Speed/Eco
4.
and...

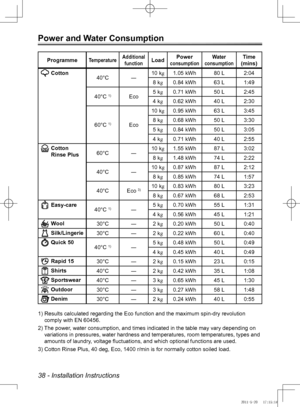

38 - Installation Instructions

Power and Water Consumption

ProgrammeTemperatureAdditional
functionLoad Power
consumption
Water
consumption
Time
(mins)

Cotton 40°C―10 kg
1.05 kWh 80 L2:04
8 kg 0.84 kWh 63 L1:49
40°C
1)Eco 5 kg
0.71 kWh 50 L2:45
4 kg 0.62 kWh 40 L2:30
60°C
1)Eco 10 kg
0.95 kWh 63 L3:45
8 kg 0.68 kWh 50 L3:30
5 kg 0.84 kWh 50 L3:05
4 kg 0.71 kWh 40 L2:55

Cotton
Rinse Plus 60°C
―10 kg
1.55 kWh 87 L3:02
8 kg 1.48 kWh 74 L2:22
40°C ―10 kg
0.87 kWh 87 L2:12
8 kg 0.85 kWh 74 L1:57...

Installation Instructions - 39

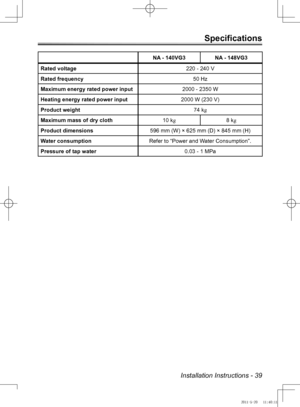

Specifications
NA - 140VG3NA - 148VG3
Rated voltage 220 - 240 V
Rated frequency 50 Hz
Maximum energy rated power input 2000 - 2350 W
Heating energy rated power input 2000 W (230 V)
Product weight 74 kg
Maximum mass of dry cloth 10 kg8 kg
Product dimensions 596 mm (W) × 625 mm (D) × 845 mm (H)
Water consumption Refer to “Power and Water Consumption”.
Pressure of tap water 0.03 - 1 MPa
NA-140VG3_Australia.indb   392011-5-20   11:40:11

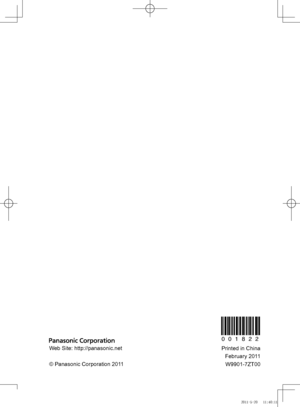

Web Site: http://panasonic.net
© Panasonic Corporation 2011Printed in China
February 2011W9901-7ZT00
