Page 101

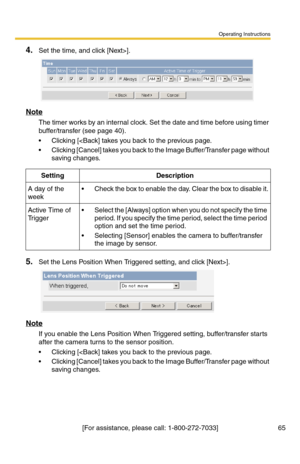

![Page 101
Operating Instructions
65[For assistance, please call: 1-800-272-7033]
4.Set the time, and click [Next>].
Note
The timer works by an internal clock. Set the date and time before using timer
buffer/transfer (see page 40).
Clicking [].
Note
If you enable the Lens Position When Triggered setting, buffer/transfer starts
after the camera turns to the sensor position.
Clicking [](http://img.usermanuals.tech/thumb/58/74587/w300_bl-c30a_en_start_om_d-100.png "Page 101
Operating Instructions
65[For assistance, please call: 1-800-272-7033]
4.Set the time, and click [Next>].
Note
The timer works by an internal clock. Set the date and time before using timer
buffer/transfer (see page 40).
Clicking [].
Note
If you enable the Lens Position When Triggered setting, buffer/transfer starts
after the camera turns to the sensor position.
Clicking [")
Operating Instructions 65[For assistance, please call: 1-800-272-7033] 4.Set the time, and click [Next>]. Note The timer works by an internal clock. Set the date and time before using timer buffer/transfer (see page 40). Clicking []. Note If you enable the Lens Position When Triggered setting, buffer/transfer starts after the camera turns to the sensor position. Clicking [
Page 102

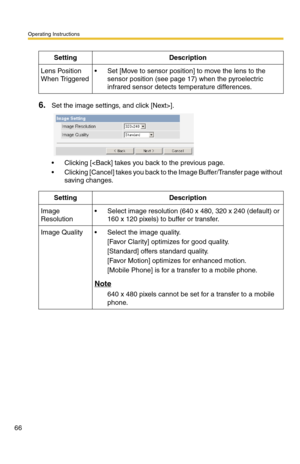

![Page 102
Operating Instructions
66
6.Set the image settings, and click [Next>].
Clicking [](http://img.usermanuals.tech/thumb/58/74587/w300_bl-c30a_en_start_om_d-101.png "Page 102
Operating Instructions
66
6.Set the image settings, and click [Next>].
Clicking [")
Operating Instructions 66 6.Set the image settings, and click [Next>]. Clicking [
Page 103

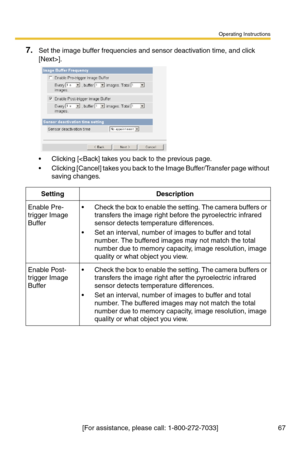

![Page 103
Operating Instructions
67[For assistance, please call: 1-800-272-7033]
7.Set the image buffer frequencies and sensor deactivation time, and click
[Next>].
Clicking [](http://img.usermanuals.tech/thumb/58/74587/w300_bl-c30a_en_start_om_d-102.png "Page 103
Operating Instructions
67[For assistance, please call: 1-800-272-7033]
7.Set the image buffer frequencies and sensor deactivation time, and click
[Next>].
Clicking [")
Operating Instructions 67[For assistance, please call: 1-800-272-7033] 7.Set the image buffer frequencies and sensor deactivation time, and click [Next>]. Clicking [
Page 104

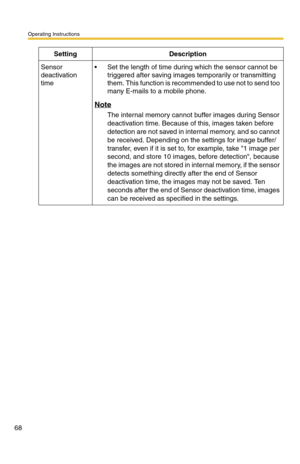

Operating Instructions 68 Sensor deactivation time Set the length of time during which the sensor cannot be triggered after saving images temporarily or transmitting them. This function is recommended to use not to send too many E-mails to a mobile phone. Note The internal memory cannot buffer images during Sensor deactivation time. Because of this, images taken before detection are not saved in internal memory, and so cannot be received. Depending on the settings for image buffer/ transfer,...
Page 105

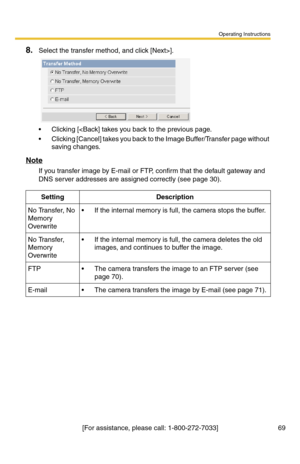

![Page 105
Operating Instructions
69[For assistance, please call: 1-800-272-7033]
8.Select the transfer method, and click [Next>].
Clicking [](http://img.usermanuals.tech/thumb/58/74587/w300_bl-c30a_en_start_om_d-104.png "Page 105
Operating Instructions
69[For assistance, please call: 1-800-272-7033]
8.Select the transfer method, and click [Next>].
Clicking [")
Operating Instructions 69[For assistance, please call: 1-800-272-7033] 8.Select the transfer method, and click [Next>]. Clicking [
Page 106

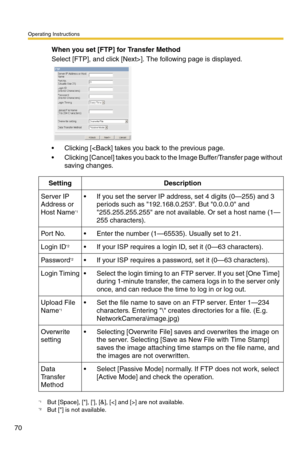

![Page 106
Operating Instructions
70
When you set [FTP] for Transfer Method
Select [FTP], and click [Next>]. The following page is displayed.
Clicking [](http://img.usermanuals.tech/thumb/58/74587/w300_bl-c30a_en_start_om_d-105.png "Page 106
Operating Instructions
70
When you set [FTP] for Transfer Method
Select [FTP], and click [Next>]. The following page is displayed.
Clicking [")
Operating Instructions 70 When you set [FTP] for Transfer Method Select [FTP], and click [Next>]. The following page is displayed. Clicking [
Page 107

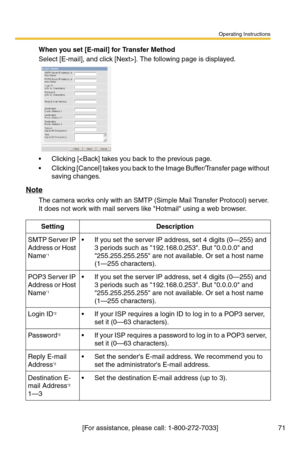

![Page 107
Operating Instructions
71[For assistance, please call: 1-800-272-7033] When you set [E-mail] for Transfer Method
Select [E-mail], and click [Next>]. The following page is displayed.
Clicking [](http://img.usermanuals.tech/thumb/58/74587/w300_bl-c30a_en_start_om_d-106.png "Page 107
Operating Instructions
71[For assistance, please call: 1-800-272-7033] When you set [E-mail] for Transfer Method
Select [E-mail], and click [Next>]. The following page is displayed.
Clicking [")
Operating Instructions 71[For assistance, please call: 1-800-272-7033] When you set [E-mail] for Transfer Method Select [E-mail], and click [Next>]. The following page is displayed. Clicking [

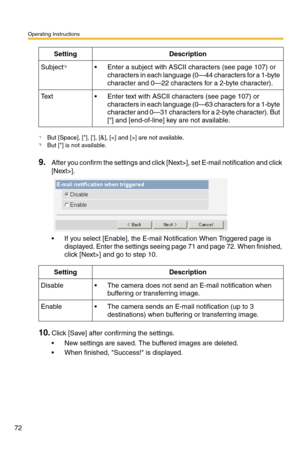

Page 108
![Page 108
Operating Instructions
72
9.After you confirm the settings and click [Next>], set E-mail notification and click
[Next>].
If you select [Enable], the E-mail Notification When Triggered page is
displayed. Enter the settings seeing page 71 and page 72. When finished,
click [Next>] and go to step 10.
10.Click [Save] after confirming the settings.
New settings are saved. The buffered images are deleted.
When finished, Success! is displayed. Subject
*2 Enter a subject with ASCII characters (see page...](http://img.usermanuals.tech/thumb/58/74587/w300_bl-c30a_en_start_om_d-107.png "Page 108
Operating Instructions
72
9.After you confirm the settings and click [Next>], set E-mail notification and click
[Next>].
If you select [Enable], the E-mail Notification When Triggered page is
displayed. Enter the settings seeing page 71 and page 72. When finished,
click [Next>] and go to step 10.
10.Click [Save] after confirming the settings.
New settings are saved. The buffered images are deleted.
When finished, Success! is displayed. Subject
*2 Enter a subject with ASCII characters (see page...")
Operating Instructions 72 9.After you confirm the settings and click [Next>], set E-mail notification and click [Next>]. If you select [Enable], the E-mail Notification When Triggered page is displayed. Enter the settings seeing page 71 and page 72. When finished, click [Next>] and go to step 10. 10.Click [Save] after confirming the settings. New settings are saved. The buffered images are deleted. When finished, Success! is displayed. Subject *2 Enter a subject with ASCII characters (see page...
Page 109

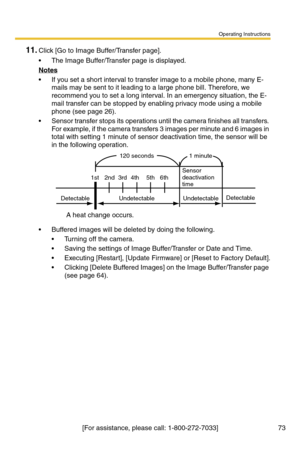

![Page 109
Operating Instructions
73[For assistance, please call: 1-800-272-7033]
11.Click [Go to Image Buffer/Transfer page].
The Image Buffer/Transfer page is displayed.
Notes
If you set a short interval to transfer image to a mobile phone, many E-
mails may be sent to it leading to a large phone bill. Therefore, we
recommend you to set a long interval. In an emergency situation, the E-
mail transfer can be stopped by enabling privacy mode using a mobile
phone (see page 26).
Sensor transfer stops its...](http://img.usermanuals.tech/thumb/58/74587/w300_bl-c30a_en_start_om_d-108.png "Page 109
Operating Instructions
73[For assistance, please call: 1-800-272-7033]
11.Click [Go to Image Buffer/Transfer page].
The Image Buffer/Transfer page is displayed.
Notes
If you set a short interval to transfer image to a mobile phone, many E-
mails may be sent to it leading to a large phone bill. Therefore, we
recommend you to set a long interval. In an emergency situation, the E-
mail transfer can be stopped by enabling privacy mode using a mobile
phone (see page 26).
Sensor transfer stops its...")
Operating Instructions 73[For assistance, please call: 1-800-272-7033] 11.Click [Go to Image Buffer/Transfer page]. The Image Buffer/Transfer page is displayed. Notes If you set a short interval to transfer image to a mobile phone, many E- mails may be sent to it leading to a large phone bill. Therefore, we recommend you to set a long interval. In an emergency situation, the E- mail transfer can be stopped by enabling privacy mode using a mobile phone (see page 26). Sensor transfer stops its...

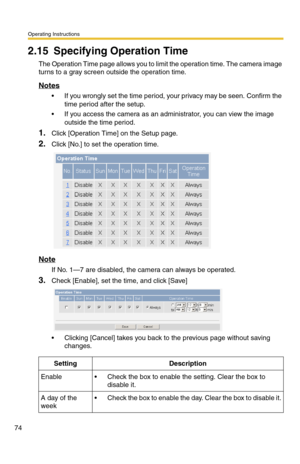

Page 110
![Page 110
Operating Instructions
74
2.15 Specifying Operation Time
The Operation Time page allows you to limit the operation time. The camera image
turns to a gray screen outside the operation time.
Notes
If you wrongly set the time period, your privacy may be seen. Confirm the
time period after the setup.
If you access the camera as an administrator, you can view the image
outside the time period.
1.Click [Operation Time] on the Setup page.
2.Click [No.] to set the operation time.
Note
If No. 1—7 are...](http://img.usermanuals.tech/thumb/58/74587/w300_bl-c30a_en_start_om_d-109.png "Page 110
Operating Instructions
74
2.15 Specifying Operation Time
The Operation Time page allows you to limit the operation time. The camera image
turns to a gray screen outside the operation time.
Notes
If you wrongly set the time period, your privacy may be seen. Confirm the
time period after the setup.
If you access the camera as an administrator, you can view the image
outside the time period.
1.Click [Operation Time] on the Setup page.
2.Click [No.] to set the operation time.
Note
If No. 1—7 are...")
Operating Instructions 74 2.15 Specifying Operation Time The Operation Time page allows you to limit the operation time. The camera image turns to a gray screen outside the operation time. Notes If you wrongly set the time period, your privacy may be seen. Confirm the time period after the setup. If you access the camera as an administrator, you can view the image outside the time period. 1.Click [Operation Time] on the Setup page. 2.Click [No.] to set the operation time. Note If No. 1—7 are...
