Panasonic Network Camera BL-C30A Getting Started Manual

Operating Instructions
85[For assistance, please call: 1-800-272-7033]

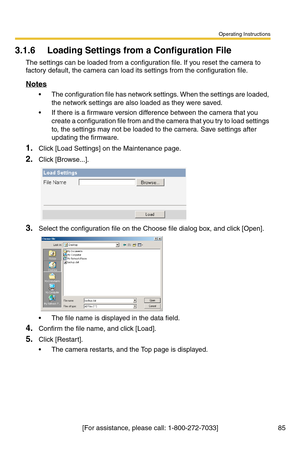

3.1.6 Loading Settings from a Configuration File
The settings can be loaded from a configuration file. If you reset the camera to
factory default, the camera can load its settings from the configuration file.
Notes
 The configuration file has network settings. When the settings are loaded,
the network settings are also loaded as they were saved.
 If there is a firmware version difference between the camera that you
create a...

Operating Instructions
86

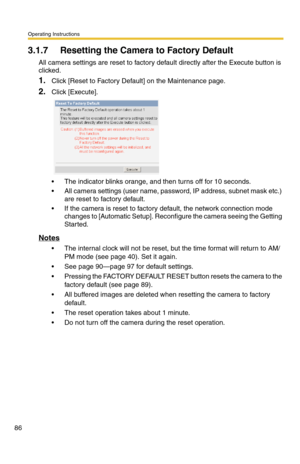

3.1.7 Resetting the Camera to Factory Default
All camera settings are reset to factory default directly after the Execute button is
clicked.
1.Click [Reset to Factory Default] on the Maintenance page.
2.Click [Execute].
 The indicator blinks orange, and then turns off for 10 seconds.
 All camera settings (user name, password, IP address, subnet mask etc.)
are reset to factory default.
 If the camera is reset to factory default, the network connection mode
changes to...

Operating Instructions
87[For assistance, please call: 1-800-272-7033]

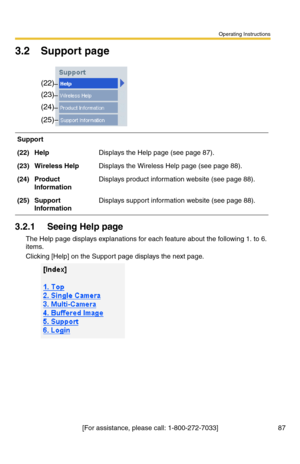

3.2 Support page
3.2.1 Seeing Help page
The Help page displays explanations for each feature about the following 1. to 6.
items.
Clicking [Help] on the Support page displays the next page. Support
(22) HelpDisplays the Help page (see page 87).
(23) Wireless HelpDisplays the Wireless Help page (see page 88).
(24) Product
InformationDisplays product information website (see page 88).
(25) Support
InformationDisplays support...

Operating Instructions
88

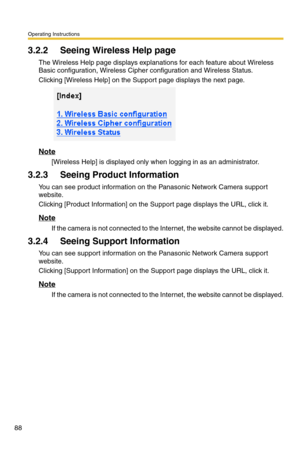

3.2.2 Seeing Wireless Help page
The Wireless Help page displays explanations for each feature about Wireless
Basic configuration, Wireless Cipher configuration and Wireless Status.
Clicking [Wireless Help] on the Support page displays the next page.
Note
[Wireless Help] is displayed only when logging in as an administrator.
3.2.3 Seeing Product Information
You can see product information on the Panasonic Network Camera support
website.
Clicking [Product Information] on the...

Operating Instructions
89[For assistance, please call: 1-800-272-7033]

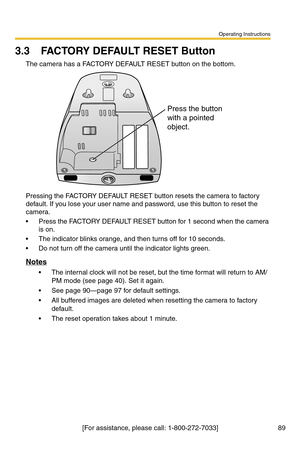

3.3 FACTORY DEFAULT RESET Button
The camera has a FACTORY DEFAULT RESET button on the bottom.
Pressing the FACTORY DEFAULT RESET button resets the camera to factory
default. If you lose your user name and password, use this button to reset the
camera.
 Press the FACTORY DEFAULT RESET button for 1 second when the camera
is on.
 The indicator blinks orange, and then turns off for 10 seconds.
 Do not turn off the camera until the...

Operating Instructions
90

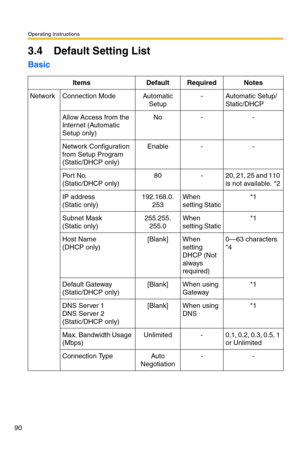

3.4 Default Setting List
Basic
Items Default Required Notes
Network Connection Mode Automatic
Setup- Automatic Setup/
Static/DHCP
Allow Access from the
Internet (Automatic
Setup only)No - -
Network Configuration
from Setup Program
(Static/DHCP only)Enable - -
Port No.
(Static/DHCP only)80 - 20, 21, 25 and 110
is not available. *2
IP address
(Static only)192.168.0.
253When
setting Static*1
Subnet Mask
(Static only)255.255.
255.0When
setting Static*1
Host Name
(DHCP...

Operating Instructions

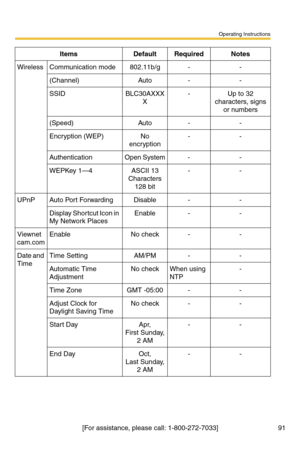

91[For assistance, please call: 1-800-272-7033] Wireless Communication mode 802.11b/g - -
(Channel) Auto - -
SSID BLC30AXXX
X- Up to 32
characters, signs
or numbers
(Speed) Auto - -
Encryption (WEP) No
encryption--
Authentication Open System - -
WEPKey 1—4 ASCII 13
Characters
128 bit--
UPnP Auto Port Forwarding Disable - -
Display Shortcut Icon in
My Network PlacesEnable - -
Viewnet
cam.comEnable No check - -
Date and
TimeTime Setting AM/PM - -
Automatic Time
AdjustmentNo...

Operating Instructions
92

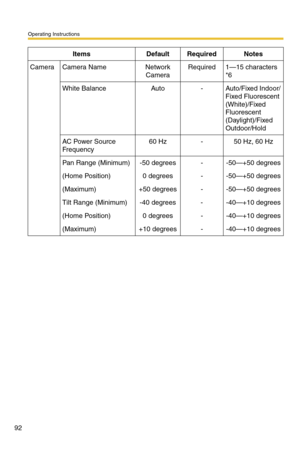

Camera Camera Name Network
CameraRequired 1—15 characters
*6
White Balance Auto - Auto/Fixed Indoor/
Fixed Fluorescent
(White)/Fixed
Fluorescent
(Daylight)/Fixed
Outdoor/Hold
AC Power Source
Frequency60 Hz - 50 Hz, 60 Hz
Pan Range (Minimum) -50 degrees - -50—+50 degrees
(Home Position) 0 degrees - -50—+50 degrees
(Maximum) +50 degrees - -50—+50 degrees
Tilt Range (Minimum) -40 degrees - -40—+10 degrees
(Home Position) 0 degrees - -40—+10 degrees
(Maximum) +10 degrees -...

Operating Instructions
93[For assistance, please call: 1-800-272-7033]

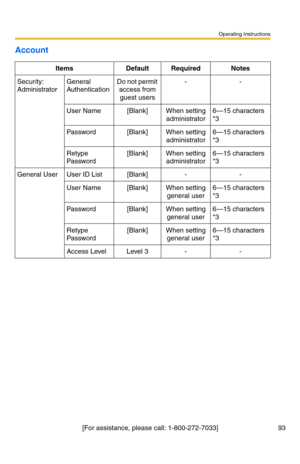

Account
Items Default Required Notes
Security:
AdministratorGeneral
AuthenticationDo not permit
access from
guest users --
User Name [Blank] When setting
administrator6—15 characters
*3
Password [Blank] When setting
administrator6—15 characters
*3
Retype
Password[Blank] When setting
administrator6—15 characters
*3
General User User ID List [Blank] - -
User Name [Blank] When setting
general user6—15 characters
*3
Password...

Operating Instructions
94

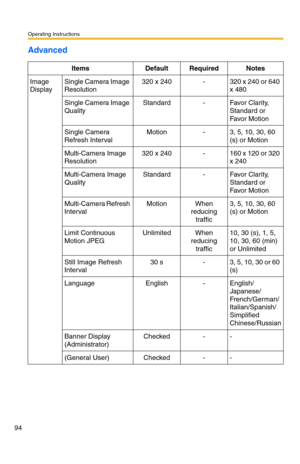

Advanced
Items Default Required Notes
DisplaySingle Camera Image
Resolution320 x 240 - 320 x 240 or 640
x 480
Single Camera Image
QualityStandard - Favor Clarity,
Standard or
Favor Motion
Single Camera
Refresh IntervalMotion - 3, 5, 10, 30, 60
(s) or Motion
Multi-Camera Image
Resolution320 x 240 - 160 x 120 or 320
x 240
Multi-Camera Image
QualityStandard - Favor Clarity,
Standard or
Favor Motion
Multi-Camera Refresh
IntervalMotion When
reducing
traffic3, 5,...
