Panasonic Projector PT-DW100U User Manual

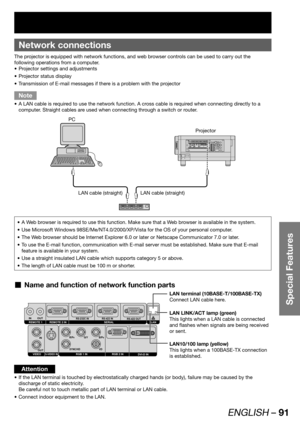

ENGLISH – 91
Special Features

Network connections
The projector is equipped with network functions, and web browser controls can be used to carry out the
following operations from a computer.
Projector settings and adjustments •
Projector status display •
Transmission of E-mail messages if there is a problem with the projector •
Note
A LAN cable is required to use the network function. A cross cable is required when connecting directly to a  •
computer. Straight cables are used when connecting...

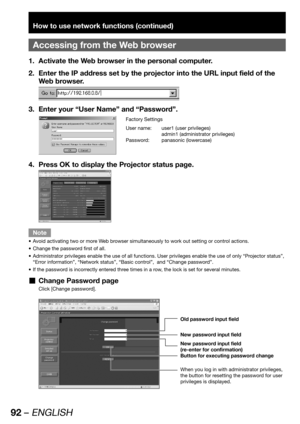

92 – ENGLISH
How to use network functions (continued)
Accessing from the Web browser
Activate the Web browser in the personal computer. 1.
Enter the IP address set by the projector into the URL input field of the  2.
Web browser.
Enter your “User Name” and “Password”. 3.
Factory Settings
User name:  user1 (user privileges)
  admin1 (administrator privileges)
Password: panasonic (lowercase)
Press OK to display the Projector status page. 4.
Note
Avoid activating two or more Web browser simultaneously...

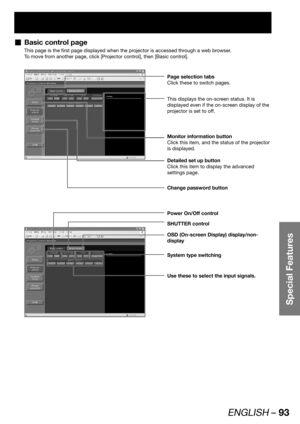

ENGLISH – 93
Special Features
Basic control page  „
This page is the first page displayed when the projector is accessed through a web browser.
To move from another page, click [Projector control], then [Basic control].
Page selection tabs
Click these to switch pages.
Monitor information button
Click this item, and the status of the projector
is displayed.
This displays the on-screen status. It is
displayed even if the on-screen display of the
projector is set to off.
Detailed set up button
Click this...

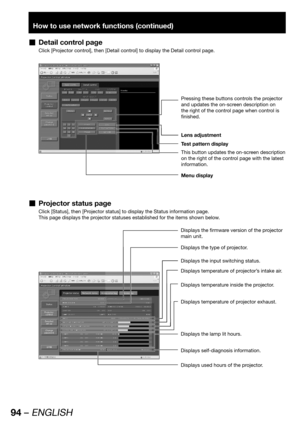

94 – ENGLISH
How to use network functions (continued)
Detail control page  „
Click [Projector control], then [Detail control] to display the Detail control page.
Lens adjustment
Menu display
Test pattern display
This button updates the on-screen description
on the right of the control page with the latest
information.
Pressing these buttons controls the projector
and updates the on-screen description on
the right of the control page when control is
finished.
Projector status page  „
Click [Status],...

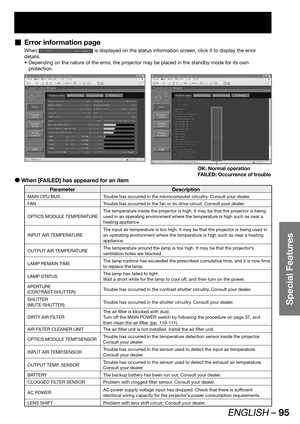

ENGLISH – 95
Special Features
Error information page  „
When  is displayed on the status information screen, click it to display the error
details.
Depending on the nature of the error, the projector may be placed in the standby mode for its own  •
protection.
OK: Normal operation
FAILED: Occurrence of trouble
When [FAILED] has appeared for an item  z
Parameter Description
MAIN CPU BUS Trouble has occurred in the microcomputer circuitry. Consult your dealer.
FAN Trouble has occurred in the fan or its...

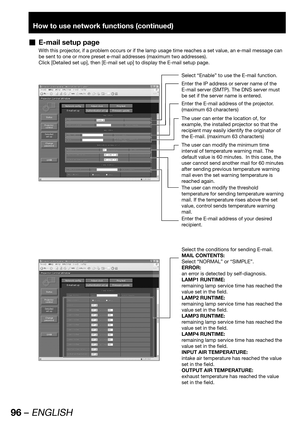

96 – ENGLISH
How to use network functions (continued)
E-mail setup page  „
With this projector, if a problem occurs or if the lamp usage time reaches a set value, an e-mail message can
be sent to one or more preset e-mail addresses (maximum two addresses).
Click [Detailed set up], then [E-mail set up] to display the E-mail setup page.
Select “Enable” to use the E-mail function.
Enter the IP address or server name of the
E-mail server (SMTP). The DNS server must
be set if the server name is entered....

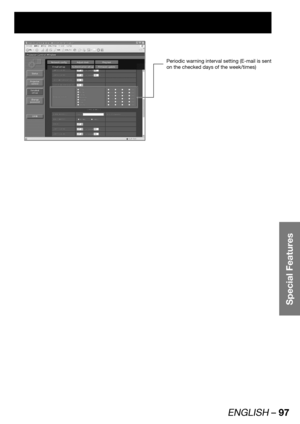

ENGLISH – 97
Special Features
Periodic warning interval setting (E-mail is sent
on the checked days of the week/times)

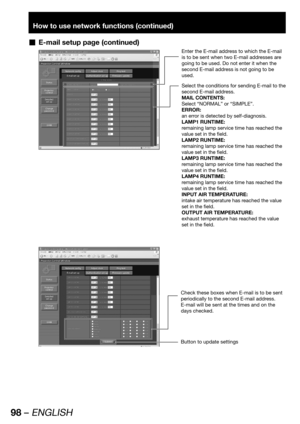

98 – ENGLISH
How to use network functions (continued)
E-mail setup page (continued)  „
Select the conditions for sending E-mail to the
second E-mail address.
MAIL CONTENTS:
Select “NORMAL” or “SIMPLE”.
ERROR:
an error is detected by self-diagnosis.
LAMP1 RUNTIME:
remaining lamp service time has reached the
value set in the field.
LAMP2 RUNTIME:
remaining lamp service time has reached the
value set in the field.
LAMP3 RUNTIME:
remaining lamp service time has reached the
value set in the field.
LAMP4...

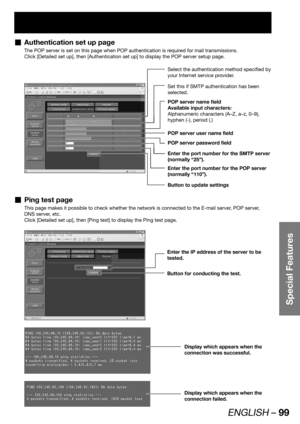

ENGLISH – 99
Special Features
Authentication set up page  „
The POP server is set on this page when POP authentication is required for mail transmissions.
Click [Detailed set up], then [Authentication set up] to display the POP server setup page.
Select the authentication method specified by
your Internet service provider.
Set this if SMTP authentication has been
selected.
POP server name field
Available input characters:
Alphanumeric characters (A–Z, a–z, 0–9),
hyphen (-), period (.)
POP server user...

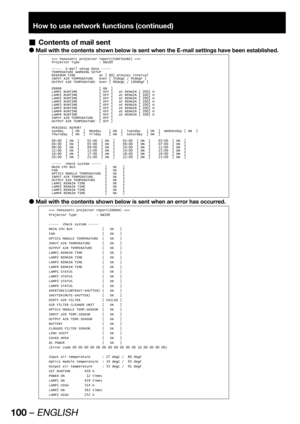

100 – ENGLISH
How to use network functions (continued)
Contents of mail sent  „
Mail with the contents shown below is sent when the E-mail settings have been established.  z
=== Panasonic projector report(CONFIGURE) ===
Projector Type          : DW100
-----  E-mail setup data -----
TEMPERATURE WARNING SETUP
MINIMUM TIME            at [ 60] minutes interval
INPUT AIR TEMPERATURE   Over [ 35degC / 95degF ]
OUTPUT AIR TEMPERATURE  Over [ 60degC / 140degF ]
ERROR                   [ ON  ]
LAMP1 RUNTIME...
