Panasonic Projector PT-DW100U User Manual

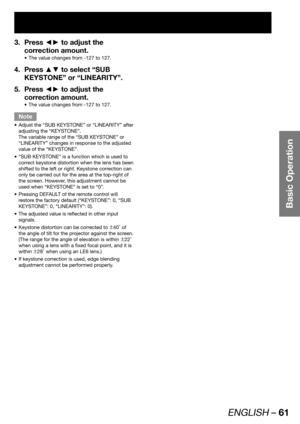

ENGLISH – 61
Basic Operation
Press ◄► to adjust the  3.
correction amount.
The value changes from -127 to 127. •
Press ▲▼ to select “SUB  4.
KEYSTONE” or “LINEARITY”.
Press ◄► to adjust the  5.
correction amount.
The value changes from -127 to 127. •
Note
Adjust the “SUB KEYSTONE” or “LINEARITY” after  •
adjusting the “KEYSTONE”.
The variable range of the “SUB KEYSTONE” or
“LINEARITY” changes in response to the adjusted
value of the “KEYSTONE”.
“SUB KEYSTONE” is a function which is used to  •...

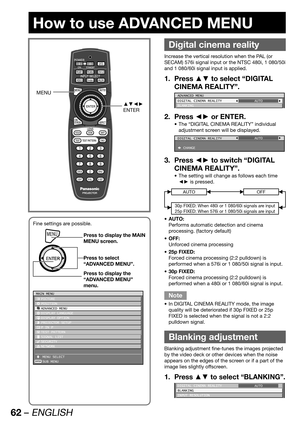

62 – ENGLISH
How to use ADVANCED MENU

Digital cinema reality
Increase the vertical resolution when the PAL (or
SECAM) 576i signal input or the NTSC 480i, 1 080/50i
and 1 080/60i signal input is applied.
Press ▲▼ to select “DIGITAL  1.
CINEMA REALITY”.
ADVANCED MENU
DIGITAL CINEMA REALITY
BLANKINGAUTO
Press ◄► or ENTER. 2.
The “DIGITAL CINEMA REALITY” individual  •
adjustment screen will be displayed.
DIGITAL CINEMA REALITY
 CHANGEAUTO
Press ◄► to switch “DIGITAL  3.
CINEMA REALITY”.
The setting...

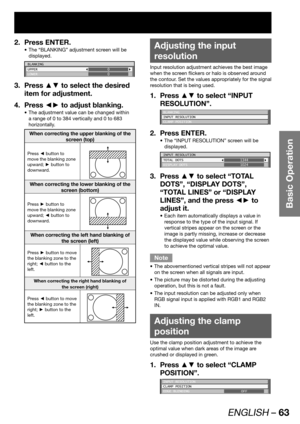

ENGLISH – 63
Basic Operation
Press ENTER. 2.
The “BLANKING” adjustment screen will be  •
displayed.
BLANKING
UPPER
LOWER0
0
Press ▲▼ to select the desired  3.
item for adjustment.
Press ◄► to adjust blanking. 4.
The adjustment value can be changed within  •
a range of 0 to 384 vertically and 0 to 683
horizontally.
When correcting the upper blanking of the
screen (top)
Press ◄ button to
move the blanking zone
upward; ► button to
downward.
When correcting the lower blanking of the
screen...

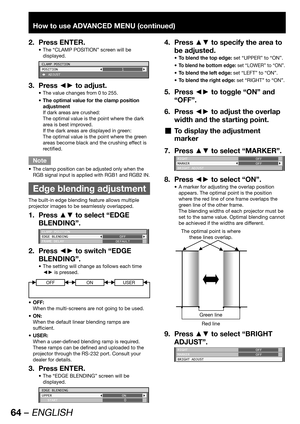

64 – ENGLISH
How to use ADVANCED MENU (continued)
Press ENTER. 2.
The “CLAMP POSITION” screen will be  •
displayed.
CLAMP POSITION
POSITION
 ADJUST1
Press ◄► to adjust. 3.
The value changes from 0 to 255. •
The optimal value for the clamp position  •
adjustment
If dark areas are crushed:
The optimal value is the point where the dark
area is best improved.
If the dark areas are displayed in green:
The optimal value is the point where the green
areas become black and the crushing effect is...

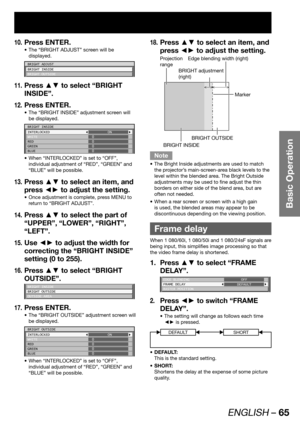

ENGLISH – 65
Basic Operation
Press ENTER.10.
The “BRIGHT ADJUST” screen will be  •
displayed.
BRIGHT ADJUST
BRIGHT INSIDE
BRIGHT OUTSIDE
Press ▲▼ to select “BRIGHT 11.
INSIDE”.
Press ENTER.
12.
The “BRIGHT INSIDE” adjustment screen will  •
be displayed.
BRIGHT INSIDE
INTERLOCKED
WHITE
RED
GREEN
BLUEON
0
0
0
0
When “INTERLOCKED” is set to “OFF”,  •
individual adjustment of “RED”, “GREEN” and
“BLUE” will be possible.
Press ▲▼ to select an item, and 13.
press ◄► to adjust the setting.
Once...

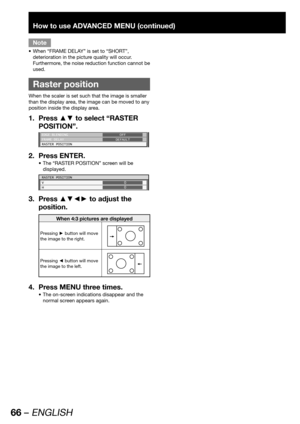

66 – ENGLISH
How to use ADVANCED MENU (continued)
Note
When “FRAME DELAY” is set to “SHORT”,  •
deterioration in the picture quality will occur.
Furthermore, the noise reduction function cannot be
used.
  Raster position
When the scaler is set such that the image is smaller
than the display area, the image can be moved to any
position inside the display area.
Press ▲▼ to select “RASTER  1.
POSITION”.
EDGE BLENDING
FRAME DELAY
RASTER POSITIONOFF
DEFAULT
Press ENTER. 2.
The “RASTER POSITION” screen...

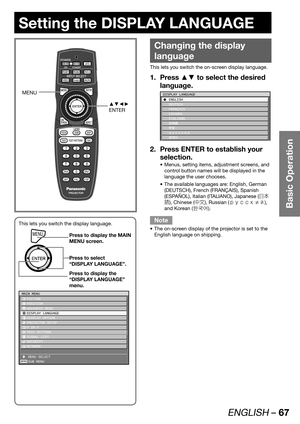

ENGLISH – 67
Basic Operation
Setting the DISPLAY LANGUAGE
Changing the display
language
This lets you switch the on-screen display language.
Press ▲▼ to select the desired  1.
language.
DISPLAY LANGUAGE
C ENGLISH
 DEUTSCH
 FRANÇAIS
 ESPAÑOL
 ITALIANO

ÔŠ  ¤ UXVVOMN à´	¯
Press ENTER to establish your  2.
selection.
Menus, setting items, adjustment screens, and  •
control button names will be displayed in the
language the user chooses.
The available languages are: English, German  •...

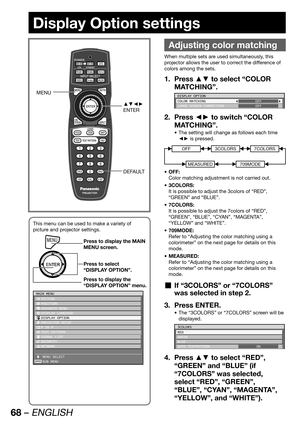

68 – ENGLISH
Display Option settings

Adjusting color matching
When multiple sets are used simultaneously, this
projector allows the user to correct the difference of
colors among the sets.
Press ▲▼ to select “COLOR  1.
MATCHING”.
DISPLAY OPTION
COLOR MATCHING
LARGE SCREEN CORRECTIONOFF
OFF
Press ◄► to switch “COLOR  2.
MATCHING”.
The setting will change as follows each time  •
◄► is pressed.
OFF3COLORS
MEASURED
7COLORS
709MODE
OFF: •
Color matching adjustment is not carried out.
3COLORS: •
It is...

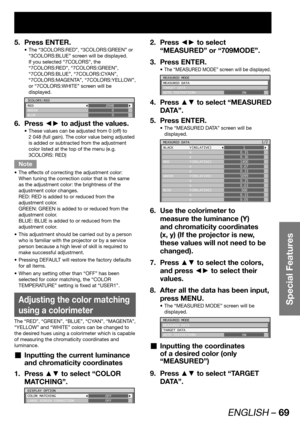

ENGLISH – 69
Special Features
Press ENTER. 5.
The “3COLORS:RED”, “3COLORS:GREEN” or  •
“3COLORS:BLUE” screen will be displayed.
If you selected “7COLORS”, the
“7COLORS:RED”, “7COLORS:GREEN”,
“7COLORS:BLUE”, “7COLORS:CYAN”,
“7COLORS:MAGENTA”, “7COLORS:YELLOW”,
or “7COLORS:WHITE” screen will be
displayed.
3COLORS:RED
RED
GREEN
BLUE2048
0
0
Press ◄► to adjust the values. 6.
These values can be adjusted from 0 (off) to  •
2 048 (full gain). The color value being adjusted
is added or subtracted from...

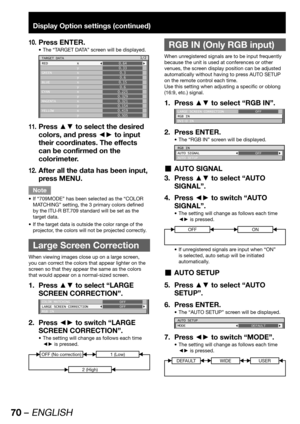

70 – ENGLISH
Display Option settings (continued)
Press ENTER.10.
The “TARGET DATA” screen will be displayed. •
TARGET DATA
RED x
 y
GREEN x
 y
BLUE x
 y
CYAN x
 y
MAGENTA x
 y
YELLOW x
 y0.64
0.33
0.3
0.6
0.15
0.6
0.225
0.329
0.321
0.154
0.419
0.5051/2
Press ▲▼ to select the desired 11.
colors, and press ◄► to input
their coordinates. The effects
can be confirmed on the
colorimeter.
After all the data has been input,
12.
press MENU.
Note
If “709MODE” has been selected as the “COLOR  •
MATCHING”...
