Panasonic Projector PT-DW100U User Manual

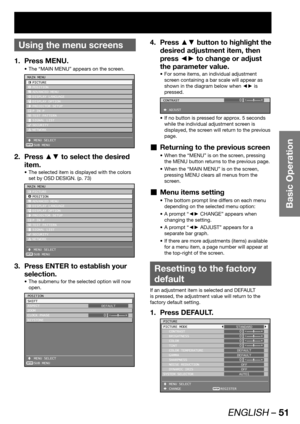

ENGLISH – 51
Basic Operation

Using the menu screens
Press MENU. 1.
The “MAIN MENU” appears on the screen. •
ENTER
MAIN MENU
 POSITION
 ADVANCED MENU
 DISPLAY LANGUAGE
 DISPLAY OPTION
 PROJECTOR SETUP
  P IN P
 TEST PATTERN
 SIGNAL LIST
 SECURITY
 NETWORK
 MENU SELECT
 SUB MENU
Press ▲▼ to select the desired  2.
item.
The selected item is displayed with the colors  •
set by OSD DESIGN. (p. 73)
ENTER
MAIN MENU
 POSITION
 ADVANCED MENU
 DISPLAY LANGUAGE
 DISPLAY OPTION
 PROJECTOR...

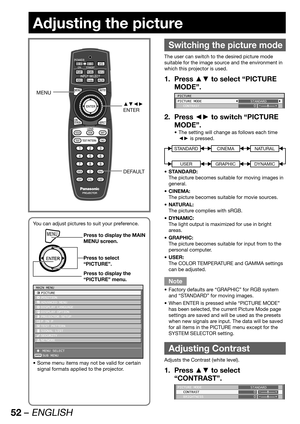

52 – ENGLISH
Adjusting the picture

Switching the picture mode
The user can switch to the desired picture mode
suitable for the image source and the environment in
which this projector is used.
Press ▲▼ to select “PICTURE  1.
MODE”.
PICTURE MODE
 CONTRASTSTANDARD
0
Press ◄► to switch “PICTURE  2.
MODE”.
The setting will change as follows each time  •
◄► is pressed.
STANDARD
USER
CINEMA
GRAPHIC
NATURAL
DYNAMIC
STANDARD: •
The picture becomes suitable for moving images in
general.
CINEMA: •...

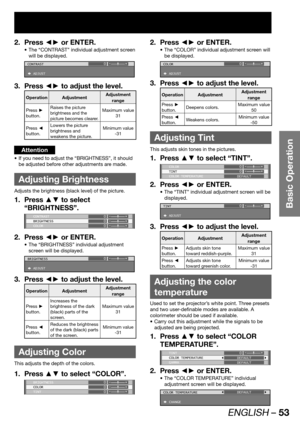

ENGLISH – 53
Basic Operation
Press ◄► or ENTER. 2.
The “CONTRAST” individual adjustment screen  •
will be displayed.
CONTRAST
 ADJUST0
Press ◄► to adjust the level. 3.
Operation AdjustmentAdjustment
range
Press ►
button.
Raises the picture
brightness and the
picture becomes clearer.Maximum value
31
Press ◄
button.Lowers the picture
brightness and
weakens the picture. Minimum value
-31
Attention
If you need to adjust the “BRIGHTNESS”, it should  •
be adjusted before other adjustments are...

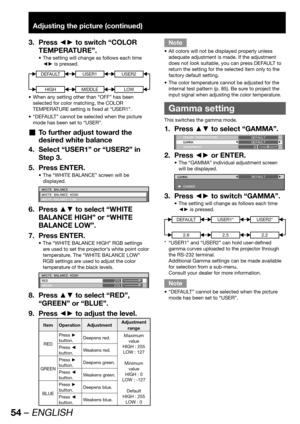

54 – ENGLISH
Adjusting the picture (continued)
Press ◄► to switch “COLOR  3.
TEMPERATURE”.
The setting will change as follows each time  •
◄► is pressed.
DEFAULT
HIGH
USER1
MIDDLE
USER2
LOW
When any setting other than “OFF” has been  •
selected for color matching, the COLOR
TEMPERATURE setting is fixed at “USER1”.
“DEFAULT” cannot be selected when the picture  •
mode has been set to “USER”.
To further adjust toward the   „
desired white balance
Select “USER1” or “USER2” in  4.
Step 3.
Press ENTER....

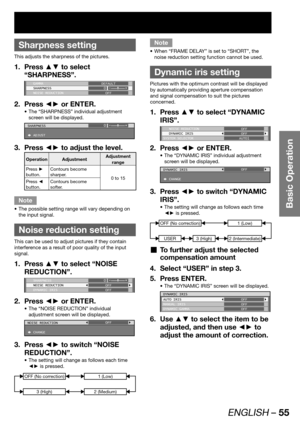

ENGLISH – 55
Basic Operation

Sharpness setting
This adjusts the sharpness of the pictures.
Press ▲▼ to select  1.
“SHARPNESS”.
 GAMMA
 SHARPNESS
 NOISE REDUCTIONDEFAULT
0
OFF
Press ◄► or ENTER. 2.
The “SHARPNESS” individual adjustment  •
screen will be displayed.
SHARPNESS
 ADJUST0
Press ◄► to adjust the level. 3.
Operation AdjustmentAdjustment
range
Press ►
button.Contours become
sharper.
0 to 15
Press ◄
button.Contours become
softer.
Note
The possible setting range will vary depending on  •...

56 – ENGLISH
Adjusting the picture (continued)

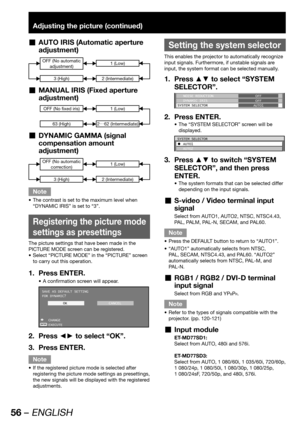

AUTO IRIS (Automatic aperture   „
adjustment)
OFF (No automatic
adjustment)
3 (High)
1 (Low)
2 (Intermediate)
MANUAL IRIS (Fixed aperture   „
adjustment)
OFF (No fixed iris)
63 (High)
1 (Low)
2œ62 (Intermediate)
DYNAMIC GAMMA (signal   „
compensation amount
adjustment)
OFF (No automatic
correction)
3 (High)
1 (Low)
2 (Intermediate)
Note
The contrast is set to the maximum level when  •
“DYNAMIC IRIS” is set to “3”.
  Registering the picture mode...

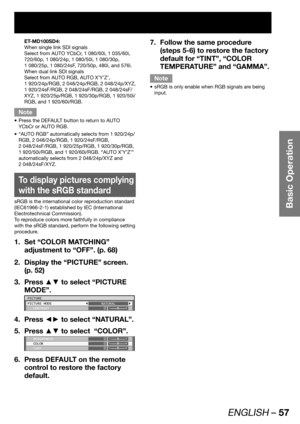

ENGLISH – 57
Basic Operation
ET-MD100SD4:
When single link SDI signals
Select from AUTO YCbCr, 1 080/60i, 1 035/60i,
720/60p, 1 080/24p, 1 080/50i, 1 080/30p,
1 080/25p, 1 080/24sF, 720/50p, 480i, and 576i.
When dual link SDI signals
Select from AUTO RGB, AUTO X’Y’Z’,
1 920/24p/RGB, 2 048/24p/RGB, 2 048/24p/XYZ,
1 920/24sF/RGB, 2 048/24sF/RGB, 2 048/24sF/
XYZ, 1 920/25p/RGB, 1 920/30p/RGB, 1 920/50i/
RGB, and 1 920/60i/RGB.
Note
Press the DEFAULT button to return to AUTO  •
YCbCr or AUTO RGB.
“AUTO...

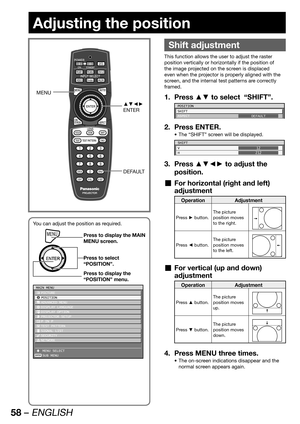

58 – ENGLISH
Adjusting the position

Shift adjustment
This function allows the user to adjust the raster
position vertically or horizontally if the position of
the image projected on the screen is displaced
even when the projector is properly aligned with the
screen, and the internal test patterns are correctly
framed.
Press ▲▼ to select  “SHIFT”. 1.
POSITION
SHIFT
ASPECT
DEFAULT
Press ENTER. 2.
The “SHIFT” screen will be displayed. •
SHIFT
V
H12
212
Press ▲▼◄► to adjust the  3.
position.
For...

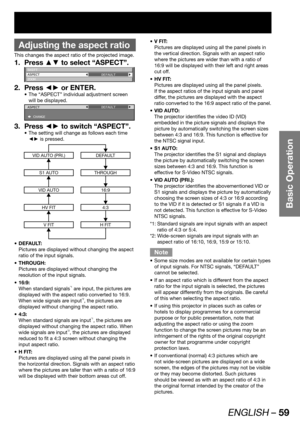

ENGLISH – 59
Basic Operation

Adjusting the aspect ratio
This changes the aspect ratio of the projected image.
Press ▲▼ to select “ASPECT”. 1.
SHIFT
ASPECT
ZOOMDEFAULT
Press ◄► or ENTER. 2.
The “ASPECT” individual adjustment screen  •
will be displayed.
ASPECT
 CHANGEDEFAULT
Press ◄► to switch “ASPECT”. 3.
The setting will change as follows each time  •
◄► is pressed.
VID AUTO (PRI.)DEFAULT
S1 AUTOTHROUGH
VID AUTO16:9
HV FIT4:3
V FITH FIT
DEFAULT: •
Pictures are displayed without changing the...

60 – ENGLISH
Adjusting the position (continued)

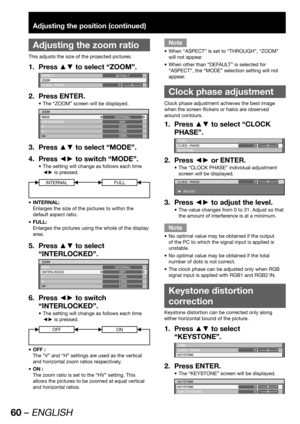

Adjusting the zoom ratio
This adjusts the size of the projected pictures.
Press ▲▼ to select “ZOOM”. 1.
ASPECT
ZOOM
CLOCK PHASEDEFAULT
0
Press ENTER. 2.
The “ZOOM” screen will be displayed. •
ZOOM
MODE
INTERLOCKED
V
H
HVINTERNAL
OFF
100%
100%
100%
Press ▲▼ to select “MODE”. 3.
Press ◄► to switch “MODE”. 4.
The setting will change as follows each time  •
◄► is pressed.
INTERNALFULL
INTERNAL: •
Enlarges the size of the pictures to within the
default...
