ENGLISH – 21
Getting Started

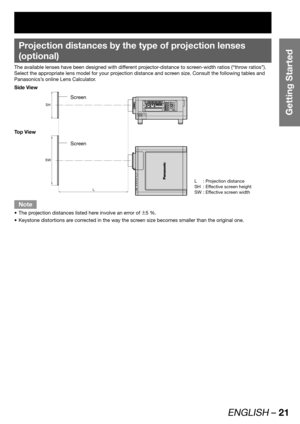

Projection distances by the type of projection lenses
(optional)
The available lenses have been designed with different projector-distance to screen-width ratios (“throw ratios”).
Select the appropriate lens model for your projection distance and screen size. Consult the following tables and
Panasonics’s online Lens Calculator.
L SH
SW
L  : Projection distance
SH  : Effective screen height
SW : Effective screen width
Screen
Screen Side View
Top View
Note
The projection...

22 – ENGLISH
Installation (continued)

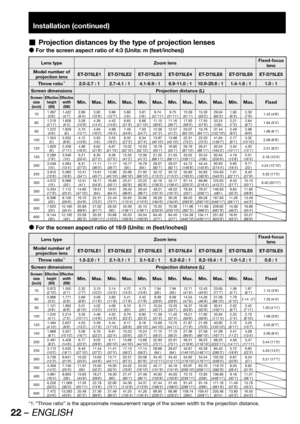

Projection distances by the type of projection lenses  „
For the screen aspect ratio of 4:3 (Units: m (feet/inches))  z
Lens type Zoom lensFixed-focus
lens
Model number of
projection lensET-D75LE1 ET-D75LE2 ET-D75LE3 ET-D75LE4 ET-D75LE8 ET-D75LE6 ET-D75LE5
Throw ratio
*12.0-2.7 : 1 2.7-4.1 : 1 4.1-6.9 : 1 6.9-11.0 : 1 10.9-20.6 : 1 1.4-1.6 : 1 1.0 : 1
Screen dimensions Projection distance (L)
Screen
size
(inch)Effective
height
(SH)Effective
width
(SW)Min. Max....

ENGLISH – 23
Getting Started

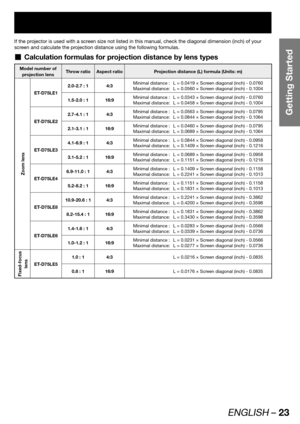

If the projector is used with a screen size not listed in this manual, check the diagonal dimension (inch) of your
screen and calculate the projection distance using the following formulas.
Calculation formulas for projection distance by lens types  „
Model number of
projection lensThrow ratio Aspect ratio Projection distance (L) formula (Units: m)
Zoom lens
ET-D75LE12.0-2.7 : 1 4:3Minimal distance :  L = 0.0419 × Screen diagonal (inch) - 0.0760
Maximal distance:  L =...

24 – ENGLISH
Installation (continued)

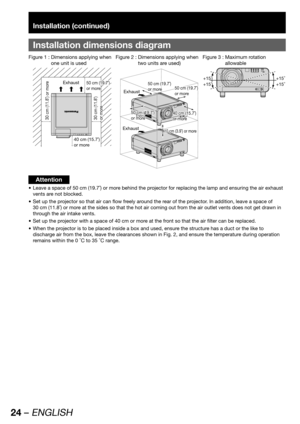

Installation dimensions diagram
Figure 1 :  Dimensions applying when
one unit is usedFigure 2 :  Dimensions applying when
two units are used)Figure 3 :  Maximum rotation
allowable
50 cm (19.7˝) 50 cm (19.7˝)
or moreor more
Exhaust
30 cm (11.8˝) or more30 cm (11.8˝) 30 cm (11.8˝) or moreor more
40 cm (15.7˝)
or more
Exhaust50 cm (19.7˝) 50 cm (19.7˝)
or moreor more
50 cm (19.7˝) 50 cm (19.7˝)
or moreor more
10 cm (3.9˝) or more10 cm (3.9˝) or more
50 cm...

ENGLISH – 25
Getting Started

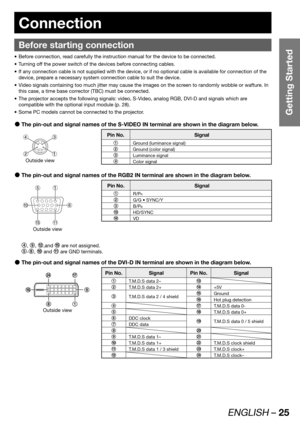

Connection
Before starting connection
Before connection, read carefully the instruction manual for the device to be connected. •
Turning off the power switch of the devices before connecting cables. •
If any connection cable is not supplied with the device, or if no optional cable is available for connection of the  •
device, prepare a necessary system connection cable to suit the device.
Video signals containing too much jitter may cause the images on the screen to...

26 – ENGLISH
Connection (continued)

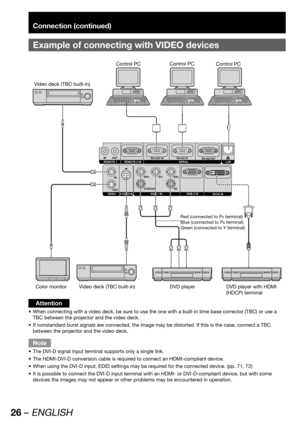

Example of  connecting with VIDEO devices
IN OUTRS-232C IN RS-422 IN
RS-422 OUTSERIAL REMOTE 1 REMOTE 2 IN
OUTIN
SYNC/HD VDB/P
BG/Y R/PR
S-VIDEO INVIDEO RGB 2 IN
DVI-D IN RGB 1 IN
LAN
Video deck (TBC built-in)Control PCControl PC
Color monitor Video deck (TBC built-in) DVD player
Red (connected to PR terminal)
Blue (connected to P
B terminal)
Green (connected to Y terminal)
DVD player with HDMI
(HDCP) terminal Control PC
Attention
When connecting with a video deck, be...

ENGLISH – 27
Getting Started

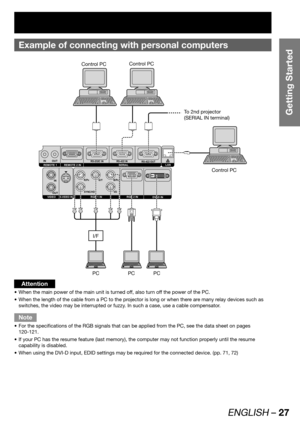

Example of  connecting with personal computers
IN OUTRS-232C IN RS-422 IN
RS-422 OUTSERIAL REMOTE 1 REMOTE 2 IN
OUTIN
SYNC/HD VDB/P
BG/Y R/PR
S-VIDEO INVIDEO RGB 2 IN
DVI-D IN RGB 1 IN
LAN
To 2nd projector
(SERIAL IN terminal)
I/F
PCControl PC Control PC
Control PC
PC PC
Attention
When the main power of the main unit is turned off, also turn off the power of the PC. •
When the length of the cable from a PC to the projector is long or when there are many relay devices such...

28 – ENGLISH

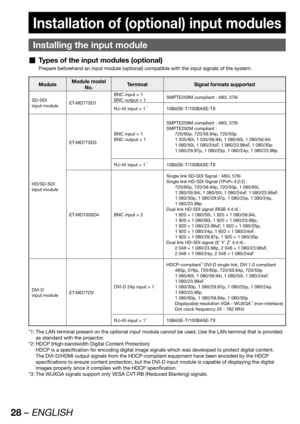

Installation of (optional) input modules

Installing the input module
Types of the input modules (optional)  „
Prepare beforehand an input module (optional) compatible with the input signals of the system.
ModuleModule model
No.Terminal Signal formats supported
SD-SDI
input moduleET-MD77SD1BNC input × 1
BNC output × 1SMPTE259M compliant : 480i, 576i
RJ-45 input × 1
*110BASE-T/100BASE-TX
HD/SD-SDI
input moduleET-MD77SD3BNC input × 1
BNC output × 1SMPTE259M compliant : 480i, 576i
SMPTE292M...

ENGLISH – 29
Getting Started

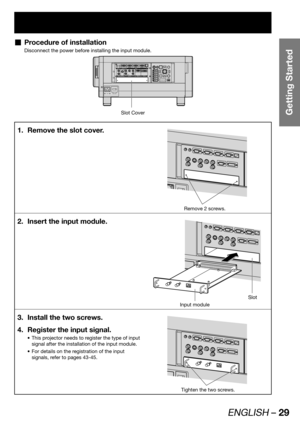

Procedure of installation  „
Disconnect the power before installing the input module.
Slot Cover
MAIN POWER AC INOFF ON
IN OUTRS-232C IN RS-422 IN RS-422 OUTSERIALLAN
REMOTE 1 REMOTE 2 IN
OUTIN
SYNC/HD VDB/PBG/Y R/PRS-VIDEO INVIDEO RGB 2 INDVI-D IN
RGB 1 INAUXDVI-DRGB2RGB1S-VIDEOVIDEOAUTO
SETUPMENU LENS
SHUTTER
LIGHT POWER ON STANDBY
ON
OFF ENTER
Remove the slot cover. 1.
Remove 2 screws.
Insert the input module. 2.
Slot
Input module
Install the two screws. 3.
Register the...

30 – ENGLISH
Installation of (optional) input modules (continued)

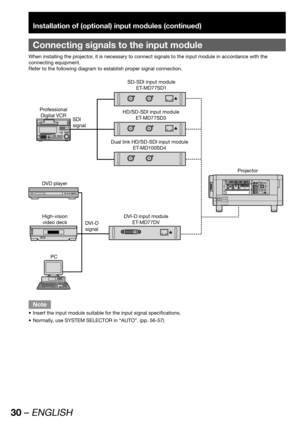

Connecting signals to the input module
When installing the projector, it is necessary to connect signals to the input module in accordance with the
connecting equipment.
Refer to the following diagram to establish proper signal connection.
MAIN POWER AC INOFF ON
IN OUTRS-232C IN RS-422 IN RS-422 OUTSERIALLAN
REMOTE 1 REMOTE 2 IN
OUTINSYNC/HD VDB/PBG/Y R/PRS-VIDEO INVIDEO RGB 2 INDVI-D IN
RGB 1 INAUXDVI-DRGB2RGB1S-VIDEOVIDEOAUTO
SETUPMENU...
