Panasonic Projector PT-EX12KE User Manual

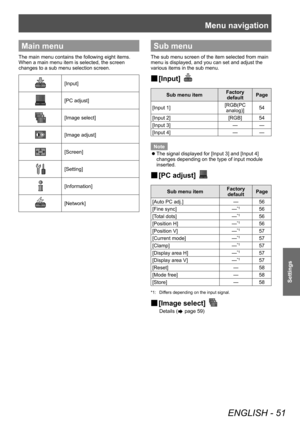

Menu navigation
ENGLISH - 51
Settings
Main menu
The main menu contains the following eight items.
When a main menu item is selected, the screen
changes to a sub menu selection screen.
[Input]
[PC adjust]
[Image select]
[Image adjust]
[Screen]
[Setting]
[Information]
[Network]
Sub menu
The sub menu screen of the item selected from main
menu is displayed, and you can set and adjust the
various items in the sub menu.
■
■ [Input]
Sub menu item Factory
default Page
[Input 1] [RGB(PC
analog)] 54
[Input...

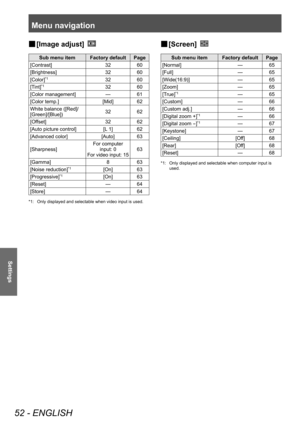

Menu navigation
52 - ENGLISH
Settings
■
■ [Image adjust]
Sub menu item
Factory defaultPage
[Contrast] 3260
[Brightness] 3260
[Color]
*132 60
[Tint]
*132 60
[Color management] —61
[Color temp.] [Mid]62
White balance ([Red]/
[Green]/[Blue]) 32
62
[Offset] 3262
[Auto picture control] [L 1]62
[Advanced color] [Auto]63
[Sharpness] For computer
input: 0
For video input: 15 63
[Gamma] 863
[Noise reduction]
*1[On] 63
[Progressive]
*1[On] 63
[Reset] —64
[Store] —64
*1: Only displayed and selectable when video...

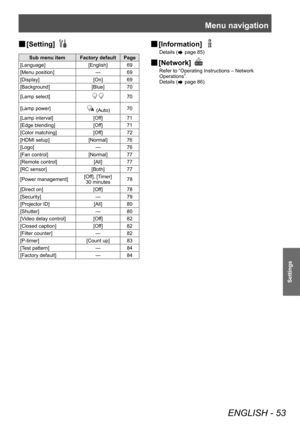

Menu navigation
ENGLISH - 53
Settings
■
■ [Setting]
Sub menu item
Factory defaultPage
[Language] [English]69
[Menu position] —69
[Display] [On]69
[Background] [Blue]70
[Lamp select]
70
[Lamp power]
 (Auto) 70
[Lamp interval] [Off]71
[Edge blending] [Off]71
[Color matching] [Off]72
[HDMI setup] [Normal]76
[Logo] —76
[Fan control] [Normal]77
[Remote control] [All]77
[RC sensor] [Both]77
[Power management] [Off], [Timer]
30 minutes 78
[Direct on] [Off]78
[Security] —79
[Projector ID] [All]80
[Shutter]...

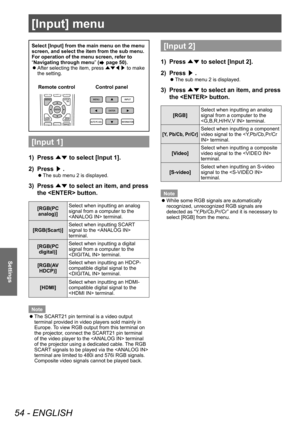

[Input] menu
54 - ENGLISH
Settings
Select [Input] from the main menu on the menu
screen, and select the item from the sub menu.
For operation of the menu screen, refer to
“Navigating through menu” (
 page 50).
■
z After selecting the item, press
▲▼◀▶ to make
the setting.
Control panel
Remote control
[Input 1]
1)  Press
▲▼ to select [Input 1].
2)  Press
▶.
■
z The sub menu 2 is displayed.
3)
Press
▲▼ to select an item, and press
the  button.
[RGB(PC  analog)] Select when inputting an analog...

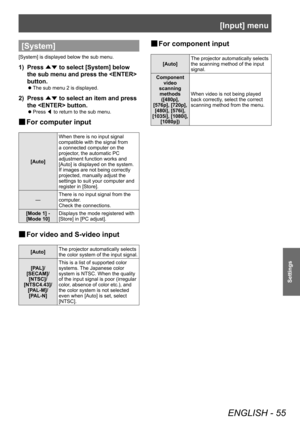

[Input] menu
ENGLISH - 55
Settings
[System]
[System] is displayed below the sub menu.
1) Press
▲▼ to select [System] below
the sub menu and press the
button.
■
z The sub menu 2 is displayed.
2)
Press
▲▼ to select an item and press
the  button.
■
z Press
◀ to return to the sub menu.
■
■ For computer input
[Auto] When there is no input signal
compatible with the signal from
a connected computer on the
projector, the automatic PC
adjustment function works and
[Auto] is displayed on the system....

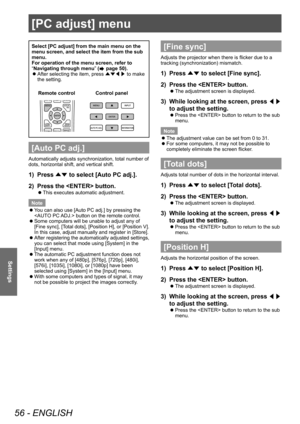

[PC adjust] menu
56 - ENGLISH
Settings
[PC adjust] menu
Select [PC adjust] from the main menu on the
menu screen, and select the item from the sub
menu.
For operation of the menu screen, refer to
“Navigating through menu” (
 page 50).
■
z After selecting the item, press
▲▼◀▶ to make
the setting.
Control panel
Remote control
[Auto PC adj.]
Automatically adjusts synchronization, total number of
dots, horizontal shift, and vertical shift.
1)  Press
▲▼ to select [Auto PC adj.].
2)  Press the...

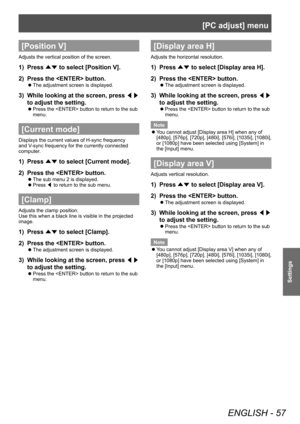

[PC adjust] menu
ENGLISH - 57
Settings
[Position V]
Adjusts the vertical position of the screen.
1) Press
▲▼ to select [Position V].
2)  Press the  button.
■
z The adjustment screen is displayed.
3)
While looking at the screen, press
◀▶
to adjust the setting.
■
z Press the  button to return to the sub
menu.
[Current mode]
Displays the current values of H-sync frequency
and V-sync frequency for the currently connected
computer.
1)
Press
▲▼ to select [Current mode].
2)  Press the  button.
■
z The...

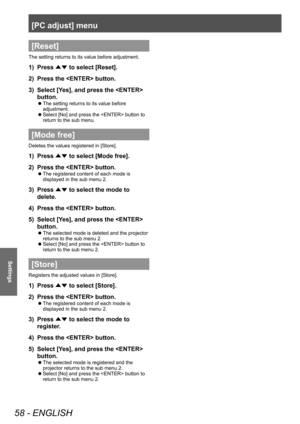

[PC adjust] menu
58 - ENGLISH
Settings
[Reset]
The setting returns to its value before adjustment.
1) Press
▲▼ to select [Reset].
2)  Press the  button.
3)  Select [Yes], and press the
button.
■
z The setting returns to its value before
adjustment.
■
z Select [No] and press the  button to
return to the sub menu.
[Mode free]
Deletes the values registered in [Store].
1)
Press
▲▼ to select [Mode free].
2)  Press the  button.
■
z The registered content of each mode is
displayed in the sub menu 2.
3)...

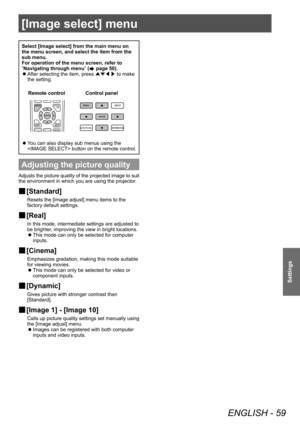

[Image select] menu
ENGLISH - 59
Settings
[Image select] menu
Select [Image select] from the main menu on
the menu screen, and select the item from the
sub menu.
For operation of the menu screen, refer to
“Navigating through menu” (
 page 50).
■
z After selecting the item, press
▲▼◀▶ to make
the setting.
Control panel
Remote control
■
z You can also display sub menus using the
 button on the remote control.
Adjusting the picture quality
Adjusts the picture quality of the projected image to suit...

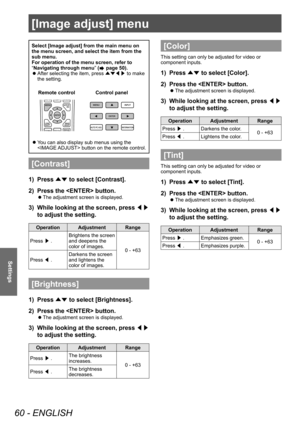

[Image adjust] menu
60 - ENGLISH
Settings
Select [Image adjust] from the main menu on
the menu screen, and select the item from the
sub menu.
For operation of the menu screen, refer to
“Navigating through menu” (
 page 50).
■
z After selecting the item, press
▲▼◀▶ to make
the setting.
Control panel
Remote control
■
z You can also display sub menus using the
 button on the remote control.
[Contrast]
1)
Press
▲▼ to select [Contrast].
2)  Press the  button.
■
z The adjustment screen is displayed....
