Panasonic Projector PT-EX12KE User Manual

[Setting] menu
ENGLISH - 71
Settings
[Lamp interval]
Sets the replacement cycle when [Lamp select] is set
to [1-Lamp]. After the replacement cycle, the lamp for
use is automatically changed.■
z The set time here is a guideline time.
1)
Press
▲▼ to select [Lamp interval].
2)  Press the  button.
3)  Press
▲▼ to switch the setting.
[Off]
Does not change lamps.
[12 H]/[24 H]/ [200 H]/
[500 H]/
[1000 H]/ [2000 H] Changes lamps in the set intervals.
■
z When the set time is reached,
the projector lights...

[Setting] menu

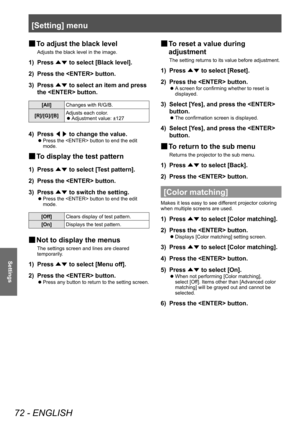

72 - ENGLISH
Settings
■
■ To adjust the black level
Adjusts the black level in the image.
1)
Press
▲▼ to select [Black level].
2)  Press the  button.
3)  Press
▲▼ to select an item and press
the  button.
[All] Changes with R/G/B.
[R]/[G]/[B] Adjusts each color.
■
z Adjustment value: ±127
4)
Press
◀▶ to change the value.
■
z Press the  button to end the edit
mode.
■
■ To display the test pattern
1)
Press
▲▼ to select [Test pattern].
2)  Press the  button.
3)  Press
▲▼ to switch...

[Setting] menu

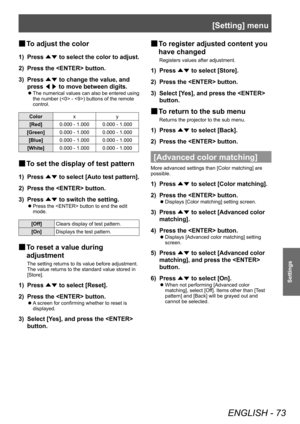

ENGLISH - 73
Settings
■
■ To adjust the color
1)
Press
▲▼ to select the color to adjust.
2)  Press the  button.
3)  Press
▲▼ to change the value, and
press  ◀▶ to move between digits.
■
z The numerical values can also be entered using
the number ( - ) buttons of the remote
control.
Color
xy
[Red] 0.000 - 1.000 0.000 - 1.000
[Green] 0.000 - 1.000 0.000 - 1.000
[Blue] 0.000 - 1.000 0.000 - 1.000
[White] 0.000 - 1.000 0.000 - 1.000
■
■ To set the display of test pattern
1)
Press
▲▼ to...

[Setting] menu

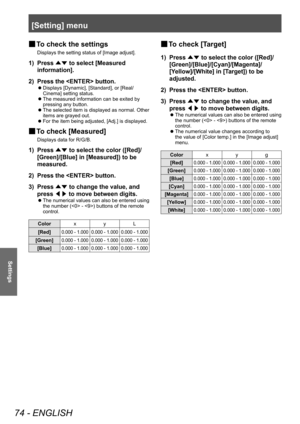

74 - ENGLISH
Settings
■
■ To check the settings
Displays the setting status of [Image adjust].
1)
Press
▲▼ to select [Measured
information].
2)  Press the  button.
■
z Displays [Dynamic], [Standard], or [Real/
Cinema] setting status.
■
z The measured information can be exited by
pressing any button.
■
z The selected item is displayed as normal. Other
items are grayed out.
■
z For the item being adjusted, [Adj.] is displayed.
■
■ To check [Measured]
Displays data for R/G/B.
1)
Press...

[Setting] menu

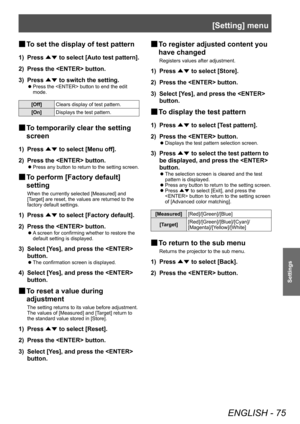

ENGLISH - 75
Settings
■
■ To set the display of test pattern
1)
Press
▲▼ to select [Auto test pattern].
2)  Press the  button.
3)  Press
▲▼ to switch the setting.
■
z Press the  button to end the edit
mode.
[Off]
Clears display of test pattern.
[On] Displays the test pattern.
■
■ To temporarily clear the setting
screen
1)
Press
▲▼ to select [Menu off].
2)  Press the  button.
■
z Press any button to return to the setting screen.
■
■ To perform [Factory default]
setting
When the...

[Setting] menu

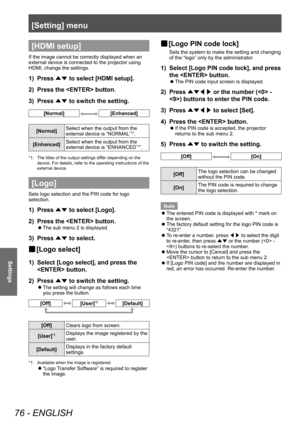

76 - ENGLISH
Settings
[HDMI setup]
If the image cannot be correctly displayed when an
external device is connected to the projector using
HDMI, change the settings.
1) Press
▲▼ to select [HDMI setup].
2)  Press the  button.
3)  Press
▲▼ to switch the setting.
[Normal][Enhanced]
[Normal] Select when the output from the
external device is “NORMAL*1”.
[Enhanced] Select when the output from the
external device is “ENHANCED
*1”.
*1:
The titles of the output settings differ depending on...

[Setting] menu

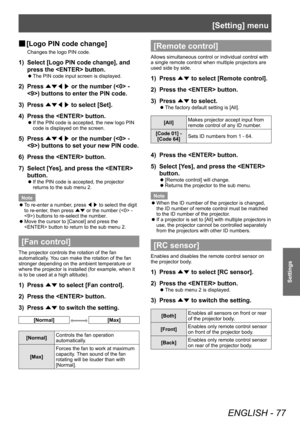

ENGLISH - 77
Settings
■
■ [Logo PIN code change]
Changes the logo PIN code.
1)
Select [Logo PIN code change], and
press the  button.
■
z The PIN code input screen is displayed.
2)
Press
▲▼◀▶  or the number ( -
) buttons to enter the PIN code.
3)  Press
▲▼◀▶  to select [Set].
4)  Press the  button.
■
z If the PIN code is accepted, the new logo PIN
code is displayed on the screen.
5)
Press
▲▼◀▶  or the number ( -
) buttons to set your new PIN code.
6)  Press the  button.
7)  Select...

[Setting] menu

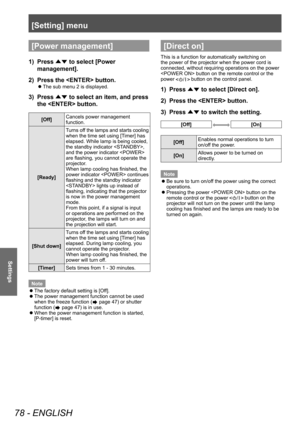

78 - ENGLISH
Settings
[Power management]
1) Press
▲▼ to select [Power
management].
2)  Press the  button.
■
z The sub menu 2 is displayed.
3)
Press
▲▼ to select an item, and press
the  button.
[Off] Cancels power management
function.
[Ready] Turns off the lamps and starts cooling
when the time set using [Timer] has
elapsed. While lamp is being cooled,
the standby indicator ,
and the power indicator
are flashing, you cannot operate the
projector.
When lamp cooling has finished,...

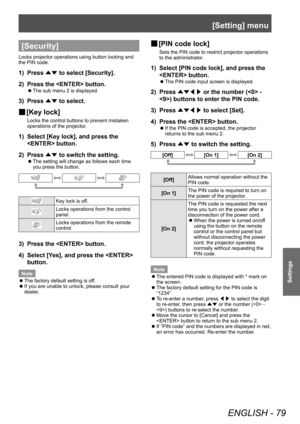

[Setting] menu
ENGLISH - 79
Settings
[Security]
Locks projector operations using button locking and
the PIN code.
1) Press
▲▼ to select [Security].
2)  Press the  button.
■
z The sub menu 2 is displayed.
3)
Press
▲▼ to select.
■
■ [Key lock]
Locks the control buttons to prevent mistaken
operations of the projector.
1)
Select [Key lock], and press the
 button.
2)  Press
▲▼ to switch the setting.
■
z The setting will change as follows each time
you press the button.
Key lock is off.
Locks...

[Setting] menu

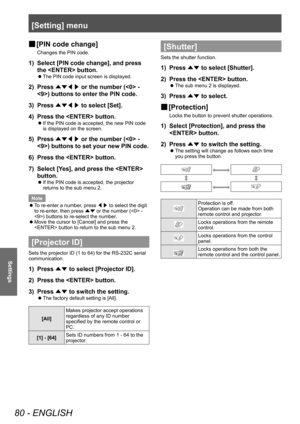

80 - ENGLISH
Settings
■
■ [PIN code change]
Changes the PIN code.
1)
Select [PIN code change], and press
the  button.
■
z The PIN code input screen is displayed.
2)
Press
▲▼◀▶  or the number ( -
) buttons to enter the PIN code.
3)  Press
▲▼◀▶  to select [Set].
4)  Press the  button.
■
z If the PIN code is accepted, the new PIN code
is displayed on the screen.
5)
Press
▲▼◀▶  or the number ( -
) buttons to set your new PIN code.
6)  Press the  button.
7)  Select [Yes], and press...
