Panasonic Projector PT-EX12KE User Manual

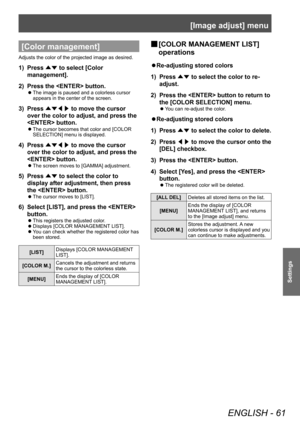

[Image adjust] menu
ENGLISH - 61
Settings
[Color management]
Adjusts the color of the projected image as desired.
1) Press
▲▼ to select [Color
management].
2)  Press the  button.
■
z The image is paused and a colorless cursor
appears in the center of the screen.
3)
Press
▲▼◀▶  to move the cursor
over the color to adjust, and press the
 button.
■
z The cursor becomes that color and [COLOR
SELECTION] menu is displayed.
4)
Press
▲▼◀▶  to move the cursor
over the color to adjust, and press the...

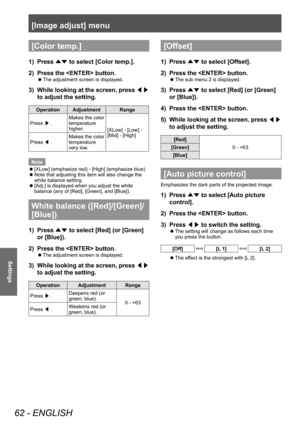

[Image adjust] menu
62 - ENGLISH
Settings
[Color temp.]
1) Press
▲▼ to select [Color temp.].
2)  Press the  button.
■
z The adjustment screen is displayed.
3)
While looking at the screen, press
◀▶
to adjust the setting.
Operation Adjustment Range
Press  ▶. Makes the color
temperature
higher.
[XLow] - [Low] -
[Mid] - [High]
Press  ◀. Makes the color
temperature
very low.
Note ■
z [XLow] (emphasize red) - [High] (emphasize blue)
■
z Note that adjusting this item will also change the
white balance...

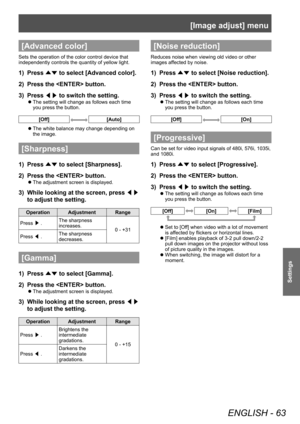

[Image adjust] menu
ENGLISH - 63
Settings
[Advanced color]
Sets the operation of the color control device that
independently controls the quantity of yellow light.
1) Press
▲▼ to select [Advanced color].
2)  Press the  button.
3)  Press
◀▶ to switch the setting.
■
z The setting will change as follows each time
you press the button.
[Off][Auto]
■
z The white balance may change depending on
the image.
[Sharpness]
1)
Press
▲▼ to select [Sharpness].
2)  Press the  button.
■
z The adjustment screen is...

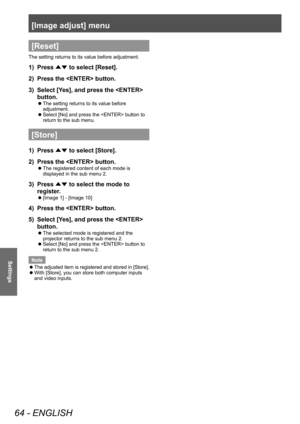

[Image adjust] menu
64 - ENGLISH
Settings
[Reset]
The setting returns to its value before adjustment.
1) Press
▲▼ to select [Reset].
2)  Press the  button.
3)  Select [Yes], and press the
button.
■
z The setting returns to its value before
adjustment.
■
z Select [No] and press the  button to
return to the sub menu.
[Store]
1)
Press
▲▼ to select [Store].
2)  Press the  button.
■
z The registered content of each mode is
displayed in the sub menu 2.
3)
Press
▲▼ to select the mode to
register.
■
z...

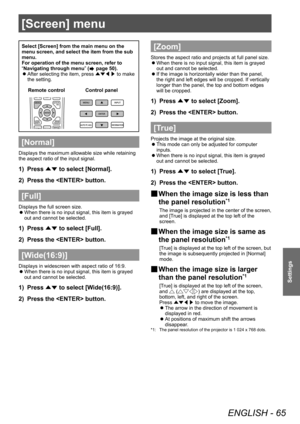

[Screen] menu
ENGLISH - 65
Settings
Select [Screen] from the main menu on the
menu screen, and select the item from the sub
menu.
For operation of the menu screen, refer to
“Navigating through menu” (
 page 50).
■
z After selecting the item, press
▲▼◀▶ to make
the setting.
Control panel
Remote control
[Normal]
Displays the maximum allowable size while retaining
the aspect ratio of the input signal.
1)  Press
▲▼ to select [Normal].
2)  Press the  button.
[Full]
Displays the full screen size.
■
z...

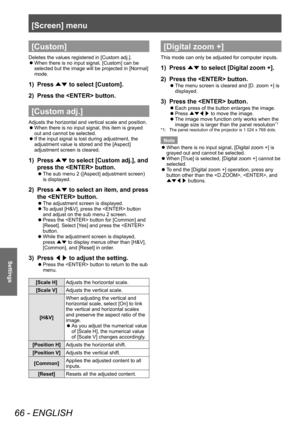

[Screen] menu
66 - ENGLISH
Settings
[Custom]
Deletes the values registered in [Custom adj.].■
z When there is no input signal, [Custom] can be
selected but the image will be projected in [Normal]
mode.
1)
Press
▲▼ to select [Custom].
2)  Press the  button.
[Custom adj.]
Adjusts the horizontal and vertical scale and position.
■
z When there is no input signal, this item is grayed
out and cannot be selected.
■
z If the input signal is lost during adjustment, the
adjustment value is stored and the...

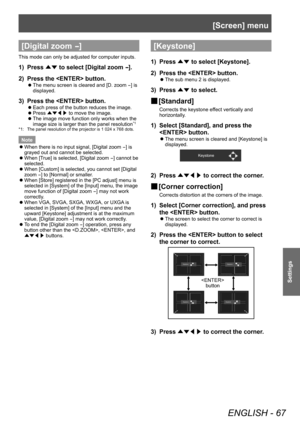

[Screen] menu
ENGLISH - 67
Settings
[Digital zoom -]
This mode can only be adjusted for computer inputs.
1) Press
▲▼ to select [Digital zoom -].
2)  Press the  button.
■
z The menu screen is cleared and [D. zoom -] is
displayed.
3)  Press the  button.
■
z Each press of the button reduces the image.
■
z Press
▲▼◀▶  to move the image.
■
z The image move function only works when the
image size is larger than the panel resolution
*1
*1:
The panel resolution of the projector is 1 024 x 768 dots.
Note
■
z...

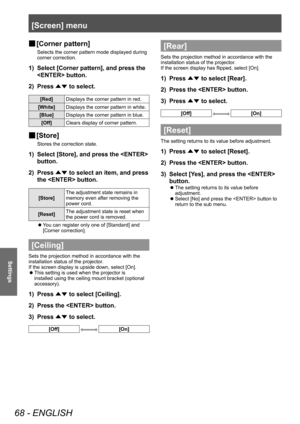

[Screen] menu
68 - ENGLISH
Settings
■
■ [Corner pattern]
Selects the corner pattern mode displayed during
corner correction.
1)
Select [Corner pattern], and press the
 button.
2)  Press
▲▼ to select.
[Red]
Displays the corner pattern in red.
[White] Displays the corner pattern in white.
[Blue] Displays the corner pattern in blue.
[Off] Clears display of corner pattern.
■
■ [Store]
Stores the correction state.
1)
Select [Store], and press the
button.
2)  Press
▲▼ to select an item, and press
the...

[Setting] menu
ENGLISH - 69
Settings
[Setting] menu
Select [Setting] from the main menu on the
menu screen, and select the item from the sub
menu.
For operation of the menu screen, refer to
“Navigating through menu” (
 page 50).
■
z After selecting the item, press
▲▼◀▶ to make
the setting.
Control panel
Remote control
[Language]
Switches the display language.
1)  Press
▲▼ to select [Language].
2)  Press the  button.
■
z The sub menu 2 is displayed.
■
z Ten languages are available (English, German,...

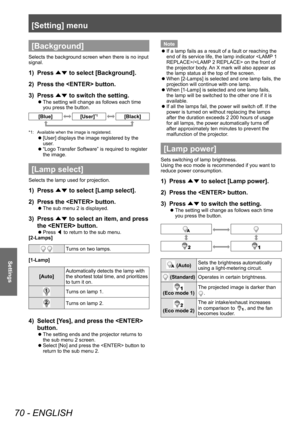

[Setting] menu
70 - ENGLISH
Settings
[Background]
Selects the background screen when there is no input
signal.
1) Press
▲▼ to select [Background].
2)  Press the  button.
3)  Press
▲▼ to switch the setting.
■
z The setting will change as follows each time
you press the button.
[Blue][User]*1[Black]
*1:
Available when the image is registered.
■
z [User] displays the image registered by the
user.
■
z “Logo Transfer Software” is required to register
the image.
[Lamp select]
Selects the lamp used for...
