14 - ENGLISH

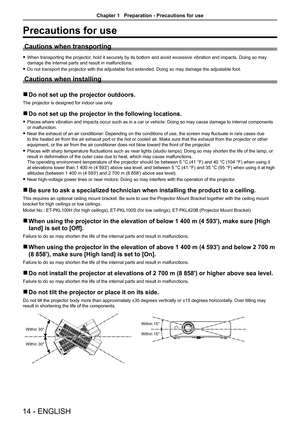

Precautions for use
Cautions when transporting

f When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. Doing so may
damage the internal parts and result in malfunctions.

f Do not transport the projector with the adjustable foot extended. Doing so may damage the adjustable foot.
Cautions when installing

r Do not set up the projector outdoors.
The projector is designed for indoor use only.

r Do not set up the projector in the...

ENGLISH - 15

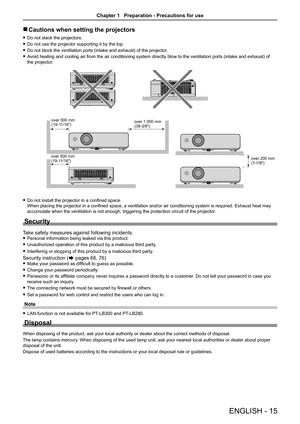

r Cautions when setting the projectors

f Do not stack the projectors.

f Do not use the projector supporting it by the top.

f Do not block the ventilation ports (intake and exhaust) of the projector .

f Avoid heating and cooling air from the air conditioning system directly blow to the ventilation ports (intake and exhaust) of
the projector.

f Do not install the projector in a confined space.
When placing the projector in a confined space, a ventilation and/or air conditioning...

16 - ENGLISH

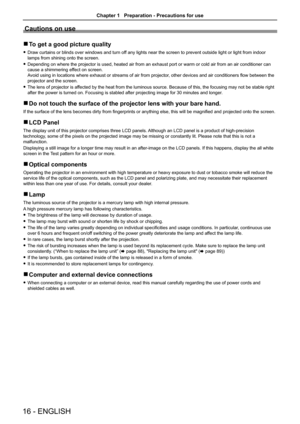

Cautions on use

r To get a good picture quality

f Draw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light from indo\
or
lamps from shining onto the screen.

f Depending on where the projector is used, heated air from an exhaust port or warm or cold air from an air conditioner can
cause a shimmering effect on screen.
Avoid using in locations where exhaust or streams of air from projector, other devices and air conditioners flow...

ENGLISH - 17

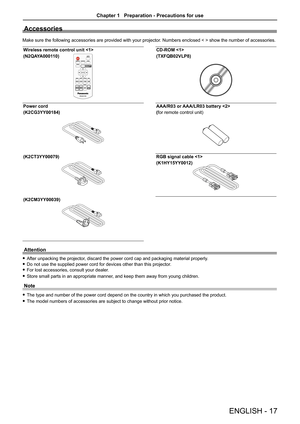

Accessories
Make sure the following accessories are provided with your projector. Numbers enclosed < > show the number of accessories.
Wireless remote control unit
(N2QAYA000110) CD-ROM
(TXFQB02VLP8)
Power cord
(K2CG3YY00184)AAA/R03 or AAA/LR03 battery
(for remote control unit)
(K2CT3YY00079)RGB signal cable
(K1HY15YY0012)
(K2CM3YY00039)
Attention

f After unpacking the projector, discard the power cord cap and packaging material properly.

f Do not use the supplied power cord for...

18 - ENGLISH

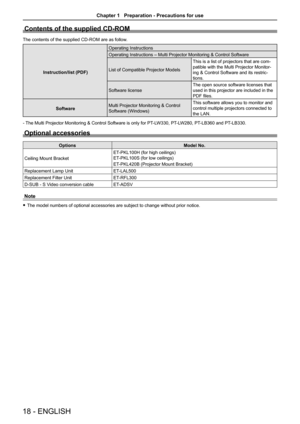

Contents of the supplied CD-ROM
The contents of the supplied CD-ROM are as follow.
Instruction/list (PDF)Operating Instructions
Operating Instructions – Multi Projector Monitoring & Control Software
List of Compatible Projector Models
This is a list of projectors that are com-
patible with the Multi Projector Monitor
-
ing & Control Software and its restric -
tions.
Software license The open source software licenses that
used in this projector are included in the
PDF files.
Software...

ENGLISH - 19
About your projector

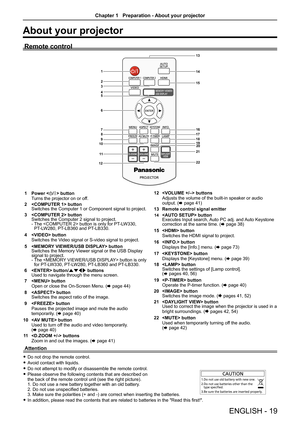

Remote control
1
2
3
4
5
6
7 8
9
10
12 13
14
15
16
17
18 19 20
21
11
22
1  Power  button
Turns the projector on or off.
2   button
Switches the Computer 1 or Component signal to project.
3   button
Switches the Computer 2 signal to project.
-    The  button is only for PT-LW330,
PT-LW280, PT-LB360 and PT-LB330.
4   button
Switches the Video signal or S-video signal to project.
5   button
Switches the Memory Viewer signal or the USB Display
signal to project.
-...

20 - ENGLISH

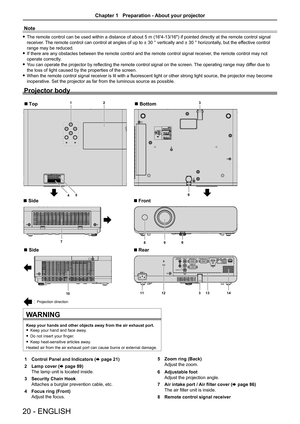

1 Control Panel and Indicators ( x page 21)
2  Lamp cover (x page 89)
The lamp unit is located inside.
3  Security Chain Hook
Attaches a burglar prevention cable, etc.
4  Focus ring (Front)
Adjust the focus. 5
Zoom ring (Back)
Adjust the zoom.
6  Adjustable foot
Adjust the projection angle.
7  Air intake port / Air filter cover (x page 86)
The air filter unit is inside.
8  Remote control signal receiver
WARNING
Keep your hands and other objects away from the air exhaust port.

f Keep...
