Page 51
![Page 51

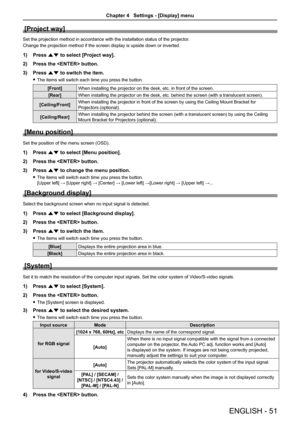

ENGLISH - 51
[Project way]
Set the projection method in accordance with the installation status of \
the projector.
Change the projection method if the screen display is upside down or inverted.
1) Press as to select [Project way].
2) Press the button.
3) Press as to switch the item.
f The items will switch each time you press the button.
[Front] When installing the projector on the desk, etc. in front of the screen.
[Rear] When installing the projector on the desk, etc. behind the screen (with a...](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-50.png "Page 51
ENGLISH - 51
[Project way]
Set the projection method in accordance with the installation status of \
the projector.
Change the projection method if the screen display is upside down or inverted.
1) Press as to select [Project way].
2) Press the button.
3) Press as to switch the item.
f The items will switch each time you press the button.
[Front] When installing the projector on the desk, etc. in front of the screen.
[Rear] When installing the projector on the desk, etc. behind the screen (with a...")
ENGLISH - 51 [Project way] Set the projection method in accordance with the installation status of \ the projector. Change the projection method if the screen display is upside down or inverted. 1) Press as to select [Project way]. 2) Press the button. 3) Press as to switch the item. f The items will switch each time you press the button. [Front] When installing the projector on the desk, etc. in front of the screen. [Rear] When installing the projector on the desk, etc. behind the screen (with a...
Page 52
![Page 52

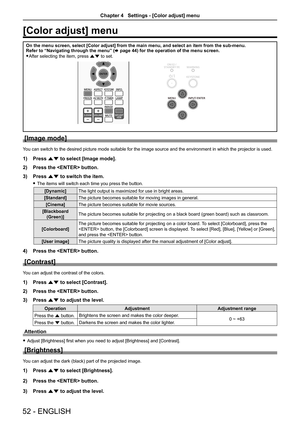

52 - ENGLISH
[Color adjust] menu
On the menu screen, select [Color adjust] from the main menu, and select\
an item from the sub-menu.
Refer to “Navigating through the menu” (x page 44) for the operation of the menu screen.
f After selecting the item, press as to set.
[Image mode]
You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
1) Press as to select [Image mode].
2) Press the button.
3) Press as to switch the item.
f...](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-51.png "Page 52
52 - ENGLISH
[Color adjust] menu
On the menu screen, select [Color adjust] from the main menu, and select\
an item from the sub-menu.
Refer to “Navigating through the menu” (x page 44) for the operation of the menu screen.
f After selecting the item, press as to set.
[Image mode]
You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
1) Press as to select [Image mode].
2) Press the button.
3) Press as to switch the item.
f...")
52 - ENGLISH [Color adjust] menu On the menu screen, select [Color adjust] from the main menu, and select\ an item from the sub-menu. Refer to “Navigating through the menu” (x page 44) for the operation of the menu screen. f After selecting the item, press as to set. [Image mode] You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used. 1) Press as to select [Image mode]. 2) Press the button. 3) Press as to switch the item. f...

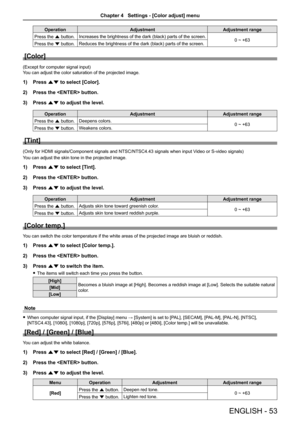

Page 53
![Page 53
ENGLISH - 53
OperationAdjustment Adjustment range
Press the a button. Increases the brightness of the dark (black) parts of the screen.
0 ~ +63
Press the s button. Reduces the brightness of the dark (black) parts of the screen.
[Color]
(Except for computer signal input)
You can adjust the color saturation of the projected image.
1) Press as to select [Color].
2) Press the button.
3) Press as to adjust the level.
Operation Adjustment Adjustment range
Press the a button. Deepens colors.
0 ~ +63
Press...](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-52.png "Page 53
ENGLISH - 53
OperationAdjustment Adjustment range
Press the a button. Increases the brightness of the dark (black) parts of the screen.
0 ~ +63
Press the s button. Reduces the brightness of the dark (black) parts of the screen.
[Color]
(Except for computer signal input)
You can adjust the color saturation of the projected image.
1) Press as to select [Color].
2) Press the button.
3) Press as to adjust the level.
Operation Adjustment Adjustment range
Press the a button. Deepens colors.
0 ~ +63
Press...")
ENGLISH - 53 OperationAdjustment Adjustment range Press the a button. Increases the brightness of the dark (black) parts of the screen. 0 ~ +63 Press the s button. Reduces the brightness of the dark (black) parts of the screen. [Color] (Except for computer signal input) You can adjust the color saturation of the projected image. 1) Press as to select [Color]. 2) Press the button. 3) Press as to adjust the level. Operation Adjustment Adjustment range Press the a button. Deepens colors. 0 ~ +63 Press...
Page 54
![Page 54
54 - ENGLISH
[Green]Press the a button.
Deepen green tone.
0 ~ +63
Press the s button. Lighten green tone.
[Blue] Press the a button.
Deepen blue tone.
0 ~ +63
Press the s button. Lighten blue tone.
[Sharpness]
You can adjust the sharpness of the projected image.
1)
Press as to select [Sharpness].
2) Press the button.
3) Press as to adjust the level.
Operation Adjustment Adjustment range
Press the a button. Contours become sharper.
0 ~ +15
Press the s button. Contours become softer.
[Daylight View]...](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-53.png "Page 54

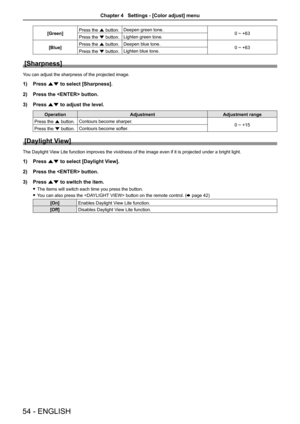

54 - ENGLISH
[Green]Press the a button.
Deepen green tone.
0 ~ +63
Press the s button. Lighten green tone.
[Blue] Press the a button.
Deepen blue tone.
0 ~ +63
Press the s button. Lighten blue tone.
[Sharpness]
You can adjust the sharpness of the projected image.
1)
Press as to select [Sharpness].
2) Press the button.
3) Press as to adjust the level.
Operation Adjustment Adjustment range
Press the a button. Contours become sharper.
0 ~ +15
Press the s button. Contours become softer.
[Daylight View]...")
54 - ENGLISH [Green]Press the a button. Deepen green tone. 0 ~ +63 Press the s button. Lighten green tone. [Blue] Press the a button. Deepen blue tone. 0 ~ +63 Press the s button. Lighten blue tone. [Sharpness] You can adjust the sharpness of the projected image. 1) Press as to select [Sharpness]. 2) Press the button. 3) Press as to adjust the level. Operation Adjustment Adjustment range Press the a button. Contours become sharper. 0 ~ +15 Press the s button. Contours become softer. [Daylight View]...

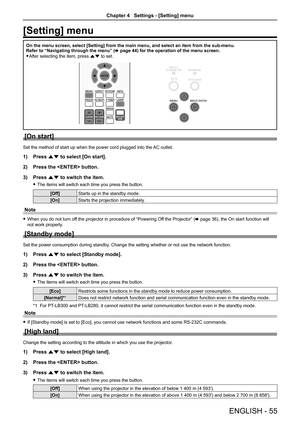

Page 55
![Page 55
ENGLISH - 55
[Setting] menu
On the menu screen, select [Setting] from the main menu, and select an i\
tem from the sub-menu.
Refer to “Navigating through the menu” (x page 44) for the operation of the menu screen.
f After selecting the item, press as to set.
MEMORY VIEWER/
USB DISPLAY
ASPECT
INFO.
IMAGE LAMP
DAYLIGHT VIEW
COMPUTER 1 COMPUTER 2
VIDEO
ENTER
MENU
KEYSTONE
FREEZE AV MUTE P-TIMER
D.ZOOMVOLUME
MUTE
[On start]
Set the method of start up when the power cord plugged into the AC outlet.
1)...](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-54.png "Page 55
ENGLISH - 55
[Setting] menu
On the menu screen, select [Setting] from the main menu, and select an i\
tem from the sub-menu.
Refer to “Navigating through the menu” (x page 44) for the operation of the menu screen.
f After selecting the item, press as to set.
MEMORY VIEWER/
USB DISPLAY
ASPECT
INFO.
IMAGE LAMP
DAYLIGHT VIEW
COMPUTER 1 COMPUTER 2
VIDEO
ENTER
MENU
KEYSTONE
FREEZE AV MUTE P-TIMER
D.ZOOMVOLUME
MUTE
[On start]
Set the method of start up when the power cord plugged into the AC outlet.
1)...")
ENGLISH - 55 [Setting] menu On the menu screen, select [Setting] from the main menu, and select an i\ tem from the sub-menu. Refer to “Navigating through the menu” (x page 44) for the operation of the menu screen. f After selecting the item, press as to set. MEMORY VIEWER/ USB DISPLAY ASPECT INFO. IMAGE LAMP DAYLIGHT VIEW COMPUTER 1 COMPUTER 2 VIDEO ENTER MENU KEYSTONE FREEZE AV MUTE P-TIMER D.ZOOMVOLUME MUTE [On start] Set the method of start up when the power cord plugged into the AC outlet. 1)...
Page 56
![Page 56
56 - ENGLISH
Note
f It is set to [Off] when using the projector in the elevation of below 1 400 m (4 593’). It is set to [On] when using the projector
in the elevation of above 1 400 m (4 593') and below 2 700 m (8 858'). Failure to do so may shorten the life of the internal
parts and result in malfunctions.
f Do not set the projector in the elevation of 2 700 m (8 858') or above, otherwise it may shorten the life of the internal parts
and result in malfunctions.
f When it is set to...](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-55.png "Page 56

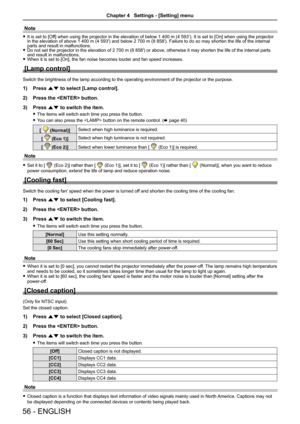

56 - ENGLISH
Note
f It is set to [Off] when using the projector in the elevation of below 1 400 m (4 593’). It is set to [On] when using the projector
in the elevation of above 1 400 m (4 593') and below 2 700 m (8 858'). Failure to do so may shorten the life of the internal
parts and result in malfunctions.
f Do not set the projector in the elevation of 2 700 m (8 858') or above, otherwise it may shorten the life of the internal parts
and result in malfunctions.
f When it is set to...")
56 - ENGLISH Note f It is set to [Off] when using the projector in the elevation of below 1 400 m (4 593’). It is set to [On] when using the projector in the elevation of above 1 400 m (4 593') and below 2 700 m (8 858'). Failure to do so may shorten the life of the internal parts and result in malfunctions. f Do not set the projector in the elevation of 2 700 m (8 858') or above, otherwise it may shorten the life of the internal parts and result in malfunctions. f When it is set to...
Page 57
![Page 57
ENGLISH - 57
f [Closed caption] can only be selected if an NTSC signal is input.
f If [Closed caption] is set to the item except for [Off], the brightness of image may be changed according to the external
devices or the used content of the closed caption corresponding connecti\
on.
f Closed captions are not displayed when the menu screen is displayed.
[Key lock]
Enable/disable the button operations on the control panel and the remote\
control.
1) Press as to select [Key lock].
2) Press the...](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-56.png "Page 57

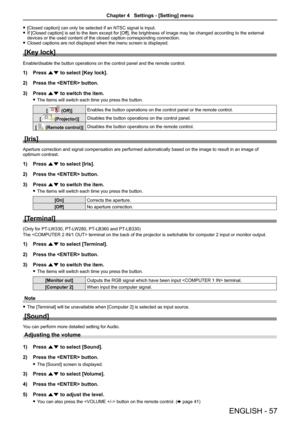

ENGLISH - 57
f [Closed caption] can only be selected if an NTSC signal is input.
f If [Closed caption] is set to the item except for [Off], the brightness of image may be changed according to the external
devices or the used content of the closed caption corresponding connecti\
on.
f Closed captions are not displayed when the menu screen is displayed.
[Key lock]
Enable/disable the button operations on the control panel and the remote\
control.
1) Press as to select [Key lock].
2) Press the...")
ENGLISH - 57 f [Closed caption] can only be selected if an NTSC signal is input. f If [Closed caption] is set to the item except for [Off], the brightness of image may be changed according to the external devices or the used content of the closed caption corresponding connecti\ on. f Closed captions are not displayed when the menu screen is displayed. [Key lock] Enable/disable the button operations on the control panel and the remote\ control. 1) Press as to select [Key lock]. 2) Press the...
Page 58
![Page 58
58 - ENGLISH
OperationAdjustment Range
Press the a button. Turns up the volume.
0 ~ +25
Press the s button. Turns down the volume.
Setting the mute
1)
Press as to select [Sound].
2) Press the button.
f The [Sound] screen is displayed.
3) Press as to select [Mute].
4) Press the button.
5) Press as to switch the item.
f The items will switch each time you press the button.
f You can also press the button on the remote control. ( x page 42)
[On]Audio is not output.
[Off] Audio is output.
[HDMI...](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-57.png "Page 58

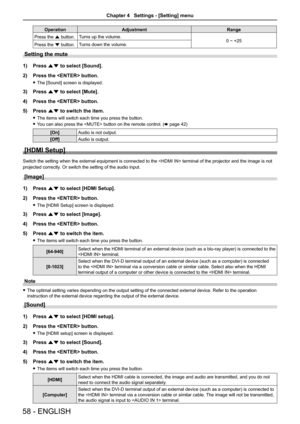

58 - ENGLISH
OperationAdjustment Range
Press the a button. Turns up the volume.
0 ~ +25
Press the s button. Turns down the volume.
Setting the mute
1)
Press as to select [Sound].
2) Press the button.
f The [Sound] screen is displayed.
3) Press as to select [Mute].
4) Press the button.
5) Press as to switch the item.
f The items will switch each time you press the button.
f You can also press the button on the remote control. ( x page 42)
[On]Audio is not output.
[Off] Audio is output.
[HDMI...")
58 - ENGLISH OperationAdjustment Range Press the a button. Turns up the volume. 0 ~ +25 Press the s button. Turns down the volume. Setting the mute 1) Press as to select [Sound]. 2) Press the button. f The [Sound] screen is displayed. 3) Press as to select [Mute]. 4) Press the button. 5) Press as to switch the item. f The items will switch each time you press the button. f You can also press the button on the remote control. ( x page 42) [On]Audio is not output. [Off] Audio is output. [HDMI...
Page 59
![Page 59

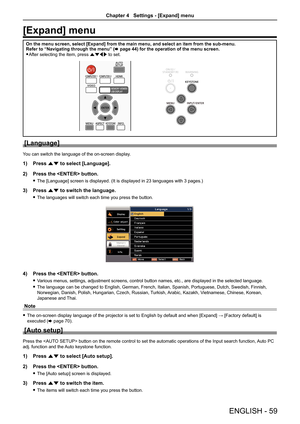

ENGLISH - 59
[Expand] menu
On the menu screen, select [Expand] from the main menu, and select an it\
em from the sub-menu.
Refer to “Navigating through the menu” (x page 44) for the operation of the menu screen.
f After selecting the item, press asqw to set.
[Language]
You can switch the language of the on-screen display.
1) Press as to select [Language].
2) Press the button.
f The [Language] screen is displayed. (It is displayed in 23 languages with 3 pages.)
3) Press as to switch the language....](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-58.png "Page 59
ENGLISH - 59
[Expand] menu
On the menu screen, select [Expand] from the main menu, and select an it\
em from the sub-menu.
Refer to “Navigating through the menu” (x page 44) for the operation of the menu screen.
f After selecting the item, press asqw to set.
[Language]
You can switch the language of the on-screen display.
1) Press as to select [Language].
2) Press the button.
f The [Language] screen is displayed. (It is displayed in 23 languages with 3 pages.)
3) Press as to switch the language....")
ENGLISH - 59 [Expand] menu On the menu screen, select [Expand] from the main menu, and select an it\ em from the sub-menu. Refer to “Navigating through the menu” (x page 44) for the operation of the menu screen. f After selecting the item, press asqw to set. [Language] You can switch the language of the on-screen display. 1) Press as to select [Language]. 2) Press the button. f The [Language] screen is displayed. (It is displayed in 23 languages with 3 pages.) 3) Press as to switch the language....
Page 60
![Page 60
60 - ENGLISH
[Input search]This function is used to detect the signals and project the automatic in\
put signals automatically.
[Auto PC adj.] This function is used to adjust [Fine sync], [H position], [V position] and [H.Size] automatically
when input the analog computer signal.
[Auto keystone] This function is used to correct the vertical keystone of the projected \
image automatically.
[Input search]
This function is used to detect the signals and project the automatic in\
put signals automatically....](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-59.png "Page 60

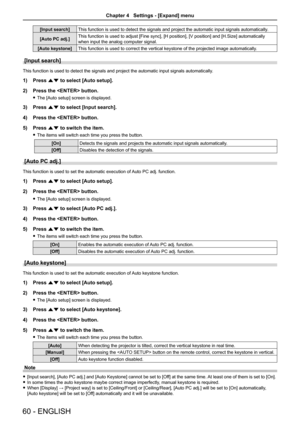

60 - ENGLISH
[Input search]This function is used to detect the signals and project the automatic in\
put signals automatically.
[Auto PC adj.] This function is used to adjust [Fine sync], [H position], [V position] and [H.Size] automatically
when input the analog computer signal.
[Auto keystone] This function is used to correct the vertical keystone of the projected \
image automatically.
[Input search]
This function is used to detect the signals and project the automatic in\
put signals automatically....")
60 - ENGLISH [Input search]This function is used to detect the signals and project the automatic in\ put signals automatically. [Auto PC adj.] This function is used to adjust [Fine sync], [H position], [V position] and [H.Size] automatically when input the analog computer signal. [Auto keystone] This function is used to correct the vertical keystone of the projected \ image automatically. [Input search] This function is used to detect the signals and project the automatic in\ put signals automatically....
