Panasonic Projector PT-LB280 User Manual
Here you can view all the pages of manual Panasonic Projector PT-LB280 User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.

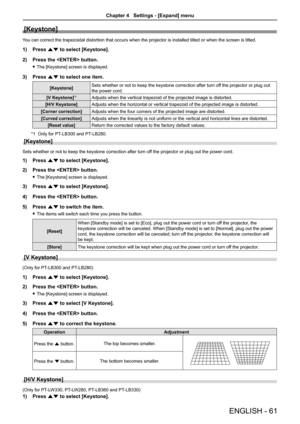

Page 61
![Page 61
ENGLISH - 61
[Keystone]
You can correct the trapezoidal distortion that occurs when the projector is installed tilted or when the screen is tilted.
1) Press as to select [Keystone].
2) Press the button.
f The [Keystone] screen is displayed.
3) Press as to select one item.
[Keystone] Sets whether or not to keep the keystone correction after turn off the projector or plug out
the power cord.
[V Keystone]
*1Adjusts when the vertical trapezoid of the projected image is distorted.
[H/V Keystone] Adjusts...](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-60.png "Page 61
ENGLISH - 61
[Keystone]
You can correct the trapezoidal distortion that occurs when the projector is installed tilted or when the screen is tilted.
1) Press as to select [Keystone].
2) Press the button.
f The [Keystone] screen is displayed.
3) Press as to select one item.
[Keystone] Sets whether or not to keep the keystone correction after turn off the projector or plug out
the power cord.
[V Keystone]
*1Adjusts when the vertical trapezoid of the projected image is distorted.
[H/V Keystone] Adjusts...")
ENGLISH - 61 [Keystone] You can correct the trapezoidal distortion that occurs when the projector is installed tilted or when the screen is tilted. 1) Press as to select [Keystone]. 2) Press the button. f The [Keystone] screen is displayed. 3) Press as to select one item. [Keystone] Sets whether or not to keep the keystone correction after turn off the projector or plug out the power cord. [V Keystone] *1Adjusts when the vertical trapezoid of the projected image is distorted. [H/V Keystone] Adjusts...
Page 62

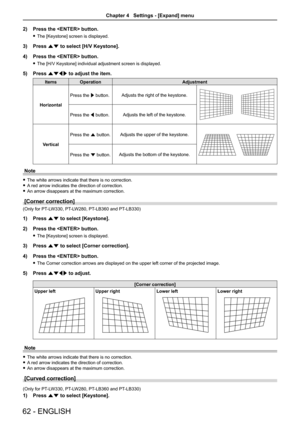

![Page 62
62 - ENGLISH
2) Press the button.
f The [Keystone] screen is displayed.
3) Press as to select [H/V Keystone].
4) Press the button.
f The [H/V Keystone] individual adjustment screen is displayed.
5) Press asqw to adjust the item.
Items Operation Adjustment
Horizontal Press the w button.
Adjusts the right of the keystone.
Press the q button. Adjusts the left of the keystone.
Vertical Press the a button.
Adjusts the upper of the keystone.
Press the s button.Adjusts the bottom of the keystone.
Note...](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-61.png "Page 62
62 - ENGLISH
2) Press the button.
f The [Keystone] screen is displayed.
3) Press as to select [H/V Keystone].
4) Press the button.
f The [H/V Keystone] individual adjustment screen is displayed.
5) Press asqw to adjust the item.
Items Operation Adjustment
Horizontal Press the w button.
Adjusts the right of the keystone.
Press the q button. Adjusts the left of the keystone.
Vertical Press the a button.
Adjusts the upper of the keystone.
Press the s button.Adjusts the bottom of the keystone.
Note...")
62 - ENGLISH 2) Press the button. f The [Keystone] screen is displayed. 3) Press as to select [H/V Keystone]. 4) Press the button. f The [H/V Keystone] individual adjustment screen is displayed. 5) Press asqw to adjust the item. Items Operation Adjustment Horizontal Press the w button. Adjusts the right of the keystone. Press the q button. Adjusts the left of the keystone. Vertical Press the a button. Adjusts the upper of the keystone. Press the s button.Adjusts the bottom of the keystone. Note...
Page 63

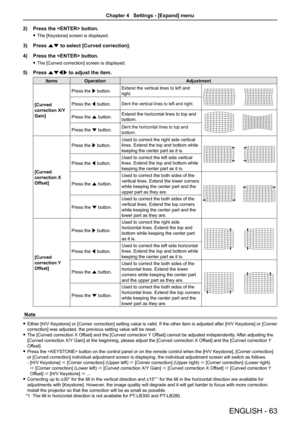

![Page 63
ENGLISH - 63
2) Press the button.
f The [Keystone] screen is displayed.
3) Press as to select [Curved correction].
4) Press the button.
f The [Curved correction] screen is displayed.
5) Press asqw to adjust the item.
Items Operation Adjustment
[Curved
correction X/Y
Gain] Press the w button.
Extend the vertical lines to left and
right.
Press the q button.Dent the vertical lines to left and right.
Press the a button.
Extend the horizontal lines to top and
bottom.
Press the s button.Dent the...](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-62.png "Page 63
ENGLISH - 63
2) Press the button.
f The [Keystone] screen is displayed.
3) Press as to select [Curved correction].
4) Press the button.
f The [Curved correction] screen is displayed.
5) Press asqw to adjust the item.
Items Operation Adjustment
[Curved
correction X/Y
Gain] Press the w button.
Extend the vertical lines to left and
right.
Press the q button.Dent the vertical lines to left and right.
Press the a button.
Extend the horizontal lines to top and
bottom.
Press the s button.Dent the...")
ENGLISH - 63 2) Press the button. f The [Keystone] screen is displayed. 3) Press as to select [Curved correction]. 4) Press the button. f The [Curved correction] screen is displayed. 5) Press asqw to adjust the item. Items Operation Adjustment [Curved correction X/Y Gain] Press the w button. Extend the vertical lines to left and right. Press the q button.Dent the vertical lines to left and right. Press the a button. Extend the horizontal lines to top and bottom. Press the s button.Dent the...
Page 64

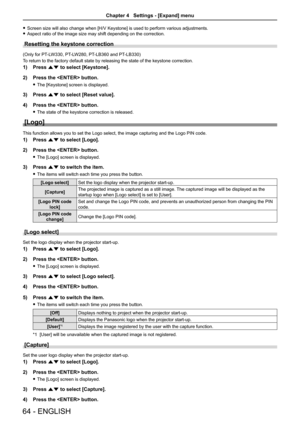

![Page 64
64 - ENGLISH
f Screen size will also change when [H/V Keystone] is used to perform various adjustments.
f Aspect ratio of the image size may shift depending on the correction.
Resetting the keystone correction
(Only for PT-LW330, PT-LW280, PT-LB360 and PT-LB330)
To return to the factory default state by releasing the state of the keys\
tone correction.
1) Press as to select [Keystone].
2) Press the button.
f The [Keystone] screen is displayed.
3) Press as to select [Reset value].
4) Press the...](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-63.png "Page 64
64 - ENGLISH
f Screen size will also change when [H/V Keystone] is used to perform various adjustments.
f Aspect ratio of the image size may shift depending on the correction.
Resetting the keystone correction
(Only for PT-LW330, PT-LW280, PT-LB360 and PT-LB330)
To return to the factory default state by releasing the state of the keys\
tone correction.
1) Press as to select [Keystone].
2) Press the button.
f The [Keystone] screen is displayed.
3) Press as to select [Reset value].
4) Press the...")
64 - ENGLISH f Screen size will also change when [H/V Keystone] is used to perform various adjustments. f Aspect ratio of the image size may shift depending on the correction. Resetting the keystone correction (Only for PT-LW330, PT-LW280, PT-LB360 and PT-LB330) To return to the factory default state by releasing the state of the keys\ tone correction. 1) Press as to select [Keystone]. 2) Press the button. f The [Keystone] screen is displayed. 3) Press as to select [Reset value]. 4) Press the...
Page 65

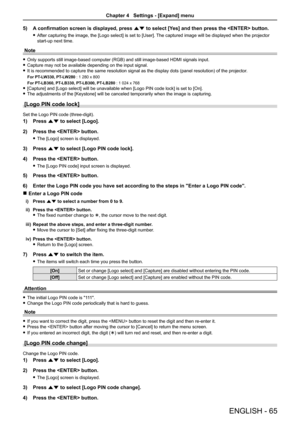

![Page 65
ENGLISH - 65
5) A confirmation screen is displayed, press as to select [Yes] and then press the button.
f After capturing the image, the [Logo select] is set to [User]. The captured image will be displayed when the projector
start-up next time.
Note
f Only supports still image-based computer (RGB) and still image-based HDMI signals input.
f Capture may not be available depending on the input signal.
f It is recommended to capture the same resolution signal as the display dots (panel...](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-64.png "Page 65
ENGLISH - 65
5) A confirmation screen is displayed, press as to select [Yes] and then press the button.
f After capturing the image, the [Logo select] is set to [User]. The captured image will be displayed when the projector
start-up next time.
Note
f Only supports still image-based computer (RGB) and still image-based HDMI signals input.
f Capture may not be available depending on the input signal.
f It is recommended to capture the same resolution signal as the display dots (panel...")
ENGLISH - 65 5) A confirmation screen is displayed, press as to select [Yes] and then press the button. f After capturing the image, the [Logo select] is set to [User]. The captured image will be displayed when the projector start-up next time. Note f Only supports still image-based computer (RGB) and still image-based HDMI signals input. f Capture may not be available depending on the input signal. f It is recommended to capture the same resolution signal as the display dots (panel...
Page 66

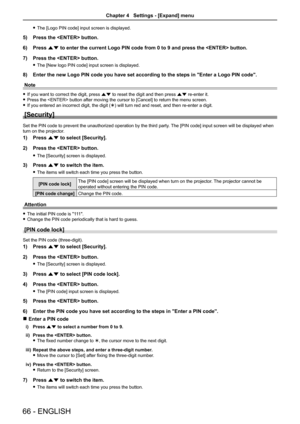

![Page 66
66 - ENGLISH
f The [Logo PIN code] input screen is displayed.
5) Press the button.
6) Press as to enter the current Logo PIN code from 0 to 9 and press the bu\
tton.
7) Press the button.
f The [New logo PIN code] input screen is displayed.
8) Enter the new Logo PIN code you have set according to the steps in "Ente\
r a Logo PIN code".
Note
f If you want to correct the digit, press as to reset the digit and then press as re-enter it.
f Press the button after moving the cursor to...](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-65.png "Page 66
66 - ENGLISH
f The [Logo PIN code] input screen is displayed.
5) Press the button.
6) Press as to enter the current Logo PIN code from 0 to 9 and press the bu\
tton.
7) Press the button.
f The [New logo PIN code] input screen is displayed.
8) Enter the new Logo PIN code you have set according to the steps in \"Ente\
r a Logo PIN code\".
Note
f If you want to correct the digit, press as to reset the digit and then press as re-enter it.
f Press the button after moving the cursor to...")
66 - ENGLISH f The [Logo PIN code] input screen is displayed. 5) Press the button. 6) Press as to enter the current Logo PIN code from 0 to 9 and press the bu\ tton. 7) Press the button. f The [New logo PIN code] input screen is displayed. 8) Enter the new Logo PIN code you have set according to the steps in "Ente\ r a Logo PIN code". Note f If you want to correct the digit, press as to reset the digit and then press as re-enter it. f Press the button after moving the cursor to...
Page 67

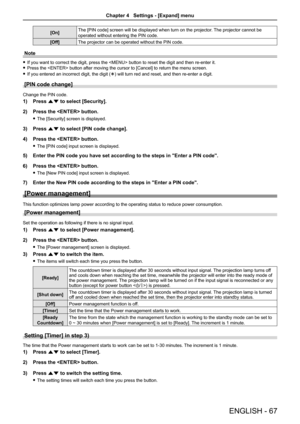

![Page 67
ENGLISH - 67
[On]The [PIN code] screen will be displayed when turn on the projector
. The projector cannot be
operated without entering the PIN code.
[Off] The projector can be operated without the PIN code.
Note
f If you want to correct the digit, press the button to reset the d\
igit and then re-enter it.
f Press the button after moving the cursor to [Cancel] to return the menu screen.
f If you entered an incorrect digit, the digit ( ) will turn red and reset, and then re-enter a digit.
[PIN...](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-66.png "Page 67
ENGLISH - 67
[On]The [PIN code] screen will be displayed when turn on the projector
. The projector cannot be
operated without entering the PIN code.
[Off] The projector can be operated without the PIN code.
Note
f If you want to correct the digit, press the button to reset the d\
igit and then re-enter it.
f Press the button after moving the cursor to [Cancel] to return the menu screen.
f If you entered an incorrect digit, the digit ( ) will turn red and reset, and then re-enter a digit.
[PIN...")
ENGLISH - 67 [On]The [PIN code] screen will be displayed when turn on the projector . The projector cannot be operated without entering the PIN code. [Off] The projector can be operated without the PIN code. Note f If you want to correct the digit, press the button to reset the d\ igit and then re-enter it. f Press the button after moving the cursor to [Cancel] to return the menu screen. f If you entered an incorrect digit, the digit ( ) will turn red and reset, and then re-enter a digit. [PIN...
Page 68
![Page 68
68 - ENGLISH
Setting [Ready Countdown] in step 3)
The time from the state which the management function is working to the standby mode can be set to 0 ~ 30 minutes when
[Power management] is set to [Ready]. The increment is 1 minute.
1) Press as to select [Ready Countdown].
2) Press the button.
3) Press as to switch the setting time.
f The items will switch each time you press the button.
[0 Min] The ready mode of the power management function is continued.
[1 Min] ~ [30 Min] From the ready mode...](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-67.png "Page 68
68 - ENGLISH
Setting [Ready Countdown] in step 3)
The time from the state which the management function is working to the standby mode can be set to 0 ~ 30 minutes when
[Power management] is set to [Ready]. The increment is 1 minute.
1) Press as to select [Ready Countdown].
2) Press the button.
3) Press as to switch the setting time.
f The items will switch each time you press the button.
[0 Min] The ready mode of the power management function is continued.
[1 Min] ~ [30 Min] From the ready mode...")
68 - ENGLISH Setting [Ready Countdown] in step 3) The time from the state which the management function is working to the standby mode can be set to 0 ~ 30 minutes when [Power management] is set to [Ready]. The increment is 1 minute. 1) Press as to select [Ready Countdown]. 2) Press the button. 3) Press as to switch the setting time. f The items will switch each time you press the button. [0 Min] The ready mode of the power management function is continued. [1 Min] ~ [30 Min] From the ready mode...
Page 69

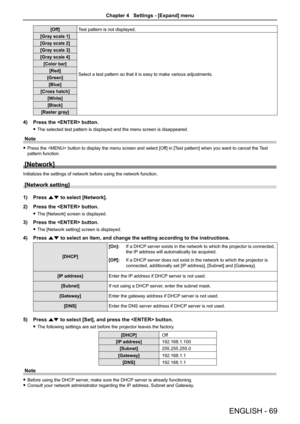

![Page 69
ENGLISH - 69
[Off]Test pattern is not displayed.
[Gray scale 1]
Select a test pattern so that it is easy to make various adjustments.
[Gray scale 2]
[Gray scale 3]
[Gray scale 4]
[Color bar]
[Red]
[Green] [Blue]
[Cross hatch] [White][Black]
[Raster gray]
4) Press the button.
f The selected test pattern is displayed and the menu screen is disappeare\
d.
Note
f Press the button to display the menu screen and select [Of f] in [Test pattern] when you want to cancel the Test
pattern function....](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-68.png "Page 69
ENGLISH - 69
[Off]Test pattern is not displayed.
[Gray scale 1]
Select a test pattern so that it is easy to make various adjustments.
[Gray scale 2]
[Gray scale 3]
[Gray scale 4]
[Color bar]
[Red]
[Green] [Blue]
[Cross hatch] [White][Black]
[Raster gray]
4) Press the button.
f The selected test pattern is displayed and the menu screen is disappeare\
d.
Note
f Press the button to display the menu screen and select [Of f] in [Test pattern] when you want to cancel the Test
pattern function....")
ENGLISH - 69 [Off]Test pattern is not displayed. [Gray scale 1] Select a test pattern so that it is easy to make various adjustments. [Gray scale 2] [Gray scale 3] [Gray scale 4] [Color bar] [Red] [Green] [Blue] [Cross hatch] [White][Black] [Raster gray] 4) Press the button. f The selected test pattern is displayed and the menu screen is disappeare\ d. Note f Press the button to display the menu screen and select [Of f] in [Test pattern] when you want to cancel the Test pattern function....
Page 70

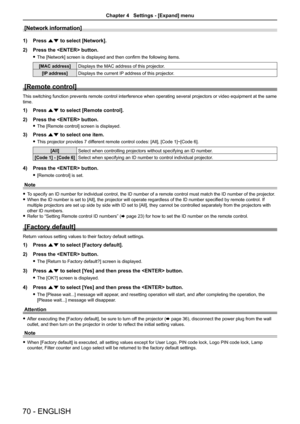

![Page 70
70 - ENGLISH
[Network information]
1) Press as to select [Network].
2) Press the button.
f The [Network] screen is displayed and then confirm the following items.
[MAC address] Displays the MAC address of this projector.
[IP address] Displays the current IP address of this projector.
[Remote control]
This switching function prevents remote control interference when operat\
ing several projectors or video equipment at the same
time.
1) Press as to select [Remote control].
2) Press the button.
f...](http://img.usermanuals.tech/thumb/58/99648/w300_projector_manual_8460_d-69.png "Page 70
70 - ENGLISH
[Network information]
1) Press as to select [Network].
2) Press the button.
f The [Network] screen is displayed and then confirm the following items.
[MAC address] Displays the MAC address of this projector.
[IP address] Displays the current IP address of this projector.
[Remote control]
This switching function prevents remote control interference when operat\
ing several projectors or video equipment at the same
time.
1) Press as to select [Remote control].
2) Press the button.
f...")
70 - ENGLISH [Network information] 1) Press as to select [Network]. 2) Press the button. f The [Network] screen is displayed and then confirm the following items. [MAC address] Displays the MAC address of this projector. [IP address] Displays the current IP address of this projector. [Remote control] This switching function prevents remote control interference when operat\ ing several projectors or video equipment at the same time. 1) Press as to select [Remote control]. 2) Press the button. f...
