Panasonic Projector PT-RW630 User Manual
Here you can view all the pages of manual Panasonic Projector PT-RW630 User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.

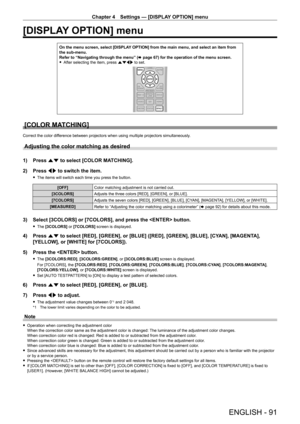

Page 91
![Page 91
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 91
[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from
the sub-menu.
Refer to “Navigating through the menu” (x
page 67) for the operation of the menu screen.
fAfter selecting the item, press
asqw to set.
[COLOR MATCHING]
Correct the color difference between projectors when using multiple projectors simultaneously.
Adjusting the color matching as desired
1) Press as to select [COLOR...](http://img.usermanuals.tech/thumb/58/99635/w300_projector_manual_8428_d-90.png "Page 91
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 91
[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from
the sub-menu.
Refer to “Navigating through the menu” (x
page 67) for the operation of the menu screen.
fAfter selecting the item, press
asqw to set.
[COLOR MATCHING]
Correct the color difference between projectors when using multiple projectors simultaneously.
Adjusting the color matching as desired
1) Press as to select [COLOR...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 91 [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 67) for the operation of the menu screen. fAfter selecting the item, press asqw to set. [COLOR MATCHING] Correct the color difference between projectors when using multiple projectors simultaneously. Adjusting the color matching as desired 1) Press as to select [COLOR...

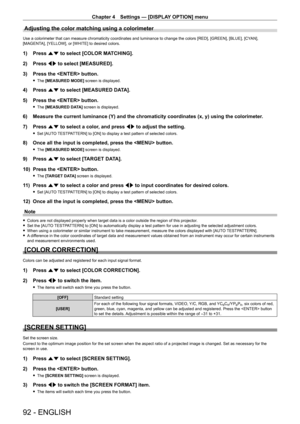

Page 92
![Page 92
Chapter 4 Settings — [DISPLAY OPTION] menu
92 - ENGLISH
Adjusting the color matching using a colorimeter
Use a colorimeter that can measure chromaticity coordinates and luminance to change the colors [RED], [GREEN], [BLUE], [CYAN],
[MAGENTA], [YELLOW], or [WHITE] to desired colors.
1) Press as to select [COLOR MATCHING].
2)
Press
qw to select [MEASURED].
3)
Press the button.
f The [MEASURED MODE] screen is displayed.
4) Press as to select [MEASURED DATA].
5)
Press the button.
f The...](http://img.usermanuals.tech/thumb/58/99635/w300_projector_manual_8428_d-91.png "Page 92
Chapter 4 Settings — [DISPLAY OPTION] menu
92 - ENGLISH
Adjusting the color matching using a colorimeter
Use a colorimeter that can measure chromaticity coordinates and luminance to change the colors [RED], [GREEN], [BLUE], [CYAN],
[MAGENTA], [YELLOW], or [WHITE] to desired colors.
1) Press as to select [COLOR MATCHING].
2)
Press
qw to select [MEASURED].
3)
Press the button.
f The [MEASURED MODE] screen is displayed.
4) Press as to select [MEASURED DATA].
5)
Press the button.
f The...")
Chapter 4 Settings — [DISPLAY OPTION] menu 92 - ENGLISH Adjusting the color matching using a colorimeter Use a colorimeter that can measure chromaticity coordinates and luminance to change the colors [RED], [GREEN], [BLUE], [CYAN], [MAGENTA], [YELLOW], or [WHITE] to desired colors. 1) Press as to select [COLOR MATCHING]. 2) Press qw to select [MEASURED]. 3) Press the button. f The [MEASURED MODE] screen is displayed. 4) Press as to select [MEASURED DATA]. 5) Press the button. f The...

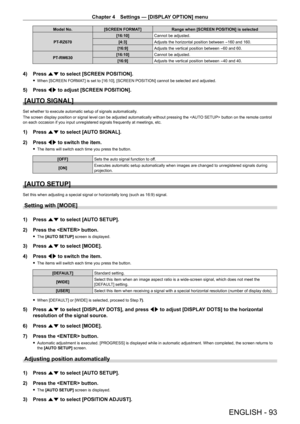

Page 93
![Page 93
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 93
Model No.[SCREEN FORMAT] Range when [SCREEN POSITION] is selected
PT
-
RZ670 [16:10]
Cannot be adjusted.
[4:3] Adjusts the horizontal position between
-160 and 160.
[16:9] Adjusts the vertical position between
-60 and 60.
PT
-
RW630 [16:10]
Cannot be adjusted.
[16:9] Adjusts the vertical position between
-40 and 40.
4) Press as to select [SCREEN POSITION].
fWhen [SCREEN FORMA T] is set to [16:10], [SCREEN POSITION] cannot be selected and...](http://img.usermanuals.tech/thumb/58/99635/w300_projector_manual_8428_d-92.png "Page 93
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 93
Model No.[SCREEN FORMAT] Range when [SCREEN POSITION] is selected
PT
-
RZ670 [16:10]
Cannot be adjusted.
[4:3] Adjusts the horizontal position between
-160 and 160.
[16:9] Adjusts the vertical position between
-60 and 60.
PT
-
RW630 [16:10]
Cannot be adjusted.
[16:9] Adjusts the vertical position between
-40 and 40.
4) Press as to select [SCREEN POSITION].
fWhen [SCREEN FORMA T] is set to [16:10], [SCREEN POSITION] cannot be selected and...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 93 Model No.[SCREEN FORMAT] Range when [SCREEN POSITION] is selected PT - RZ670 [16:10] Cannot be adjusted. [4:3] Adjusts the horizontal position between -160 and 160. [16:9] Adjusts the vertical position between -60 and 60. PT - RW630 [16:10] Cannot be adjusted. [16:9] Adjusts the vertical position between -40 and 40. 4) Press as to select [SCREEN POSITION]. fWhen [SCREEN FORMA T] is set to [16:10], [SCREEN POSITION] cannot be selected and...

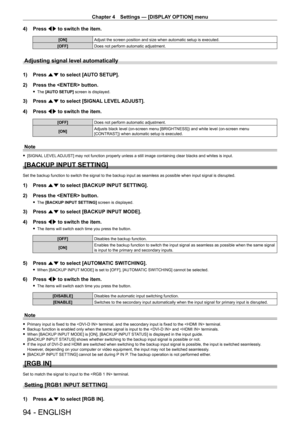

Page 94
![Page 94
Chapter 4 Settings — [DISPLAY OPTION] menu
94 - ENGLISH
4) Press qw to switch the item.
[ON] Adjust the screen position and size when automatic setup is executed.
[OFF] Does not perform automatic adjustment.
Adjusting signal level automatically
1) Press as to select [AUTO SETUP].
2)
Press the button.
f The [AUTO SETUP] screen is displayed.
3) Press as to select [SIGNAL LEVEL ADJUST].
4)
Press
qw to switch the item.
[OFF] Does not perform automatic adjustment.
[ON] Adjusts black level (on-screen...](http://img.usermanuals.tech/thumb/58/99635/w300_projector_manual_8428_d-93.png "Page 94
Chapter 4 Settings — [DISPLAY OPTION] menu
94 - ENGLISH
4) Press qw to switch the item.
[ON] Adjust the screen position and size when automatic setup is executed.
[OFF] Does not perform automatic adjustment.
Adjusting signal level automatically
1) Press as to select [AUTO SETUP].
2)
Press the button.
f The [AUTO SETUP] screen is displayed.
3) Press as to select [SIGNAL LEVEL ADJUST].
4)
Press
qw to switch the item.
[OFF] Does not perform automatic adjustment.
[ON] Adjusts black level (on-screen...")
Chapter 4 Settings — [DISPLAY OPTION] menu 94 - ENGLISH 4) Press qw to switch the item. [ON] Adjust the screen position and size when automatic setup is executed. [OFF] Does not perform automatic adjustment. Adjusting signal level automatically 1) Press as to select [AUTO SETUP]. 2) Press the button. f The [AUTO SETUP] screen is displayed. 3) Press as to select [SIGNAL LEVEL ADJUST]. 4) Press qw to switch the item. [OFF] Does not perform automatic adjustment. [ON] Adjusts black level (on-screen...

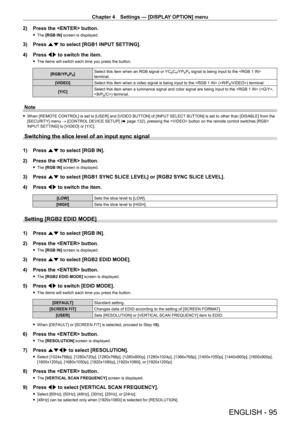

Page 95
![Page 95
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 95
2) Press the button.
fThe [RGB IN] screen is displayed.
3) Press as to select [RGB1 INPUT SETTING].
4)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[RGB/YPBPR] Select this item when an RGB signal or YCBCR/YPBPR signal is being input to the
terminal.
[VIDEO] Select this item when a video signal is being input to the () terminal.
[Y/C] Select this item when a luminance signal and color signal are...](http://img.usermanuals.tech/thumb/58/99635/w300_projector_manual_8428_d-94.png "Page 95
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 95
2) Press the button.
fThe [RGB IN] screen is displayed.
3) Press as to select [RGB1 INPUT SETTING].
4)
Press
qw to switch the item.
fThe items will switch each time you press the button.
[RGB/YPBPR] Select this item when an RGB signal or YCBCR/YPBPR signal is being input to the
terminal.
[VIDEO] Select this item when a video signal is being input to the () terminal.
[Y/C] Select this item when a luminance signal and color signal are...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 95 2) Press the button. fThe [RGB IN] screen is displayed. 3) Press as to select [RGB1 INPUT SETTING]. 4) Press qw to switch the item. fThe items will switch each time you press the button. [RGB/YPBPR] Select this item when an RGB signal or YCBCR/YPBPR signal is being input to the terminal. [VIDEO] Select this item when a video signal is being input to the () terminal. [Y/C] Select this item when a luminance signal and color signal are...

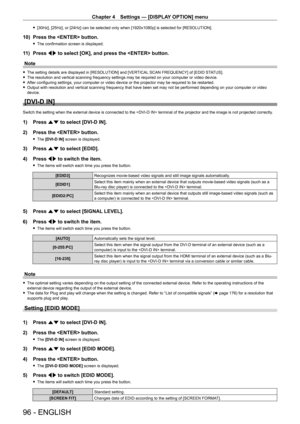

Page 96
![Page 96
Chapter 4 Settings — [DISPLAY OPTION] menu
96 - ENGLISH
f[30Hz], [25Hz], or [24Hz] can be selected only when [1920x1080p] is selected for [RESOLUTION].
10) Press the button.
fThe confirmation screen is displayed.
11) Press qw to select [OK], and press the button.
Note
f The setting details are displayed in [RESOLUTION] and [VER TICAL SCAN FREQUENCY] of [EDID STATUS]. fThe resolution and vertical scanning frequency settings may be required \
on your computer or video device. fAfter configuring...](http://img.usermanuals.tech/thumb/58/99635/w300_projector_manual_8428_d-95.png "Page 96
Chapter 4 Settings — [DISPLAY OPTION] menu
96 - ENGLISH
f[30Hz], [25Hz], or [24Hz] can be selected only when [1920x1080p] is selected for [RESOLUTION].
10) Press the button.
fThe confirmation screen is displayed.
11) Press qw to select [OK], and press the button.
Note
f The setting details are displayed in [RESOLUTION] and [VER TICAL SCAN FREQUENCY] of [EDID STATUS]. fThe resolution and vertical scanning frequency settings may be required \
on your computer or video device. fAfter configuring...")
Chapter 4 Settings — [DISPLAY OPTION] menu 96 - ENGLISH f[30Hz], [25Hz], or [24Hz] can be selected only when [1920x1080p] is selected for [RESOLUTION]. 10) Press the button. fThe confirmation screen is displayed. 11) Press qw to select [OK], and press the button. Note f The setting details are displayed in [RESOLUTION] and [VER TICAL SCAN FREQUENCY] of [EDID STATUS]. fThe resolution and vertical scanning frequency settings may be required \ on your computer or video device. fAfter configuring...

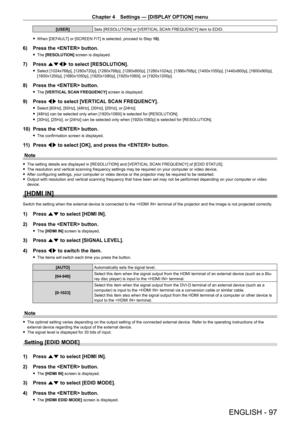

Page 97
![Page 97
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 97
[USER]Sets [RESOLUTION] or [VERTICAL SCAN FREQUENCY] item to EDID.
fWhen [DEF
AULT] or [SCREEN FIT] is selected, proceed to Step 10).
6) Press the button.
fThe [RESOLUTION] screen is displayed.
7) Press asqw to select [RESOLUTION].
fSelect [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p],
[1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].
8) Press the...](http://img.usermanuals.tech/thumb/58/99635/w300_projector_manual_8428_d-96.png "Page 97
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 97
[USER]Sets [RESOLUTION] or [VERTICAL SCAN FREQUENCY] item to EDID.
fWhen [DEF
AULT] or [SCREEN FIT] is selected, proceed to Step 10).
6) Press the button.
fThe [RESOLUTION] screen is displayed.
7) Press asqw to select [RESOLUTION].
fSelect [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p],
[1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].
8) Press the...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 97 [USER]Sets [RESOLUTION] or [VERTICAL SCAN FREQUENCY] item to EDID. fWhen [DEF AULT] or [SCREEN FIT] is selected, proceed to Step 10). 6) Press the button. fThe [RESOLUTION] screen is displayed. 7) Press asqw to select [RESOLUTION]. fSelect [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p]. 8) Press the...

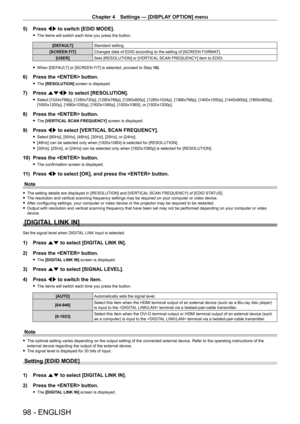

Page 98
![Page 98
Chapter 4 Settings — [DISPLAY OPTION] menu
98 - ENGLISH
5) Press qw to switch [EDID MODE].
fThe items will switch each time you press the button.
[DEFAULT] Standard setting.
[SCREEN FIT] Changes data of EDID according to the setting of [SCREEN FORMAT].
[USER] Sets [RESOLUTION] or [VERTICAL SCAN FREQUENCY] item to EDID.
fWhen [DEF
AULT] or [SCREEN FIT] is selected, proceed to Step 10).
6) Press the button.
fThe [RESOLUTION] screen is displayed.
7) Press asqw to select [RESOLUTION].
fSelect...](http://img.usermanuals.tech/thumb/58/99635/w300_projector_manual_8428_d-97.png "Page 98
Chapter 4 Settings — [DISPLAY OPTION] menu
98 - ENGLISH
5) Press qw to switch [EDID MODE].
fThe items will switch each time you press the button.
[DEFAULT] Standard setting.
[SCREEN FIT] Changes data of EDID according to the setting of [SCREEN FORMAT].
[USER] Sets [RESOLUTION] or [VERTICAL SCAN FREQUENCY] item to EDID.
fWhen [DEF
AULT] or [SCREEN FIT] is selected, proceed to Step 10).
6) Press the button.
fThe [RESOLUTION] screen is displayed.
7) Press asqw to select [RESOLUTION].
fSelect...")
Chapter 4 Settings — [DISPLAY OPTION] menu 98 - ENGLISH 5) Press qw to switch [EDID MODE]. fThe items will switch each time you press the button. [DEFAULT] Standard setting. [SCREEN FIT] Changes data of EDID according to the setting of [SCREEN FORMAT]. [USER] Sets [RESOLUTION] or [VERTICAL SCAN FREQUENCY] item to EDID. fWhen [DEF AULT] or [SCREEN FIT] is selected, proceed to Step 10). 6) Press the button. fThe [RESOLUTION] screen is displayed. 7) Press asqw to select [RESOLUTION]. fSelect...

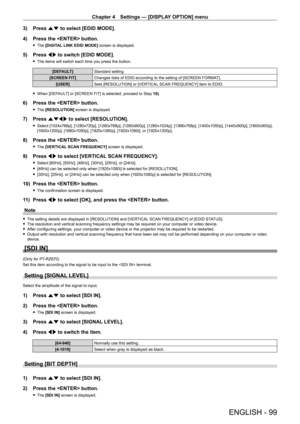

Page 99
![Page 99
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 99
3) Press as to select [EDID MODE].
4)
Press the button.
f The [DIGITAL LINK EDID MODE] screen is displayed.
5) Press qw to switch [EDID MODE].
fThe items will switch each time you press the button.
[DEFAULT] Standard setting.
[SCREEN FIT] Changes data of EDID according to the setting of [SCREEN FORMAT].
[USER] Sets [RESOLUTION] or [VERTICAL SCAN FREQUENCY] item to EDID.
fWhen [DEF
AULT] or [SCREEN FIT] is selected, proceed to Step 10).
6)...](http://img.usermanuals.tech/thumb/58/99635/w300_projector_manual_8428_d-98.png "Page 99
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 99
3) Press as to select [EDID MODE].
4)
Press the button.
f The [DIGITAL LINK EDID MODE] screen is displayed.
5) Press qw to switch [EDID MODE].
fThe items will switch each time you press the button.
[DEFAULT] Standard setting.
[SCREEN FIT] Changes data of EDID according to the setting of [SCREEN FORMAT].
[USER] Sets [RESOLUTION] or [VERTICAL SCAN FREQUENCY] item to EDID.
fWhen [DEF
AULT] or [SCREEN FIT] is selected, proceed to Step 10).
6)...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 99 3) Press as to select [EDID MODE]. 4) Press the button. f The [DIGITAL LINK EDID MODE] screen is displayed. 5) Press qw to switch [EDID MODE]. fThe items will switch each time you press the button. [DEFAULT] Standard setting. [SCREEN FIT] Changes data of EDID according to the setting of [SCREEN FORMAT]. [USER] Sets [RESOLUTION] or [VERTICAL SCAN FREQUENCY] item to EDID. fWhen [DEF AULT] or [SCREEN FIT] is selected, proceed to Step 10). 6)...

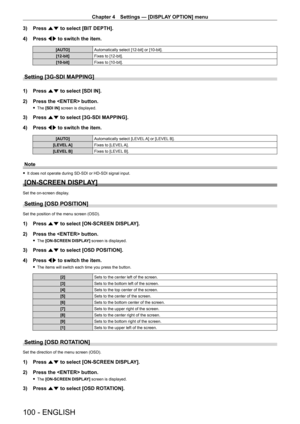

Page 100
![Page 100
Chapter 4 Settings — [DISPLAY OPTION] menu
100 - ENGLISH
3) Press as to select [BIT DEPTH].
4)
Press
qw to switch the item.
[AUTO] Automatically select [12-bit] or [10-bit].
[12-bit] Fixes to [12-bit].
[10-bit] Fixes to [10-bit].
Setting [3G-SDI MAPPING]
1) Press as to select [SDI IN].
2)
Press the button.
f The [SDI IN] screen is displayed.
3) Press as to select [3G-SDI MAPPING].
4)
Press
qw to switch the item.
[AUTO] Automatically select [LEVEL A] or [LEVEL B].
[LEVEL A] Fixes to [LEVEL...](http://img.usermanuals.tech/thumb/58/99635/w300_projector_manual_8428_d-99.png "Page 100
Chapter 4 Settings — [DISPLAY OPTION] menu
100 - ENGLISH
3) Press as to select [BIT DEPTH].
4)
Press
qw to switch the item.
[AUTO] Automatically select [12-bit] or [10-bit].
[12-bit] Fixes to [12-bit].
[10-bit] Fixes to [10-bit].
Setting [3G-SDI MAPPING]
1) Press as to select [SDI IN].
2)
Press the button.
f The [SDI IN] screen is displayed.
3) Press as to select [3G-SDI MAPPING].
4)
Press
qw to switch the item.
[AUTO] Automatically select [LEVEL A] or [LEVEL B].
[LEVEL A] Fixes to [LEVEL...")
Chapter 4 Settings — [DISPLAY OPTION] menu 100 - ENGLISH 3) Press as to select [BIT DEPTH]. 4) Press qw to switch the item. [AUTO] Automatically select [12-bit] or [10-bit]. [12-bit] Fixes to [12-bit]. [10-bit] Fixes to [10-bit]. Setting [3G-SDI MAPPING] 1) Press as to select [SDI IN]. 2) Press the button. f The [SDI IN] screen is displayed. 3) Press as to select [3G-SDI MAPPING]. 4) Press qw to switch the item. [AUTO] Automatically select [LEVEL A] or [LEVEL B]. [LEVEL A] Fixes to [LEVEL...
