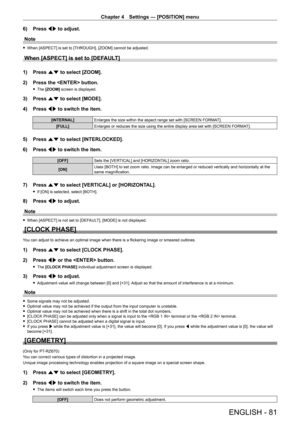

Panasonic Projector PT-RW630 User Manual

Chapter 4 Settings — [POSITION] menu
ENGLISH - 81
6) Press qw to adjust.
Note
 f When [ASPECT] is set to [THROUGH], [ZOOM] cannot be adjusted.
When [ASPECT] is set to [DEFAULT]
1) Press  as to select [ZOOM].
2)
Press the  button.
 f The  [ZOOM]  screen is displayed.
3) Press  as to select [MODE].
4)
Press
 qw to switch the item.
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMA T].
[FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMA T]....

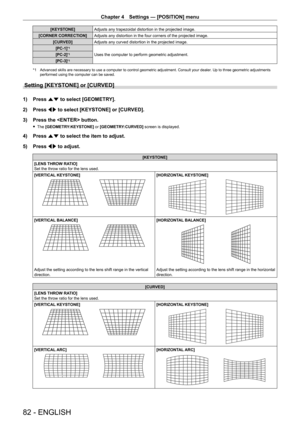

Chapter 4 Settings — [POSITION] menu
82 - ENGLISH
[KEYSTONE]Adjusts any trapezoidal distortion in the projected image.
[CORNER CORRECTION] Adjusts any distortion in the four corners of the projected image.
[CURVED] Adjusts any curved distortion in the projected image.
[PC-1]
*1
Uses the computer to perform geometric adjustment.
[PC-2]*1
[PC-3]*1
*1 Advanced skills are necessary to use a computer to control geometric adjustment. Consult your dealer . Up to three geometric adjustments
performed using the...

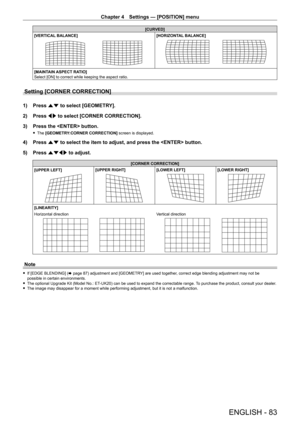

Chapter 4 Settings — [POSITION] menu
ENGLISH - 83
[CURVED]
[VERTICAL BALANCE]
[HORIZONTAL BALANCE]
[MAINTAIN ASPECT RATIO]
Select [ON] to correct while keeping the aspect ratio.
Setting [CORNER CORRECTION]
1) Press  as to select [GEOMETRY].
2)
Press
 qw to select [CORNER CORRECTION].
3)

Press the  button.
 f The  [GEOMETRY:CORNER CORRECTION] screen is displayed.
4) Press  as to select the item to adjust, and press the  button.
5)
Press
 asqw to adjust.
[CORNER CORRECTION]
[UPPER LEFT]
[UPPER...

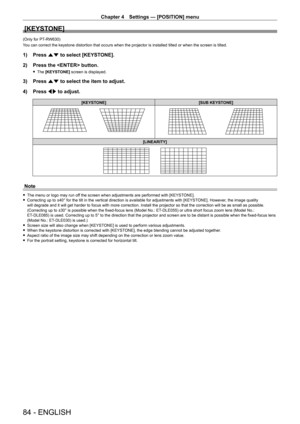

Chapter 4 Settings — [POSITION] menu
84 - ENGLISH
[KEYSTONE]
(Only for PT-RW630)
You can correct the keystone distortion that occurs when the projector is installed tilted or when the screen is tilted.
1) Press  as to select [KEYSTONE].
2)
Press the  button.
 f The  [KEYSTONE] screen is displayed.
3) Press  as to select the item to adjust.
4)
Press
 qw to adjust.
[KEYSTONE] [SUB KEYSTONE]
[LINEARITY]
Note
 fThe menu or logo may run of f the screen when adjustments are performed with [KEYSTONE]....

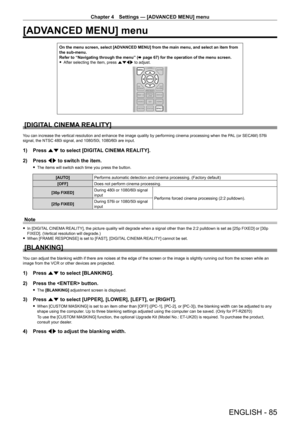

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 85
[ADVANCED MENU] menu
On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from
the sub-menu.
Refer to “Navigating through the menu” (x
  page   67) for the operation of the menu screen.
 fAfter selecting the item, press

asqw to adjust.
[DIGITAL CINEMA REALITY]
You can increase the vertical resolution and enhance the image quality by performing cinema processing when the PAL (or SECAM) 576i
signal, the NTSC 480i...

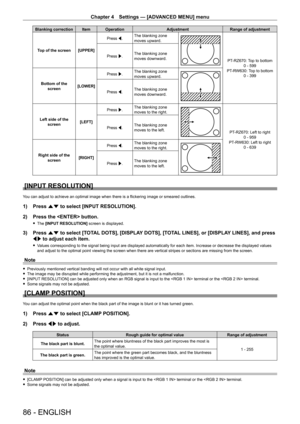

Chapter 4 Settings — [ADVANCED MENU] menu
86 - ENGLISH
Blanking correctionItem Operation AdjustmentRange of adjustment
Top of the screen [UPPER] Press q.
The blanking zone
moves upward.
PT-
RZ670: Top to bottom
0 - 599
PT
-

RW630: Top to bottom  0 - 399
Press w.
The blanking zone
moves downward.
Bottom of the  screen [LOWER]Press w.
The blanking zone
moves upward.
Press q.The blanking zone
moves downward.
Left side of the  screen [LEFT]Press w.
The blanking zone
moves to the right.
PT-
RZ670: Left...

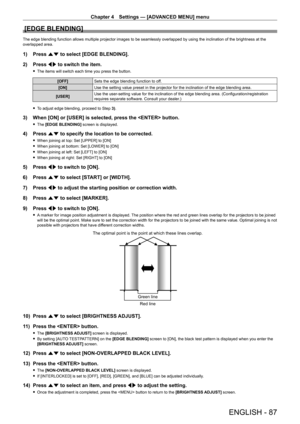

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 87
[EDGE BLENDING]
The edge blending function allows multiple projector images to be seamle\
ssly overlapped by using the inclination of the brightness at the
overlapped area.
1) Press as to select [EDGE BLENDING].
2)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Sets the edge blending function to off.
[ON] Use the setting value preset in the projector for the inclination of the edge blending area....

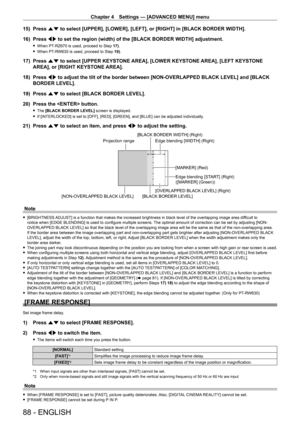

Chapter 4 Settings — [ADVANCED MENU] menu
88 - ENGLISH
15) Press as to select [UPPER], [LOWER], [LEFT], or [RIGHT] in [BLACK BORDER WIDTH].
16)
Press
 qw to set the region (width) of the [BLACK BORDER WIDTH] adjustment.
 fWhen PT- RZ670 is used, proceed to Step  17).
 fWhen PT-

RW630 is used, proceed to Step  19).
17) Press as to select [UPPER KEYSTONE AREA], [LOWER KEYSTONE AREA], [LEFT KEYSTONE
AREA], or [RIGHT KEYSTONE AREA].
18)

Press
 qw to adjust the tilt of the border between...

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 89
[RASTER POSITION]
This will allow the position of the image to move within the display are\
a arbitrarily when the input image is not using the whole display area.
1) Press as to select [RASTER POSITION].
2)
Press the  button.
 f The  [RASTER POSITION]  screen is displayed.
3) Press asqw to adjust the position.

Chapter 4 Settings — [DISPLAY LANGUAGE] menu
90 - ENGLISH
[DISPLAY LANGUAGE] menu
On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-
menu.
Refer to “Navigating through the menu” (x
  page   67) for the operation of the menu screen.
 fPress

as to select a language, and press the  button to set.
Changing the display language
You can select the language of the on-screen display.
ENTER
DISPLAY LANGUAGE
SELECT
SET
 fVarious menus, settings, adjustment screens, control...
