Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 111

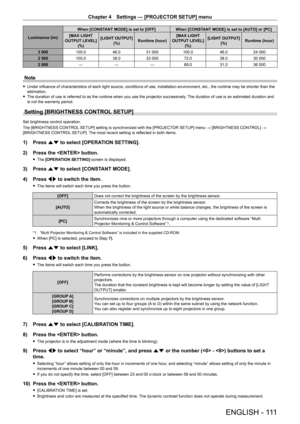

Luminance (lm)When [CONSTANT MODE] is set to [OFF] When [CONSTANT MODE] is set to [AUTO] or [PC]
[MAX LIGHT
OUTPUT LEVEL]  (%) [LIGHT OUTPUT]
(%) Runtime (hour) [MAX LIGHT
OUTPUT LEVEL]  (%) [LIGHT OUTPUT]
(%) Runtime (hour)
3
  000 100.0 46.031
  000100.0 46.024
  000
2
  500 100.0 38.033
  00072.0 38.030
  000
2
  000 ―――68.0 31.036
  500
Note
 fUnder influence of characteristics of each light source, conditions of use, installation...

Chapter 4 Settings — [PROJECTOR SETUP] menu
112 - ENGLISH

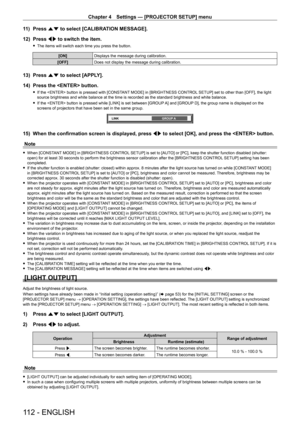

11) Press as to select [CALIBRATION MESSAGE].
12)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[ON] Displays the message during calibration.
[OFF] Does not display the message during calibration.
13) Press as to select [APPLY].
14)
Press the  button.
 fIf the  button is pressed with [CONST ANT MODE] in [BRIGHTNESS CONTROL SETUP] set to other than [OFF], the light
source brightness and white balance at...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 113

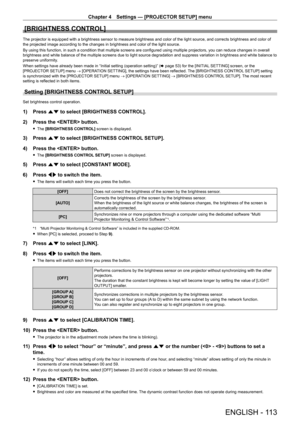

[BRIGHTNESS CONTROL]
The projector is equipped with a brightness sensor to measure brightness\
 and color of the light source, and corrects brightness and color of
the projected image according to the changes in brightness and color of \
the light source.
By using this function, in such a condition that multiple screens are configured using multiple projectors, you can reduce changes in overall
brightness and white balance of the multiple...

Chapter 4 Settings — [PROJECTOR SETUP] menu
114 - ENGLISH
13) Press as to select [CALIBRATION MESSAGE].
14)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[ON] Messages are displayed during calibration.
[OFF] Messages are not displayed during calibration.
15) Press as to select [APPLY].
16)
Press the  button.
 fIf the  button is pressed with [CONST ANT MODE] in [BRIGHTNESS CONTROL SETUP] set to other than [OFF], the light
source brightness and white balance at...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 115
[BRIGHTNESS CONTROL STATUS] screen display example
When [CONSTANT MODE] of [BRIGHTNESS CONTROL
SETUP] is set to [OFF]
The screen shows the status that the brightness control is disabled.
1
RETURN
BRIGHTNESS CONTROL STATUS
CONSTANT MODE PROJECTOR OFFMENU
When [CONSTANT MODE] of [BRIGHTNESS CONTROL
SETUP] is set to [AUTO] and [LINK] is set to [OFF]
The screen shows the status of the brightness control in one
projector
5
1
6
RETURN
LINK
PROJECTOR...

Chapter 4 Settings — [PROJECTOR SETUP] menu
116 - ENGLISH

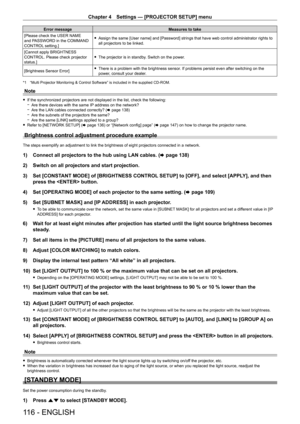

Error messageMeasures to take
[Please check the USER NAME
and PASSWORD in the COMMAND
CONTROL setting.]
 f Assign the same [User name] and [Password] strings that have web control administrator rights to
all projectors to be linked.
[Cannot apply BRIGHTNESS
CONTROL. Please check projector
status.]
 f The projector is in standby

. Switch on the power.
[Brightness Sensor Error]
 f There is a problem with the brightness sensor

. If problems...

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 117

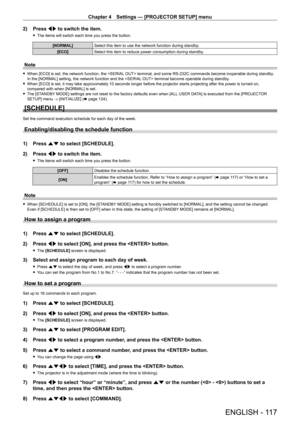

2) Press qw to switch the item.
 fThe items will switch each time you press the button.
[NORMAL] Select this item to use the network function during standby.
[ECO] Select this item to reduce power consumption during standby.
Note
 fWhen [ECO] is set, the network function, the  terminal, and some RS - 232C commands become inoperable during standby.
In the [NORMAL] setting, the network function and the  terminal become operable during standby.
 f...

Chapter 4 Settings — [PROJECTOR SETUP] menu
118 - ENGLISH
9) Press the  button.
 fThe  [COMMAND] detailed screen is displayed.
10) Press  as to select a [COMMAND].
 fFor [COMMAND] which requires detailed settings, the items of the detailed settings will switch each time you press  qw .
 fWhen [INPUT] is selected, press the  button, and then press

asqw to select the input to be set.
[COMMAND] Detailed settings of
[COMMAND] Description
[POWER ON] ―Switches on the projector.
[STANDBY] ―Enters standby....

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 119

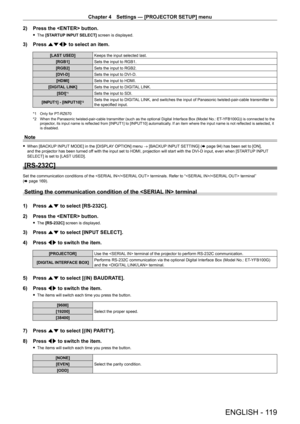

2) Press the  button.
 fThe  [STARTUP INPUT SELECT]  screen is displayed.
3) Press asqw to select an item.
[LAST USED] Keeps the input selected last.
[RGB1] Sets the input to RGB1.
[RGB2] Sets the input to RGB2.
[DVI
- D] Sets the input to DVI
- D.
[HDMI] Sets the input to HDMI.
[DIGITAL LINK] Sets the input to DIGITAL LINK.
[SDI]
*1Sets the input to SDI.
[INPUT1] - [INPUT10]
*2Sets the input to DIGITAL LINK, and switches the input of Panasonic...

Chapter 4 Settings — [PROJECTOR SETUP] menu
120 - ENGLISH
Setting the communication condition of the  terminal
1) Press as to select [RS-232C].
2)
Press the  button.
 f The  [RS-232C]  screen is displayed.
3) Press  as to select [(OUT) BAUDRATE].
4)
Press
 qw to switch the item.
[9600] Select the proper speed.
[19200]
[38400]
5) Press  as to select [(OUT) PARITY].
6)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[NONE]
Select the parity condition.
[EVEN]...
