Panasonic Projector PT-RX110 User Manual

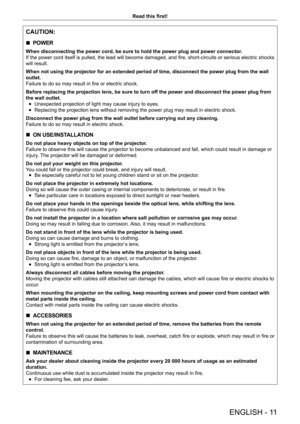

ENGLISH - 11
Read this first!
CAUTION:
 rPOWER
When disconnecting the power cord, be sure to hold the power plug and power connector
.
If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks
will result.
When not using the projector for an extended period of time, disconnect the power plug from the wall
outlet.
Failure to do so may result in fire or electric shock.
Before replacing the projection lens, be sure to turn off the power and...

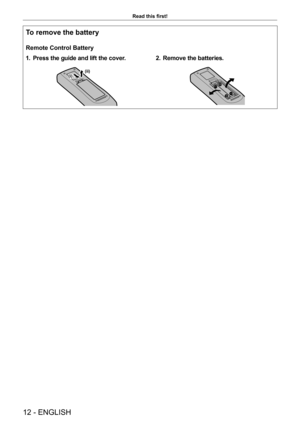

12 - ENGLISH
Read this first!
To remove the battery
Remote Control Battery
1.
 P
 ress the guide and lift the cover.
(ii)(i)
2. Remove the batteries.

ENGLISH - 13
Read this first!

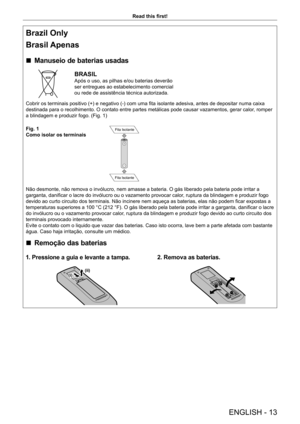

Brazil Only
Brasil Apenas
 rManuseio de baterias usadas
BRASIL
Após o uso, as pilhas e/ou baterias deverão
ser entregues ao estabelecimento comercial
ou rede de assistência técnica autorizada.
Cobrir os terminais positivo (+) e negativo (-) com uma fita isolante adesiva, antes de depositar numa caixa
destinada para o recolhimento. O contato entre partes metálicas pode causar vazamentos, gerar calor , romper
a blindagem e produzir fogo. (Fig. 1)
Fig. 1
Como isolar os...

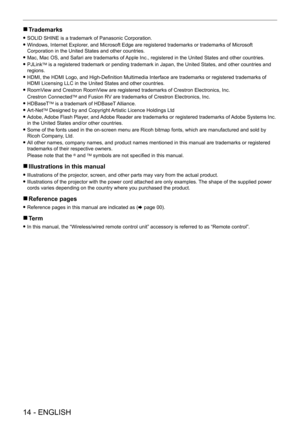

14 - ENGLISH
 rTrademarks
 fSOLID SHINE is a trademark of Panasonic Corporation.
 fWindows, Internet Explorer

, and Microsoft Edge are registered trademarks or trademarks of Microsoft
Corporation in the United States and other countries.
 f Mac, Mac OS, and Safari are trademarks of

Apple Inc., registered in the United States and other countries.
 fPJLinkTM is a registered trademark or pending trademark in Japan, the United States, and other countries and
regions.
 f HDMI, the HDMI Logo, and...


ENGLISH - 15

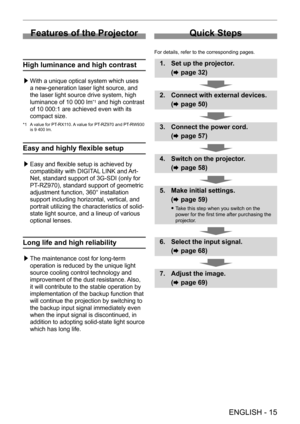

Features of the Projector
High luminance and high contrast
 /£With a unique optical system which uses
a new-generation laser light source, and
the laser light source drive system, high
luminance of 10
  000   lm
*1 and high contrast
of 10

000:1 are achieved even with its
compact size.
*1 A value for PT- RX110. A value for PT- RZ970 and PT- RW930
is 9   400   lm.
Easy and highly flexible setup
 /£Easy and flexible setup is achieved by
compatibility with DIGIT
AL LINK and Art-
Net,...

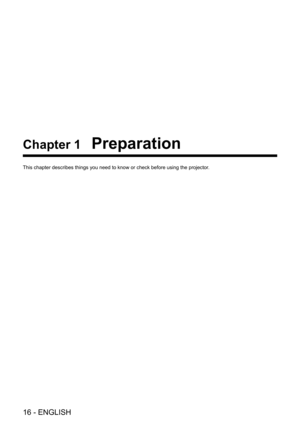

16 - ENGLISH
Chapter 1 Preparation
This chapter describes things you need to know or check before using the projector.

Chapter 1 Preparation — Precautions for use

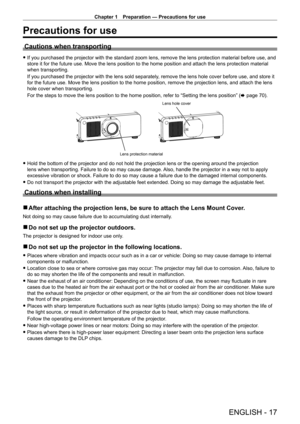

ENGLISH - 17
Precautions for use
Cautions when transporting
 fIf you purchased the projector with the standard zoom lens, remove the lens protection material before use, and
store it for the future use. Move the lens position to the home position and attach the lens protection material
when transporting.
If you purchased the projector with the lens sold separately
, remove the lens hole cover before use, and store it
for the future use. Move the lens...

Chapter 1 Preparation — Precautions for use

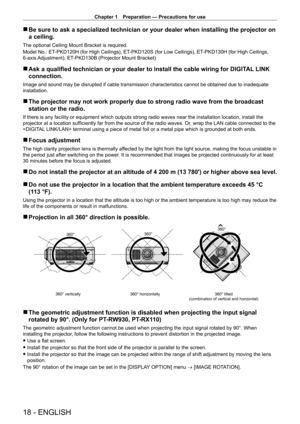

18 - ENGLISH
 rBe sure to ask a specialized technician or your dealer when installing t\
he projector on
a ceiling.
The optional Ceiling Mount Bracket is required.
Model No.: ET
-

PKD120H (for High Ceilings), ET
-
 PKD120S (for Low Ceilings), ET
-
 PKD130H (for High Ceilings,
6-axis Adjustment), ET
-

PKD130B (Projector Mount Bracket)
 rAsk a qualified technician or your dealer to install the cable wiring for DIGIT AL  LINK
connection.
Image and sound may...

Chapter 1 Preparation — Precautions for use

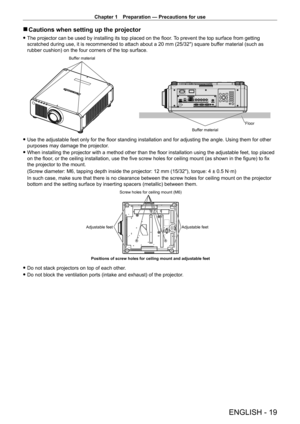

ENGLISH - 19
 rCautions when setting up the projector
 fThe projector can be used by installing its top placed on the floor .  To prevent the top surface from getting
scratched during use, it is recommended to attach about a 20   mm (25/32") square buffer material (such as
rubber cushion) on the four corners of the top surface.
Buffer material
Buffer materialFloor
 f
Use the adjustable feet only for the floor standing installation and for adjusting the...

Chapter 1 Preparation — Precautions for use

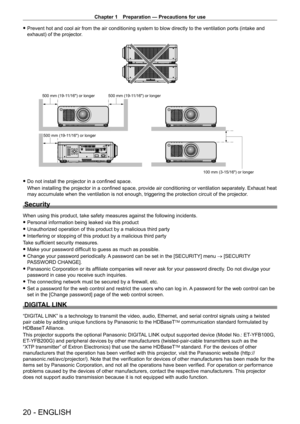

20 - ENGLISH
 fPrevent hot and cool air from the air conditioning system to blow directly to the ventilation ports (intake and
exhaust) of the projector
.
100 mm (3-15/16) or longer
500 mm (19-11/16) or longer 500 mm (19-11/16) or longer
500 mm (19-11/16) or longer
 f Do not install the projector in a confined space.
When installing the projector in a confined space, provide air conditioning or ventilation separately . Exhaust heat
may accumulate when the...
