Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 61
OperationAdjustmentRange of adjustment

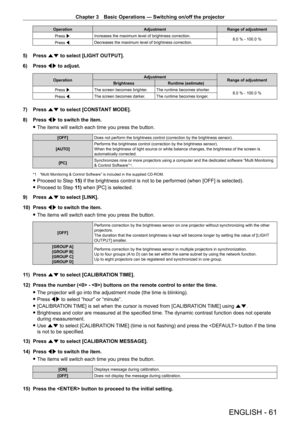

Press w. Increases the maximum level of brightness correction.
8.0
  % - 100.0   %
Press q. Decreases the maximum level of brightness correction.
5) Press
as to select [LIGHT OUTPUT].
6)
Press
 qw to adjust.
Operation Adjustment
Range of adjustment
Brightness Runtime (estimate)
Press w. The screen becomes brighter. The runtime becomes shorter.
8.0
  % - 100.0   %
Press q. The screen becomes...

Chapter 3 Basic Operations — Switching on/off the projector
62 - ENGLISH

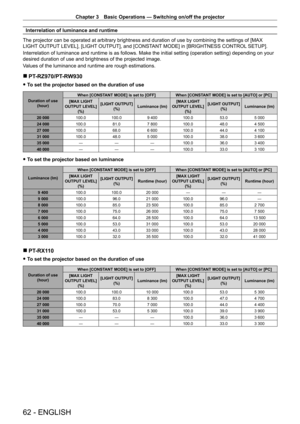

Interrelation of luminance and runtime
The projector can be operated at arbitrary brightness and duration of use by combining the settings of [MAX
LIGHT OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP].
Interrelation of luminance and runtime is as follows. Make the initial setting (operation setting) depending on your
desired duration of use and brightness of the projected image.
Values of the...

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 63
 fTo set the projector based on luminance
Luminance (lm) When [CONSTANT MODE] is set to [OFF] When [CONSTANT MODE] is set to [AUTO] or [PC]
[MAX LIGHT
OUTPUT LEVEL]  (%) [LIGHT OUTPUT]
(%) Runtime (hour) [MAX LIGHT
OUTPUT LEVEL]  (%) [LIGHT OUTPUT]
(%) Runtime (hour)
10
  000 100.0 100.020
  000― ――
9
  000 100.0 90.022
  500― ――
8
  000 100.0 80.024
  500100.0 80.05
  000
7
  000 100.0 70.027
  000100.0 70.010
  000
6
  000...

Chapter 3 Basic Operations — Switching on/off the projector
64 - ENGLISH

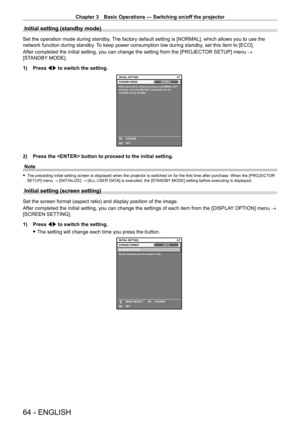

Initial setting (standby mode)
Set the operation mode during standby. The factory default setting is [NORMAL], which allows you to use the
network function during standby. To keep power consumption low during standby, set this item to [ECO].
After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu →
[STANDBY MODE].
1)

Press
 qw to switch the setting.
4/7
When set to ECO, network functions...

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 65

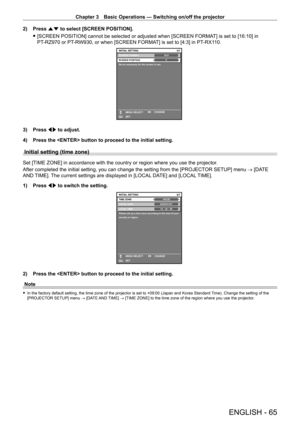

2) Press as to select [SCREEN POSITION].
 f[SCREEN POSITION] cannot be selected or adjusted when [SCREEN FORMA T] is set to [16:10] in
PT
-

RZ970 or PT
-
 RW930, or when [SCREEN FORMAT] is set to [4:3] in PT
-
 RX110.
16:90
5/7
SCREEN POSITION
Set as necessary for the screen in use.
INITIAL SETTING
SET CHANGESCREEN FORMAT
ENTERMENU SELECT
3) Press
qw to adjust.
4)
Press the  button to proceed to the initial setting.
Initial...

Chapter 3 Basic Operations — Switching on/off the projector
66 - ENGLISH

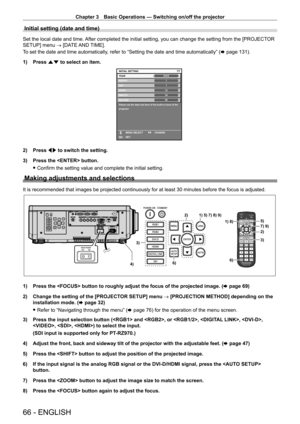

Initial setting (date and time)
Set the local date and time. After completed the initial setting, you can change the setting from the [PROJECTOR
SETUP] menu → [DATE AND TIME].
To set the date and time automatically, refer to “Setting the date and time automatically” (x
  page   131).
1)

Press
 as to select an item.
20XX7/7
11123456
MONTH
D AY
HOUR
MINUTE
SECOND
Please set the date and time of the built-in clock of the...

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 67
9) Press the  button again to adjust the zoom to match the projected \
image size to the screen.
Note
 f When the projector is switched on for the first time after purchase, as well as when the [PROJECT OR SETUP] menu  → [INITIALIZE] →
[ALL USER DATA] is executed, the focus adjustment screen is displayed after projection starts, and then the  [INITIAL SETTING] screen is
displayed. Refer to “When the initial setting screen is...

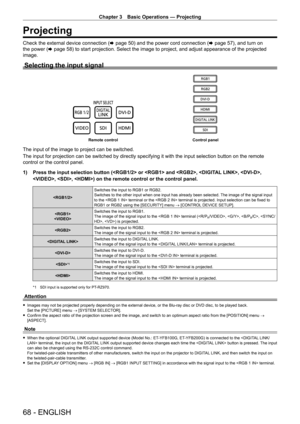

Chapter 3 Basic Operations — Projecting
68 - ENGLISH
Projecting
Check the external device connection (x   page   50) and the power cord connection (x   page   57), and turn on
the power (x   page   58) to start projection. Select the image to project, and adjust appearance of the projected
image.
Selecting the input signal
Remote control Control panel
The input of the image to project can be switched.
The input for projection can be switched by directly specifying it with the input selection button on...

Chapter 3 Basic Operations — Projecting
ENGLISH - 69

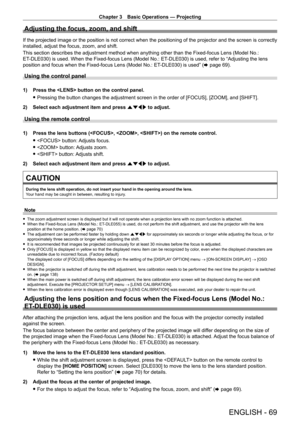

Adjusting the focus, zoom, and shift
If the projected image or the position is not correct when the positioning of the projector and the screen is correctly
installed, adjust the focus, zoom, and shift.
This section describes the adjustment method when anything other than the Fixed-focus Lens (Model No.:
ET
-
DLE030) is used. When the Fixed-focus Lens (Model No.: ET
-
 DLE030) is used, refer to “Adjusting the lens
position and focus when the...

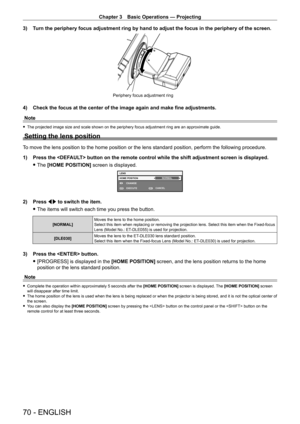

Chapter 3 Basic Operations — Projecting
70 - ENGLISH
3) Turn the periphery focus adjustment ring by hand to adjust the focus in t\
he periphery of the screen.
Periphery focus adjustment ring
4) Check the focus at the center of the image again and make fine adjustmen\
ts.
Note
 f The projected image size and scale shown on the periphery focus adjustment ring are an approximate guide.
Setting the lens position
To move the lens position to the home position or the lens standard position, perform the...
