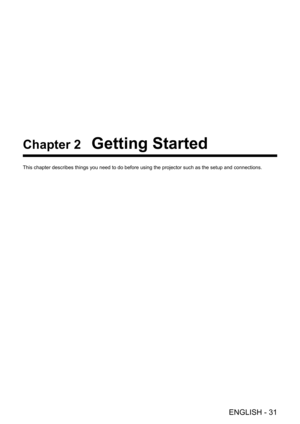

Page 31

ENGLISH - 31
Chapter 2 Getting Started
This chapter describes things you need to do before using the projector such as the setup and connections.

Page 32

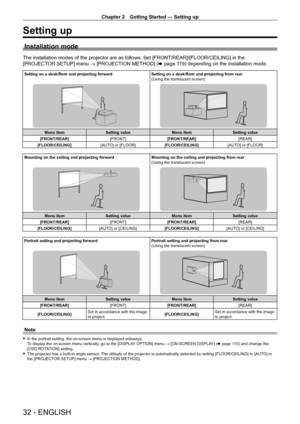

Chapter 2 Getting Started — Setting up
32 - ENGLISH
Setting up
Installation mode
The installation modes of the projector are as follows. Set [FRONT/REAR]/[FLOOR/CEILING] in the
[PROJECTOR SETUP] menu → [PROJECTION METHOD] (x
  page   119) depending on the installation mode.
Setting on a desk/floor and projecting forward Setting on a desk/floor and projecting from rear
(Using the translucent screen)
Menu itemSetting value Menu itemSetting value
[FRONT/REAR] [FRONT][FRONT/REAR] [REAR]
[FLOOR/CEILING]...

Page 33

Chapter 2 Getting Started — Setting up
ENGLISH - 33
 rAngle sensor
The range of the installation attitude that is detected by the angle sensor built-in the projector is as follows.
30° 30°
Floor standing installation
Floor standing installation
Projection direction Ceiling mount installation
Parts for installation (optional)
The projector can be installed on the ceiling by combining the optional Ceiling Mount Bracket (Model No.:
ET
-

PKD120H (for High Ceilings), ET
-
 PKD120S (for Low Ceilings), ET
-...

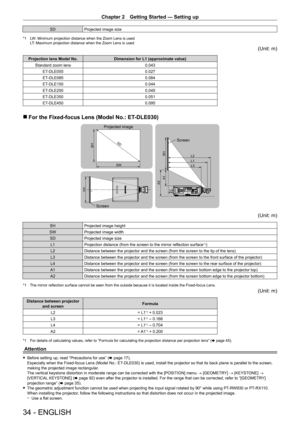

Page 34

Chapter 2 Getting Started — Setting up
34 - ENGLISH
SDProjected image size
*1 LW: Minimum projection distance when the Zoom Lens is used
LT: Maximum projection distance when the Zoom Lens is used
(Unit: m)
Projection lens Model No. Dimension for L1 (approximate value)
Standard zoom lens 0.043
ET
-

DLE055 0.027
ET
-

DLE085 0.084
ET
-

DLE150 0.044
ET
-

DLE250 0.045
ET
-

DLE350 0.051
ET
-

DLE450 0.095
 rFor the Fixed-focus Lens (Model No.: ET- DLE030)
SH
SW
SD
SH
A1
L3
L4
A2
L1 L2
SW
Projected image...

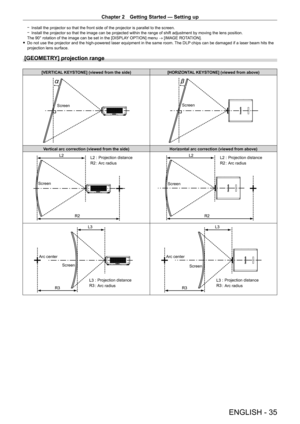

Page 35

Chapter 2 Getting Started — Setting up
ENGLISH - 35
 gInstall the projector so that the front side of the projector is parallel to the screen. gInstall the projector so that the image can be projected within the range of shift adjustment by moving the lens position.
The 90° rotation of the image can be set in the [DISPLA
Y OPTION] menu → [IMAGE ROTATION].
 fDo not use the projector and the high-powered laser equipment in the same room.  The DLP

 chips can be damaged if a laser beam hits the
projection...

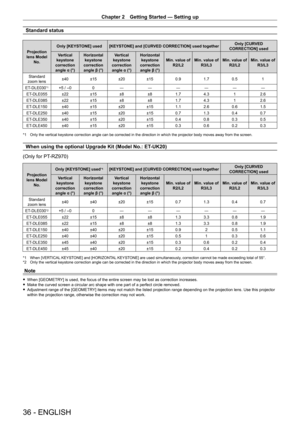

Page 36

Chapter 2 Getting Started — Setting up
36 - ENGLISH
Standard status
Projection
lens Model  No. Only [KEYSTONE] used [KEYSTONE] and [CURVED CORRECTION] used together
Only [CURVED
CORRECTION] used
Vertical
keystone
correction  angle α (°) Horizontal
keystone
correction  angle β (°) Vertical
keystone
correction  angle α (°) Horizontal
keystone
correction  angle β (°) Min. value of
R2/L2 Min. value of
R3/L3 Min. value of
R2/L2 Min. value of
R3/L3
Standard
zoom lens ±40
±15±20±15 0.91.70.5 1...

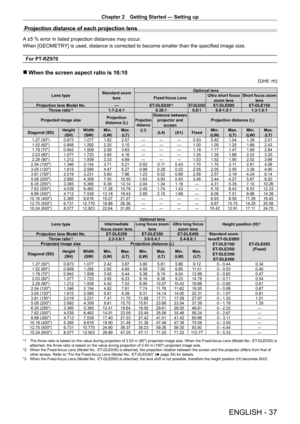

Page 37

Chapter 2 Getting Started — Setting up
ENGLISH - 37
Projection distance of each projection lens
A ±5 % error in listed projection distances may occur.
When [GEOMETR Y] is used, distance is corrected to become smaller than the specified image size.
For PT
-

RZ970
 rWhen the screen aspect ratio is 16:10
(Unit: m)
Lens type Standard zoom
lens Optional lens
Fixed-focus Lens Ultra short focus
zoom lens Short focus zoom
lens
Projection lens Model No. —ET
-

DLE030
*2ET-DLE055ET-DLE085 ET- DLE150
Throw...

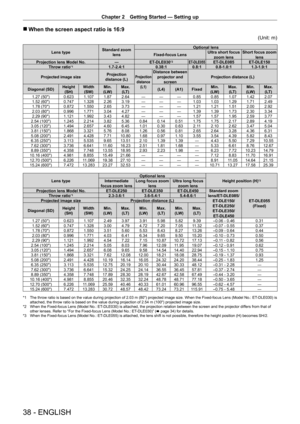

Page 38

Chapter 2 Getting Started — Setting up
38 - ENGLISH
 rWhen the screen aspect ratio is 16:9
(Unit: m)
Lens type Standard zoom
lens Optional lens
Fixed-focus Lens Ultra short focus
zoom lens Short focus zoom
lens
Projection lens Model No. —ET
-

DLE030
*2ET-DLE055ET-DLE085 ET- DLE150
Throw ratio*11.7-2.4:1 0.38:10.8:1 0.8 - 1.0:1 1.3 - 1.9:1
Projected image size Projection
distance (L)
Projection  distance  (L1)Distance between projector and  screen Projection distance (L)
Diagonal (SD) Height
(SH)...

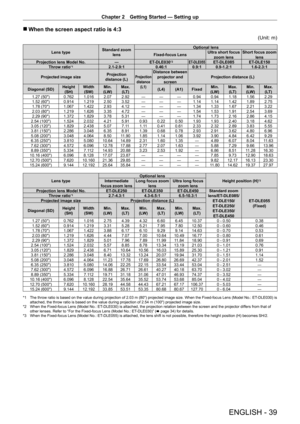

Page 39

Chapter 2 Getting Started — Setting up
ENGLISH - 39
 rWhen the screen aspect ratio is 4:3
(Unit: m)
Lens type Standard zoom
lens Optional lens
Fixed-focus Lens Ultra short focus
zoom lens Short focus zoom
lens
Projection lens Model No. —ET
-

DLE030
*2ET-DLE055ET-DLE085 ET- DLE150
Throw ratio*12.1-2.9:1 0.46:10.9:1 0.9 - 1.2:1 1.6 - 2.3:1
Projected image size Projection
distance (L)
Projection  distance  (L1)Distance between projector and  screen Projection distance (L)
Diagonal (SD) Height
(SH)...

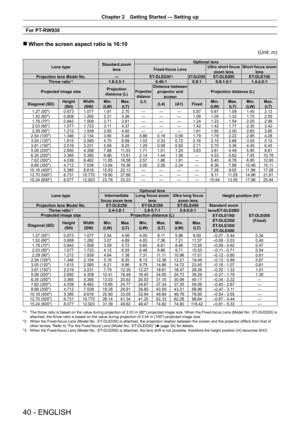

Page 40

Chapter 2 Getting Started — Setting up
40 - ENGLISH
For PT-RW930
 rWhen the screen aspect ratio is 16:10
(Unit: m)
Lens type Standard zoom
lens Optional lens
Fixed-focus Lens Ultra short focus
zoom lens Short focus zoom
lens
Projection lens Model No. —ET
-

DLE030
*2ET-DLE055ET-DLE085 ET- DLE150
Throw ratio*11.8-2.5:1 0.40:10.8:1 0.8 - 1.0:1 1.4 - 2.0:1
Projected image size Projection
distance (L)
Projection  distance  (L1)Distance between projector and  screen Projection distance (L)
Diagonal (SD)...
