Panasonic Projector PT-SX300A User Manual
Here you can view all the pages of manual Panasonic Projector PT-SX300A User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.

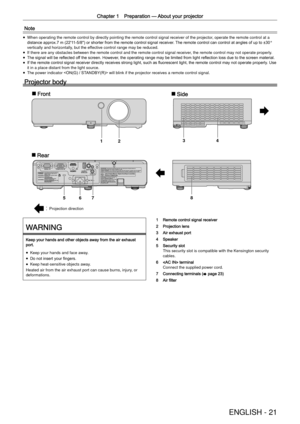

Page 21
Chapter 1 Preparation — About your projector ENGLISH - 21 Note f When operating the remote control by directly pointing the remote contro\ l signal receiver of the projector, operate the remote control at a distance approx.7 m (22'11-5/8'') or shorter from the remote control signal receiver. The remote control can control at angles of up to ± 30 ° vertically and horizontally, but the effective control range may be reduced. f If there are any obstacles between the remote control and...

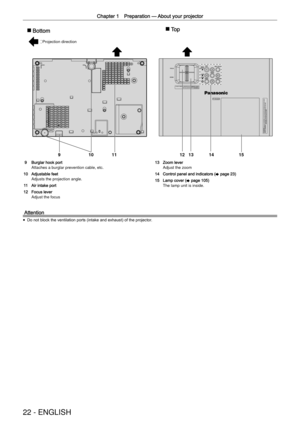

Page 22
Chapter 1 Preparation — About your projector 22 - ENGLISH rBottom PT-SX320A 10 9 11 12 13 1415 rTo p Projection direction 9 Burglar hook port Attaches a burglar prevention cable, etc. 10 Adjustable feetAdjusts the projection angle. 11 Air intake port 12 Focus leverAdjust the focus 13 Zoom lever Adjust the zoom 14 Control panel and indicators (x page 23) 15 Lamp cover (x page 105)The lamp unit is inside. Attention f Do not block the ventilation ports (intake and exhaust) of the projector .

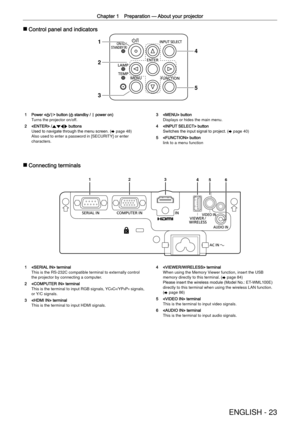

Page 23
Chapter 1 Preparation — About your projector ENGLISH - 23 rControl panel and indicators 4 5 2 3 1 1 Power button (v standby / b power on)Turns the projector on/off. 2 /asqw buttonsUsed to navigate through the menu screen. ( x page 48) Also used to enter a password in [SECURITY] or enter characters. 3 button Displays or hides the main menu. 4 buttonSwitches the input signal to project. ( x page 40) 5 button link to a menu function rConnecting terminals 41 5 623 1 terminalThis is the RS-232C...

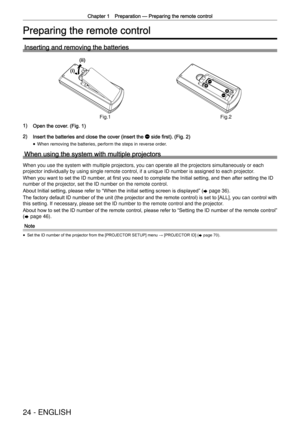

Page 24
Chapter 1 Preparation — Preparing the remote control 24 - ENGLISH Preparing the remote control Inserting and removing the batteries (i) (ii) 1) Open the cover. (Fig. 1) 2) Insert the batteries and close the cover (insert the m side first). (Fig. 2) f When removing the batteries, perform the steps in reverse order. When using the system with multiple projectors When you use the system with multiple projectors, you can operate all th\ e projectors simultaneously or each projector individually by using...
Page 25
ENGLISH - 25 Chapter 2 Getting Started This chapter describes things you need to do before using the projector \ such as the setup and connections.

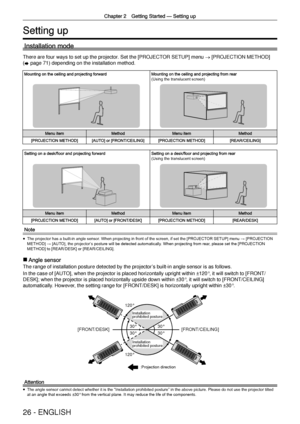

Page 26
Chapter 2 Getting Started — Setting up 26 - ENGLISH Setting up Installation mode There are four ways to set up the projector. Set the [PROJECTOR SETUP] menu → [PROJECTION METHOD] ( x page 71) depending on the installation method. Mounting on the ceiling and projecting forwardMounting on the ceiling and projecting from rear(Using the translucent screen) Menu itemMethodMenu itemMethod [PROJECTION METHOD][AUTO] or [FRONT/CEILING][PROJECTION METHOD][REAR/CEILING] Setting on a desk/floor and projecting...

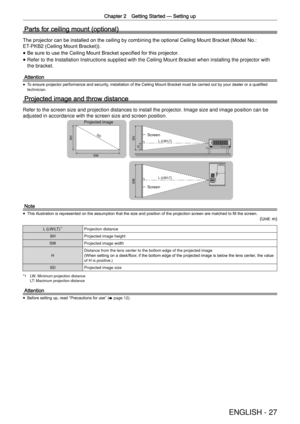

Page 27
Chapter 2 Getting Started — Setting up ENGLISH - 27 Parts for ceiling mount (optional) The projector can be installed on the ceiling by combining the optional Ceiling Mount Bracket (Model No.: E T- PKB2 (Ceiling Mount Bracket)). f Be sure to use the Ceiling Mount Bracket specified for this projector . f Refer to the Installation Instructions supplied with the Ceiling Mount B\ racket when installing the projector with the bracket. Attention f To ensure projector performance and security,...

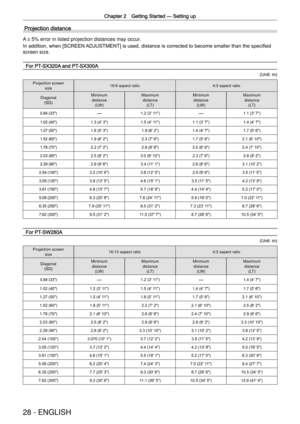

Page 28
Chapter 2 Getting Started — Setting up 28 - ENGLISH Projection distance A ± 5% error in listed projection distances may occur. In addition, when [SCREEN ADJUSTMENT] is used, distance is corrected to become smaller than the specified screen size. For PT-SX320A and PT-SX300A (Unit: m) Projection screen size 16:9 aspect ratio 4:3 aspect ratio Diagonal (SD) Minimum distance (LW) Maximum distance (LT) Minimum distance (LW) Maximum distance (LT) 0.84 (33") ―1.2 (3' 11")―1.1 (3' 7") 1.02...

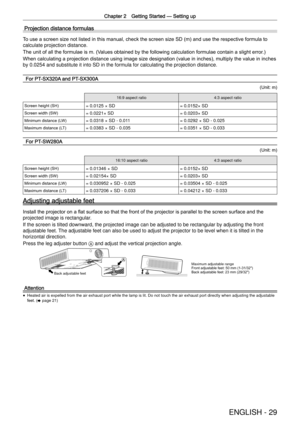

Page 29
Chapter 2 Getting Started — Setting up ENGLISH - 29 Projection distance formulas To use a screen size not listed in this manual, check the screen size SD (m) and use the respective formula to calculate projection distance. The unit of all the formulae is m. (Values obtained by the following calculation formulae contain a slight error.) When calculating a projection distance using image size designation (value in inches), multiply the value in inches by 0.0254 and substitute it into SD in the formula...

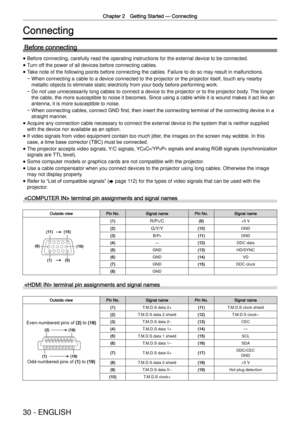

Page 30
Chapter 2 Getting Started — Connecting 30 - ENGLISH Connecting Before connecting f Before connecting, carefully read the operating instructions for the ext\ ernal device to be connected. f Turn off the power of all devices before connecting cables. f Take note of the following points before connecting the cables. Failure t\ o do so may result in malfunctions. g When connecting a cable to a device connected to the projector or the pr\ ojector itself, touch any nearby metallic objects to...
