Chapter 4 Settings —
Menu navigation
ENGLISH - 51

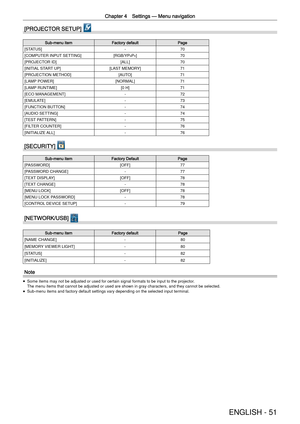

[PROJECTOR SETUP]
Sub-menu itemFactory defaultPage
[STATUS] -70
[COMPUTER INPUT SETTING] [RGB/YP
BPR]70
[PROJECTOR ID] [ALL]70
[INITIAL START UP] [LAST MEMORY]71
[PROJECTION METHOD] [AUTO]71
[LAMP POWER] [NORMAL]71
[LAMP RUNTIME] [0 H]71
[ECO MANAGEMENT] -72
[EMULATE] -73
[FUNCTION BUTTON] -74
[AUDIO SETTING] -74
[TEST PATTERN] -75
[FILTER COUNTER] -76
[INITIALIZE ALL] -76
[SECURITY]
Sub-menu itemFactory DefaultPage
[PASSWORD] [OFF]77
[PASSWORD CHANGE]...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-50.png "Page 51
Chapter 4 Settings —
Menu navigation
ENGLISH - 51
[PROJECTOR SETUP]
Sub-menu itemFactory defaultPage
[STATUS] -70
[COMPUTER INPUT SETTING] [RGB/YP
BPR]70
[PROJECTOR ID] [ALL]70
[INITIAL START UP] [LAST MEMORY]71
[PROJECTION METHOD] [AUTO]71
[LAMP POWER] [NORMAL]71
[LAMP RUNTIME] [0 H]71
[ECO MANAGEMENT] -72
[EMULATE] -73
[FUNCTION BUTTON] -74
[AUDIO SETTING] -74
[TEST PATTERN] -75
[FILTER COUNTER] -76
[INITIALIZE ALL] -76
[SECURITY]
Sub-menu itemFactory DefaultPage
[PASSWORD] [OFF]77
[PASSWORD CHANGE]...")
Chapter 4 Settings — Menu navigation ENGLISH - 51 [PROJECTOR SETUP] Sub-menu itemFactory defaultPage [STATUS] -70 [COMPUTER INPUT SETTING] [RGB/YP BPR]70 [PROJECTOR ID] [ALL]70 [INITIAL START UP] [LAST MEMORY]71 [PROJECTION METHOD] [AUTO]71 [LAMP POWER] [NORMAL]71 [LAMP RUNTIME] [0 H]71 [ECO MANAGEMENT] -72 [EMULATE] -73 [FUNCTION BUTTON] -74 [AUDIO SETTING] -74 [TEST PATTERN] -75 [FILTER COUNTER] -76 [INITIALIZE ALL] -76 [SECURITY] Sub-menu itemFactory DefaultPage [PASSWORD] [OFF]77 [PASSWORD CHANGE]...
Page 52
![Page 52

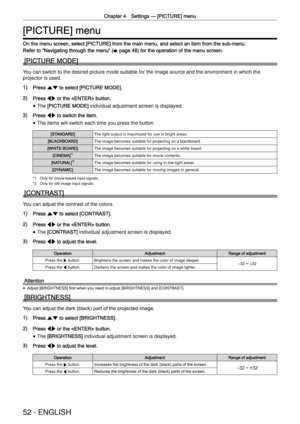

Chapter 4 Settings —
[PICTURE] menu
52 - ENGLISH
[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select an i\
tem from the sub-menu.
Refer to “
Navigating through the menu ”
(x page 48) for the operation of the menu screen.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source \
and the environment in which the
projector is used.
1) Press as to select [PICTURE MODE].
2) Press qw or the button.
f The [PICTURE MODE] individual adjustment...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-51.png "Page 52
Chapter 4 Settings —
[PICTURE] menu
52 - ENGLISH
[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select an i\
tem from the sub-menu.
Refer to “
Navigating through the menu ”
(x page 48) for the operation of the menu screen.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source \
and the environment in which the
projector is used.
1) Press as to select [PICTURE MODE].
2) Press qw or the button.
f The [PICTURE MODE] individual adjustment...")
Chapter 4 Settings — [PICTURE] menu 52 - ENGLISH [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an i\ tem from the sub-menu. Refer to “ Navigating through the menu ” (x page 48) for the operation of the menu screen. [PICTURE MODE] You can switch to the desired picture mode suitable for the image source \ and the environment in which the projector is used. 1) Press as to select [PICTURE MODE]. 2) Press qw or the button. f The [PICTURE MODE] individual adjustment...
Page 53
![Page 53
Chapter 4 Settings —
[PICTURE] menu
ENGLISH - 53

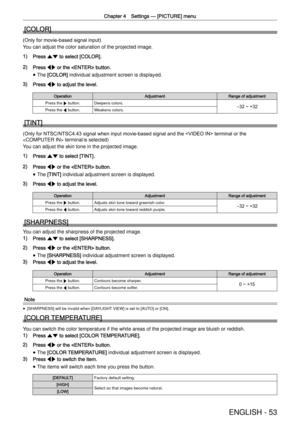

[COLOR]
(Only for movie-based signal input)
You can adjust the color saturation of the projected image.
1) Press as to select [COLOR].
2) Press qw or the button.
f The [COLOR] individual adjustment screen is displayed.
3) Press qw to adjust the level.
OperationAdjustmentRange of adjustment
Press the
w button.
Deepens colors.-32 ~ +32Press the
q button.
Weakens colors.
[TINT]
(Only for NTSC/NTSC4.43 signal when input movie-based signal and the...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-52.png "Page 53
Chapter 4 Settings —
[PICTURE] menu
ENGLISH - 53
[COLOR]
(Only for movie-based signal input)
You can adjust the color saturation of the projected image.
1) Press as to select [COLOR].
2) Press qw or the button.
f The [COLOR] individual adjustment screen is displayed.
3) Press qw to adjust the level.
OperationAdjustmentRange of adjustment
Press the
w button.
Deepens colors.-32 ~ +32Press the
q button.
Weakens colors.
[TINT]
(Only for NTSC/NTSC4.43 signal when input movie-based signal and the...")
Chapter 4 Settings — [PICTURE] menu ENGLISH - 53 [COLOR] (Only for movie-based signal input) You can adjust the color saturation of the projected image. 1) Press as to select [COLOR]. 2) Press qw or the button. f The [COLOR] individual adjustment screen is displayed. 3) Press qw to adjust the level. OperationAdjustmentRange of adjustment Press the w button. Deepens colors.-32 ~ +32Press the q button. Weakens colors. [TINT] (Only for NTSC/NTSC4.43 signal when input movie-based signal and the...
Page 54
![Page 54
Chapter 4 Settings —
[PICTURE] menu
54 - ENGLISH

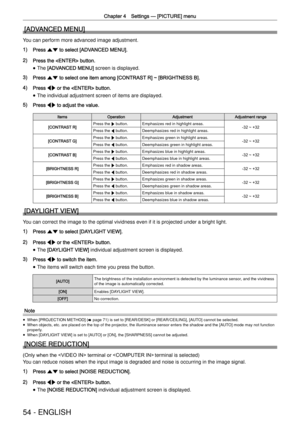

[ADVANCED MENU]
You can perform more advanced image adjustment.
1) Press as to select [ADVANCED MENU].
2) Press the button.
f The [ADVANCED MENU] screen is displayed.
3) Press as to select one item among [CONTRAST R] ~ [BRIGHTNESS B].
4) Press qw or the button.
f The individual adjustment screen of items are displayed.
5) Press qw to adjust the value.
ItemsOperationAdjustmentAdjustment range
[CONTRAST R]Press the
w button.
Emphasizes red in...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-53.png "Page 54
Chapter 4 Settings —
[PICTURE] menu
54 - ENGLISH
[ADVANCED MENU]
You can perform more advanced image adjustment.
1) Press as to select [ADVANCED MENU].
2) Press the button.
f The [ADVANCED MENU] screen is displayed.
3) Press as to select one item among [CONTRAST R] ~ [BRIGHTNESS B].
4) Press qw or the button.
f The individual adjustment screen of items are displayed.
5) Press qw to adjust the value.
ItemsOperationAdjustmentAdjustment range
[CONTRAST R]Press the
w button.
Emphasizes red in...")
Chapter 4 Settings — [PICTURE] menu 54 - ENGLISH [ADVANCED MENU] You can perform more advanced image adjustment. 1) Press as to select [ADVANCED MENU]. 2) Press the button. f The [ADVANCED MENU] screen is displayed. 3) Press as to select one item among [CONTRAST R] ~ [BRIGHTNESS B]. 4) Press qw or the button. f The individual adjustment screen of items are displayed. 5) Press qw to adjust the value. ItemsOperationAdjustmentAdjustment range [CONTRAST R]Press the w button. Emphasizes red in...
Page 55
![Page 55

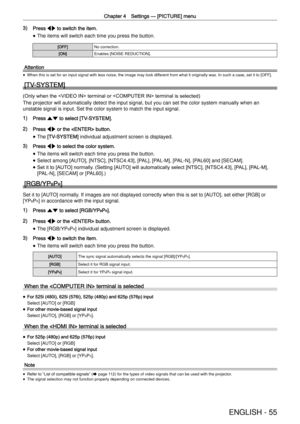

Chapter 4 Settings —
[PICTURE] menu
ENGLISH - 55
3) Press qw to switch the item.
f The items will switch each time you press the button.
[OFF]No correction.
[ON]Enables [NOISE REDUCTION].
Attention
f When this is set for an input signal with less noise, the image may look\
different from what it originally was. In such a case, set it to [OFF].
[TV-SYSTEM]
(Only when the terminal or terminal is selected)
The projector will automatically detect the input signal, but you can se\
t the color system...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-54.png "Page 55
Chapter 4 Settings —
[PICTURE] menu
ENGLISH - 55
3) Press qw to switch the item.
f The items will switch each time you press the button.
[OFF]No correction.
[ON]Enables [NOISE REDUCTION].
Attention
f When this is set for an input signal with less noise, the image may look\
different from what it originally was. In such a case, set it to [OFF].
[TV-SYSTEM]
(Only when the terminal or terminal is selected)
The projector will automatically detect the input signal, but you can se\
t the color system...")
Chapter 4 Settings — [PICTURE] menu ENGLISH - 55 3) Press qw to switch the item. f The items will switch each time you press the button. [OFF]No correction. [ON]Enables [NOISE REDUCTION]. Attention f When this is set for an input signal with less noise, the image may look\ different from what it originally was. In such a case, set it to [OFF]. [TV-SYSTEM] (Only when the terminal or terminal is selected) The projector will automatically detect the input signal, but you can se\ t the color system...
Page 56
![Page 56
Chapter 4 Settings —
[POSITION] menu
56 - ENGLISH
[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select an \
item from the sub-menu.
Refer to “
Navigating through the menu ”
(x page 48) for the operation of the menu screen.
[REALTIME KEYSTONE]
The projector can correct the distortion of the projected image automati\
cally when the projector is installed tilted.
1) Press as to select [REALTIME KEYSTONE].
2) Press qw or the button.
f The [REALTIME KEYSTONE] individual...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-55.png "Page 56
Chapter 4 Settings —
[POSITION] menu
56 - ENGLISH
[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select an \
item from the sub-menu.
Refer to “
Navigating through the menu ”
(x page 48) for the operation of the menu screen.
[REALTIME KEYSTONE]
The projector can correct the distortion of the projected image automati\
cally when the projector is installed tilted.
1) Press as to select [REALTIME KEYSTONE].
2) Press qw or the button.
f The [REALTIME KEYSTONE] individual...")
Chapter 4 Settings — [POSITION] menu 56 - ENGLISH [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select an \ item from the sub-menu. Refer to “ Navigating through the menu ” (x page 48) for the operation of the menu screen. [REALTIME KEYSTONE] The projector can correct the distortion of the projected image automati\ cally when the projector is installed tilted. 1) Press as to select [REALTIME KEYSTONE]. 2) Press qw or the button. f The [REALTIME KEYSTONE] individual...
Page 57
![Page 57

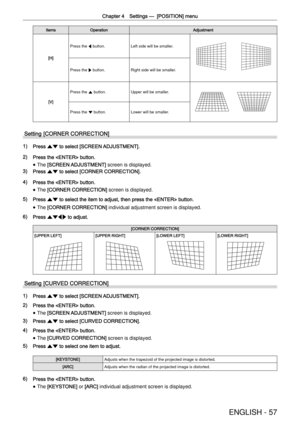

Chapter 4 Settings —
[POSITION] menu
ENGLISH - 57
ItemsOperationAdjustment
[H] Press the
q button.
Left side will be smaller.
Press the
w button.
Right side will be smaller.
[V]
Press the
a button.
Upper will be smaller.
Press the
s button.
Lower will be smaller.
Setting [CORNER CORRECTION]
1) Press as to select [SCREEN ADJUSTMENT].
2) Press the button.
f The [SCREEN ADJUSTMENT] screen is displayed.
3) Press as to select [CORNER CORRECTION].
4) Press the button.
f The [CORNER CORRECTION]...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-56.png "Page 57
Chapter 4 Settings —
[POSITION] menu
ENGLISH - 57
ItemsOperationAdjustment
[H] Press the
q button.
Left side will be smaller.
Press the
w button.
Right side will be smaller.
[V]
Press the
a button.
Upper will be smaller.
Press the
s button.
Lower will be smaller.
Setting [CORNER CORRECTION]
1) Press as to select [SCREEN ADJUSTMENT].
2) Press the button.
f The [SCREEN ADJUSTMENT] screen is displayed.
3) Press as to select [CORNER CORRECTION].
4) Press the button.
f The [CORNER CORRECTION]...")
Chapter 4 Settings — [POSITION] menu ENGLISH - 57 ItemsOperationAdjustment [H] Press the q button. Left side will be smaller. Press the w button. Right side will be smaller. [V] Press the a button. Upper will be smaller. Press the s button. Lower will be smaller. Setting [CORNER CORRECTION] 1) Press as to select [SCREEN ADJUSTMENT]. 2) Press the button. f The [SCREEN ADJUSTMENT] screen is displayed. 3) Press as to select [CORNER CORRECTION]. 4) Press the button. f The [CORNER CORRECTION]...
Page 58

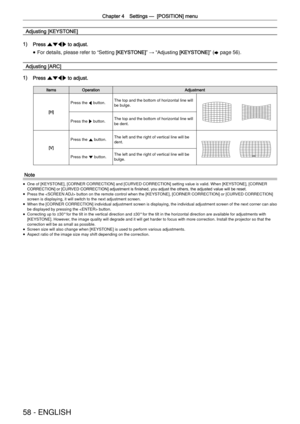

![Page 58
Chapter 4 Settings —
[POSITION] menu
58 - ENGLISH
Adjusting [KEYSTONE]
1) Press asqw to adjust.
f For details, please refer to
“
Setting [KEYSTONE]” →
“
Adjusting [KEYSTONE]” (
x page 56).
Adjusting [ARC]
1) Press asqw to adjust.
ItemsOperationAdjustment
[H] Press the
q button. The top and the bottom of horizontal line will
be bulge.
Press the w
button. The top and the bottom of horizontal line will
be dent.
[V]
Press the
a button. The left and the right of vertical line will be
dent.
Press...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-57.png "Page 58
Chapter 4 Settings —
[POSITION] menu
58 - ENGLISH
Adjusting [KEYSTONE]
1) Press asqw to adjust.
f For details, please refer to
“
Setting [KEYSTONE]” →
“
Adjusting [KEYSTONE]” (
x page 56).
Adjusting [ARC]
1) Press asqw to adjust.
ItemsOperationAdjustment
[H] Press the
q button. The top and the bottom of horizontal line will
be bulge.
Press the w
button. The top and the bottom of horizontal line will
be dent.
[V]
Press the
a button. The left and the right of vertical line will be
dent.
Press...")
Chapter 4 Settings — [POSITION] menu 58 - ENGLISH Adjusting [KEYSTONE] 1) Press asqw to adjust. f For details, please refer to “ Setting [KEYSTONE]” → “ Adjusting [KEYSTONE]” ( x page 56). Adjusting [ARC] 1) Press asqw to adjust. ItemsOperationAdjustment [H] Press the q button. The top and the bottom of horizontal line will be bulge. Press the w button. The top and the bottom of horizontal line will be dent. [V] Press the a button. The left and the right of vertical line will be dent. Press...
Page 59
![Page 59
Chapter 4 Settings —
[POSITION] menu
ENGLISH - 59

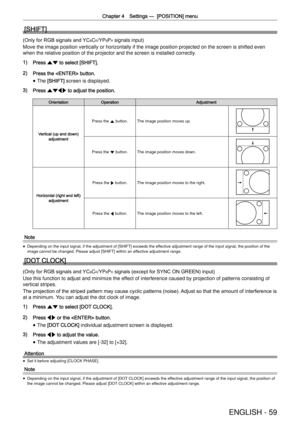

[SHIFT]
(Only for RGB signals and YCBCR/YPBPR signals input)
Move the image position vertically or horizontally if the image position\
projected on the screen is shifted even
when the relative position of the projector and the screen is installed \
correctly.
1) Press as to select [SHIFT].
2) Press the button.
f The [SHIFT] screen is displayed.
3) Press asqw to adjust the position.
OrientationOperationAdjustment
Vertical (up and down) adjustment...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-58.png "Page 59
Chapter 4 Settings —
[POSITION] menu
ENGLISH - 59
[SHIFT]
(Only for RGB signals and YCBCR/YPBPR signals input)
Move the image position vertically or horizontally if the image position\
projected on the screen is shifted even
when the relative position of the projector and the screen is installed \
correctly.
1) Press as to select [SHIFT].
2) Press the button.
f The [SHIFT] screen is displayed.
3) Press asqw to adjust the position.
OrientationOperationAdjustment
Vertical (up and down) adjustment...")
Chapter 4 Settings — [POSITION] menu ENGLISH - 59 [SHIFT] (Only for RGB signals and YCBCR/YPBPR signals input) Move the image position vertically or horizontally if the image position\ projected on the screen is shifted even when the relative position of the projector and the screen is installed \ correctly. 1) Press as to select [SHIFT]. 2) Press the button. f The [SHIFT] screen is displayed. 3) Press asqw to adjust the position. OrientationOperationAdjustment Vertical (up and down) adjustment...
Page 60
![Page 60
Chapter 4 Settings —
[POSITION] menu
60 - ENGLISH
[CLOCK PHASE]
(Only for RGB signals and YCBCR/YPBPR signals input)
You can adjust to achieve an optimal image when there is a flickering image or smeared outlines.
1) Press as to select [CLOCK PHASE].
2) Press qw or the button.
f The [CLOCK PHASE] individual adjustment screen is displayed.
3) Press qw to adjust.
f Adjustment value will change between [-16] and [+16]. Adjust so that the amount of interference is at a
minimum.
Note
f Certain...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-59.png "Page 60
Chapter 4 Settings —
[POSITION] menu
60 - ENGLISH
[CLOCK PHASE]
(Only for RGB signals and YCBCR/YPBPR signals input)
You can adjust to achieve an optimal image when there is a flickering image or smeared outlines.
1) Press as to select [CLOCK PHASE].
2) Press qw or the button.
f The [CLOCK PHASE] individual adjustment screen is displayed.
3) Press qw to adjust.
f Adjustment value will change between [-16] and [+16]. Adjust so that the amount of interference is at a
minimum.
Note
f Certain...")
Chapter 4 Settings — [POSITION] menu 60 - ENGLISH [CLOCK PHASE] (Only for RGB signals and YCBCR/YPBPR signals input) You can adjust to achieve an optimal image when there is a flickering image or smeared outlines. 1) Press as to select [CLOCK PHASE]. 2) Press qw or the button. f The [CLOCK PHASE] individual adjustment screen is displayed. 3) Press qw to adjust. f Adjustment value will change between [-16] and [+16]. Adjust so that the amount of interference is at a minimum. Note f Certain...
