Page 41
![Page 41
Chapter 3 Basic Operations —
Projecting
ENGLISH - 41

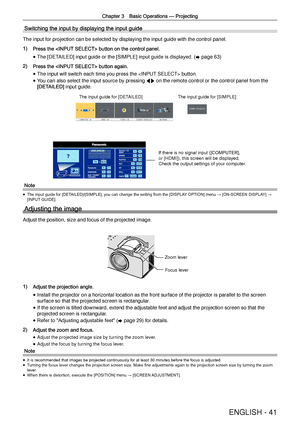

Switching the input by displaying the input guide
The input for projection can be selected by displaying the input guide w\
ith the control panel.
1) Press the button on the control panel.
f The [DETAILED] input guide or the
[SIMPLE] input guide is displayed. (
x page 63)
2) Press the button again.
f The input will switch each time you press the button.
f You can also select the input source by pressing
qw on the remote control or the...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-40.png "Page 41
Chapter 3 Basic Operations —
Projecting
ENGLISH - 41
Switching the input by displaying the input guide
The input for projection can be selected by displaying the input guide w\
ith the control panel.
1) Press the button on the control panel.
f The [DETAILED] input guide or the
[SIMPLE] input guide is displayed. (
x page 63)
2) Press the button again.
f The input will switch each time you press the button.
f You can also select the input source by pressing
qw on the remote control or the...")
Chapter 3 Basic Operations — Projecting ENGLISH - 41 Switching the input by displaying the input guide The input for projection can be selected by displaying the input guide w\ ith the control panel. 1) Press the button on the control panel. f The [DETAILED] input guide or the [SIMPLE] input guide is displayed. ( x page 63) 2) Press the button again. f The input will switch each time you press the button. f You can also select the input source by pressing qw on the remote control or the...
Page 42
![Page 42

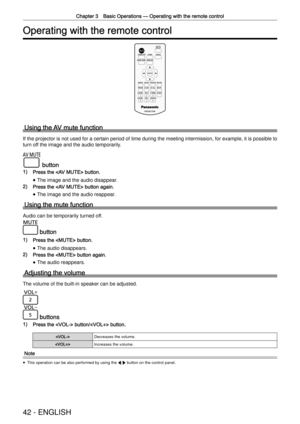

Chapter 3 Basic Operations —
Operating with the remote control
42 - ENGLISH
Operating with the remote control
Using the AV mute function
If the projector is not used for a certain period of time during the mee\
ting intermission, for example, it is possible to
turn off the image and the audio temporarily.
button
1) Press the button.
f The image and the audio disappear.
2) Press the button again.
f The image and the audio reappear.
Using the mute function
Audio can be temporarily turned off....](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-41.png "Page 42
Chapter 3 Basic Operations —
Operating with the remote control
42 - ENGLISH
Operating with the remote control
Using the AV mute function
If the projector is not used for a certain period of time during the mee\
ting intermission, for example, it is possible to
turn off the image and the audio temporarily.
button
1) Press the button.
f The image and the audio disappear.
2) Press the button again.
f The image and the audio reappear.
Using the mute function
Audio can be temporarily turned off....")
Chapter 3 Basic Operations — Operating with the remote control 42 - ENGLISH Operating with the remote control Using the AV mute function If the projector is not used for a certain period of time during the mee\ ting intermission, for example, it is possible to turn off the image and the audio temporarily. button 1) Press the button. f The image and the audio disappear. 2) Press the button again. f The image and the audio reappear. Using the mute function Audio can be temporarily turned off....
Page 43
![Page 43
Chapter 3 Basic Operations —
Operating with the remote control
ENGLISH - 43

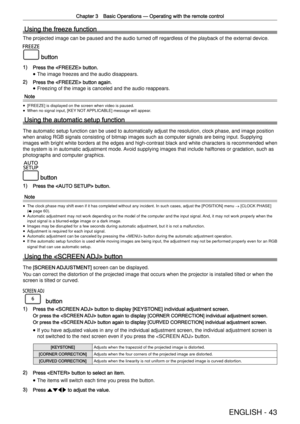

Using the freeze function
The projected image can be paused and the audio turned off regardless of the playback of the external device.
button
1) Press the button.
f The image freezes and the audio disappears.
2) Press the button again.
f Freezing of the image is canceled and the audio reappears.
Note
f [FREEZE] is displayed on the screen when video is paused.
f When no signal input, [KEY NOT APPLICABLE] message will...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-42.png "Page 43
Chapter 3 Basic Operations —
Operating with the remote control
ENGLISH - 43
Using the freeze function
The projected image can be paused and the audio turned off regardless of the playback of the external device.
button
1) Press the button.
f The image freezes and the audio disappears.
2) Press the button again.
f Freezing of the image is canceled and the audio reappears.
Note
f [FREEZE] is displayed on the screen when video is paused.
f When no signal input, [KEY NOT APPLICABLE] message will...")
Chapter 3 Basic Operations — Operating with the remote control ENGLISH - 43 Using the freeze function The projected image can be paused and the audio turned off regardless of the playback of the external device. button 1) Press the button. f The image freezes and the audio disappears. 2) Press the button again. f Freezing of the image is canceled and the audio reappears. Note f [FREEZE] is displayed on the screen when video is paused. f When no signal input, [KEY NOT APPLICABLE] message will...
Page 44
![Page 44
Chapter 3 Basic Operations —
Operating with the remote control
44 - ENGLISH
Note
f One of [KEYSTONE], [CORNER CORRECTION] and [CURVED CORRECTION] setting value is valid.
f For more details, refer to the [POSITION] menu
→
[SCREEN ADJUSTMENT]. (
x page 56)

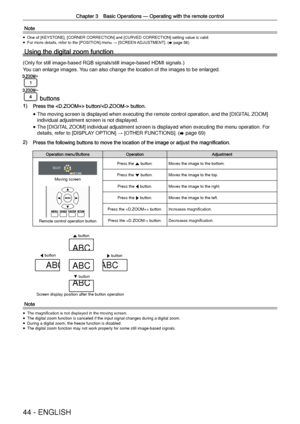

Using the digital zoom function
(Only for still image-based RGB signals/still image-based HDMI signals.)
You can enlarge images. You can also change the location of the images to be enlarged.
buttons
1) Press the button/ button.
f The...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-43.png "Page 44
Chapter 3 Basic Operations —
Operating with the remote control
44 - ENGLISH
Note
f One of [KEYSTONE], [CORNER CORRECTION] and [CURVED CORRECTION] setting value is valid.
f For more details, refer to the [POSITION] menu
→
[SCREEN ADJUSTMENT]. (
x page 56)
Using the digital zoom function
(Only for still image-based RGB signals/still image-based HDMI signals.)
You can enlarge images. You can also change the location of the images to be enlarged.
buttons
1) Press the button/ button.
f The...")
Chapter 3 Basic Operations — Operating with the remote control 44 - ENGLISH Note f One of [KEYSTONE], [CORNER CORRECTION] and [CURVED CORRECTION] setting value is valid. f For more details, refer to the [POSITION] menu → [SCREEN ADJUSTMENT]. ( x page 56) Using the digital zoom function (Only for still image-based RGB signals/still image-based HDMI signals.) You can enlarge images. You can also change the location of the images to be enlarged. buttons 1) Press the button/ button. f The...
Page 45
![Page 45
Chapter 3 Basic Operations —
Operating with the remote control
ENGLISH - 45

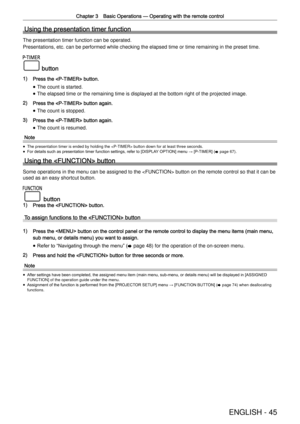

Using the presentation timer function
The presentation timer function can be operated.
Presentations, etc. can be performed while checking the elapsed time or \
time remaining in the preset time.
button
1) Press the button.
f The count is started.
f The elapsed time or the remaining time is displayed at the bottom right \
of the projected image.
2) Press the button again.
f The count is stopped.
3) Press the button...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-44.png "Page 45
Chapter 3 Basic Operations —
Operating with the remote control
ENGLISH - 45
Using the presentation timer function
The presentation timer function can be operated.
Presentations, etc. can be performed while checking the elapsed time or \
time remaining in the preset time.
button
1) Press the button.
f The count is started.
f The elapsed time or the remaining time is displayed at the bottom right \
of the projected image.
2) Press the button again.
f The count is stopped.
3) Press the button...")
Chapter 3 Basic Operations — Operating with the remote control ENGLISH - 45 Using the presentation timer function The presentation timer function can be operated. Presentations, etc. can be performed while checking the elapsed time or \ time remaining in the preset time. button 1) Press the button. f The count is started. f The elapsed time or the remaining time is displayed at the bottom right \ of the projected image. 2) Press the button again. f The count is stopped. 3) Press the button...
Page 46

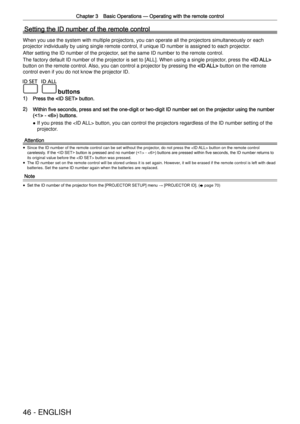

![Page 46
Chapter 3 Basic Operations —
Operating with the remote control
46 - ENGLISH
Setting the ID number of the remote control
When you use the system with multiple projectors, you can operate all th\
e projectors simultaneously or each
projector individually by using single remote control, if unique ID numb\
er is assigned to each projector.
After setting the ID number of the projector, set the same ID number to the remote control.
The factory default ID number of the projector is set to [ALL]. When usi\
ng...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-45.png "Page 46
Chapter 3 Basic Operations —
Operating with the remote control
46 - ENGLISH
Setting the ID number of the remote control
When you use the system with multiple projectors, you can operate all th\
e projectors simultaneously or each
projector individually by using single remote control, if unique ID numb\
er is assigned to each projector.
After setting the ID number of the projector, set the same ID number to the remote control.
The factory default ID number of the projector is set to [ALL]. When usi\
ng...")
Chapter 3 Basic Operations — Operating with the remote control 46 - ENGLISH Setting the ID number of the remote control When you use the system with multiple projectors, you can operate all th\ e projectors simultaneously or each projector individually by using single remote control, if unique ID numb\ er is assigned to each projector. After setting the ID number of the projector, set the same ID number to the remote control. The factory default ID number of the projector is set to [ALL]. When usi\ ng...
Page 47
![Page 47
ENGLISH - 47

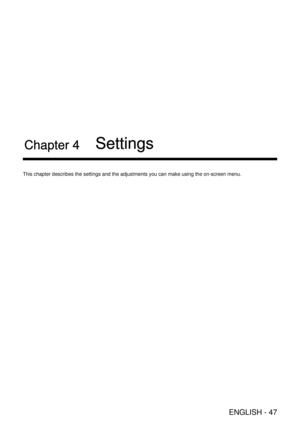

Chapter 4 Settings
This chapter describes the settings and the adjustments you can make usi\
ng the on-screen menu.](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-46.png "Page 47
ENGLISH - 47
Chapter 4 Settings
This chapter describes the settings and the adjustments you can make usi\
ng the on-screen menu.")
ENGLISH - 47 Chapter 4 Settings This chapter describes the settings and the adjustments you can make usi\ ng the on-screen menu.
Page 48
Chapter 4 Settings — Menu navigation 48 - ENGLISH Menu navigation The on-screen menu (Menu) is used to perform various settings and adjustments of the projector . Navigating through the menu Operating procedure button 1) Press the button on the remote control or the control panel. f The main menu screen appears. 2) Press as to select an item from the main menu. f The selected item is highlighted in yellow. 3) Press the button. f The sub-menu items of the selected main menu are displayed. 4)...
Page 49

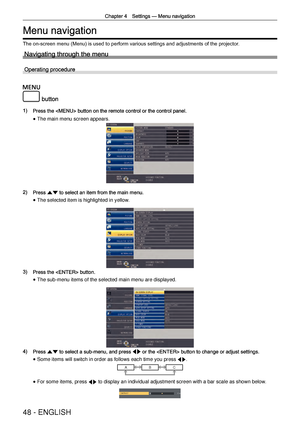

![Page 49
Chapter 4 Settings —
Menu navigation
ENGLISH - 49
Note
f Pressing the button while the menu screen is displayed to return \
the previous menu. You can operate in the same way by pressing
the button.
f Some items may not be adjusted or used for certain signal formats to be \
input to the projector. The menu items that cannot be adjusted or
used are shown in gray characters, and they cannot be selected. [FRAME L\
OCK] may not be displayed depending on the input signal.
f Some items can be...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-48.png "Page 49
Chapter 4 Settings —
Menu navigation
ENGLISH - 49
Note
f Pressing the button while the menu screen is displayed to return \
the previous menu. You can operate in the same way by pressing
the button.
f Some items may not be adjusted or used for certain signal formats to be \
input to the projector. The menu items that cannot be adjusted or
used are shown in gray characters, and they cannot be selected. [FRAME L\
OCK] may not be displayed depending on the input signal.
f Some items can be...")
Chapter 4 Settings — Menu navigation ENGLISH - 49 Note f Pressing the button while the menu screen is displayed to return \ the previous menu. You can operate in the same way by pressing the button. f Some items may not be adjusted or used for certain signal formats to be \ input to the projector. The menu items that cannot be adjusted or used are shown in gray characters, and they cannot be selected. [FRAME L\ OCK] may not be displayed depending on the input signal. f Some items can be...
Page 50

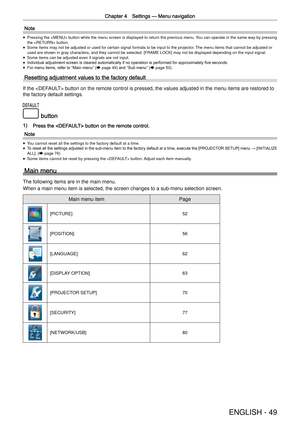

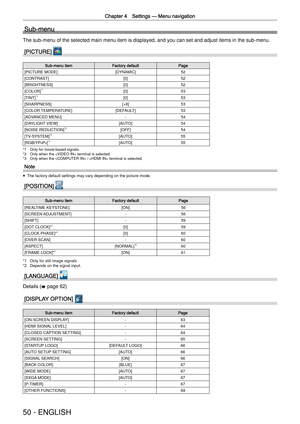

![Page 50
Chapter 4 Settings —
Menu navigation
50 - ENGLISH
Sub-menu
The sub-menu of the selected main menu item is displayed, and you can se\
t and adjust items in the sub-menu.
[PICTURE]
Sub-menu itemFactory defaultPage
[PICTURE MODE][DYNAMIC]52
[CONTRAST] [0]52
[BRIGHTNESS] [0]52
[COLOR]
*1[0] 53
[TINT]*1[0] 53
[SHARPNESS] [+8]53
[COLOR TEMPERATURE] [DEFAULT]53
[ADVANCED MENU] -54
[DAYLIGHT VIEW] [AUTO]54
[NOISE REDUCTION]
*2[OFF] 54
[TV-SYSTEM]*2[AUTO] 55
[RGB/YP
BPR]*3[AUTO] 55
*1 Only for movie-based...](http://img.usermanuals.tech/thumb/58/100569/w300_projector_manual_9665_d-49.png "Page 50
Chapter 4 Settings —
Menu navigation
50 - ENGLISH
Sub-menu
The sub-menu of the selected main menu item is displayed, and you can se\
t and adjust items in the sub-menu.
[PICTURE]
Sub-menu itemFactory defaultPage
[PICTURE MODE][DYNAMIC]52
[CONTRAST] [0]52
[BRIGHTNESS] [0]52
[COLOR]
*1[0] 53
[TINT]*1[0] 53
[SHARPNESS] [+8]53
[COLOR TEMPERATURE] [DEFAULT]53
[ADVANCED MENU] -54
[DAYLIGHT VIEW] [AUTO]54
[NOISE REDUCTION]
*2[OFF] 54
[TV-SYSTEM]*2[AUTO] 55
[RGB/YP
BPR]*3[AUTO] 55
*1 Only for movie-based...")
Chapter 4 Settings — Menu navigation 50 - ENGLISH Sub-menu The sub-menu of the selected main menu item is displayed, and you can se\ t and adjust items in the sub-menu. [PICTURE] Sub-menu itemFactory defaultPage [PICTURE MODE][DYNAMIC]52 [CONTRAST] [0]52 [BRIGHTNESS] [0]52 [COLOR] *1[0] 53 [TINT]*1[0] 53 [SHARPNESS] [+8]53 [COLOR TEMPERATURE] [DEFAULT]53 [ADVANCED MENU] -54 [DAYLIGHT VIEW] [AUTO]54 [NOISE REDUCTION] *2[OFF] 54 [TV-SYSTEM]*2[AUTO] 55 [RGB/YP BPR]*3[AUTO] 55 *1 Only for movie-based...
