Chapter 5 Operation of Function —
Web control function
ENGLISH - 91

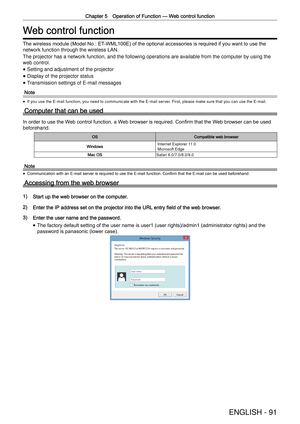

Web control function
The wireless module (Model No.: ET-WML100E) of the optional accessories is required if you want to use the
network function through the wireless LAN.
The projector has a network function, and the following operations are a\
vailable from the computer by using the
web control.
f Setting and adjustment of the projector
f Display of the projector status
f Transmission settings of E-mail messages
Note
f If you...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-90.png "Page 91
Chapter 5 Operation of Function —
Web control function
ENGLISH - 91
Web control function
The wireless module (Model No.: ET-WML100E) of the optional accessories is required if you want to use the
network function through the wireless LAN.
The projector has a network function, and the following operations are a\
vailable from the computer by using the
web control.
f Setting and adjustment of the projector
f Display of the projector status
f Transmission settings of E-mail messages
Note
f If you...")
Chapter 5 Operation of Function — Web control function ENGLISH - 91 Web control function The wireless module (Model No.: ET-WML100E) of the optional accessories is required if you want to use the network function through the wireless LAN. The projector has a network function, and the following operations are a\ vailable from the computer by using the web control. f Setting and adjustment of the projector f Display of the projector status f Transmission settings of E-mail messages Note f If you...
Page 92
![Page 92
Chapter 5 Operation of Function —
Web control function
92 - ENGLISH

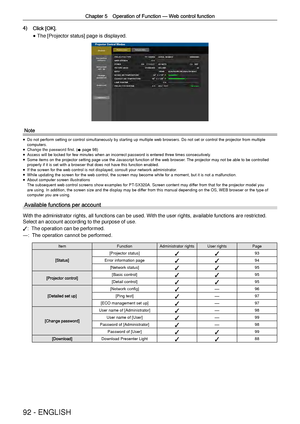

4) Click [OK].
f The [Projector status] page is displayed.
Note
f Do not perform setting or control simultaneously by starting up multiple\
web browsers. Do not set or control the projector from multiple
computers.
f Change the password first. (
x page 98)
f Access will be locked for few minutes when an incorrect password is ente\
red three times consecutively.
f Some items on the projector setting page use the Javascript...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-91.png "Page 92
Chapter 5 Operation of Function —
Web control function
92 - ENGLISH
4) Click [OK].
f The [Projector status] page is displayed.
Note
f Do not perform setting or control simultaneously by starting up multiple\
web browsers. Do not set or control the projector from multiple
computers.
f Change the password first. (
x page 98)
f Access will be locked for few minutes when an incorrect password is ente\
red three times consecutively.
f Some items on the projector setting page use the Javascript...")
Chapter 5 Operation of Function — Web control function 92 - ENGLISH 4) Click [OK]. f The [Projector status] page is displayed. Note f Do not perform setting or control simultaneously by starting up multiple\ web browsers. Do not set or control the projector from multiple computers. f Change the password first. ( x page 98) f Access will be locked for few minutes when an incorrect password is ente\ red three times consecutively. f Some items on the projector setting page use the Javascript...
Page 93
![Page 93
Chapter 5 Operation of Function —
Web control function
ENGLISH - 93
Descriptions of items
1 Page tabPages are switched by clicking this item.
2 [Status]The status of the projector is displayed by clicking this item.
3 [Projector control]The [Projector control] page is displayed by clicking this item.
4 [Detailed set up]The [Detailed set up] page is displayed by clicking this item.
5 [Change password]The [Change password] page is displayed by clicking this item.
6 [Download]The download page of Presenter...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-92.png "Page 93
Chapter 5 Operation of Function —
Web control function
ENGLISH - 93
Descriptions of items
1 Page tabPages are switched by clicking this item.
2 [Status]The status of the projector is displayed by clicking this item.
3 [Projector control]The [Projector control] page is displayed by clicking this item.
4 [Detailed set up]The [Detailed set up] page is displayed by clicking this item.
5 [Change password]The [Change password] page is displayed by clicking this item.
6 [Download]The download page of Presenter...")
Chapter 5 Operation of Function — Web control function ENGLISH - 93 Descriptions of items 1 Page tabPages are switched by clicking this item. 2 [Status]The status of the projector is displayed by clicking this item. 3 [Projector control]The [Projector control] page is displayed by clicking this item. 4 [Detailed set up]The [Detailed set up] page is displayed by clicking this item. 5 [Change password]The [Change password] page is displayed by clicking this item. 6 [Download]The download page of Presenter...
Page 94
![Page 94
Chapter 5 Operation of Function —
Web control function
94 - ENGLISH

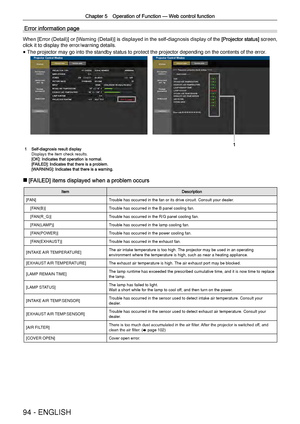

Error information page
When [Error (Detail)] or [Warning (Detail)] is displayed in the self-diagnosis display of the [Projector status] screen,
click it to display the error/warning details.
f The projector may go into the standby status to protect the projector de\
pending on the contents of the error.
1 Self-diagnosis result displayDisplays the item check results.[OK]: Indicates that operation is normal.[FAILED]: Indicates that...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-93.png "Page 94
Chapter 5 Operation of Function —
Web control function
94 - ENGLISH
Error information page
When [Error (Detail)] or [Warning (Detail)] is displayed in the self-diagnosis display of the [Projector status] screen,
click it to display the error/warning details.
f The projector may go into the standby status to protect the projector de\
pending on the contents of the error.
1 Self-diagnosis result displayDisplays the item check results.[OK]: Indicates that operation is normal.[FAILED]: Indicates that...")
Chapter 5 Operation of Function — Web control function 94 - ENGLISH Error information page When [Error (Detail)] or [Warning (Detail)] is displayed in the self-diagnosis display of the [Projector status] screen, click it to display the error/warning details. f The projector may go into the standby status to protect the projector de\ pending on the contents of the error. 1 Self-diagnosis result displayDisplays the item check results.[OK]: Indicates that operation is normal.[FAILED]: Indicates that...
Page 95
![Page 95
Chapter 5 Operation of Function —
Web control function
ENGLISH - 95

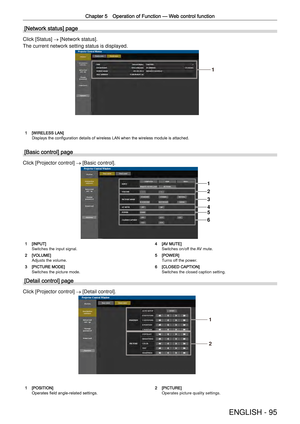

[Network status] page
Click [Status]
→ [Network status].
The current network setting status is displayed.
1
1 [WIRELESS LAN]Displays the configuration details of wireless LAN when the wireless module is attached.
[Basic control] page
Click [Projector control] → [Basic control].
1
2
3
4
5
6
1 [INPUT]Switches the input signal.
2 [VOLUME]Adjusts the volume.
3 [PICTURE MODE]Switches the picture mode.
4 [AV MUTE]Switches on/off the AV...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-94.png "Page 95
Chapter 5 Operation of Function —
Web control function
ENGLISH - 95
[Network status] page
Click [Status]
→ [Network status].
The current network setting status is displayed.
1
1 [WIRELESS LAN]Displays the configuration details of wireless LAN when the wireless module is attached.
[Basic control] page
Click [Projector control] → [Basic control].
1
2
3
4
5
6
1 [INPUT]Switches the input signal.
2 [VOLUME]Adjusts the volume.
3 [PICTURE MODE]Switches the picture mode.
4 [AV MUTE]Switches on/off the AV...")
Chapter 5 Operation of Function — Web control function ENGLISH - 95 [Network status] page Click [Status] → [Network status]. The current network setting status is displayed. 1 1 [WIRELESS LAN]Displays the configuration details of wireless LAN when the wireless module is attached. [Basic control] page Click [Projector control] → [Basic control]. 1 2 3 4 5 6 1 [INPUT]Switches the input signal. 2 [VOLUME]Adjusts the volume. 3 [PICTURE MODE]Switches the picture mode. 4 [AV MUTE]Switches on/off the AV...
Page 96
![Page 96
Chapter 5 Operation of Function —
Web control function
96 - ENGLISH

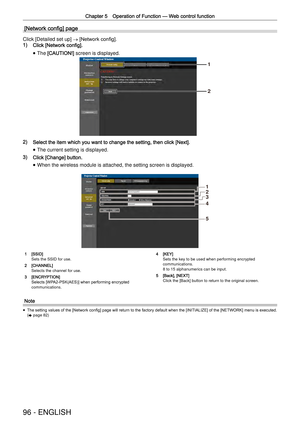

[Network config] page
Click [Detailed set up]
→ [Network config].
1) Click [Network config].
f The [CAUTION!] screen is displayed.
1
2
2) Select the item which you want to change the setting, then click [Next].\
f The current setting is displayed.
3) Click [Change] button.
f When the wireless module is attached, the setting screen is displayed.
1
2
3
4
5
1 [SSID]Sets the SSID for use.
2 [CHANNEL]Selects the channel for use.
3...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-95.png "Page 96
Chapter 5 Operation of Function —
Web control function
96 - ENGLISH
[Network config] page
Click [Detailed set up]
→ [Network config].
1) Click [Network config].
f The [CAUTION!] screen is displayed.
1
2
2) Select the item which you want to change the setting, then click [Next].\
f The current setting is displayed.
3) Click [Change] button.
f When the wireless module is attached, the setting screen is displayed.
1
2
3
4
5
1 [SSID]Sets the SSID for use.
2 [CHANNEL]Selects the channel for use.
3...")
Chapter 5 Operation of Function — Web control function 96 - ENGLISH [Network config] page Click [Detailed set up] → [Network config]. 1) Click [Network config]. f The [CAUTION!] screen is displayed. 1 2 2) Select the item which you want to change the setting, then click [Next].\ f The current setting is displayed. 3) Click [Change] button. f When the wireless module is attached, the setting screen is displayed. 1 2 3 4 5 1 [SSID]Sets the SSID for use. 2 [CHANNEL]Selects the channel for use. 3...
Page 97
![Page 97
Chapter 5 Operation of Function —
Web control function
ENGLISH - 97

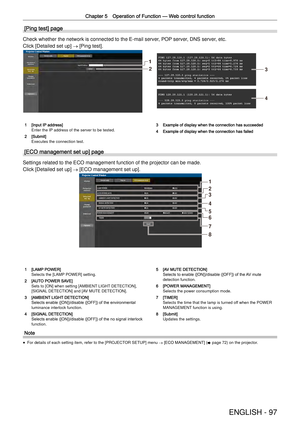

[Ping test] page
Check whether the network is connected to the E-mail server, POP server, DNS server, etc.
Click [Detailed set up]
→ [Ping test].
1
23
4
1 [Input IP address]Enter the IP address of the server to be tested.
2 [Submit]Executes the connection test.
3 Example of display when the connection has succeeded
4 Example of display when the connection has failed
[ECO management set up] page
Settings related to the ECO management...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-96.png "Page 97
Chapter 5 Operation of Function —
Web control function
ENGLISH - 97
[Ping test] page
Check whether the network is connected to the E-mail server, POP server, DNS server, etc.
Click [Detailed set up]
→ [Ping test].
1
23
4
1 [Input IP address]Enter the IP address of the server to be tested.
2 [Submit]Executes the connection test.
3 Example of display when the connection has succeeded
4 Example of display when the connection has failed
[ECO management set up] page
Settings related to the ECO management...")
Chapter 5 Operation of Function — Web control function ENGLISH - 97 [Ping test] page Check whether the network is connected to the E-mail server, POP server, DNS server, etc. Click [Detailed set up] → [Ping test]. 1 23 4 1 [Input IP address]Enter the IP address of the server to be tested. 2 [Submit]Executes the connection test. 3 Example of display when the connection has succeeded 4 Example of display when the connection has failed [ECO management set up] page Settings related to the ECO management...
Page 98
![Page 98
Chapter 5 Operation of Function —
Web control function
98 - ENGLISH

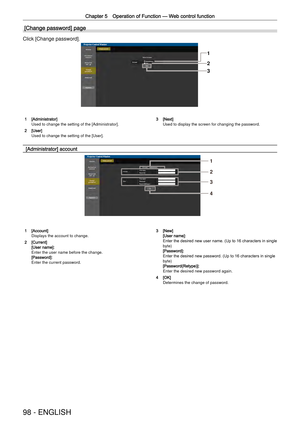

[Change password] page
Click [Change password].
1
2
3
1 [Administrator]Used to change the setting of the [Administrator].
2 [User]Used to change the setting of the [User].
3 [Next]Used to display the screen for changing the password.
[Administrator] account
1
2
3
4
1 [Account]Displays the account to change.
2 [Current][User name]:Enter the user name before the change.[Password]:Enter the current password.
3 [New][User name]:Enter the...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-97.png "Page 98
Chapter 5 Operation of Function —
Web control function
98 - ENGLISH
[Change password] page
Click [Change password].
1
2
3
1 [Administrator]Used to change the setting of the [Administrator].
2 [User]Used to change the setting of the [User].
3 [Next]Used to display the screen for changing the password.
[Administrator] account
1
2
3
4
1 [Account]Displays the account to change.
2 [Current][User name]:Enter the user name before the change.[Password]:Enter the current password.
3 [New][User name]:Enter the...")
Chapter 5 Operation of Function — Web control function 98 - ENGLISH [Change password] page Click [Change password]. 1 2 3 1 [Administrator]Used to change the setting of the [Administrator]. 2 [User]Used to change the setting of the [User]. 3 [Next]Used to display the screen for changing the password. [Administrator] account 1 2 3 4 1 [Account]Displays the account to change. 2 [Current][User name]:Enter the user name before the change.[Password]:Enter the current password. 3 [New][User name]:Enter the...
Page 99
![Page 99
Chapter 5 Operation of Function —
Web control function
ENGLISH - 99

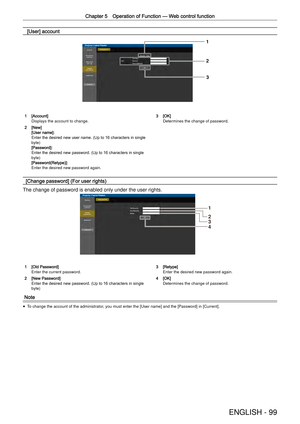

[User] account
1
2
3
1 [Account]Displays the account to change.
2 [New][User name]:Enter the desired new user name. (Up to 16 characters in single
byte)
[Password]:Enter the desired new password. (Up to 16 characters in single
byte)
[Password(Retype)]:Enter the desired new password again.
3 [OK]Determines the change of password.
[Change password] (For user rights)
The change of password is enabled only under the user rights.
1
2
3
4...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-98.png "Page 99
Chapter 5 Operation of Function —
Web control function
ENGLISH - 99
[User] account
1
2
3
1 [Account]Displays the account to change.
2 [New][User name]:Enter the desired new user name. (Up to 16 characters in single
byte)
[Password]:Enter the desired new password. (Up to 16 characters in single
byte)
[Password(Retype)]:Enter the desired new password again.
3 [OK]Determines the change of password.
[Change password] (For user rights)
The change of password is enabled only under the user rights.
1
2
3
4...")
Chapter 5 Operation of Function — Web control function ENGLISH - 99 [User] account 1 2 3 1 [Account]Displays the account to change. 2 [New][User name]:Enter the desired new user name. (Up to 16 characters in single byte) [Password]:Enter the desired new password. (Up to 16 characters in single byte) [Password(Retype)]:Enter the desired new password again. 3 [OK]Determines the change of password. [Change password] (For user rights) The change of password is enabled only under the user rights. 1 2 3 4...
Page 100

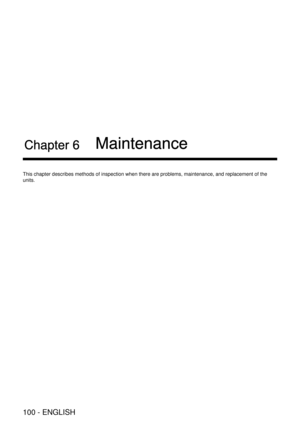

![Page 100
