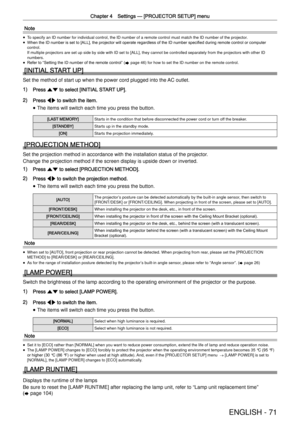

Page 71
![Page 71
Chapter 4 Settings —
[PROJECTOR SETUP] menu
ENGLISH - 71
Note
f To specify an ID number for individual control, the ID number of a remote\
control must match the ID number of the projector.
f When the ID number is set to [ALL], the projector will operate regardless of the ID number specified during remote control or computer
control.
If multiple projectors are set up side by side with ID set to [ALL], the\
y cannot be controlled separately from the projectors with other ID
numbers.
f Refer to...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-70.png "Page 71
Chapter 4 Settings —
[PROJECTOR SETUP] menu
ENGLISH - 71
Note
f To specify an ID number for individual control, the ID number of a remote\
control must match the ID number of the projector.
f When the ID number is set to [ALL], the projector will operate regardless of the ID number specified during remote control or computer
control.
If multiple projectors are set up side by side with ID set to [ALL], the\
y cannot be controlled separately from the projectors with other ID
numbers.
f Refer to...")
Chapter 4 Settings — [PROJECTOR SETUP] menu ENGLISH - 71 Note f To specify an ID number for individual control, the ID number of a remote\ control must match the ID number of the projector. f When the ID number is set to [ALL], the projector will operate regardless of the ID number specified during remote control or computer control. If multiple projectors are set up side by side with ID set to [ALL], the\ y cannot be controlled separately from the projectors with other ID numbers. f Refer to...
Page 72
![Page 72
Chapter 4 Settings —
[PROJECTOR SETUP] menu
72 - ENGLISH

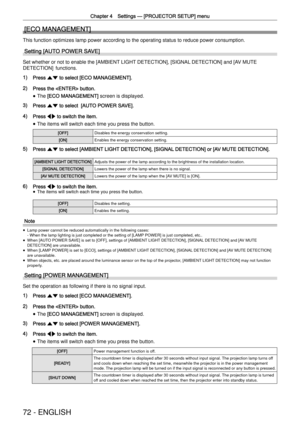

[ECO MANAGEMENT]
This function optimizes lamp power according to the operating status to \
reduce power consumption.
Setting [AUTO POWER SAVE]
Set whether or not to enable the [AMBIENT LIGHT DETECTION], [SIGNAL DETECTION] and [AV MUTE
DETECTION] functions.
1) Press as to select [ECO MANAGEMENT].
2) Press the button.
f The [ECO MANAGEMENT] screen is displayed.
3) Press as to select [AUTO POWER SAVE].
4) Press qw to switch the item.
f The...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-71.png "Page 72
Chapter 4 Settings —
[PROJECTOR SETUP] menu
72 - ENGLISH
[ECO MANAGEMENT]
This function optimizes lamp power according to the operating status to \
reduce power consumption.
Setting [AUTO POWER SAVE]
Set whether or not to enable the [AMBIENT LIGHT DETECTION], [SIGNAL DETECTION] and [AV MUTE
DETECTION] functions.
1) Press as to select [ECO MANAGEMENT].
2) Press the button.
f The [ECO MANAGEMENT] screen is displayed.
3) Press as to select [AUTO POWER SAVE].
4) Press qw to switch the item.
f The...")
Chapter 4 Settings — [PROJECTOR SETUP] menu 72 - ENGLISH [ECO MANAGEMENT] This function optimizes lamp power according to the operating status to \ reduce power consumption. Setting [AUTO POWER SAVE] Set whether or not to enable the [AMBIENT LIGHT DETECTION], [SIGNAL DETECTION] and [AV MUTE DETECTION] functions. 1) Press as to select [ECO MANAGEMENT]. 2) Press the button. f The [ECO MANAGEMENT] screen is displayed. 3) Press as to select [AUTO POWER SAVE]. 4) Press qw to switch the item. f The...
Page 73
![Page 73
Chapter 4 Settings —
[PROJECTOR SETUP] menu
ENGLISH - 73

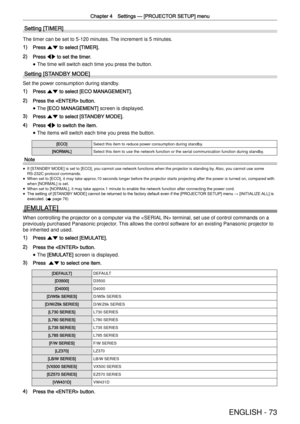

Setting [TIMER]
The timer can be set to 5-120 minutes. The increment is 5 minutes.
1) Press as to select [TIMER].
2) Press qw to set the timer.
f The time will switch each time you press the button.
Setting [STANDBY MODE]
Set the power consumption during standby.
1) Press as to select [ECO MANAGEMENT].
2) Press the button.
f The [ECO MANAGEMENT] screen is displayed.
3) Press as to select [STANDBY MODE].
4) Press qw to switch the item.
f The...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-72.png "Page 73
Chapter 4 Settings —
[PROJECTOR SETUP] menu
ENGLISH - 73
Setting [TIMER]
The timer can be set to 5-120 minutes. The increment is 5 minutes.
1) Press as to select [TIMER].
2) Press qw to set the timer.
f The time will switch each time you press the button.
Setting [STANDBY MODE]
Set the power consumption during standby.
1) Press as to select [ECO MANAGEMENT].
2) Press the button.
f The [ECO MANAGEMENT] screen is displayed.
3) Press as to select [STANDBY MODE].
4) Press qw to switch the item.
f The...")
Chapter 4 Settings — [PROJECTOR SETUP] menu ENGLISH - 73 Setting [TIMER] The timer can be set to 5-120 minutes. The increment is 5 minutes. 1) Press as to select [TIMER]. 2) Press qw to set the timer. f The time will switch each time you press the button. Setting [STANDBY MODE] Set the power consumption during standby. 1) Press as to select [ECO MANAGEMENT]. 2) Press the button. f The [ECO MANAGEMENT] screen is displayed. 3) Press as to select [STANDBY MODE]. 4) Press qw to switch the item. f The...
Page 74
![Page 74
Chapter 4 Settings —
[PROJECTOR SETUP] menu
74 - ENGLISH

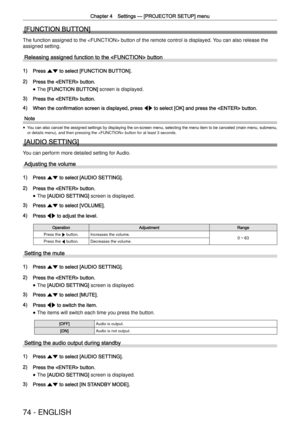

[FUNCTION BUTTON]
The function assigned to the button of the remote control is \
displayed. You can also release the
assigned setting.
Releasing assigned function to the button
1) Press as to select [FUNCTION BUTTON].
2) Press the button.
f The [FUNCTION BUTTON] screen is displayed.
3) Press the button.
4) When the confirmation screen is displayed, press qw to select [OK] and press the button.
Note
f You can also cancel the assigned...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-73.png "Page 74
Chapter 4 Settings —
[PROJECTOR SETUP] menu
74 - ENGLISH
[FUNCTION BUTTON]
The function assigned to the button of the remote control is \
displayed. You can also release the
assigned setting.
Releasing assigned function to the button
1) Press as to select [FUNCTION BUTTON].
2) Press the button.
f The [FUNCTION BUTTON] screen is displayed.
3) Press the button.
4) When the confirmation screen is displayed, press qw to select [OK] and press the button.
Note
f You can also cancel the assigned...")
Chapter 4 Settings — [PROJECTOR SETUP] menu 74 - ENGLISH [FUNCTION BUTTON] The function assigned to the button of the remote control is \ displayed. You can also release the assigned setting. Releasing assigned function to the button 1) Press as to select [FUNCTION BUTTON]. 2) Press the button. f The [FUNCTION BUTTON] screen is displayed. 3) Press the button. 4) When the confirmation screen is displayed, press qw to select [OK] and press the button. Note f You can also cancel the assigned...
Page 75
![Page 75
Chapter 4 Settings —
[PROJECTOR SETUP] menu
ENGLISH - 75

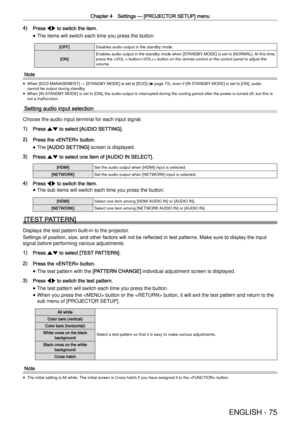

4) Press qw to switch the item.
f The items will switch each time you press the button.
[OFF]Disables audio output in the standby mode.
[ON]Enables audio output in the standby mode when [STANDBY MODE] is set to [NORMAL]. At this time,
press the button/ button on the remote control or the contr\
ol panel to adjust the
volume.
Note
f When [ECO MANAGEMENT]
→
[ST ANDBY MODE] is set to [ECO] (
x page 73), even if [IN STANDBY MODE] is set to...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-74.png "Page 75
Chapter 4 Settings —
[PROJECTOR SETUP] menu
ENGLISH - 75
4) Press qw to switch the item.
f The items will switch each time you press the button.
[OFF]Disables audio output in the standby mode.
[ON]Enables audio output in the standby mode when [STANDBY MODE] is set to [NORMAL]. At this time,
press the button/ button on the remote control or the contr\
ol panel to adjust the
volume.
Note
f When [ECO MANAGEMENT]
→
[ST ANDBY MODE] is set to [ECO] (
x page 73), even if [IN STANDBY MODE] is set to...")
Chapter 4 Settings — [PROJECTOR SETUP] menu ENGLISH - 75 4) Press qw to switch the item. f The items will switch each time you press the button. [OFF]Disables audio output in the standby mode. [ON]Enables audio output in the standby mode when [STANDBY MODE] is set to [NORMAL]. At this time, press the button/ button on the remote control or the contr\ ol panel to adjust the volume. Note f When [ECO MANAGEMENT] → [ST ANDBY MODE] is set to [ECO] ( x page 73), even if [IN STANDBY MODE] is set to...
Page 76
![Page 76
Chapter 4 Settings —
[PROJECTOR SETUP] menu
76 - ENGLISH

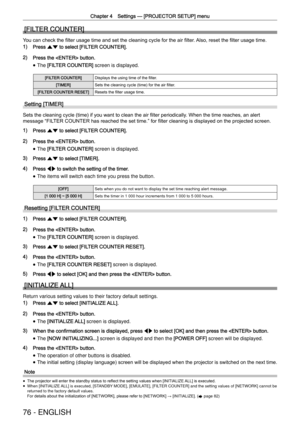

[FILTER COUNTER]
You can check the filter usage time and set the cleaning cycle for the air filter. Also, reset the filter usage time.
1) Press as to select [FILTER COUNTER].
2) Press the button.
f The [FILTER COUNTER] screen is displayed.
[FILTER COUNTER]Displays the using time of the filter.
[TIMER]Sets the cleaning cycle (time) for the air filter.
[FILTER COUNTER RESET]Resets the filter usage time.
Setting [TIMER]
Sets the cleaning cycle (time)...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-75.png "Page 76
Chapter 4 Settings —
[PROJECTOR SETUP] menu
76 - ENGLISH
[FILTER COUNTER]
You can check the filter usage time and set the cleaning cycle for the air filter. Also, reset the filter usage time.
1) Press as to select [FILTER COUNTER].
2) Press the button.
f The [FILTER COUNTER] screen is displayed.
[FILTER COUNTER]Displays the using time of the filter.
[TIMER]Sets the cleaning cycle (time) for the air filter.
[FILTER COUNTER RESET]Resets the filter usage time.
Setting [TIMER]
Sets the cleaning cycle (time)...")
Chapter 4 Settings — [PROJECTOR SETUP] menu 76 - ENGLISH [FILTER COUNTER] You can check the filter usage time and set the cleaning cycle for the air filter. Also, reset the filter usage time. 1) Press as to select [FILTER COUNTER]. 2) Press the button. f The [FILTER COUNTER] screen is displayed. [FILTER COUNTER]Displays the using time of the filter. [TIMER]Sets the cleaning cycle (time) for the air filter. [FILTER COUNTER RESET]Resets the filter usage time. Setting [TIMER] Sets the cleaning cycle (time)...
Page 77
![Page 77
Chapter 4 Settings —
[SECURITY] menu
ENGLISH - 77
[SECURITY] menu
On the menu screen, select [SECURITY] from the main menu, and select an \
item from the sub-menu.
Refer to “
Navigating through the menu ”
(x page 48) for the operation of the menu screen.
f When the projector is used for the first time
Initial password: Press
awsqawsq in order, and press the button.
Attention
f When you select the [SECURITY] menu and press the button, enteri\
ng a password is required. Enter the preset password...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-76.png "Page 77
Chapter 4 Settings —
[SECURITY] menu
ENGLISH - 77
[SECURITY] menu
On the menu screen, select [SECURITY] from the main menu, and select an \
item from the sub-menu.
Refer to “
Navigating through the menu ”
(x page 48) for the operation of the menu screen.
f When the projector is used for the first time
Initial password: Press
awsqawsq in order, and press the button.
Attention
f When you select the [SECURITY] menu and press the button, enteri\
ng a password is required. Enter the preset password...")
Chapter 4 Settings — [SECURITY] menu ENGLISH - 77 [SECURITY] menu On the menu screen, select [SECURITY] from the main menu, and select an \ item from the sub-menu. Refer to “ Navigating through the menu ” (x page 48) for the operation of the menu screen. f When the projector is used for the first time Initial password: Press awsqawsq in order, and press the button. Attention f When you select the [SECURITY] menu and press the button, enteri\ ng a password is required. Enter the preset password...
Page 78
![Page 78
Chapter 4 Settings —
[SECURITY] menu
78 - ENGLISH
[TEXT DISPLAY]
Overlap the security message (text or image) over the projecting image.

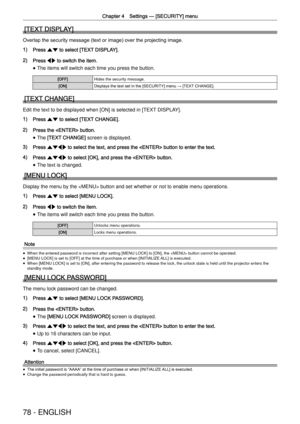

1) Press as to select [TEXT DISPLAY].
2) Press qw to switch the item.
f The items will switch each time you press the button.
[OFF]Hides the security message.
[ON]Displays the text set in the [SECURITY] menu
→
[TEXT CHANGE].
[TEXT CHANGE]
Edit the text to be displayed when [ON] is selected in [TEXT DISPLAY].
1) Press as to select [TEXT CHANGE].
2) Press the...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-77.png "Page 78
Chapter 4 Settings —
[SECURITY] menu
78 - ENGLISH
[TEXT DISPLAY]
Overlap the security message (text or image) over the projecting image.
1) Press as to select [TEXT DISPLAY].
2) Press qw to switch the item.
f The items will switch each time you press the button.
[OFF]Hides the security message.
[ON]Displays the text set in the [SECURITY] menu
→
[TEXT CHANGE].
[TEXT CHANGE]
Edit the text to be displayed when [ON] is selected in [TEXT DISPLAY].
1) Press as to select [TEXT CHANGE].
2) Press the...")
Chapter 4 Settings — [SECURITY] menu 78 - ENGLISH [TEXT DISPLAY] Overlap the security message (text or image) over the projecting image. 1) Press as to select [TEXT DISPLAY]. 2) Press qw to switch the item. f The items will switch each time you press the button. [OFF]Hides the security message. [ON]Displays the text set in the [SECURITY] menu → [TEXT CHANGE]. [TEXT CHANGE] Edit the text to be displayed when [ON] is selected in [TEXT DISPLAY]. 1) Press as to select [TEXT CHANGE]. 2) Press the...
Page 79
![Page 79
Chapter 4 Settings —
[SECURITY] menu
ENGLISH - 79

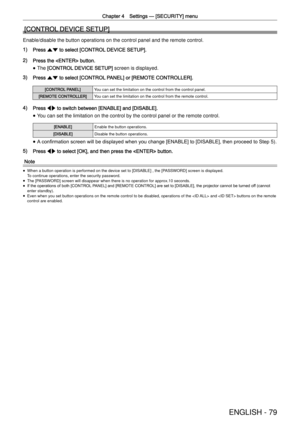

[CONTROL DEVICE SETUP]
Enable/disable the button operations on the control panel and the remote\
control.
1) Press as to select [CONTROL DEVICE SETUP].
2) Press the button.
f The [CONTROL DEVICE SETUP] screen is displayed.
3) Press as to select [CONTROL PANEL] or [REMOTE CONTROLLER].
[CONTROL PANEL]You can set the limitation on the control from the control panel.
[REMOTE CONTROLLER]You can set the limitation on the control from the remote control.
4)...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-78.png "Page 79
Chapter 4 Settings —
[SECURITY] menu
ENGLISH - 79
[CONTROL DEVICE SETUP]
Enable/disable the button operations on the control panel and the remote\
control.
1) Press as to select [CONTROL DEVICE SETUP].
2) Press the button.
f The [CONTROL DEVICE SETUP] screen is displayed.
3) Press as to select [CONTROL PANEL] or [REMOTE CONTROLLER].
[CONTROL PANEL]You can set the limitation on the control from the control panel.
[REMOTE CONTROLLER]You can set the limitation on the control from the remote control.
4)...")
Chapter 4 Settings — [SECURITY] menu ENGLISH - 79 [CONTROL DEVICE SETUP] Enable/disable the button operations on the control panel and the remote\ control. 1) Press as to select [CONTROL DEVICE SETUP]. 2) Press the button. f The [CONTROL DEVICE SETUP] screen is displayed. 3) Press as to select [CONTROL PANEL] or [REMOTE CONTROLLER]. [CONTROL PANEL]You can set the limitation on the control from the control panel. [REMOTE CONTROLLER]You can set the limitation on the control from the remote control. 4)...
Page 80
![Page 80
Chapter 4 Settings —

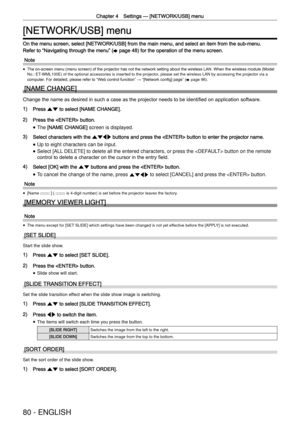

[NETWORK/USB] menu
80 - ENGLISH
[NETWORK/USB] menu
On the menu screen, select [NETWORK/USB] from the main menu, and select \
an item from the sub-menu.
Refer to “
Navigating through the menu ”
(x page 48) for the operation of the menu screen.
Note
f The on-screen menu (menu screen) of the projector has not the network setting about the wireless LAN. When the wireless module (Model
No.: ET-WML100E) of the optional accessories is inserted to the projector, please set the wireless...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-79.png "Page 80
Chapter 4 Settings —
[NETWORK/USB] menu
80 - ENGLISH
[NETWORK/USB] menu
On the menu screen, select [NETWORK/USB] from the main menu, and select \
an item from the sub-menu.
Refer to “
Navigating through the menu ”
(x page 48) for the operation of the menu screen.
Note
f The on-screen menu (menu screen) of the projector has not the network setting about the wireless LAN. When the wireless module (Model
No.: ET-WML100E) of the optional accessories is inserted to the projector, please set the wireless...")
Chapter 4 Settings — [NETWORK/USB] menu 80 - ENGLISH [NETWORK/USB] menu On the menu screen, select [NETWORK/USB] from the main menu, and select \ an item from the sub-menu. Refer to “ Navigating through the menu ” (x page 48) for the operation of the menu screen. Note f The on-screen menu (menu screen) of the projector has not the network setting about the wireless LAN. When the wireless module (Model No.: ET-WML100E) of the optional accessories is inserted to the projector, please set the wireless...
