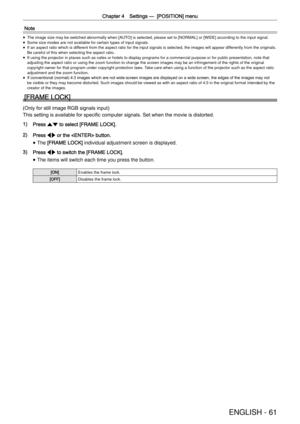

Page 61
![Page 61
Chapter 4 Settings —
[POSITION] menu
ENGLISH - 61
Note
f The image size may be switched abnormally when [AUTO] is selected, please set to [NORMAL] or [WIDE] according to the input \
signal.
f Some size modes are not available for certain types of input signals.
f If an aspect ratio which is different from the aspect ratio for the input signals is selected, the imag\
es will appear differently from the originals.
Be careful of this when selecting the aspect ratio.
f If using the projector in...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-60.png "Page 61
Chapter 4 Settings —
[POSITION] menu
ENGLISH - 61
Note
f The image size may be switched abnormally when [AUTO] is selected, please set to [NORMAL] or [WIDE] according to the input \
signal.
f Some size modes are not available for certain types of input signals.
f If an aspect ratio which is different from the aspect ratio for the input signals is selected, the imag\
es will appear differently from the originals.
Be careful of this when selecting the aspect ratio.
f If using the projector in...")
Chapter 4 Settings — [POSITION] menu ENGLISH - 61 Note f The image size may be switched abnormally when [AUTO] is selected, please set to [NORMAL] or [WIDE] according to the input \ signal. f Some size modes are not available for certain types of input signals. f If an aspect ratio which is different from the aspect ratio for the input signals is selected, the imag\ es will appear differently from the originals. Be careful of this when selecting the aspect ratio. f If using the projector in...

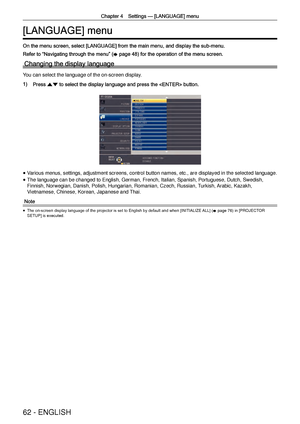

Page 62
![Page 62
Chapter 4 Settings —
[LANGUAGE] menu
62 - ENGLISH
[LANGUAGE] menu
On the menu screen, select [LANGUAGE] from the main menu, and display th\
e sub-menu.
Refer to “
Navigating through the menu ”
(x page 48) for the operation of the menu screen.
Changing the display language
You can select the language of the on-screen display.
1) Press as to select the display language and press the button.
f Various menus, settings, adjustment screens, control button names, etc., are displayed in the selected...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-61.png "Page 62
Chapter 4 Settings —
[LANGUAGE] menu
62 - ENGLISH
[LANGUAGE] menu
On the menu screen, select [LANGUAGE] from the main menu, and display th\
e sub-menu.
Refer to “
Navigating through the menu ”
(x page 48) for the operation of the menu screen.
Changing the display language
You can select the language of the on-screen display.
1) Press as to select the display language and press the button.
f Various menus, settings, adjustment screens, control button names, etc., are displayed in the selected...")
Chapter 4 Settings — [LANGUAGE] menu 62 - ENGLISH [LANGUAGE] menu On the menu screen, select [LANGUAGE] from the main menu, and display th\ e sub-menu. Refer to “ Navigating through the menu ” (x page 48) for the operation of the menu screen. Changing the display language You can select the language of the on-screen display. 1) Press as to select the display language and press the button. f Various menus, settings, adjustment screens, control button names, etc., are displayed in the selected...

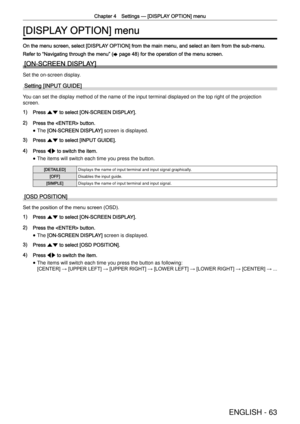

Page 63
![Page 63
Chapter 4 Settings —
[DISPLAY OPTION] menu
ENGLISH - 63
[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub-menu.
Refer to “
Navigating through the menu ”
(x page 48) for the operation of the menu screen.
[ON-SCREEN DISPLAY]
Set the on-screen display.
Setting [INPUT GUIDE]
You can set the display method of the name of the input terminal displaye\
d on the top right of the projection
screen.
1) Press as to select [ON-SCREEN DISPLAY].
2)...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-62.png "Page 63
Chapter 4 Settings —
[DISPLAY OPTION] menu
ENGLISH - 63
[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub-menu.
Refer to “
Navigating through the menu ”
(x page 48) for the operation of the menu screen.
[ON-SCREEN DISPLAY]
Set the on-screen display.
Setting [INPUT GUIDE]
You can set the display method of the name of the input terminal displaye\
d on the top right of the projection
screen.
1) Press as to select [ON-SCREEN DISPLAY].
2)...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 63 [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub-menu. Refer to “ Navigating through the menu ” (x page 48) for the operation of the menu screen. [ON-SCREEN DISPLAY] Set the on-screen display. Setting [INPUT GUIDE] You can set the display method of the name of the input terminal displaye\ d on the top right of the projection screen. 1) Press as to select [ON-SCREEN DISPLAY]. 2)...

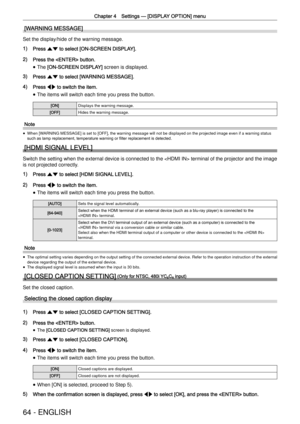

Page 64
![Page 64
Chapter 4 Settings —
[DISPLAY OPTION] menu
64 - ENGLISH
[WARNING MESSAGE]
Set the display/hide of the warning message.
1) Press as to select [ON-SCREEN DISPLAY].
2) Press the button.
f The [ON-SCREEN DISPLAY] screen is displayed.
3) Press as to select [WARNING MESSAGE].
4) Press qw to switch the item.
f The items will switch each time you press the button.
[ON]Displays the warning message.
[OFF]Hides the warning message.
Note
f When [WARNING MESSAGE] is set to [OFF], the warning message will not...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-63.png "Page 64
Chapter 4 Settings —
[DISPLAY OPTION] menu
64 - ENGLISH
[WARNING MESSAGE]
Set the display/hide of the warning message.
1) Press as to select [ON-SCREEN DISPLAY].
2) Press the button.
f The [ON-SCREEN DISPLAY] screen is displayed.
3) Press as to select [WARNING MESSAGE].
4) Press qw to switch the item.
f The items will switch each time you press the button.
[ON]Displays the warning message.
[OFF]Hides the warning message.
Note
f When [WARNING MESSAGE] is set to [OFF], the warning message will not...")
Chapter 4 Settings — [DISPLAY OPTION] menu 64 - ENGLISH [WARNING MESSAGE] Set the display/hide of the warning message. 1) Press as to select [ON-SCREEN DISPLAY]. 2) Press the button. f The [ON-SCREEN DISPLAY] screen is displayed. 3) Press as to select [WARNING MESSAGE]. 4) Press qw to switch the item. f The items will switch each time you press the button. [ON]Displays the warning message. [OFF]Hides the warning message. Note f When [WARNING MESSAGE] is set to [OFF], the warning message will not...

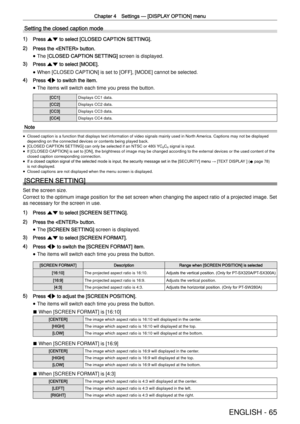

Page 65
![Page 65
Chapter 4 Settings —
[DISPLAY OPTION] menu
ENGLISH - 65
Setting the closed caption mode
1) Press as to select [CLOSED CAPTION SETTING].
2) Press the button.
f The [CLOSED CAPTION SETTING] screen is displayed.
3) Press as to select [MODE].
f When [CLOSED CAPTION] is set to [OFF], [MODE] cannot be selected.
4) Press qw to switch the item.
f The items will switch each time you press the button.
[CC1]Displays CC1 data.
[CC2]Displays CC2 data.
[CC3]Displays CC3 data.
[CC4]Displays CC4 data.
Note
f...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-64.png "Page 65
Chapter 4 Settings —
[DISPLAY OPTION] menu
ENGLISH - 65
Setting the closed caption mode
1) Press as to select [CLOSED CAPTION SETTING].
2) Press the button.
f The [CLOSED CAPTION SETTING] screen is displayed.
3) Press as to select [MODE].
f When [CLOSED CAPTION] is set to [OFF], [MODE] cannot be selected.
4) Press qw to switch the item.
f The items will switch each time you press the button.
[CC1]Displays CC1 data.
[CC2]Displays CC2 data.
[CC3]Displays CC3 data.
[CC4]Displays CC4 data.
Note
f...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 65 Setting the closed caption mode 1) Press as to select [CLOSED CAPTION SETTING]. 2) Press the button. f The [CLOSED CAPTION SETTING] screen is displayed. 3) Press as to select [MODE]. f When [CLOSED CAPTION] is set to [OFF], [MODE] cannot be selected. 4) Press qw to switch the item. f The items will switch each time you press the button. [CC1]Displays CC1 data. [CC2]Displays CC2 data. [CC3]Displays CC3 data. [CC4]Displays CC4 data. Note f...

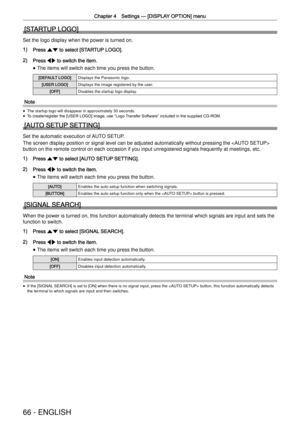

Page 66
![Page 66
Chapter 4 Settings —
[DISPLAY OPTION] menu
66 - ENGLISH
[STARTUP LOGO]
Set the logo display when the power is turned on.
1) Press as to select [STARTUP LOGO].
2) Press qw to switch the item.
f The items will switch each time you press the button.
[DEFAULT LOGO]Displays the Panasonic logo.
[USER LOGO]Displays the image registered by the user.
[OFF]Disables the startup logo display.
Note
f The startup logo will disappear in approximately 30 seconds.
f To create/register the [USER LOGO] image, use...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-65.png "Page 66
Chapter 4 Settings —
[DISPLAY OPTION] menu
66 - ENGLISH
[STARTUP LOGO]
Set the logo display when the power is turned on.
1) Press as to select [STARTUP LOGO].
2) Press qw to switch the item.
f The items will switch each time you press the button.
[DEFAULT LOGO]Displays the Panasonic logo.
[USER LOGO]Displays the image registered by the user.
[OFF]Disables the startup logo display.
Note
f The startup logo will disappear in approximately 30 seconds.
f To create/register the [USER LOGO] image, use...")
Chapter 4 Settings — [DISPLAY OPTION] menu 66 - ENGLISH [STARTUP LOGO] Set the logo display when the power is turned on. 1) Press as to select [STARTUP LOGO]. 2) Press qw to switch the item. f The items will switch each time you press the button. [DEFAULT LOGO]Displays the Panasonic logo. [USER LOGO]Displays the image registered by the user. [OFF]Disables the startup logo display. Note f The startup logo will disappear in approximately 30 seconds. f To create/register the [USER LOGO] image, use...

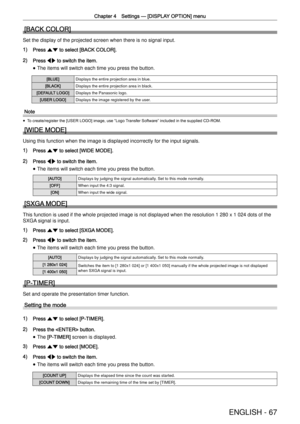

Page 67
![Page 67
Chapter 4 Settings —
[DISPLAY OPTION] menu
ENGLISH - 67
[BACK COLOR]
Set the display of the projected screen when there is no signal input.
1) Press as to select [BACK COLOR].
2) Press qw to switch the item.
f The items will switch each time you press the button.
[BLUE]Displays the entire projection area in blue.
[BLACK]Displays the entire projection area in black.
[DEFAULT LOGO]Displays the Panasonic logo.
[USER LOGO]Displays the image registered by the user.
Note
f To create/register the [USER...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-66.png "Page 67
Chapter 4 Settings —
[DISPLAY OPTION] menu
ENGLISH - 67
[BACK COLOR]
Set the display of the projected screen when there is no signal input.
1) Press as to select [BACK COLOR].
2) Press qw to switch the item.
f The items will switch each time you press the button.
[BLUE]Displays the entire projection area in blue.
[BLACK]Displays the entire projection area in black.
[DEFAULT LOGO]Displays the Panasonic logo.
[USER LOGO]Displays the image registered by the user.
Note
f To create/register the [USER...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 67 [BACK COLOR] Set the display of the projected screen when there is no signal input. 1) Press as to select [BACK COLOR]. 2) Press qw to switch the item. f The items will switch each time you press the button. [BLUE]Displays the entire projection area in blue. [BLACK]Displays the entire projection area in black. [DEFAULT LOGO]Displays the Panasonic logo. [USER LOGO]Displays the image registered by the user. Note f To create/register the [USER...
Page 68

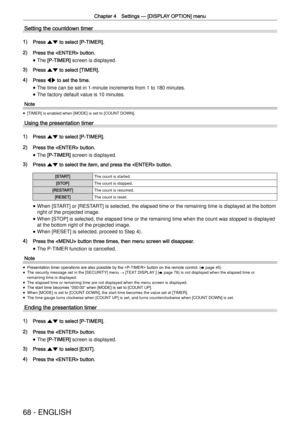

![Page 68
Chapter 4 Settings —
[DISPLAY OPTION] menu
68 - ENGLISH
Setting the countdown timer
1) Press as to select [P-TIMER].
2) Press the button.
f The [P-TIMER] screen is displayed.
3) Press as to select [TIMER].
4) Press qw to set the time.
f The time can be set in 1-minute increments from 1 to 180 minutes.
f The factory default value is 10 minutes.
Note
f [TIMER] is enabled when [MODE] is set to [COUNT DOWN].
Using the presentation timer
1) Press as to select [P-TIMER].
2) Press the button.
f The...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-67.png "Page 68
Chapter 4 Settings —
[DISPLAY OPTION] menu
68 - ENGLISH
Setting the countdown timer
1) Press as to select [P-TIMER].
2) Press the button.
f The [P-TIMER] screen is displayed.
3) Press as to select [TIMER].
4) Press qw to set the time.
f The time can be set in 1-minute increments from 1 to 180 minutes.
f The factory default value is 10 minutes.
Note
f [TIMER] is enabled when [MODE] is set to [COUNT DOWN].
Using the presentation timer
1) Press as to select [P-TIMER].
2) Press the button.
f The...")
Chapter 4 Settings — [DISPLAY OPTION] menu 68 - ENGLISH Setting the countdown timer 1) Press as to select [P-TIMER]. 2) Press the button. f The [P-TIMER] screen is displayed. 3) Press as to select [TIMER]. 4) Press qw to set the time. f The time can be set in 1-minute increments from 1 to 180 minutes. f The factory default value is 10 minutes. Note f [TIMER] is enabled when [MODE] is set to [COUNT DOWN]. Using the presentation timer 1) Press as to select [P-TIMER]. 2) Press the button. f The...
Page 69
![Page 69
Chapter 4 Settings —
[DISPLAY OPTION] menu
ENGLISH - 69
[OTHER FUNCTIONS]
You can perform some of the remote control button operations by using the\
sub-menu.
1) Press as to select [OTHER FUNCTIONS].
2) Press the button.
f The [OTHER FUNCTIONS] screen is displayed.
3) Press as to select the item.
[AUTO SETUP]
Automatically adjust the resolution, the clock phase and the image posit\
ion when analog RGB signals
consisting of bitmap images such as computer signals are being input, or\
to...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-68.png "Page 69
Chapter 4 Settings —
[DISPLAY OPTION] menu
ENGLISH - 69
[OTHER FUNCTIONS]
You can perform some of the remote control button operations by using the\
sub-menu.
1) Press as to select [OTHER FUNCTIONS].
2) Press the button.
f The [OTHER FUNCTIONS] screen is displayed.
3) Press as to select the item.
[AUTO SETUP]
Automatically adjust the resolution, the clock phase and the image posit\
ion when analog RGB signals
consisting of bitmap images such as computer signals are being input, or\
to...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 69 [OTHER FUNCTIONS] You can perform some of the remote control button operations by using the\ sub-menu. 1) Press as to select [OTHER FUNCTIONS]. 2) Press the button. f The [OTHER FUNCTIONS] screen is displayed. 3) Press as to select the item. [AUTO SETUP] Automatically adjust the resolution, the clock phase and the image posit\ ion when analog RGB signals consisting of bitmap images such as computer signals are being input, or\ to...

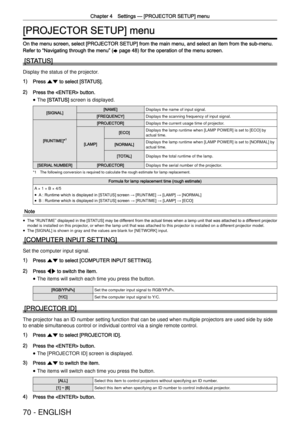

Page 70
![Page 70
Chapter 4 Settings —
[PROJECTOR SETUP] menu
70 - ENGLISH
[PROJECTOR SETUP] menu
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub-menu.
Refer to “
Navigating through the menu ”
(x page 48) for the operation of the menu screen.
[STATUS]
Display the status of the projector.
1) Press as to select [STATUS].
2) Press the button.
f The [STATUS] screen is displayed.
[SIGNAL][NAME]Displays the name of input signal.
[FREQUENCY]Displays the scanning frequency of...](http://img.usermanuals.tech/thumb/58/100568/w300_projector_manual_9664_d-69.png "Page 70
Chapter 4 Settings —
[PROJECTOR SETUP] menu
70 - ENGLISH
[PROJECTOR SETUP] menu
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub-menu.
Refer to “
Navigating through the menu ”
(x page 48) for the operation of the menu screen.
[STATUS]
Display the status of the projector.
1) Press as to select [STATUS].
2) Press the button.
f The [STATUS] screen is displayed.
[SIGNAL][NAME]Displays the name of input signal.
[FREQUENCY]Displays the scanning frequency of...")
Chapter 4 Settings — [PROJECTOR SETUP] menu 70 - ENGLISH [PROJECTOR SETUP] menu On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub-menu. Refer to “ Navigating through the menu ” (x page 48) for the operation of the menu screen. [STATUS] Display the status of the projector. 1) Press as to select [STATUS]. 2) Press the button. f The [STATUS] screen is displayed. [SIGNAL][NAME]Displays the name of input signal. [FREQUENCY]Displays the scanning frequency of...
