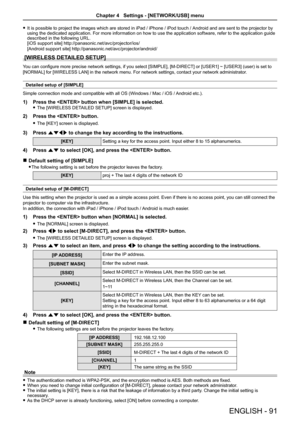

f It is possible to project the images which are stored in iPad / iPhone / iPod touch / Android and are sent to the projector by
using the dedicated application. For more information on how to use the application software, refer to the application guide
described in the following URL.
[iOS support site] http://panasonic.net/avc/projector/ios/
[Android support site] http://panasonic.net/avc/projector/android/
[WIRELESS DETAILED SETUP]
You can configure more precise network settings, if you select...

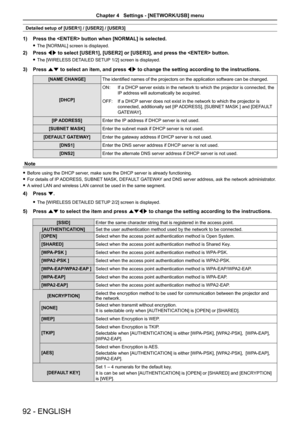

Detailed setup of [USER1] / [USER2] / [USER3]
1) Press the  button when [NORMAL] is selected.

f The [NORMAL] screen is displayed.
2)  Press qw to select [USER1], [USER2] or [USER3], and press the  button.

f The [WIRELESS DETAILED SETUP 1/2] screen is displayed.
3)  Press as to select an item, and press  qw to change the setting according to the instructions.
[NAME CHANGE]The identified names of the projectors on the application software can be changed.
[DHCP]  ON:
If a DHCP server exists in the...

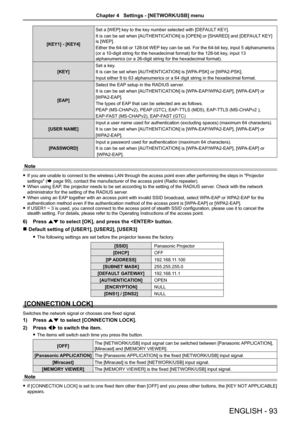

[KEY1] - [KEY4]Set a [WEP] key to the key number selected with [DEFAULT KEY].
It is can be set when [AUTHENTICATION] is [OPEN] or [SHARED] and [DEFAULT KEY]
is [WEP].
Either the 64-bit or 128-bit WEP key can be set. For the 64-bit key, input 5 alphanumerics
(or a 10-digit string for the hexadecimal format) for the 128-bit key
, input 13
alphanumerics (or a 26-digit string for the hexadecimal format).
[KEY] Set a key.
It is can be set when [AUTHENTICATION] is [WPA-PSK] or [WPA2-PSK].
Input either 8 to...

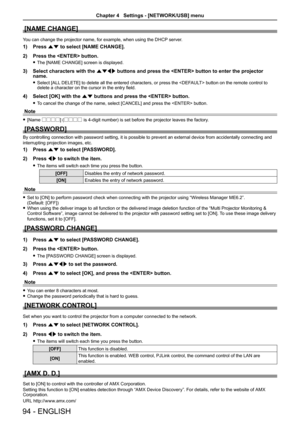

[NAME CHANGE]
You can change the projector name, for example, when using the DHCP server.
1) Press as to select [NAME CHANGE].
2)  Press the  button.

f The [NAME CHANGE] screen is displayed.
3)  Select characters with the asqw  buttons and press the  button to enter the projector
name.

f Select [ALL DELETE] to delete all the entered characters, or press the  button on the remote control to
delete a character on the cursor in the entry field.
4)  Select [OK] with the  as buttons and press the...

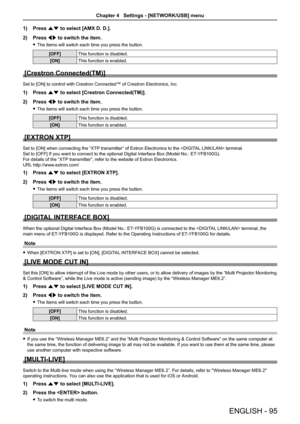

1) Press as to select [AMX D. D.].
2)  Press qw to switch the item.

f The items will switch each time you press the button.
[OFF] This function is disabled.
[ON] This function is enabled.
[Crestron Connected(TM)]
Set to [ON] to control with Crestron Connected™ of Crestron Electronics, Inc.
1) Press as to select [Crestron Connected(TM)].
2)  Press qw to switch the item.

f The items will switch each time you press the button.
[OFF] This function is disabled.
[ON] This function is enabled.
[EXTRON XTP]...

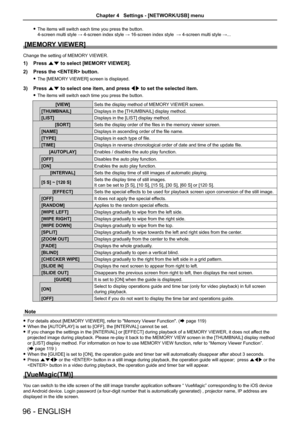

f The items will switch each time you press the button.
4-screen multi style → 4-screen index style → 16-screen index style  → 4-screen multi style →...
[MEMORY VIEWER]
Change the setting of MEMORY VIEWER.
1)  Press as to select [MEMORY VIEWER].
2)  Press the  button.

f The [MEMORY VIEWER] screen is displayed.
3)  Press as to select one item, and press  qw to set the selected item.

f The items will switch each time you press the button.
[VIEW] Sets the display method of MEMORY VIEWER screen....

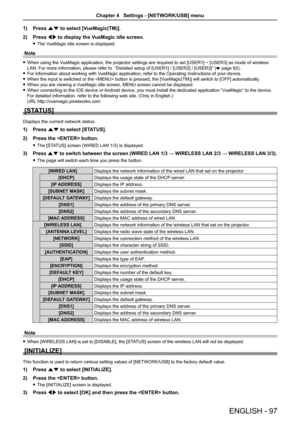

1) Press as to select [VueMagic(TM)].
2)  Press qw to display the VueMagic idle screen.

f The VueMagic idle screen is displayed.
Note

f When using the VueMagic application, the projector settings are required to set [USER1] ~ [USER3] as mode of wireless
LAN. For more information, please refer to  “Detailed setup of [USER1] / [USER2] / [USER3]” ( x page 92).

f For information about working with VueMagic application, refer to the Operating Instructions of your device.

f When the input is switched...

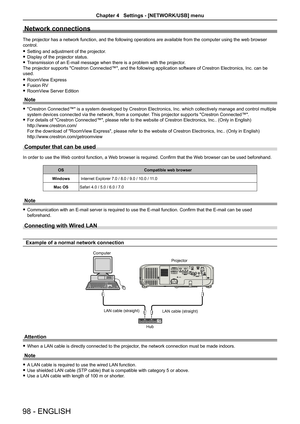

Network connections
The projector has a network function, and the following operations are a\
vailable from the computer using the web browser
control.
f Setting and adjustment of the projector.

f Display of the projector status.

f Transmission of an E-mail message when there is a problem with the projector.
The projector supports "Crestron Connected™", and the following application software of Crestron Electronics, Inc. can be
used.

f RoomView Express

f Fusion RV

f RoomView Server...

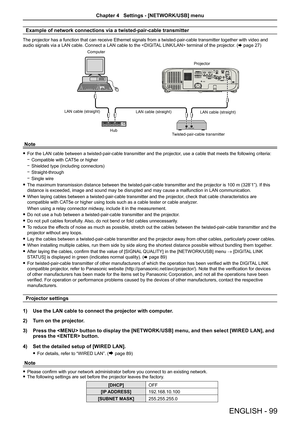

Example of network connections via a twisted-pair-cable transmitter
The projector has a function that can receive Ethernet signals from a twisted-pair-cable transmitter together with video and
audio signals via a LAN cable. Connect a LAN cable to the  terminal of the projector. (x page 27)
Computer
Projector
LAN cable (straight) LAN cable (straight)
Hub LAN cable (straight)
Twisted-pair-cable transmitter
Note

f For the LAN cable between a twisted-pair-cable transmitter and the projector , use a cable...

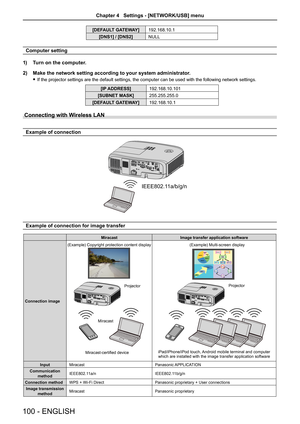

[DEFAULT GATEWAY]192.168.10.1
[DNS1] / [DNS2] NULL
Computer setting
1)   Turn on the computer.
2)  Make the network setting according to your system administrator.

f If the projector settings are the default settings, the computer can be \
used with the following network settings.
[IP ADDRESS] 192.168.10.101
[SUBNET MASK] 255.255.255.0
[DEFAULT GATEWAY] 192.168.10.1
Connecting with Wireless LAN
Example of connection
IEEE802.11a/b/g/n
Example of connection for image transfer
Miracast Image transfer...
