Panasonic Projector PT-VX605N User Manual

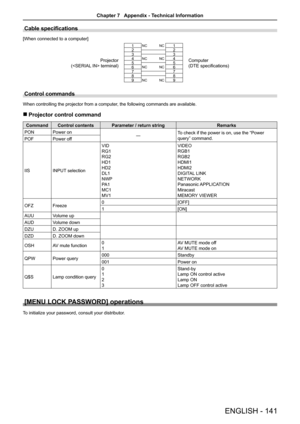

Cable specifications
[When connected to a computer]
Projector
( terminal)
1NC NC1
Computer
(DTE specifications)
2 2
3 3
4
NC NC4
5 5
6
NC NC6
7 7
8 8
9
NC NC9
Control commands
When controlling the projector from a computer, the following commands are available.

r Projector control command
Command Control contents Parameter / return string Remarks
PON Power on
―To check if the power is on, use the “Power
query” command.
POF Power off
IIS INPUT selection VID
RG1
RG2
HD1
HD2
DL1
NWP
PA 1
MC1
MV1 VIDEO...

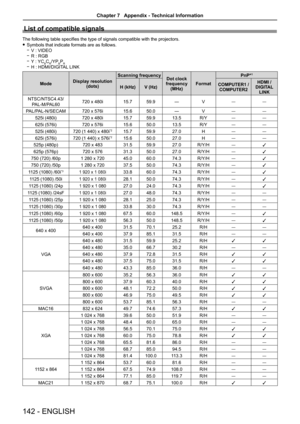

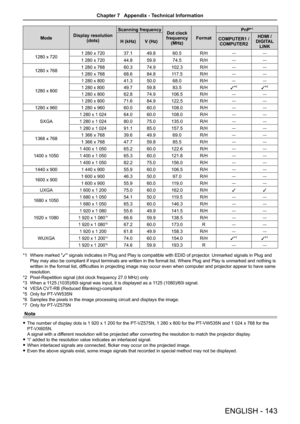

List of compatible signals
The following table specifies the type of signals compatible with the projectors.
f Symbols that indicate formats are as follows.

g V : VIDEO

g R : RGB

g Y :  YC
BCR/YPBPR
g H : HDMI/DIGITAL LINK
Mode Display resolution
(dots) Scanning frequency
Dot clock
frequency (MHz) Format PnP*
1
H (kHz)
V (Hz) COMPUTER1 /
COMPUTER2 HDMI /
DIGITAL  LINK
NTSC/NTSC4.43/ PAL-M/PAL60 720 x 480i
15.759.9 ―V
― ―
PAL/PAL-N/SECAM 720 x 576i15.650.0 ―V― ―
525i (480i) 720 x 480i15.759.9...

ModeDisplay resolution
(dots) Scanning frequency
Dot clock
frequency (MHz) Format PnP*
1
H (kHz)
V (Hz) COMPUTER1 /
COMPUTER2 HDMI /
DIGITAL  LINK
1280 x 720 1 280 x 720
37.1 49.8  60.5  R/H
― ―
1 280 x 720 44.8 59.9  74.5  R/H― ―
1280 x 768 1 280 x 768
60.3 74.9  102.3  R/H― ―
1 280 x 768 68.6 84.8  117.5  R/H― ―
1280 x 800
1 280 x 80041.3 50.0  68.0  R/H― ―
1 280 x 80049.7 59.8  83.5  R/Hl*5l*5
1 280 x 80062.8 74.9  106.5  R/H― ―
1 280 x 80071.6 84.9  122.5  R/H― ―
1280 x 960 1 280 x 96060.060.0...

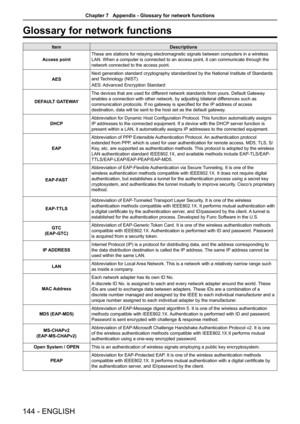

Glossary for network functions
ItemDescriptions
Access point These are stations for relaying electromagnetic signals between computer\
s in a wireless
LAN. When a computer is connected to an access point, it can communicate through the
network connected to the access point.
AES Next generation standard cryptography standardized by the National Institute of Standards
and Technology (NIST).
AES: Advanced Encryption Standard
DEFAULT GATEWAY The devices that are used for different network standards from...

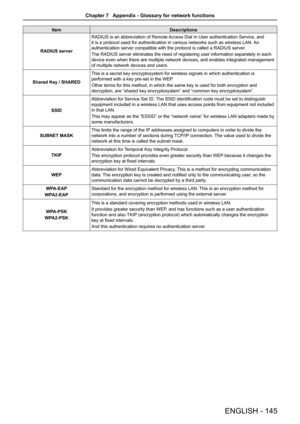

ItemDescriptions
RADIUS server RADIUS is an abbreviation of Remote Access Dial In User authentication Service, and
it is a protocol used for authentication in various networks such as wir\
eless LAN. An
authentication server compatible with the protocol is called a RADIUS se\
rver.
The RADIUS server eliminates the need of registering user information se\
parately in each
device even when there are multiple network devices, and enables integra\
ted management
of multiple network devices and users....

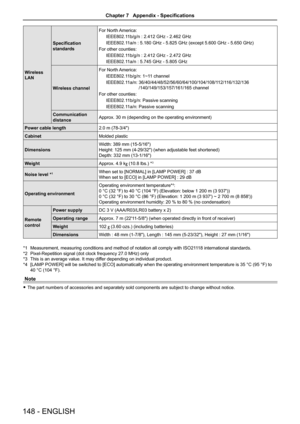

Specifications
The specifications of this projector are as follows.
Power supply120 V  (120 V alternating current), 50 Hz/60 Hz (For North America)
100 V - 240 V
 (100 V - 240 V alternating current), 50 Hz/60 Hz (For other countries)
Power consumption PT-VZ575N
380 W (3.6 A) (For North America)
386 W (4.4 A-1.8 A) (For other countries)
PT-VW535N, PT-VX605N 363 W (3.4 A) (For North America)
369 W (4.2 A-1.7 A) (For other countries)
When [STANDBY MODE] of [ECO MANAGEMENT] is set to [ECO]:
0.2 W (For...

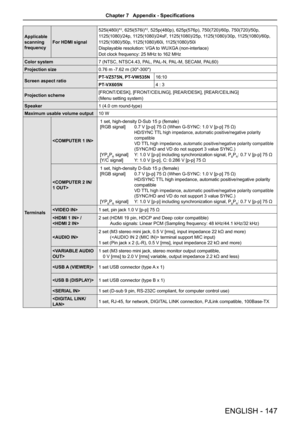

Applicable
scanning
frequency For HDMI signal 525i(480i)
*
2, 625i(576i) *2, 525p(480p), 625p(576p), 750(720)/60p, 750(720)/50p,
1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/25p, 1125(1080)/30p, 1125(1080)/60p,
1125(1080)/50p, 1125(1080)/60i, 1125(1080)/50i
Displayable resolution: VGA to WUXGA (non-interlace)
Dot clock frequency: 25 MHz to 162 MHz
Color system 7 (NTSC, NTSC4.43, PAL, PAL-N, PAL-M, SECAM, PAL60)
Projection size 0.76 m -7.62 m (30"-300")
Screen aspect ratio PT-VZ575N, PT-VW535N...

*1 Measurement, measuring conditions and method of notation all comply with ISO21 118 international standards.
*2  Pixel-Repetition signal (dot clock frequency 27.0 MHz) only
*3  This is an average value. It may differ depending on individual product.
*4  [LAMP POWER] will be switched to [ECO] automatically when the operating environment temperature is 35 °C (95 °F) to
40 °C (104 °F).
Note

f The part numbers of accessories and separately sold components are subje\
ct to change without notice.
Wireless...

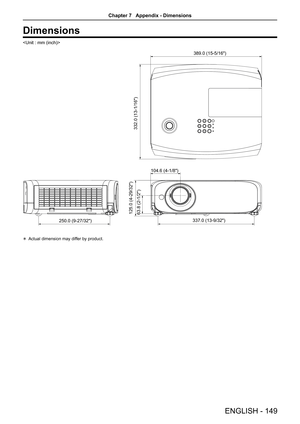

Dimensions

104.6 (4-1/8)
63.8 (2-1/2)
332.0 (13-1/16)
389.0 (15-5/16)
250.0 (9-27/32 )
125.0 (4-29/32)
337.0 (13-9/32)
 Actual dimension may differ by product.
ENGLISH -  149
Chapter 7   Appendix - Dimensions

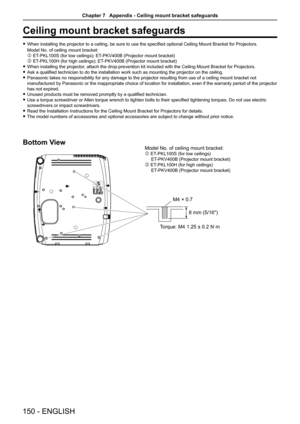

Ceiling mount bracket safeguards

f When installing the projector to a ceiling, be sure to use the specified optional Ceiling Mount Bracket for Projectors.
Model No. of ceiling mount bracket:


 ET-PKL100S (for low ceilings); ET-PKV400B (Projector mount bracket)
 ET-PKL100H (for high ceilings); ET-PKV400B (Projector mount bracket)

f When installing the projector, attach the drop-prevention kit included with the Ceiling Mount Bracket for Projectors.

f Ask a qualified technician to do the...
