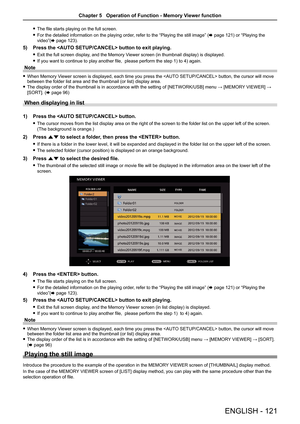

f The file starts playing on the full screen.

f For the detailed information on the playing order, refer to the “Playing the still image” ( x page 121) or “Playing the
video”( x page 123).
5) Press the  button to exit playing.

f
Exit the full screen display, and the Memory Viewer screen (in thumbnail display) is displayed.

f If you want to continue to play another file,  please perform the step 1) to 4) again.
Note

f When Memory Viewer screen is displayed, each time you press the  button,...

 Operation Guide

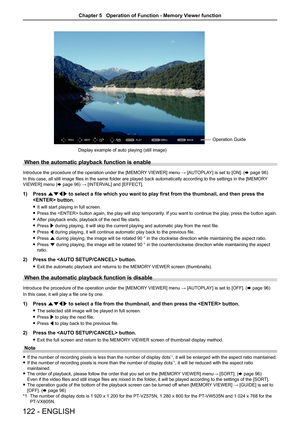

Display example of auto playing (still image)
When the automatic playback function is enable
Introduce the procedure of the operation under the [MEMORY VIEWER] menu → [AUTOPLAY] is set to [ON]. (x page 96)
In this case, all still image files in the same folder are played back automatically according to the settings in the [MEMOR Y
VIEWER] menu (x page 96) → [INTERVAL] and [EFFECT].
1)  Press asqw  to select a file which you want to play first from the thumbnail, and t\
hen press the...

Playing the video
Introduce the procedure to the example of the operation in the MEMORY VIEWER screen of [THUMBNAIL] display method.
In the case of the MEMORY VIEWER screen of [LIST] display method, you can play with the same procedure other than the
selection operation of file.
 í”
Ý Çá”
6
\

2) Press the  button.

f Exit the automatic playback and returns to the MEMORY VIEWER screen (thumbnails).
Note

f If the number of recording pixels is less than the number of display dots*1, it will be enlarged with the aspect ratio maintained.

f If the number of recording pixels is more than the number of display dots*1, it will be reduced with the aspect ratio
maintained.

f The order of playback, please follow the order that you set on the [MEMOR Y VIEWER] menu→ [SORT]. (x page 96)
Even if the...

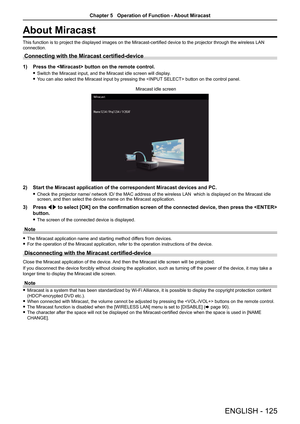

About Miracast
This function is to project the displayed images on the Miracast-certified device to the projector through the wireless LAN
connection.
Connecting with the Miracast certified-device
1) Press the  button on the remote control.

f Switch the Miracast input, and the Miracast idle screen will display.

f You can also select the Miracast input by pressing the  button on the control panel.
2)  Start the Miracast application of the correspondent Miracast devices and\
 PC.

f Check the...

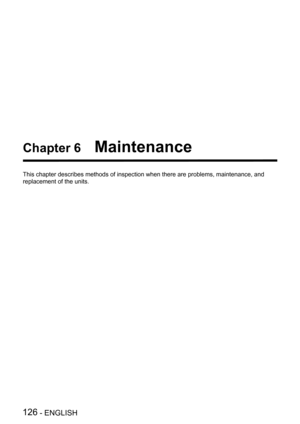

Chapter 6   Maintenance
This chapter describes methods of inspection when there are problems, ma\
intenance, and
replacement of the units.
126 - ENGLISH

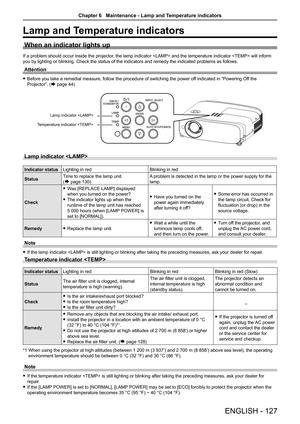

Lamp and Temperature indicators
When an indicator lights up
If a problem should occur inside the projector, the lamp indicator  and the temperature indicator  will inform
you by lighting or blinking. Check the status of the indicators and remedy the indicated problems as follows.
Attention

f Before you take a remedial measure, follow the procedure of switching the power of f indicated in “Powering Off the
Projector”. (
Æ page 44)
Lamp indicator
Temperature indicator
Lamp indicator
Indicator status...

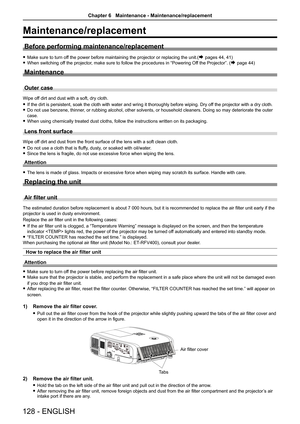

Maintenance/replacement
Before performing maintenance/replacement

f Make sure to turn off the power before maintaining the projector or replacing the unit.(Æ pages 44, 41)

f When switching off the projector, make sure to follow the procedures in “Powering Off the Projector”. (
Æ page 44)
Maintenance
Outer case
Wipe off dirt and dust with a soft, dry cloth.

f If the dirt is persistent, soak the cloth with water and wring it thorou\
ghly before wiping. Dry off the projector with a dry cloth.

f Do...

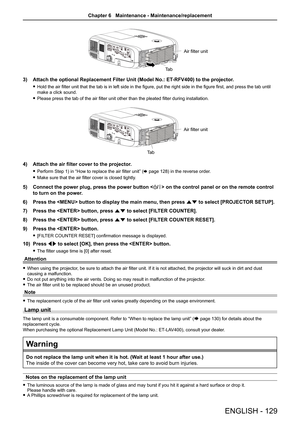

Ta bAir filter unit
3)
Attach the optional Replacement Filter Unit (Model No.: ET -RFV400) to the projector.

f Hold the air filter unit that the tab is in left side in the figure, put the right side in the figure first, and press the tab until
make a click sound.

f Please press the tab of the air filter unit other than the pleated filter during installation.
Ta b Air filter unit
4)
Attach the air filter cover to the projector.

f Perform Step 1) in “How to replace the air filter unit” ( x page...

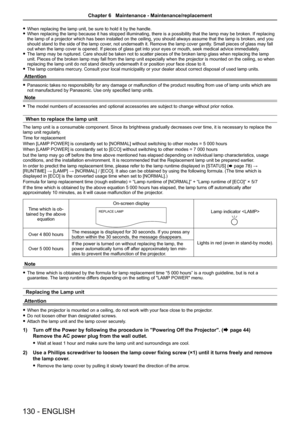

f When replacing the lamp unit, be sure to hold it by the handle.

f When replacing the lamp because it has stopped illuminating, there is a possibility that the lamp may be broken. If replacing
the lamp of a projector which has been installed on the ceiling, you sho\
uld always assume that the lamp is broken, and you
should stand to the side of the lamp cover, not underneath it. Remove the lamp cover gently. Small pieces of glass may fall
out when the lamp cover is opened. If pieces of glass get...
