Panasonic Projector PT-VZ575N User Manual

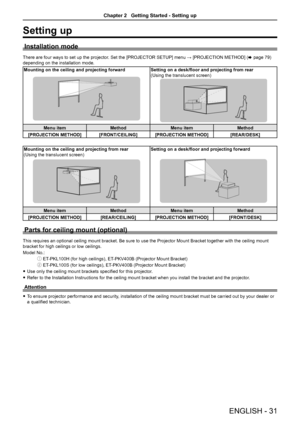

Setting up
Installation mode
There are four ways to set up the projector. Set the [PROJECTOR SETUP] menu → [PROJECTION METHOD] (x page 79)
depending on the installation mode.
Mounting on the ceiling and projecting forwardSetting on a desk/floor and projecting from rear
(Using the translucent screen)
Menu item MethodMenu item Method
[PROJECTION METHOD] [FRONT/CEILING][PROJECTION METHOD] [REAR/DESK]
Mounting on the ceiling and projecting from rear
(Using the translucent screen)Setting on a desk/floor and...

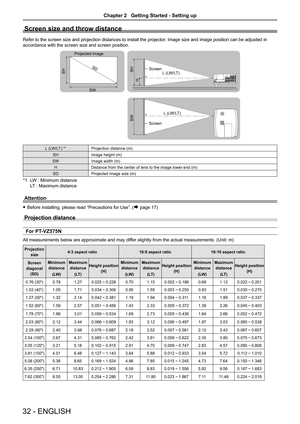

Screen size and throw distance
Refer to the screen size and projection distances to install the projector. Image size and image position can be adjusted in
accordance with the screen size and screen position.
Projected image
SH
SW
SDSHScreen L (LW/LT)
Screen L (LW/LT)
SW
H
L (LW/LT) *1Projection distance (m)
SH Image height (m)
SW Image width (m)
H Distance from the center of lens to the image lower end (m)
SD Projected image size (m)
*1 LW : Minimum distance
LT : Maximum distance
Attention

f Before...

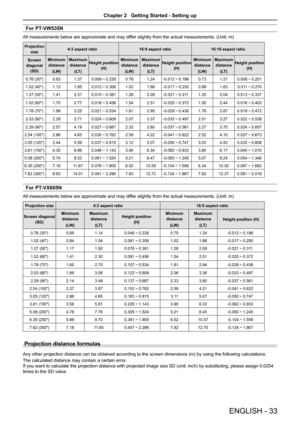

For PT-VW535N
All measurements below are approximate and may differ slightly from the actual measurements. (Unit: m)
Projection size 4:3 aspect ratio
16:9 aspect ratio16:10 aspect ratio
Screen
diagonal  (SD) Minimum
distance
(LW) Maximum
distance
(LT) Height position

(H) Minimum
distance
(LW) Maximum
distance
(LT) Height position
(H) Minimum
distance
(LW) Maximum
distance
(LT) Height position
(H)
0.76 (30") 0.83 1.37 0.009 ~0.228  0.76  1.24 -0.012 ~0.186  0.73  1.21 0.008 ~0.201
1.02...

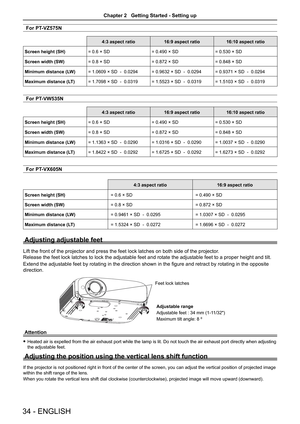

For PT-VZ575N
4:3 aspect ratio16:9 aspect ratio16:10 aspect ratio
Screen height (SH) = 0.6 × SD= 0.490 × SD= 0.530 × SD
Screen width (SW) = 0.8 × SD= 0.872 × SD= 0.848 × SD
Minimum distance (LW) = 1.0609 × SD  -  0.0294 = 0.9632 × SD  -  0.0294= 0.9371 × SD  -  0.0294
Maximum distance (LT) = 1.7098 × SD  -  0.0319 = 1.5523 × SD  -  0.0319= 1.5103 × SD  -  0.0319
For PT-VW535N
4:3 aspect ratio16:9 aspect ratio16:10 aspect ratio
Screen height (SH) = 0.6 × SD= 0.490 × SD= 0.530 × SD
Screen width (SW) = 0.8...

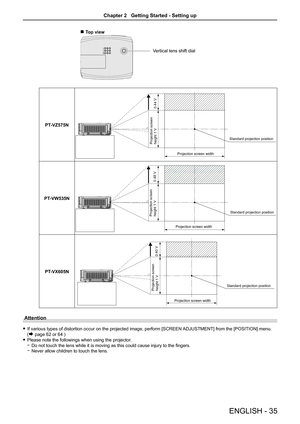

Vertical lens shift dial
r Top view
PT-VZ575N
Standard projection position
Projection screen widthProjection screen
height 1 V 0.44 V
PT-VW535N
Standard projection position
Projection screen widthProjection screen
height 1 V 0.48 V
PT-VX605N
Standard projection position
Projection screen widthProjection screen
height 1 V 0.40 V
Attention

f If various types of distortion occur on the projected image, perform [SCREEN  ADJUSTMENT] from the [POSITION] menu.
(
Æ page 62 or 64 )

f Please note the...

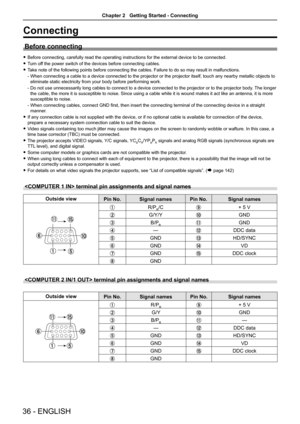

Connecting
Before connecting

f Before connecting, carefully read the operating instructions for the external device to be connected.

f Turn off the power switch of the devices before connecting cables.

f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions.
-  When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to
eliminate static electricity from your body before performing...

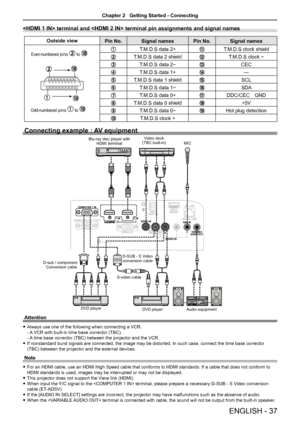

 terminal and  terminal pin assignments and signal\
 names
Outside viewPin No.Signal names Pin No.Signal names
T.M.D.S data 2+T.M.D.S clock shield
T.M.D.S data 2 shieldT.M.D.S clock -
T.M.D.S data 2-CEC
T.M.D.S data 1+—
T.M.D.S data 1 shieldSCL
T.M.D.S data 1-SDA
T.M.D.S data 0+DDC/CEC GND
T.M.D.S data 0 shield+5V
T.M.D.S data 0-Hot plug detection
T.M.D.S clock +
Connecting example : AV equipment
D-sub / component
Conversion cable
Audio equipment
Blu-ray disc player with
HDMI terminal
DVD player Video...

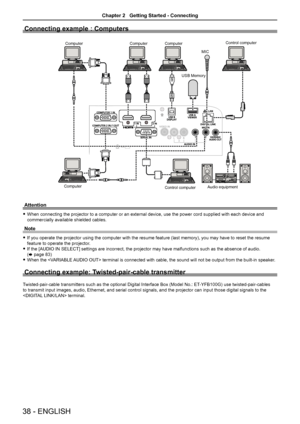

Connecting example : Computers
Control computer
Computer
Computer
Computer Control computer
Audio equipment
MIC
Attention

f When connecting the projector to a computer or an external device, use the power cord supplied with each device and
commercially available shielded cables.
Note

f If you operate the projector using the computer with the resume feature (last memory), you may have to reset the resume
feature to operate the projector.

f If the [AUDIO IN SELECT] settings are incorrect, the...

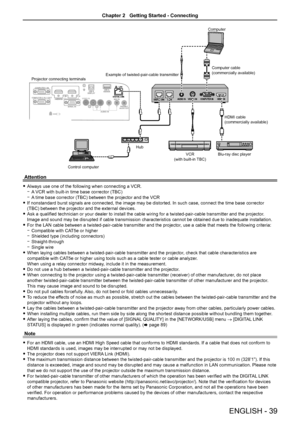

Control computer
Hub
Projector connecting terminals
Example of twisted-pair-cable transmitter Computer
Computer cable
(commercially available)
HDMI cable
(commercially available)
Blu-ray disc player
VCR
(with built-in TBC)
Attention

f Always use one of the following when connecting a VCR.

g A VCR with built-in time base corrector (TBC)

g A time base corrector (TBC) between the projector and the VCR

f If nonstandard burst signals are connected, the image may be distorted. \
In such case, connect...

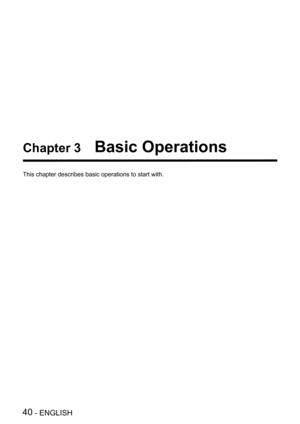

Chapter 3   Basic Operations
This chapter describes basic operations to start with.
40 - ENGLISH
