Panasonic Projector PT-VZ575N User Manual

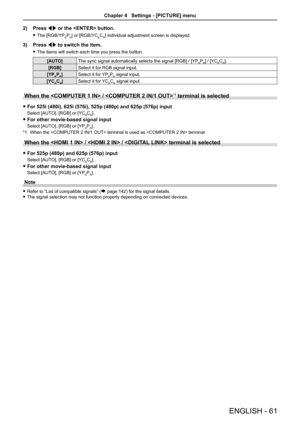

2) Press qw or the  button.

f The [RGB/YPBPR] or [RGB/YCBCR] individual adjustment screen is displayed.
3)  Press qw to switch the item.

f The items will switch each time you press the button.
[AUTO] The sync signal automatically selects the signal [RGB] / [YPBPR] / [YCBCR].
[RGB] Select it for RGB signal input.
[YP
BPR] Select it for YPBPR signal input.
[YC
BCR] Select it for YCBCR signal input.
When the  / *1 terminal is selected

f For 525i (480i), 625i (576i), 525p (480p) and 625p (576p) input...

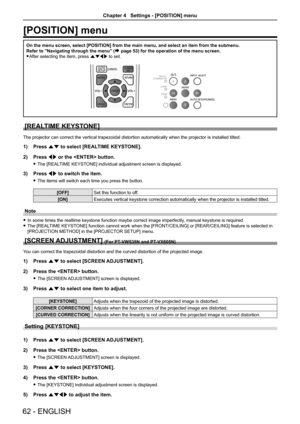

[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select an \
item from the submenu.
Refer to "Navigating through the menu" (
Æ page 53) for the operation of the menu screen.

f After selecting the item, press asqw to set.
[REALTIME KEYSTONE]
The projector can correct the vertical trapezoidal distortion automatically when the projector is installed tilted.
1)  Press as to select [REALTIME KEYSTONE].
2)  Press qw or the  button.

f The [REALTIME KEYSTONE] individual...

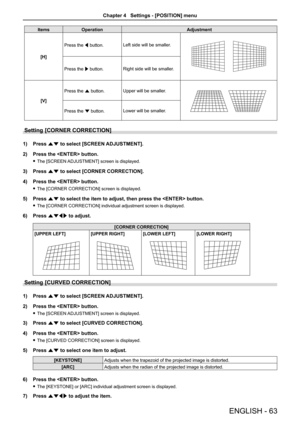

ItemsOperation Adjustment
[H] Press the q button.
Left side will be smaller.
Press the w button.Right side will be smaller.
[V] Press the a button.
Upper will be smaller.
Press the s button.Lower will be smaller.
Setting [CORNER CORRECTION]
1)
Press as to select [SCREEN ADJUSTMENT].
2)  Press the  button.

f The [SCREEN ADJUSTMENT] screen is displayed.
3)  Press as to select [CORNER CORRECTION].
4)  Press the  button.

f The [CORNER CORRECTION] screen is displayed.
5)  Press as to select the item to...

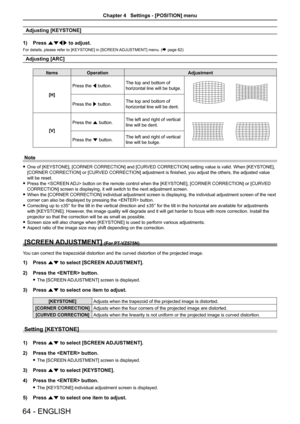

Adjusting [KEYSTONE]
1)  Press asqw  to adjust.
For details, please refer to [KEYSTONE] in [SCREEN ADJUSTMENT] menu. (Æ page 62)
Adjusting [ARC]
Items Operation Adjustment
[H] Press the q button.
The top and bottom of
horizontal line will be bulge.
[VERTICAL
 ARC]
[HORIZONT AL ARC]
Press the w button. The top and bottom of
horizontal line will be dent.
[V] Press the a button.
The left and right of vertical
line will be dent.
[VERTICAL
 ARC]
[HORIZONT AL ARC]
Press the s button. The left and right of...

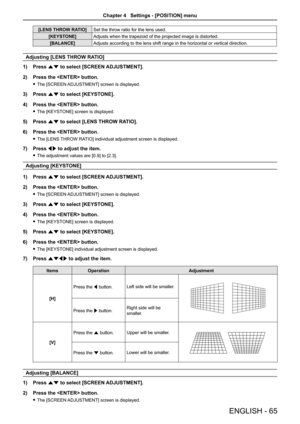

[LENS THROW RATIO]Set the throw ratio for the lens used.
[KEYSTONE] Adjusts when the trapezoid of the projected image is distorted.
[BALANCE] Adjusts according to the lens shift range in the horizontal or vertical direction.
Adjusting [LENS THROW RATIO]
1)  Press as to select [SCREEN ADJUSTMENT].
2)  Press the  button.

f The [SCREEN ADJUSTMENT] screen is displayed.
3)  Press as to select [KEYSTONE].
4)  Press the  button.

f The [KEYSTONE] screen is displayed.
5)  Press as to select [LENS THROW...

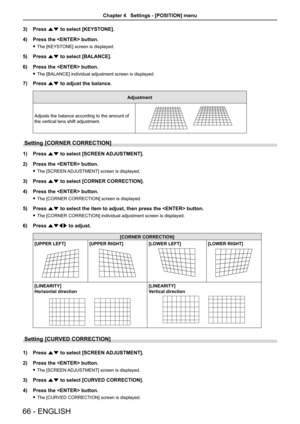

3) Press as to select [KEYSTONE].
4)  Press the  button.

f The [KEYSTONE] screen is displayed.
5)  Press as to select [BALANCE].
6)  Press the  button.

f The [BALANCE] individual adjustment screen is displayed.
7)  Press as to adjust the balance.
Adjustment
Adjusts the balance according to the amount of
the vertical lens shift adjustment.
[VERTICAL  BALANCE][HORIZONT AL BALANCE]
Setting [CORNER CORRECTION]
1)  Press as to select [SCREEN ADJUSTMENT].
2)  Press the  button.

f The [SCREEN ADJUSTMENT]...

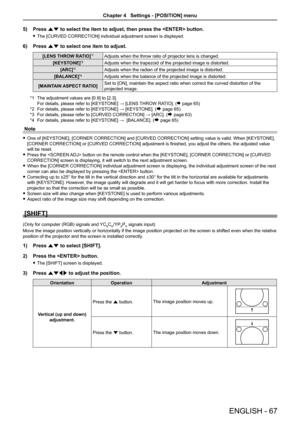

5) Press as to select the item to adjust, then press the  button.

f The [CURVED CORRECTION] individual adjustment screen is displayed.
6)  Press as to select one item to adjust.
[LENS THROW RATIO]*1Adjusts when the throw ratio of projector lens is changed.
[KEYSTONE]
*2Adjusts when the trapezoid of the projected image is distorted.
[ARC]
*3Adjusts when the radian of the projected image is distorted.
[BALANCE]
*4Adjusts when the balance of the projected image is distorted.
[MAINTAIN ASPECT RATIO] Set to...

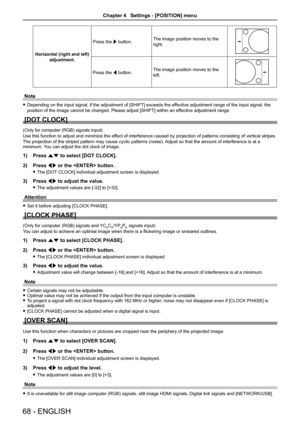

Horizontal (right and left) adjustment. Press the w button.
The image position moves to the
right.
Press the q button.The image position moves to the
left.
Note

f Depending on the input signal, if the adjustment of [SHIFT] exceeds the ef fective adjustment range of the input signal, the
position of the image cannot be changed. Please adjust [SHIFT] within an ef fective adjustment range.
[DOT CLOCK]
(Only for computer (RGB) signals input)
Use this function to adjust and minimize the effect of...

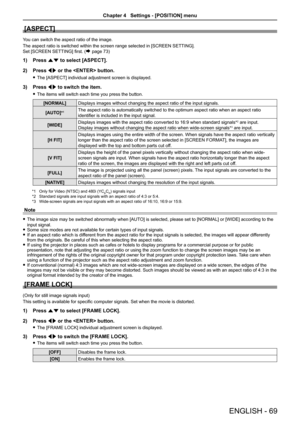

[ASPECT]
You can switch the aspect ratio of the image.
The aspect ratio is switched within the screen range selected in [SCREEN SETTING].
Set [SCREEN SETTING] first. (
Æ page 73)
1)  Press as to select [ASPECT].
2)  Press qw or the  button.

f The [ASPECT] individual adjustment screen is displayed.
3)  Press qw to switch the item.

f The items will switch each time you press the button.
[NORMAL] Displays images without changing the aspect ratio of the input signals.
[AUTO]
*1The aspect ratio is...

[LANGUAGE] menu
On the menu screen, select [LANGUAGE] from the main menu, and select an \
item from the submenu.
Refer to "Navigating through the menu" (
Æ page 53) for the operation of the menu screen.

f Press as to select a language, and press  button to set.
[LANGUAGE]
You can select the language of the on-screen display.

f Various menus, settings, adjustment screens, control button names, etc., \
are displayed in the selected language.

f The language can be changed to English, German,...
