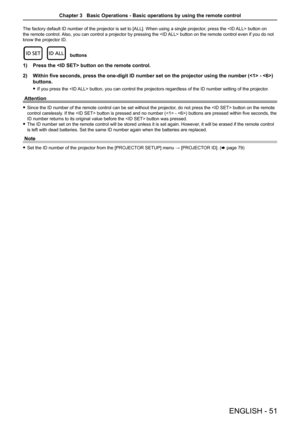

Page 51
![Page 51
The factory default ID number of the projector is set to [ALL]. When using a single projector, press the button on
the remote control. Also, you can control a projector by pressing the button on the remote control even if you do not
know the projector ID.
buttons
1) Press the button on the remote control.
2) Within five seconds, press the one-digit ID number set on the projector u\
sing the number ( - )
buttons.
f If you press the button, you can control the projectors regardless of the ID...](http://img.usermanuals.tech/thumb/58/99622/w300_projector_manual_8412_d-50.png "Page 51
The factory default ID number of the projector is set to [ALL]. When using a single projector, press the button on
the remote control. Also, you can control a projector by pressing the button on the remote control even if you do not
know the projector ID.
buttons
1) Press the button on the remote control.
2) Within five seconds, press the one-digit ID number set on the projector u\
sing the number ( - )
buttons.
f If you press the button, you can control the projectors regardless of the ID...")
The factory default ID number of the projector is set to [ALL]. When using a single projector, press the button on the remote control. Also, you can control a projector by pressing the button on the remote control even if you do not know the projector ID. buttons 1) Press the button on the remote control. 2) Within five seconds, press the one-digit ID number set on the projector u\ sing the number ( - ) buttons. f If you press the button, you can control the projectors regardless of the ID...
Page 52

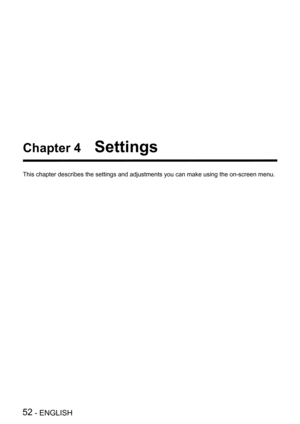

Chapter 4 Settings This chapter describes the settings and adjustments you can make using the on-screen menu. 52 - ENGLISH
Page 53

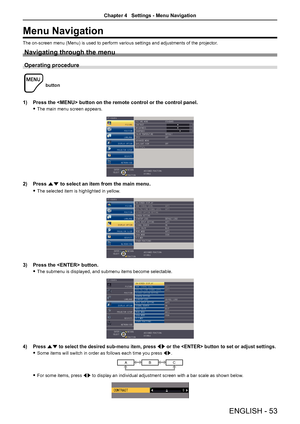

Menu Navigation The on-screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button 1) Press the button on the remote control or the control panel. f The main menu screen appears. 2) Press as to select an item from the main menu. f The selected item is highlighted in yellow. 3) Press the button. f The submenu is displayed, and submenu items become selectable. 4) Press as to select the desired sub-menu item,...
Page 54

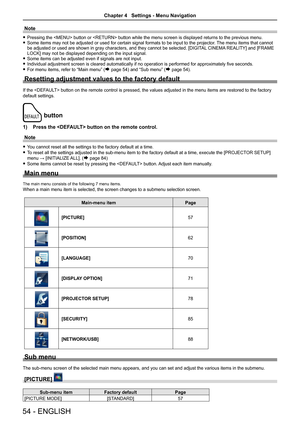

![Page 54
Note
f Pressing the button or button while the menu screen is displayed returns to the previo\
us menu.
f Some items may not be adjusted or used for certain signal formats to be \
input to the projector. The menu items that cannot
be adjusted or used are shown in gray characters, and they cannot be selected. [DIGIT AL CINEMA REALITY] and [FRAME
LOCK] may not be displayed depending on the input signal.
f Some items can be adjusted even if signals are not input.
f Individual adjustment screen...](http://img.usermanuals.tech/thumb/58/99622/w300_projector_manual_8412_d-53.png "Page 54
Note
f Pressing the button or button while the menu screen is displayed returns to the previo\
us menu.
f Some items may not be adjusted or used for certain signal formats to be \
input to the projector. The menu items that cannot
be adjusted or used are shown in gray characters, and they cannot be selected. [DIGIT AL CINEMA REALITY] and [FRAME
LOCK] may not be displayed depending on the input signal.
f Some items can be adjusted even if signals are not input.
f Individual adjustment screen...")
Note f Pressing the button or button while the menu screen is displayed returns to the previo\ us menu. f Some items may not be adjusted or used for certain signal formats to be \ input to the projector. The menu items that cannot be adjusted or used are shown in gray characters, and they cannot be selected. [DIGIT AL CINEMA REALITY] and [FRAME LOCK] may not be displayed depending on the input signal. f Some items can be adjusted even if signals are not input. f Individual adjustment screen...
Page 55

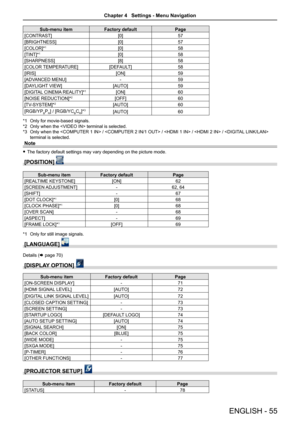

![Page 55
Sub-menu itemFactory default Page
[CONTRAST] [0]57
[BRIGHTNESS] [0]57
[COLOR]*
1[0] 58
[TINT]*1[0] 58
[SHARPNESS] [8]58
[COLOR TEMPERATURE] [DEFAULT]58
[IRIS] [ON]59
[ADVANCED MENU] -59
[DAYLIGHT VIEW] [AUTO]59
[DIGITAL CINEMA REALITY]*
1[ON] 60
[NOISE REDUCTION]*2[OFF] 60
[TV-SYSTEM]*2[AUTO] 60
[RGB/YPBPR] / [RGB/YCBCR]*3[AUTO]60
*1 Only for movie-based signals.
*2 Only when the terminal is selected.
*3 Only when the / / / /
terminal is selected.
Note
f The factory default settings may vary...](http://img.usermanuals.tech/thumb/58/99622/w300_projector_manual_8412_d-54.png "Page 55
Sub-menu itemFactory default Page
[CONTRAST] [0]57
[BRIGHTNESS] [0]57
[COLOR]*
1[0] 58
[TINT]*1[0] 58
[SHARPNESS] [8]58
[COLOR TEMPERATURE] [DEFAULT]58
[IRIS] [ON]59
[ADVANCED MENU] -59
[DAYLIGHT VIEW] [AUTO]59
[DIGITAL CINEMA REALITY]*
1[ON] 60
[NOISE REDUCTION]*2[OFF] 60
[TV-SYSTEM]*2[AUTO] 60
[RGB/YPBPR] / [RGB/YCBCR]*3[AUTO]60
*1 Only for movie-based signals.
*2 Only when the terminal is selected.
*3 Only when the / / / /
terminal is selected.
Note
f The factory default settings may vary...")
Sub-menu itemFactory default Page [CONTRAST] [0]57 [BRIGHTNESS] [0]57 [COLOR]* 1[0] 58 [TINT]*1[0] 58 [SHARPNESS] [8]58 [COLOR TEMPERATURE] [DEFAULT]58 [IRIS] [ON]59 [ADVANCED MENU] -59 [DAYLIGHT VIEW] [AUTO]59 [DIGITAL CINEMA REALITY]* 1[ON] 60 [NOISE REDUCTION]*2[OFF] 60 [TV-SYSTEM]*2[AUTO] 60 [RGB/YPBPR] / [RGB/YCBCR]*3[AUTO]60 *1 Only for movie-based signals. *2 Only when the terminal is selected. *3 Only when the / / / / terminal is selected. Note f The factory default settings may vary...
Page 56

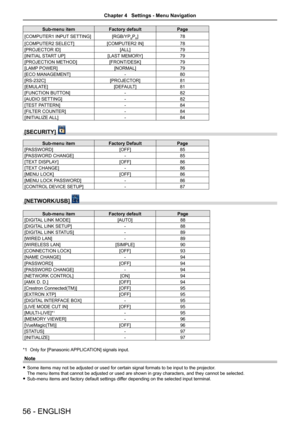

![Page 56
Sub-menu itemFactory default Page
[COMPUTER1 INPUT SETTING] [RGB/YP
BPR]78
[COMPUTER2 SELECT] [COMPUTER2 IN]78
[PROJECTOR ID] [ALL]79
[INITIAL START UP] [LAST MEMORY]79
[PROJECTION METHOD] [FRONT/DESK]79
[LAMP POWER] [NORMAL]79
[ECO MANAGEMENT] -80
[RS-232C] [PROJECTOR]81
[EMULATE] [DEFAULT]81
[FUNCTION BUTTON] -82
[AUDIO SETTING] -82
[TEST PATTERN] -84
[FILTER COUNTER] -84
[INITIALIZE ALL] -84
[SECURITY]
Sub-menu item Factory Default Page
[PASSWORD] [OFF]85
[PASSWORD CHANGE] -85
[TEXT DISPLAY] [OFF]86...](http://img.usermanuals.tech/thumb/58/99622/w300_projector_manual_8412_d-55.png "Page 56
Sub-menu itemFactory default Page
[COMPUTER1 INPUT SETTING] [RGB/YP
BPR]78
[COMPUTER2 SELECT] [COMPUTER2 IN]78
[PROJECTOR ID] [ALL]79
[INITIAL START UP] [LAST MEMORY]79
[PROJECTION METHOD] [FRONT/DESK]79
[LAMP POWER] [NORMAL]79
[ECO MANAGEMENT] -80
[RS-232C] [PROJECTOR]81
[EMULATE] [DEFAULT]81
[FUNCTION BUTTON] -82
[AUDIO SETTING] -82
[TEST PATTERN] -84
[FILTER COUNTER] -84
[INITIALIZE ALL] -84
[SECURITY]
Sub-menu item Factory Default Page
[PASSWORD] [OFF]85
[PASSWORD CHANGE] -85
[TEXT DISPLAY] [OFF]86...")
Sub-menu itemFactory default Page [COMPUTER1 INPUT SETTING] [RGB/YP BPR]78 [COMPUTER2 SELECT] [COMPUTER2 IN]78 [PROJECTOR ID] [ALL]79 [INITIAL START UP] [LAST MEMORY]79 [PROJECTION METHOD] [FRONT/DESK]79 [LAMP POWER] [NORMAL]79 [ECO MANAGEMENT] -80 [RS-232C] [PROJECTOR]81 [EMULATE] [DEFAULT]81 [FUNCTION BUTTON] -82 [AUDIO SETTING] -82 [TEST PATTERN] -84 [FILTER COUNTER] -84 [INITIALIZE ALL] -84 [SECURITY] Sub-menu item Factory Default Page [PASSWORD] [OFF]85 [PASSWORD CHANGE] -85 [TEXT DISPLAY] [OFF]86...
Page 57

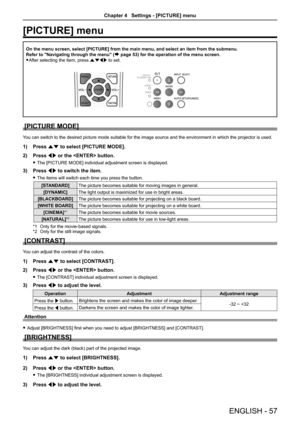

![Page 57
[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select an i\
tem from the submenu.
Refer to "Navigating through the menu" (
Æ page 53) for the operation of the menu screen.
f After selecting the item, press asqw to set.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
1) Press as to select [PICTURE MODE].
2) Press qw or the button.
f The [PICTURE MODE] individual...](http://img.usermanuals.tech/thumb/58/99622/w300_projector_manual_8412_d-56.png "Page 57
[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select an i\
tem from the submenu.
Refer to \"Navigating through the menu\" (
Æ page 53) for the operation of the menu screen.
f After selecting the item, press asqw to set.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
1) Press as to select [PICTURE MODE].
2) Press qw or the button.
f The [PICTURE MODE] individual...")
[PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an i\ tem from the submenu. Refer to "Navigating through the menu" ( Æ page 53) for the operation of the menu screen. f After selecting the item, press asqw to set. [PICTURE MODE] You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used. 1) Press as to select [PICTURE MODE]. 2) Press qw or the button. f The [PICTURE MODE] individual...
Page 58

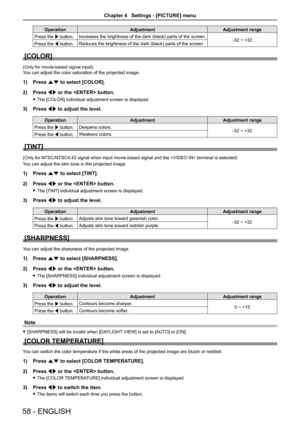

![Page 58
OperationAdjustment Adjustment range
Press the w button. Increases the brightness of the dark (black) parts of the screen.
-32 ~ +32
Press the q button. Reduces the brightness of the dark (black) parts of the screen.
[COLOR]
(Only for movie-based signal input)
You can adjust the color saturation of the projected image.
1) Press as to select [COLOR].
2) Press qw or the button.
f The [COLOR] individual adjustment screen is displayed.
3) Press qw to adjust the level.
Operation Adjustment Adjustment...](http://img.usermanuals.tech/thumb/58/99622/w300_projector_manual_8412_d-57.png "Page 58
OperationAdjustment Adjustment range
Press the w button. Increases the brightness of the dark (black) parts of the screen.
-32 ~ +32
Press the q button. Reduces the brightness of the dark (black) parts of the screen.
[COLOR]
(Only for movie-based signal input)
You can adjust the color saturation of the projected image.
1) Press as to select [COLOR].
2) Press qw or the button.
f The [COLOR] individual adjustment screen is displayed.
3) Press qw to adjust the level.
Operation Adjustment Adjustment...")
OperationAdjustment Adjustment range Press the w button. Increases the brightness of the dark (black) parts of the screen. -32 ~ +32 Press the q button. Reduces the brightness of the dark (black) parts of the screen. [COLOR] (Only for movie-based signal input) You can adjust the color saturation of the projected image. 1) Press as to select [COLOR]. 2) Press qw or the button. f The [COLOR] individual adjustment screen is displayed. 3) Press qw to adjust the level. Operation Adjustment Adjustment...
Page 59

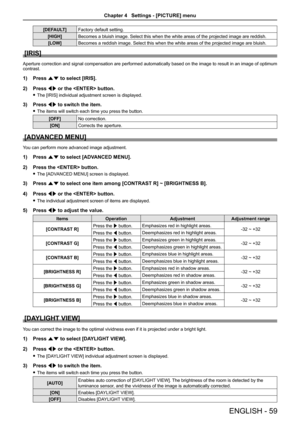

![Page 59
[DEFAULT]Factory default setting.
[HIGH] Becomes a bluish image. Select this when the white areas of the projecte\
d image are reddish.
[LOW] Becomes a reddish image. Select this when the white areas of the project\
ed image are bluish.
[IRIS]
Aperture correction and signal compensation are performed automatically \
based on the image to result in an image of optimum
contrast.
1) Press as to select [IRIS].
2) Press qw or the button.
f The [IRIS] individual adjustment screen is displayed.
3) Press...](http://img.usermanuals.tech/thumb/58/99622/w300_projector_manual_8412_d-58.png "Page 59
[DEFAULT]Factory default setting.
[HIGH] Becomes a bluish image. Select this when the white areas of the projecte\
d image are reddish.
[LOW] Becomes a reddish image. Select this when the white areas of the project\
ed image are bluish.
[IRIS]
Aperture correction and signal compensation are performed automatically \
based on the image to result in an image of optimum
contrast.
1) Press as to select [IRIS].
2) Press qw or the button.
f The [IRIS] individual adjustment screen is displayed.
3) Press...")
[DEFAULT]Factory default setting. [HIGH] Becomes a bluish image. Select this when the white areas of the projecte\ d image are reddish. [LOW] Becomes a reddish image. Select this when the white areas of the project\ ed image are bluish. [IRIS] Aperture correction and signal compensation are performed automatically \ based on the image to result in an image of optimum contrast. 1) Press as to select [IRIS]. 2) Press qw or the button. f The [IRIS] individual adjustment screen is displayed. 3) Press...
Page 60

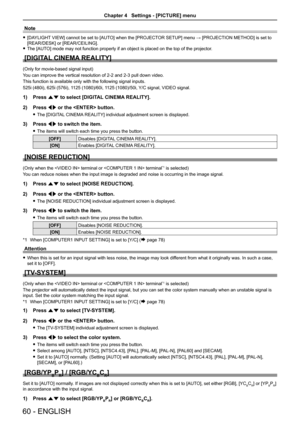

![Page 60
