POP server setup page
The POP server is set on this page when POP authentication is required for mail transmissions.
Click [Network set up], then [POP server set up] to display the POP server setup page.
Select “Enable” for this setting
only when authentication is
required for sending mail.
POP server name field
Available input characters:
Alphanumeric characters (A–Z,
a–z, 0–9), hyphen (-), period (.)
POP server user name field
Button to update settings
POP server password field
Ping test...

92

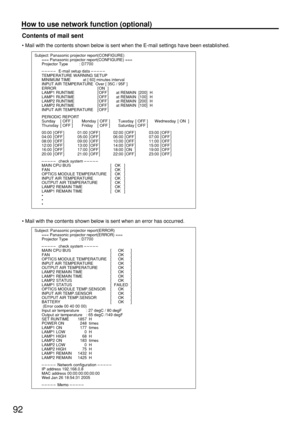

Subject: Panasonic projector report(CONFIGURE)
=== Panasonic projector report(CONFIGURE) ===
Projector Type          : D7700
–––––E-mail setup data –––––
TEMPERATURE WARNING SETUP
MINIMUM TIME           at [ 60] minutes interval
INPUT AIR TEMPERATURE  Over [ 35C / 95F ]
ERROR [ ON ]
LAMP1 RUNTIME [ OFF ] at REMAIN  [200]  H
LAMP1 RUNTIME [ OFF ] at REMAIN  [100]  H
LAMP2 RUNTIME [ OFF ] at REMAIN  [200]  H
LAMP2 RUNTIME [ OFF ] at REMAIN  [100]  H
INPUT AIR TEMPERATURE [ OFF ]
PERIODIC REPORT...

93
ENGLISH

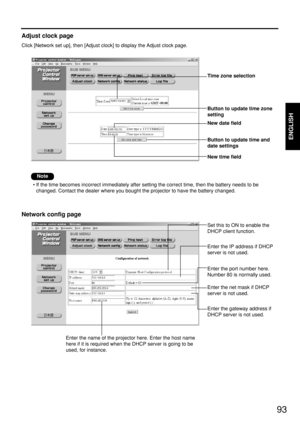

Adjust clock page
Click [Network set up], then [Adjust clock] to display the Adjust clock page.
Time zone selection
Button to update time zone
setting
Button to update time and
date settings
New date field
New time field
Network config page
Set this to ON to enable the
DHCP client function.
Enter the IP address if DHCP
server is not used.
Enter the net mask if DHCP
server is not used.
Enter the port number here.
Number 80 is normally used.
Enter the gateway address if
DHCP server is not...

94

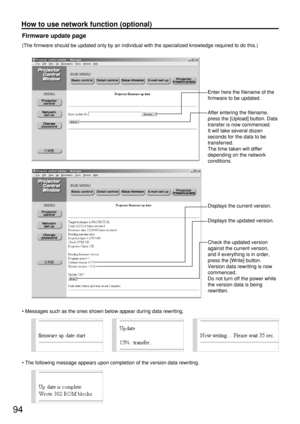

Firmware update page
(The firmware should be updated only by an individual with the specialized knowledge required to do this.)
Enter here the filename of the
firmware to be updated.
After entering the filename,
press the [Upload] button. Data
transfer is now commenced.
It will take several dozen
seconds for the data to be
transferred.
The time taken will differ
depending on the network
conditions.
Displays the current version.
Displays the updated version.
Check the updated version
against the...

95
ENGLISH
Press the “ENTER” button.
The OPTION screen will be displayed.
Select “NETWORK SETTING” with the
buttons.

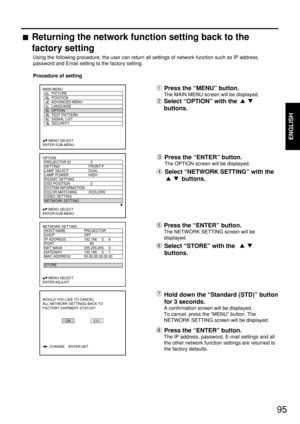

Returning the network function setting back to the
factory setting
Using the following procedure, the user can return all settings of network function such as IP address,
password and Email setting to the factory setting.
Procedure of setting
Press the “MENU” button.
The MAIN MENU screen will be displayed.
Select “OPTION” with the
buttons.
Press the “ENTER” button.
The NETWORK SETTING...

96

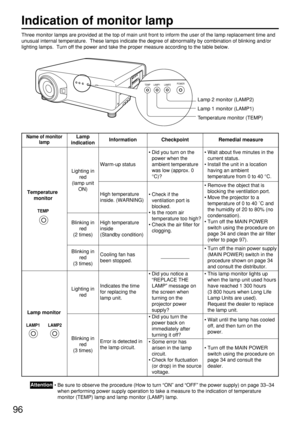

Indication of monitor lamp
Three monitor lamps are provided at the top of main unit front to inform the user of the lamp replacement time and
unusual internal temperature.  These lamps indicate the degree of abnormality by combination of blinking and/or
lighting lamps.  Turn off the power and take the proper measure according to the table below.
Lamp 2 monitor (LAMP2)
Lamp 1 monitor (LAMP1)
Temperature monitor (TEMP)
TEMP LAMP1 LAMP2POWER
• Be sure to observe the procedure (How to turn “ON” and “OFF”...

97

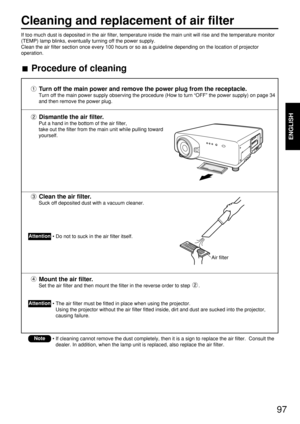

Cleaning and replacement of air filter
ENGLISH
Turn off the main power and remove the power plug from the receptacle.
Turn off the main power supply observing the procedure (How to turn “OFF” the power supply) on page 34
and then remove the power plug.
Dismantle the air filter.
Put a hand in the bottom of the air filter,
take out the filter from the main unit while pulling toward
yourself.
Clean the air filter.
Suck off deposited dust with a vacuum cleaner.
Mount the air filter.
Set the air filter...

98

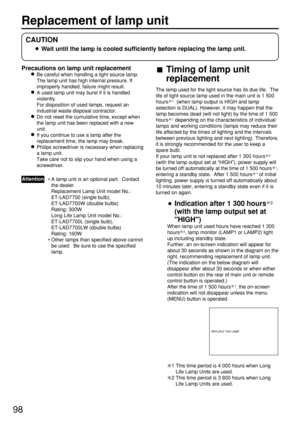

Replacement of lamp unit
Precautions on lamp unit replacement
Be careful when handling a light source lamp.
The lamp unit has high internal pressure. If
improperly handled, failure might result.
A used lamp unit may burst if it is handled
violently.
For disposition of used lamps, request an
industrial waste disposal contractor.
Do not reset the cumulative time, except when
the lamp unit has been replaced with a new
unit.
If you continue to use a lamp after the
replacement time, the lamp may break....

99
ENGLISH
• After 1 500 hours (4 000 hours when Long Life Lamp Units are used) of operating the same lamp, it is
only possible to operate the unit for approximately 10 minutes. Steps 9 to 15 must be completed within
ten minutes.

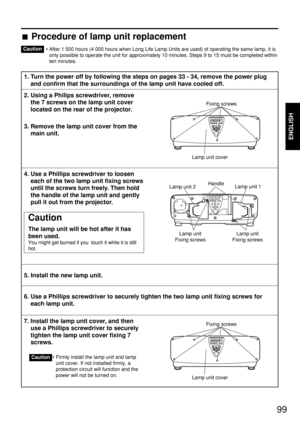

1. Turn the power off by following the steps on pages 33 - 34, remove the power plug
and confirm that the surroundings of the lamp unit have cooled off.
2. Using a Philips screwdriver, remove
the 7 screws on the lamp unit cover
located on the rear of the projector.
3. Remove the...

100

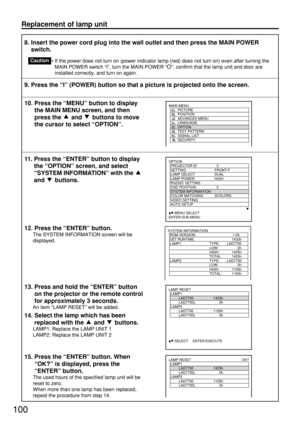

8. Insert the power cord plug into the wall outlet and then press the MAIN POWER
switch.
• If the power does not turn on (power indicator lamp (red) does not turn on) even after turning the
MAIN POWER switch “I”, turn the MAIN POWER “
O”, confirm that the lamp unit and door are
installed correctly, and turn on again.
9. Press the “I” (POWER) button so that a picture is projected onto the screen.
10. Press the “MENU” button to display
the MAIN MENU screen, and then
press the  and  buttons to move
the...
