81
ENGLISH
MAIN MENU
         POSITION
         ADVANCED MENU
         LANGUAGE
         OPTION
         TEST PATTERN
         SIGNAL LIST
         SECURITY
         CP OPTION
     :MENU SELECT
ENTER:SUB MENU
CP OPTION
  OSD ON
  SYSTEM SELECTOR






     :MENU SELECT
ENTER:SUB MENU
SYSTEM SELECTOR
  VIDEO AUTO1
  S-VIDEO AUTO1






     :MENU SELECT
     :CHANGE   ENTER:EXECUTE

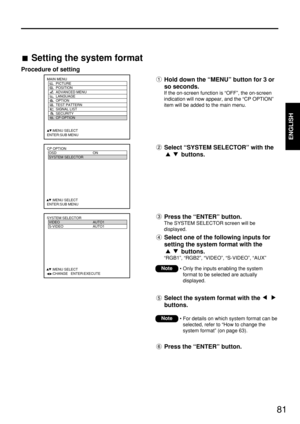

Setting the system format
Procedure of setting
Hold down the “MENU” button...

82
The input module (ET-MD77NT, ET-MD77DV, ET-MD77SD1 or ET-MD77SD3) available as an optional accessory
comes with a network function to enable the projector to be controlled from the Web browser of the personal
computer.
In addition, the network function also fulfills automatic E-mail transmission function.  It can send mail to a
predefined E-mail address when the system malfunctions or when the lamp used hours reaches the set value.
Example of connection
A LAN cable is required to use the network...

83
ENGLISH
Press the “ENTER” button.
The OPTION screen will be displayed.
Select “NETWORK SETTING” with the
buttons.
Initial setting of network function
Procedure of setting
Press the “MENU” button.
The MAIN MENU screen will be displayed.
Select “OPTION” with the
buttons.
MAIN MENU
         POSITION
         ADVANCED MENU
         LANGUAGE
         OPTION
         TEST PATTERN
         SIGNAL LIST
         SECURITY
     :MENU SELECT
ENTER:SUB MENU
OPTION
  PROJECTOR ID 2
  SETTING...

84

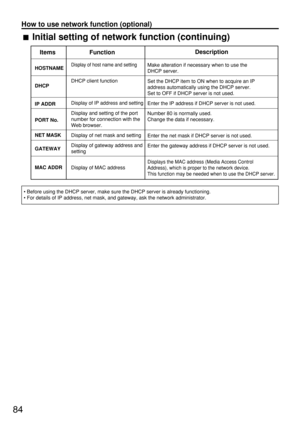

How to use network function (optional)
Items FunctionDescription
HOSTNAME
DHCP
IP ADDR
PORT No.
NET MASK
GATEWAY
MAC ADDRMake alteration if necessary when to use the
DHCP server.
Set the DHCP item to ON when to acquire an IP
address automatically using the DHCP server.
Set to OFF if DHCP server is not used.
Enter the IP address if DHCP server is not used.
Number 80 is normally used.
Change the data if necessary.
Enter the net mask if DHCP server is not used.
Enter the gateway address if DHCP...

85
ENGLISH
• Avoid activating two or more Web browser simultaneously to work out setting or control actions.
• Change the password first of all.
Note

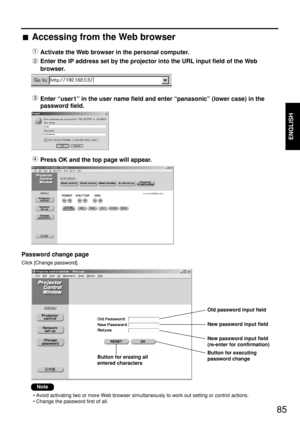

Accessing from the Web browser
Activate the Web browser in the personal computer.
Enter the IP address set by the projector into the URL input field of the Web
browser.
Enter “user1” in the user name field and enter “panasonic” (lower case) in the
password field.
Press OK and the top page will appear.
Password change page
Click [Change password].
Old...

86
How to use network function (optional)
Basic control page
This page is the first page displayed when the projector is accessed through a web browser.
To move from another page, click [Projector control], then [Basic control].
Control button
Click this item, and a
projector control page
appears.
Update button
Click this item, and the
update page of the
projector’s firmware
appears.
E-mail set up button
Click this item, and an
E-mail setting page
appears.
Monitor information
button
Click this item, and...

87
ENGLISH
(Continued on next page)

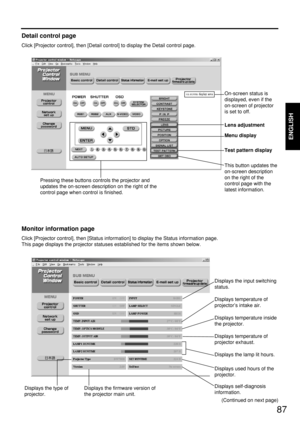

Detail control page
Click [Projector control], then [Detail control] to display the Detail control page.
On-screen status is
displayed, even if the
on-screen of projector
is set to off.
Lens adjustment
Menu display
Test pattern display
This button updates the
on-screen description
on the right of the
control page with the
latest information. Pressing these buttons controls the projector and
updates the on-screen description on the right of the
control page when control...

88
How to use network function (optional)
When  is displayed on the status information screen, click it to display the error details.
Error information page
OK: Normal operation
FAILED: Occurrence of trouble
When [FAILED] has appeared for an item
Parameter
MAIN CPU BUS
FAN
OPTICS MODULE
TEMPERATURE
INPUT AIR TEMPERATURE
OUTPUT AIR TEMPERATURE
LAMP REMAIN TIME
LAMP STATUS
APERTURE (CONTRAST-SHUTTER)
SHUTTER (MUTE-SHUTTER)
OPTICS MODULE TEMP.SENSOR
INPUT AIR TEMP.SENSOR
OUTPUT AIR TEMP.SENSOR
BATTERY...

Select “Enable” to use the E-
mail function.
89
ENGLISH
E-mail setup page
With this projector, if a problem occurs or if the lamp usage time reaches a set value, an e-mail message can be
sent to one or more preset e-mail addresses (maximum two addresses). Click [Projector Control], then [E-mail set
up] to display the E-mail setup page.
Enter the IP address or server name of the E-mail server (SMTP). The DNS
server must be set if the server name is entered.
Enter the E-mail address of the
projector....

90
How to use network function (optional)
Enter the E-mail address to
which the E-mail is to be sent
when two E-mail addresses
are going to be used. Do not
enter it when the second E-
mail address is not going to
be used.
Select the conditions for sending E-mail.
ERROR:an error is detected by self-diagnosis.
LAMP1 RUNTIME:remaining lamp service time has reached the value set in
the field.
LAMP2 RUNTIME:remaining lamp service time has reached the value set in
the field.
INPUT AIR TEMPERATURE: intake air...
