Top page
   TOP-Panasonic projector control window - Netscape
File    Edit    View    Go    Window    Help
Copyright (C) 2001 Matsushita Electric Industrial Co., Ltd.
Projector control window
Power status OFF
Document Done
Initial set up
Projector control
Status information
E-mail set up
Projector firmware up date
Option
Update button
Clicking on this option displays the
projector firmware update page.
Initial setup button
If you click on this item, the page for
changing passwords and initial setting...

82

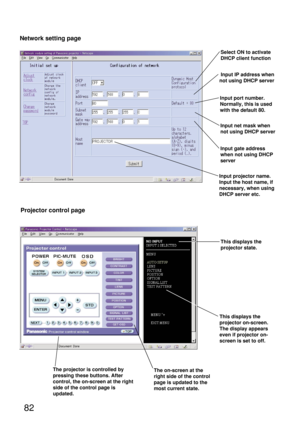

Network setting page
Select ON to activate
DHCP client function
Input IP address when
not using DHCP server
Input port number.
Normally, this is used
with the default 80.
Input net mask when
not using DHCP server
Input gate address
when not using DHCP
server
Input projector name.
Input the host name, if
necessary, when using
DHCP server etc.
Projector control page
This displays the
projector state.
This displays the
projector on-screen.
The display appears
even if projector on-
screen is set to off....

83

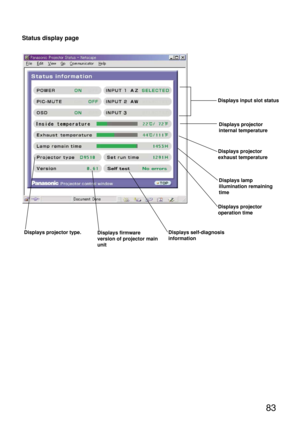

Status display page
Displays input slot status
Displays projector
internal temperature
Displays projector
exhaust temperature
Displays lamp
illumination remaining
time
Displays projector
operation time
Displays self-diagnosis
informationDisplays firmware
version of projector main
unit Displays projector type.

84

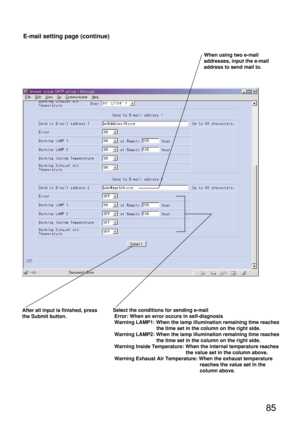

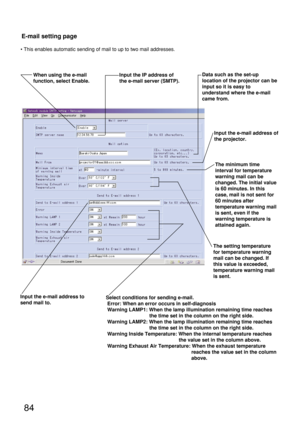

E-mail setting page
• This enables automatic sending of mail to up to two mail addresses.
When using the e-mail
function, select Enable.Input the IP address of
the e-mail server (SMTP).Data such as the set-up
location of the projector can be
input so it is easy to
understand where the e-mail
came from.
Input the e-mail address of
the projector.
The minimum time
interval for temperature
warning mail can be
changed. The initial value
is 60 minutes. In this
case, mail is not sent for
60 minutes after...

85
E-mail setting page (continue)
When using two e-mail
addresses, input the e-mail
address to send mail to.
After all input is finished, press
the Submit button.Select the conditions for sending e-mail
Error: When an error occurs in self-diagnosis
Warning LAMP1: When the lamp illumination remaining time reaches
the time set in the column on the right side.
Warning LAMP2: When the lamp illumination remaining time reaches
the time set in the column on the right side.
Warning Inside Temperature: When the...

86

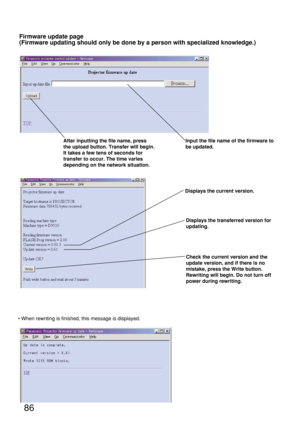

Firmware update page
(Firmware updating should only be done by a person with specialized knowledge.)
• When rewriting is finished, this message is displayed.After inputting the file name, press
the upload button. Transfer will begin.
It takes a few tens of seconds for
transfer to occur. The time varies
depending on the network situation.Input the file name of the firmware to
be updated.
Displays the current version.
Displays the transferred version for
updating.
Check the current version and the...

87
• If too much dust accumulates on the air filter, the temperature inside the projector will rise and may cause the
power to turn off. Clean the air filter approximately every 500 hours of use (varies with the environment in which
the projector is used).
Cleaning the air filter
Consult a service technician to
clean or replace the air filter.
CAUTION
Returning the network module settings to the factory shipment condition
The following procedure allows the user to reset all of the network module...

88
Notes on handling the lamp unit
• The lamp unit is sold separately and consult a Panasonic authorized dealer or service center.
Part No. :  ET-LAD9610
Lamp unit replacement period
The life span of this lamp unit is 1 500 hours maximum, after which it will need replacing (recommended
replacement time is 1 000 hours). in the normal usage mode. The operating life of the lamp also depends on the
number of times it is turned on and off. Turning on and off the lamp at frequent intervals will decrease its...

89
Before asking for service, check the following points.


Power does
not turn on.








No picture
appears.


Color is misaligned
when special signals
are input.
The contrast and
brightness of the
picture cannot be
adjusted
• Is the power turned on at the
power point?
• Is the power cord disconnected
from the power point?
• Is the MAIN POWER switch
turned to OFF?
• Is the REMOTE IN 1 connector
being used for external control?
•
Is the ID number setting correct?
• Is the picture...

90
Specifications
PT-D9510U
PT-D9610U
(PT-D9510U)
(PT-D9610U)
PT-D9510U
PT-D9610U
200 V – 240 V AC (single-phase, 3-wire), 14 A (Max.)
2.2 kW
Approx. 13 W during standby (when cooling fan is stopped)
0 °C – 40 °C : NORMAL lamp power
0 °C – 35 °C : HIGH lamp power
 If the power is turned on when the temperature is around 0 °C, a warming-up time
of about five minutes will be required before a picture can be projected.
Temperature: −25 °C – 65 °C  Humidity: 10 % – 80 % (with no condensation)
Element size:...
