Connecting the input module signal source

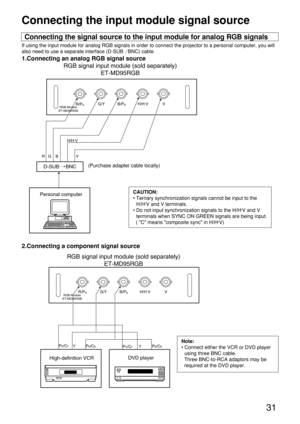

Connecting the signal source to the input module for analog RGB signals
If using the input module for analog RGB signals in order to connect the projector to a personal computer, you will
also need to use a separate interface (D-SUB /BNC) cable.
1.Connecting an analog RGB signal source
2.Connecting a component signal source
R/PRG/Y
RG BH/H·
V
VB/PBH/H·
VV
D-SUB /BNC
Personal computer
RGB signal input module (sold separately)
ET-MD95RGB
RGB Module
ET-MD95RGB...

32
The table below lists the different types of analog RGB signals that can be input.
If a signal which differs greatly from any of the types listed below is input, the picture image may not be
displayed correctly, or black background may displayed.
Display mode name Signal data
No. of dotsHorizontal scanning frequency(kHz) Vertical scanning frequency(Hz)
7(

33
Connecting the signal source to the input module for video signals
1.Connecting a video signal source
• Switching between LINE input and Y/C input is carried out by toggling the INPUT button.
(Example)  If the ET-MD95VM2 is inserted in slot 1 the selection will change as follows each time the INPUT 1
button on the remote control unit (or the INPUT button on the projector operating panel) is pressed.
LINE input → Y/C input
â
• If connecting a VCR, be sure to use one which has a built-in TBC.
• If...

34

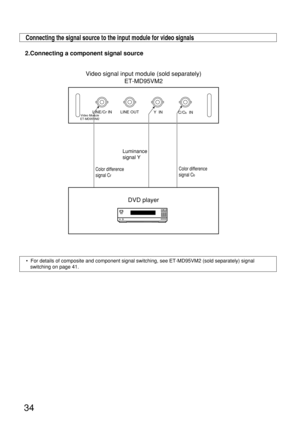

Connecting the signal source to the input module for video signals
2.Connecting a component signal source
•  For details of composite and component signal switching, see ET-MD95VM2 (sold separately) signal
switching on page 41.
Luminance
signal Y
Color difference
signal C
b
Video signal input module (sold separately)
ET-MD95VM2
DVD player
LINE/Cr IN
C/Cb  IN LINE OUT
Y  INVideo Module
ET-MD95VM2
Color difference
signal C
r

35

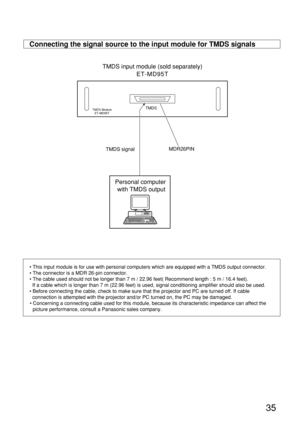

Connecting the signal source to the input module for TMDS signals
• This input module is for use with personal computers which are equipped with a TMDS output connector.
• The connector is a MDR 26-pin connector.
• The cable used should not be longer than 7 m / 22.96 feet( Recommend length : 5 m / 16.4 feet).
If a cable which is longer than 7 m (22.96 feet) is used, signal conditioning amplifier should also be used.
• Before connecting the cable, check to make sure that the projector and PC are turned...

36
• Use an input module which correctly matches the input signal type.
• The SYSTEM SELECTOR button can be used to toggle between different formats when using input
modules that can handle two different signals with different specifications. The current signal format can be
checked by looking at the on-screen display.
SD signalSD signal output
Serial digital input module(sold separately)
IN  OUT
Professional-type
digital VCR

ET-MD95SD1 (for 480i/576i)


480i Module
ET-MD95SD1  SERIAL

Connecting the...

37
Connecting the signal source to the input module for serial digital signals
SD
signal
SD signal output
(Active through)

Serial digital input module(sold separately)
  MAIN IN
Professional-type
digital VCR
ET-MD95SD2 (for 480p/480i/576i)


480p Module
ET-MD95SD2  SERIAL  MAIN OUT   SUB IN   SUB OUT
MAIN
(Link-A)SUB
(Link-B)
MAIN
(Link-A)SUB
(Link-B)
1. 480p dual link (4:2:2p):  59.94 Hz progressive scan with 720 by 483 active lines at
270 Mbps, complying with the SMPTE294M Standard

38
2. 1) 480p single link (4:2:0p): 59.94 Hz progressive scan with 720 by 483 active lines at
360 Mbps, complying with the SMPTE294M Standard
2) 480i (4:2:2): 59.94 Hz interlace scan with 525 lines at 270 Mbps, complying with
the SMPTE294M Standard
3) 576i (4:2:2):  50 Hz interlace scan with 625 lines at 270 Mbps, complying with the
SMPTE294M Standard
SD signalSD signal output
(Active through)

Serial digital input module(sold separately)
  MAIN IN
Professional-type
digital VCR
ET-MD95SD2 (for...

39
Connecting the signal source to the input module for serial digital signals
HD SD signal
SD signal output
(Active through)
Serial digital input module(sold separately)
IN  OUT
Professional-type
digital VCR ET-MD95SD3 (for HD SDI)
1080i/720p Module
ET-MD95SD3  HD SERIAL

• Use an input module which correctly matches the input signal type.
• Input modules that accommodate 8 video signal formats (14 scan formats) (SMPTE292M) can be switched
from one to another with the SYSTEM SELECTOR switch that...

40
Selecting the input signal
• The following remote control unit buttons and the INPUT button on the projector operating panel can be used to
switch between different input sources.
• The input source can be changed in the order INPUT 1  INPUT 2  INPUT 3 each time the INPUT button on the
projector operating panel is pressed.
• When using the video signal input module ( ET-MD95VM2), the input source will toggle between LINE
and Y/C input each time the above input selection buttons are pressed.
(Example)...
