Panasonic Pt D9510u Projector User Manual

71
Using the RS-232C connectors
The projector is equipped with a D-SUB 9-pin RS-232C input connector and RS-232C output connector which
allow the projector to be controlled externally. These connectors conform to RS-232C specifications, and can be
used by a computer which conforms to either RS-232 or RS-232C specifications.
•Set the communication parameters below according to a computer to be connected. To connect the computer,
use a straight cable and connect it to the RS-232C IN connector....

72
Using the RS-232C connectors (continued)


 ID List
ID
Code specified
ALL        00h
1            01h
2            02h
3            03h
4            04h
5            05h
6            06h
7            07h
8           08h
9           09h
10         0Ah
11         0Bh            ID
Code specified
12          0Ch
13          0Dh
14          0Eh
15          0Fh
16          10h
17          11h
18          12h
19          13h
20          14h
21          15h
22          16h
23          17hID...

73
RS-232C settings
Setting procedure
Press the MENU button. ... The MENU screen will be displayed.
Press the UP ( ) and DOWN ( )  arrow buttons to select OPTION.
Press the ENTER button. ... The OPTION screen will be displayed.
Press the UP ( ) and DOWN ( )  arrow buttons to select RS-232C SETTING.
Press the ENTER button. ... The RS-232C SETTING screen will be displayed.
Press the UP ( ) and DOWN ( )  arrow buttons to select the communication
parameter.
Press the LEFT ( ) and RIGHT ( ) arrow buttons to...

74
Using the RS-232C connectors (continued)
List of basic control commands
CODETarget remote control buttons NAME
06h RGB
0Ah INPUT1
0Bh INPUT2
0Ch INPUT3
0Fh NEXT
10h 1
11h 2
12h 3
13h 4
14h 5
15h 6
16h 7
17h 8
18h 9
19h 0
35h BRIGHT
36h CONTRAST
3Bh STD
3Dh POWER
3Eh POWER ON     *2
3Fh POWER OFF *2
40h TEST *2
58h+
59h−
5Ah
5Bh
5Ch
5Dh
62h ON SCREEN
6Bh ID ALL   *1
6Ch ID SELECT   *1
6dh INPUT   *2
70h SYSTEM SELECTOR
72h ENTER
7Ah MENU
7Ch LENS
91h PICTURE MUTE
*1:  This command is for the supplied...

75

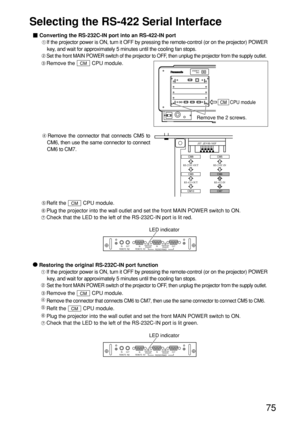

Selecting the RS-422 Serial Interface
Refit the  CPU module.
Plug the projector into the wall outlet and set the front MAIN POWER switch to ON.
Check that the LED to the left of the RS-232C-IN port is lit red.CM
Remove the connector that connects CM5 to
CM6, then use the same connector to connect
CM6 to CM7. Converting the RS-232C-IN port into an RS-422-IN port
If the projector power is ON, turn it OFF by pressing the remote-control (or on the projector) POWER
key, and wait for approximately 5 minutes...

76
Refit the  CPU module.
Plug the projector into the wall outlet and set the front MAIN POWER switch to ON.
Check that the LED to the left of the RS-232C-OUT port is lit red.CM
Restoring the original RS-232C-OUT port function
If the projector power is ON, turn it OFF by pressing the remote-control
(or on the projector)
POWER key, and wait for approximately 5 minutes until the cooling fan stops.
Set the front MAIN POWER switch of the projector to OFF, then unplug the projector from the supply outlet....

77
Using the network module
The network module for this unit has a LAN interface, so the unit can be controlled from the web browser of a PC.
The network module has an automatic send function for e-mail. Mail can be sent to a previously set e-mail address
when a problem occurs, or when the set value for the lamp usage time is attained.
Connection example
A LAN cable is necessary when using the network module.
Hub
LAN cable (straight)LAN cable (straight)
PC
Projector
• A web browser is necessary when...

78
Operating procedure
Press the MENU button. ... The MENU screen will be displayed.
Press the UP  ( ) and DOWN ( ) arrow buttons to select OPTION.
Press the ENTER button. ... The OPTION screen will be displayed.
Press the UP  ( ) and DOWN ( ) arrow buttons to select  NETWORK
MODULE SETTING.
Press the ENTER button. ... NETWORK MODULE SETTING screen will be
displayed.
Press the UP  ( ) and DOWN ( ) arrow buttons to select each item and
press the ENTER button to change the setting.(refer to next page)...

79
Item
FunctionDescription
HOSTNAME
DHCP
IP ADDR
NET MASK
GATEWAY
MAC ADDRChange if necessary when using a DHCP server etc.
Turn the DHCP item ON when automatically obtaining
IP addresses using a DHCP server. Turn it OFF when
not using a DHCP server.
Input an IP address when not using a DHCP server.
Input the net mask when not using a DHCP server.
Input a gateway address when not using a DHCP server.
This displays the unique media access control (MAC)
address of the network equipment. This may be...

80
Accessing from a web browser
Go to: 192.168.0.8
Start up the PC’s web browser.
Input the IP address set on the unit in the URL input field of the web browser.
Input user1 in the user name field, and input panasonic (lower case letters) in the password field.
When OK is pressed, the top page is displayed.
Username and Password Required
Enter username for Panasonic Projector Control at
192.168.0.8
Cancel
User Name:
Password:user1
******
O K
