Panasonic Pt Dw5000e Projector User Manual

DLPTMBased Projector  Commercial Use
Operating Instructions
Read these instructions completely before operating this unit.
TQBJ 0201
Model No.PT-D5600E
PT-D5600EL
PT-DW5000E
PT-DW5000EL
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO

2
Dear Panasonic Customer:
This instruction booklet provides all the necessary operating information that you might require. We hope it will help
you to get the most performance out of your new product, and that you will be pleased with your Panasonic DLPTM
based projector.
The serial number of your product may be found on its back. You should note it in the space provided below and
retain this booklet in case service is required.
Model number: PT-D5600E/PT-D5600EL/PT-DW5000E/PT-DW5000EL
Serial number:...

3
ENGLISH
IMPORTANT: THE MOULDED PLUG (U.K. only)
FOR YOUR SAFETY
, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This appliance is supplied with a moulded three pin mains plug for your safety and convenience.
A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the
replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSl to BS1362.
Check for the ASTA mark  or the BSl mark  on the body of the fuse.
If the plug contains a removable fuse cover,...

4
Contents
IMPORTANT SAFETY NOTICE ..................................2
Precautions with regard to safety ............................5
Accessories ................................................................7
Precautions on handling ...........................................8
Name and function of parts.......................................9
Remote control ..................................................................9
Front and side of the projector ........................................11...

5
ENGLISH
Precautions with regard to safety
WARNING
If a problem occurs (such as no image) or if you notice smoke or a strange smell coming
from the projector, turn off the power and disconnect the power cord from the wall outlet.
• Do not continue to use the projector in such cases, otherwise fire or electric shocks could result.
• Check that no more smoke is coming out, and then contact an Authorized Service Centre for repairs.
• Do not attempt to repair the projector yourself, as this can be...

6
Precautions with regard to safety
Do not place liquid containers on top of the projector.
• If water spills onto the projector or gets inside it, fire or electric shocks could result.
• If any water gets inside the projector, contact an Authorized Service Centre.
Do not insert any foreign objects into the projector.
• Do not insert any metal objects or flammable objects into the projector or drop them onto the projector, as doing
so can result in fire or electric shocks.
After removing the battery from...

7
ENGLISH
Accessories
Check that all of the accessories shown below have been included with your projector.
Use only the specified battery.
• If incorrect batteries are used, they may explode or leak, and fire, injury or contamination of the battery
compartment and surrounding area may result.
Do not look into the lens while the projector is being used.
• Strong light is emitted from the projector’s lens. If you look directly into this light, it can hurt and damage your eyes.
Do not place your skin into...

8
Precautions on handling
Precautions on transport
Make absolutely sure that the lens cap is in place
when transporting the projector or carrying it
around. Both the projector and the projection lens
are precision-made and, as such, are susceptible to
vibration and impacts. When transporting the
projector and lens or carrying them around, place
them in the boxes in which they were housed at the
time of purchase, and take care to keep them away
from vibration and impacts.
Precautions on installation
Be...

9
ENGLISH

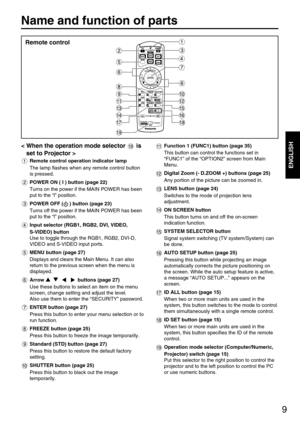

Name and function of parts
< When the operation mode selector  is
set to Projector >
Remote control operation indicator lamp
The lamp flashes when any remote control button
is pressed.
POWER ON ( I ) button (page 22)
Turns on the power if the MAIN POWER has been
put to the “l” position.
POWER OFF ( ) button (page 23)
Turns off the power if the MAIN POWER has been
put to the “l” position.
Input selector (RGB1, RGB2, DVI, VIDEO,
S-VIDEO) button
Use to toggle through the RGB1, RGB2, DVI-D,
VIDEO...

10
Name and function of parts

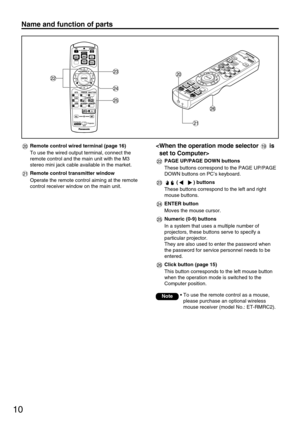

PAGE UP/PAGE DOWN buttons
These buttons correspond to the PAGE UP/PAGE
DOWN buttons on PC’s keyboard.
( ) buttons
These buttons correspond to the left and right
mouse buttons.
ENTER button
Moves the mouse cursor.
Numeric (0-9) buttons
In a system that uses a multiple number of
projectors, these buttons serve to specify a
particular projector.
They are also used to enter the password when
the password for service personnel needs to be
entered.
Click button (page 15)
This...
