Page 51
![Page 51
51
ENGLISH

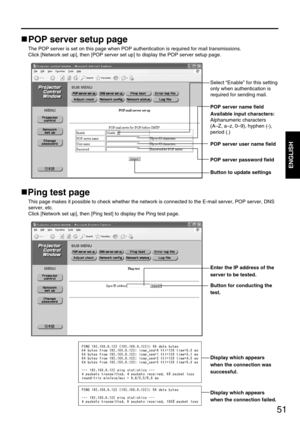

POP server setup page
The POP server is set on this page when POP authentication is required for mail transmissions.
Click [Network set up], then [POP server set up] to display the POP server setup page.
Ping test page
This page makes it possible to check whether the network is connected to the E-mail server, POP server, DNS
server, etc.
Click [Network set up], then [Ping test] to display the Ping test page.
Select “Enable” for this setting
only when authentication is
required for sending...](http://img.usermanuals.tech/thumb/58/94338/w300_panasonic-pt-dw5000u-manual_d-50.png "Page 51
51
ENGLISH
POP server setup page
The POP server is set on this page when POP authentication is required for mail transmissions.
Click [Network set up], then [POP server set up] to display the POP server setup page.
Ping test page
This page makes it possible to check whether the network is connected to the E-mail server, POP server, DNS
server, etc.
Click [Network set up], then [Ping test] to display the Ping test page.
Select “Enable” for this setting
only when authentication is
required for sending...")
51 ENGLISH POP server setup page The POP server is set on this page when POP authentication is required for mail transmissions. Click [Network set up], then [POP server set up] to display the POP server setup page. Ping test page This page makes it possible to check whether the network is connected to the E-mail server, POP server, DNS server, etc. Click [Network set up], then [Ping test] to display the Ping test page. Select “Enable” for this setting only when authentication is required for sending...
Page 52
![Page 52
52
Using Web Browser Control
Contents of mail sent
• Mail with the contents shown below is sent when the E-mail
settings have been established.
Adjust clock page
Click [Network set up], then [Adjust clock] to display the Adjust clock page.
• Mail with the contents shown below is sent
when an error has occurred.
Time zone selection
Button to update time zone
setting
Button to update time and
date settings
New date field
New time field
• If the time becomes incorrect immediately after setting the correct...](http://img.usermanuals.tech/thumb/58/94338/w300_panasonic-pt-dw5000u-manual_d-51.png "Page 52
52
Using Web Browser Control
Contents of mail sent
• Mail with the contents shown below is sent when the E-mail
settings have been established.
Adjust clock page
Click [Network set up], then [Adjust clock] to display the Adjust clock page.
• Mail with the contents shown below is sent
when an error has occurred.
Time zone selection
Button to update time zone
setting
Button to update time and
date settings
New date field
New time field
• If the time becomes incorrect immediately after setting the correct...")
52 Using Web Browser Control Contents of mail sent • Mail with the contents shown below is sent when the E-mail settings have been established. Adjust clock page Click [Network set up], then [Adjust clock] to display the Adjust clock page. • Mail with the contents shown below is sent when an error has occurred. Time zone selection Button to update time zone setting Button to update time and date settings New date field New time field • If the time becomes incorrect immediately after setting the correct...
Page 53
![Page 53
53
ENGLISH

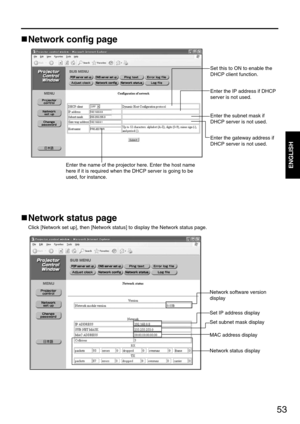

Network config page
Set this to ON to enable the
DHCP client function.
Enter the IP address if DHCP
server is not used.
Enter the subnet mask if
DHCP server is not used.
Enter the gateway address if
DHCP server is not used.
Enter the name of the projector here. Enter the host name
here if it is required when the DHCP server is going to be
used, for instance.
Network status page
Click [Network set up], then [Network status] to display the Network status page.
Network software version
display...](http://img.usermanuals.tech/thumb/58/94338/w300_panasonic-pt-dw5000u-manual_d-52.png "Page 53
53
ENGLISH
Network config page
Set this to ON to enable the
DHCP client function.
Enter the IP address if DHCP
server is not used.
Enter the subnet mask if
DHCP server is not used.
Enter the gateway address if
DHCP server is not used.
Enter the name of the projector here. Enter the host name
here if it is required when the DHCP server is going to be
used, for instance.
Network status page
Click [Network set up], then [Network status] to display the Network status page.
Network software version
display...")
53 ENGLISH Network config page Set this to ON to enable the DHCP client function. Enter the IP address if DHCP server is not used. Enter the subnet mask if DHCP server is not used. Enter the gateway address if DHCP server is not used. Enter the name of the projector here. Enter the host name here if it is required when the DHCP server is going to be used, for instance. Network status page Click [Network set up], then [Network status] to display the Network status page. Network software version display...
Page 54
54 Using the PJLink™protocol The network functions of the projector are compatible with PJLink™Class 1. The operations mentioned below can be performed from a personal computer using the PJLink™protocol. • Projector settings • Projector status inquiry Supported commands The commands for controlling the projector using the PJLink™protocol are as given in the table below. PJLink™security authentication The password used in PJLink™is the same as the password set in the Web Browser Control. To use PJLink™...
Page 55

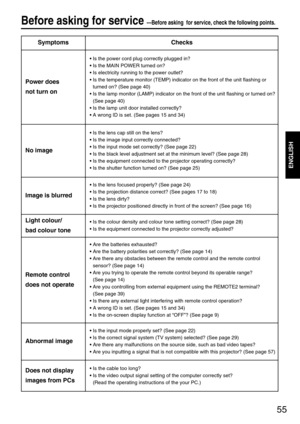

55 ENGLISH Before asking for service---Before asking for service, check the following points. SymptomsChecks • Is the power cord plug correctly plugged in? • Is the MAIN POWER turned on? • Is electricity running to the power outlet? • Is the temperature monitor (TEMP) indicator on the front of the unit flashing or turned on? (See page 40) • Is the lamp monitor (LAMP) indicator on the front of the unit flashing or turned on? (See page 40) • Is the lamp unit door installed correctly? • A wrong ID is set....
Page 56

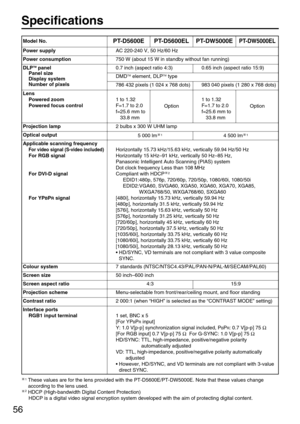

56 Specifications PT-D5600EPT-D5600ELPT-DW5000EPT-DW5000EL Power supplyAC 220-240 V, 50 Hz/60 Hz Power consumption750 W (about 15 W in standby without fan running) DLPTMpanel Panel size Display system Number of pixels0.7 inch (aspect ratio 4:3)0.65 inch (aspect ratio 15:9) DMDTMelement, DLPTMtype 786 432 pixels (1 024 x 768 dots)983 040 pixels (1 280 x 768 dots) Lens Powered zoom Powered focus control 1 to 1.32 F=1.7 to 2.0 f=25.6 mm to 33.8 mm1 to 1.32 F=1.7 to 2.0 f=25.6 mm to 33.8 mm OptionOption...
Page 57
![Page 57
57
ENGLISH
Interface ports
RGB2 input terminal
Video input terminal
S-video input terminal
Serial input/output terminal
Remote1 input/output terminal
Remote2 terminal
DVI-D terminal
LAN terminal
1 set of high-density, D-sub 15p (female)
[For YP
BPRinput]
Y: 1.0 V [p-p] synchronization signal included, P
BPR: 0.7 V[p-p] 75 Ω
[For RGB input] 0.7 V[p-p] 75 ΩFor G-SYNC: 1.0 V[p-p] 75 Ω
HD/SYNC: TTL, high-impedance, positive/negative polarity
automatically adjusted
VD:
TTL, high-impedance, positive/negative...](http://img.usermanuals.tech/thumb/58/94338/w300_panasonic-pt-dw5000u-manual_d-56.png "Page 57
57
ENGLISH
Interface ports
RGB2 input terminal
Video input terminal
S-video input terminal
Serial input/output terminal
Remote1 input/output terminal
Remote2 terminal
DVI-D terminal
LAN terminal
1 set of high-density, D-sub 15p (female)
[For YP
BPRinput]
Y: 1.0 V [p-p] synchronization signal included, P
BPR: 0.7 V[p-p] 75 Ω
[For RGB input] 0.7 V[p-p] 75 ΩFor G-SYNC: 1.0 V[p-p] 75 Ω
HD/SYNC: TTL, high-impedance, positive/negative polarity
automatically adjusted
VD:
TTL, high-impedance, positive/negative...")
57 ENGLISH Interface ports RGB2 input terminal Video input terminal S-video input terminal Serial input/output terminal Remote1 input/output terminal Remote2 terminal DVI-D terminal LAN terminal 1 set of high-density, D-sub 15p (female) [For YP BPRinput] Y: 1.0 V [p-p] synchronization signal included, P BPR: 0.7 V[p-p] 75 Ω [For RGB input] 0.7 V[p-p] 75 ΩFor G-SYNC: 1.0 V[p-p] 75 Ω HD/SYNC: TTL, high-impedance, positive/negative polarity automatically adjusted VD: TTL, high-impedance, positive/negative...
Page 58
58 Compatible Signal List NTSC/NTSC4.43/ PAL-M/PAL60 PAL/PAL-N/SECAM 480i 576i 480p 576p 1080/60i 1080/50i 720/60p 720/50p VGA400 VGA480 SVGA MAC16 XGA MXGA WXGA MAC21 MSXGA SXGA UXGA720 720 720 720 720 720 1 920 1 920 1 280 1 280 640 640 640 640 640 640 640 800 800 800 800 800 832 1 024 1 024 1 024 1 024 1 024 1 024 1 152 1 152 1 152 1 280 1 280 1 280 1 280 1 152 1 280 1 280 1 280 1 280 1 400 1 600 x x x x x x x x x x x x x x x x x x x...
Page 59

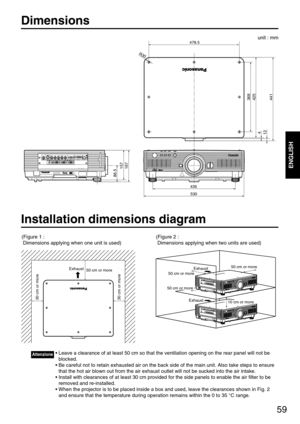

59 ENGLISH>PC< TBMU448 RGB 2 IN VDSYNC/HDB/PBG/YRR/P SERIALREMOTE 1 REMOTE 2INOUTLANDVI-D INRGB 1 INVIDEO INS-VIDEO ININ OUT 86.5 167157 530 436 368425441 4 12 R30 478.5 Dimensions unit : mm 50 cm or more Exhaust 30 cm or more 30 cm or more Installation dimensions diagram • Leave a clearance of at least 50 cm so that the ventilation opening on the rear panel will not be blocked. • Be careful not to retain exhausted air on the back side of the main unit. Also take steps to ensure that the hot air...
Page 60
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local...
