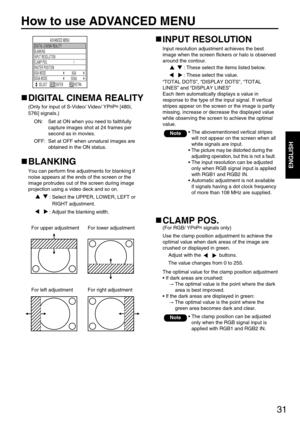

How to use ADVANCED MENU
ADVANCED MENU
SELSCT RETRN INPUT RESOLUTION BLANKING
DIGITAL CINEMA REALITY
1 CLAMP POS.
SXGA
XGA
SXGA MODE RASTER POSITIONXGA MODE
ENTER
INPUT RESOLUTION
Input resolution adjustment achieves the best
image when the screen flickers or halo is observed
around the contour.
: These select the items listed below.
: These select the value.
“TOTAL DOTS”, “DISPLAY DOTS”, “TOTAL
LINES” and “DISPLAY LINES”
Each item automatically displays a value in
response to the type of the...

32
How to use ADVANCED MENUChanging the display language
RASTER POSITION
When the whole area where the input picture can
be displayed is not used, the picture can be moved
to any position inside the display area.
: These adjust the value in the horizontal
direction.
: These adjust the value in the vertical
direction.
XGA MODE
This mode takes effect only when XGA (RGB)
signals are input.
XGA : Standard setting
WXGA : Select this mode when WXGA signals
are input.
SXGA MODE
This mode takes effect only when...

33
ENGLISH
OPTION1 settings
OPTION1
COLOR CORRECTION
BACK COLOR
BLACK
SUB MEMORY LIST
DVI EDID
EDID2:PCOFF CONTRAST MODE
AUTO SIGNAL
SELECT RETRNENTER
COLOR CORRECTION
OFF : Standard setting
USER : The six colours of red, green, blue, cyan,
magenta and yellow can be adjusted
and registered for each of four signal
systems: Video, S-Video, RGB and
YP
BPR.
Press the ENTER button to make the
detailed settings.
SELECT
RETRN STORE — :   RGB1–XGA60
3 :
4 :
5 :
6 :
7 :
8 :  1 :
2 :
SUB MEMORY LIST...

34
OPTION2 settings
OPTION2
ID
LAMP SELECT
AUTO POW. OFF
PASSWORD FUNC1DUAL
LAMP POWER
HIGH
RS232C FRONT/REAR
FRONT
DESK/CEILING
DESK
SYSTEM INFORMATION
FAN CONTROL1
NORMAL
FAN CONTROL2
HORIZ.
DISABLE

ALL
SELECT ADJ RETRN
ID
The projector has an ID number setting function
that helps the user to control two or more projectors
either simultaneously or separately with a single
remote control. The ID number is set to “ALL” by
default. Hence the ID number need not be set
when only one projector is used....

35
ENGLISH
RS232C
This sets the communication parameters at the
serial terminals.
For details on the serial terminals, refer to “Using
the serial terminals” (pages 38).
IN BAUDRATE : 9 600, 19 200 or 38 400 is
selected.
IN PARITY : NONE, EVEN or ODD is
selected.
OUT BAUDRATE : 9 600, 19 200 or 38 400 is
selected.
OUT PARITY : NONE, EVEN or ODD is
selected.
VPS SYSTEM : MASTER or SLAVE is
selected.
GROUP : A to Z is selected. MASTER
or SLAVE is also selected.
SYSTEM INFORMATION
The projector’s system...

36
Displaying the internal test pattern
The projector has eight types of internal test patterns
to check the condition of the set.
To display test patterns, follow the steps below.The projector’s security function enables the password
input screen to be displayed or a company’s URL
address to be set and displayed underneath the
projected images.
: Search through the various types of test
patterns
Cycle of displayed internal
test patterns
• Results of adjustment on the image,
picture quality, position,...

37
ENGLISH

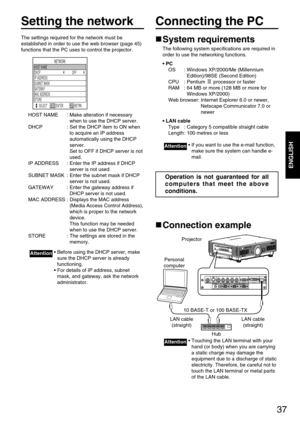

Setting the network
The settings required for the network must be
established in order to use the web browser (page 45)
functions that the PC uses to control the projector.
HOST NAME : Make alteration if necessary
when to use the DHCP server.
DHCP : Set the DHCP item to ON when
to acquire an IP address
automatically using the DHCP
server.
Set to OFF if DHCP server is not
used.
IP ADDRESS : Enter the IP address if DHCP
server is not used.
SUBNET MASK : Enter the subnet mask if DHCP
server is...

38

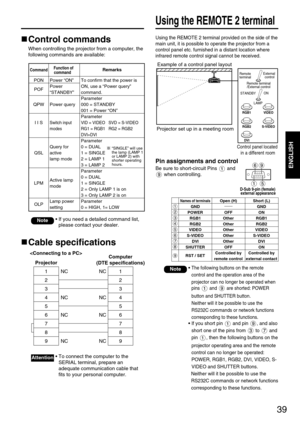

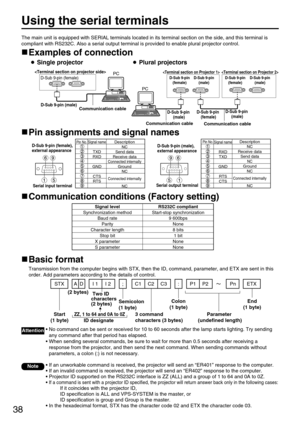

Pin assignments and signal names
Communication conditions (Factory setting)
Basic format
Transmission from the computer begins with STX, then the ID, command, parameter, and ETX are sent in this
order. Add parameters according to the details of control.
The main unit is equipped with SERIAL terminals located in its terminal section on the side, and this terminal is
compliant with RS232C. Also a serial output terminal is provided to enable plural projector control.
Examples of connection
Single...

39
ENGLISH
Using the REMOTE 2 terminal provided on the side of the
main unit, it is possible to operate the projector from a
control panel etc. furnished in a distant location where
infrared remote control signal cannot be received.
Pin assignments and control
Be sure to short-circuit Pins  and
when controlling.
Using the REMOTE 2 terminal
D-Sub 9-pin (female)
external appearance
• The following buttons on the remote
control and the operation area of the
projector can no longer be operated when
pins and...

40

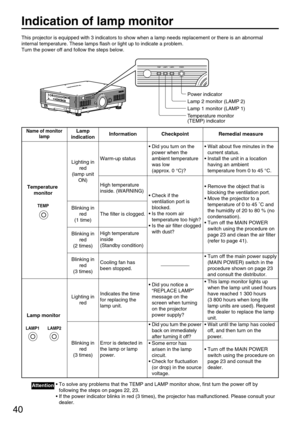

Indication of lamp monitor
This projector is equipped with 3 indicators to show when a lamp needs replacement or there is an abnormal
internal temperature. These lamps flash or light up to indicate a problem.
Turn the power off and follow the steps below.
Temperature monitor
(TEMP) indicator Lamp 1 monitor (LAMP 1) Lamp 2 monitor (LAMP 2) Power indicator
• To solve any problems that the TEMP and LAMP monitor show, first turn the power off by
following the steps on pages 22, 23.
• If the power...
