Panasonic Pt Lb51e Projector Operating Instructions

Basic Operation
Switching the projector on/off
ENGLISH - 21

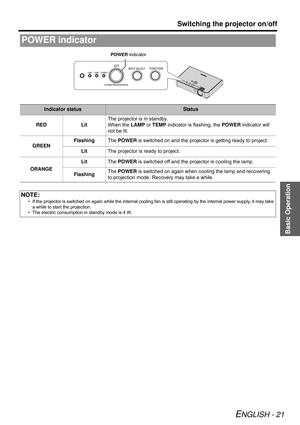

POWER indicator
Indicator statusStatus
RED LitThe projector is in standby.
When the LAMP or TEMP indicator is flashing, the POWER indicator will
not be lit.
GREENFlashingThe POWER is switched on and the projector is getting ready to project.
LitThe projector is ready to project.
ORANGELitThe POWER is switched off and the projector is cooling the lamp.
FlashingThe POWER is switched on again when cooling the lamp and recovering
to projection...

Basic Operation
Switching the projector on/off
ENGLISH - 22

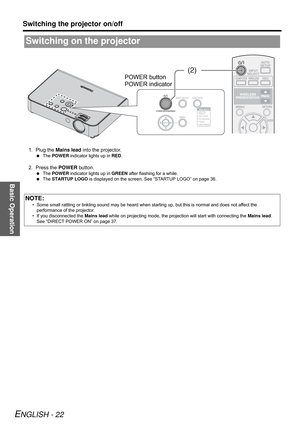

1. Plug the Mains lead into the projector.
 The POWER indicator lights up in RED.
2. Press the POWER button.
 The POWER indicator lights up in GREEN after flashing for a while.
 The STARTUP LOGO is displayed on the screen. See “STARTUP LOGO” on page 36.
Switching on the projector
NOTE:
• Some small rattling or tinkling sound may be heard when starting up, but this is normal and does not affect the
performance of the projector.
• If you...

Basic Operation
Switching the projector on/off
ENGLISH - 23

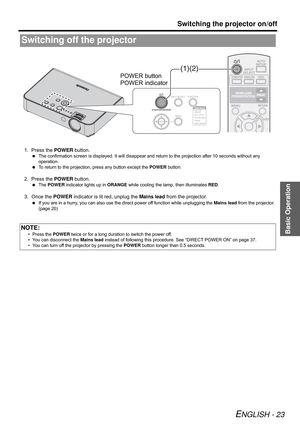

1. Press the POWER button.
 The confirmation screen is displayed. It will disappear and return to the projection after 10 seconds without any
operation.
 To return to the projection, press any button except the POWER button.
2. Press the POWER button.
 The POWER indicator lights up in ORANGE while cooling the lamp, then illuminates RED.
3. Once the POWER indicator is lit red, unplug the Mains lead from the projector.
 If you are in a hurry, you...

ENGLISH - 24
Basic Operation

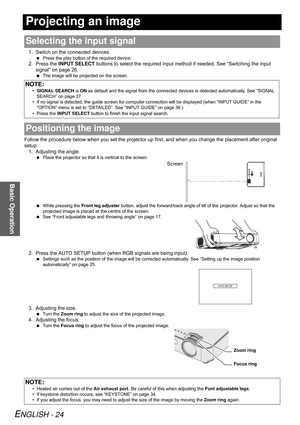

Projecting an image
1. Switch on the connected devices.
 Press the play button of the required device.
2. Press the INPUT SELECT buttons to select the required input method if needed. See “Switching the input
signal” on page 26.
 The image will be projected on the screen.
Follow the procedure below when you set the projector up first, and when you change the placement after original
setup.
1. Adjusting the angle.
 Place the projector so that it is vertical to the screen....

ENGLISH - 25
Basic Operation
Remote control operation

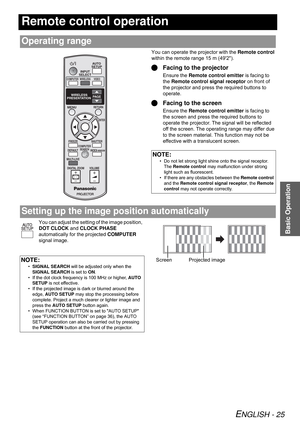

You can operate the projector with the Remote control
within the remote range 15 m (492).
QFacing to the projector
Ensure the Remote control emitter is facing to
the Remote control signal receptor on front of
the projector and press the required buttons to
operate.
QFacing to the screen
Ensure the Remote control emitter is facing to
the screen and press the required buttons to
operate the projector. The signal will be reflected
off the screen....

Basic Operation
Remote control operation
ENGLISH - 26

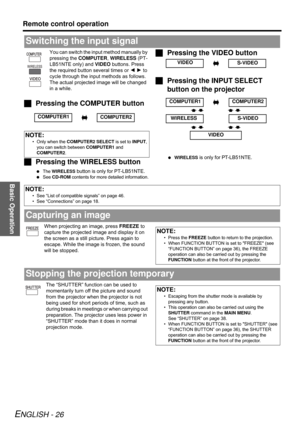

You can switch the input method manually by
pressing the COMPUTER, WIRELESS (PT-
LB51NTE only) and VIDEO buttons. Press
the required button several times or I H to
cycle through the input methods as follows.
The actual projected image will be changed
in a while.
JPressing the COMPUTER button
JPressing the WIRELESS button
 The WIRELESS button is only for PT-LB51NTE.
 See CD-ROM contents for more detailed information.
JPressing the VIDEO button...

Basic Operation
Remote control operation
ENGLISH - 27
You can reset most of the customised settings
to the factory defaults by pressing DEFAULT
button of the Remote control. Display the
required sub menu or the menu items and
press the DEFAULT button again.
 See “Main menu and Sub-menu” on page 30.

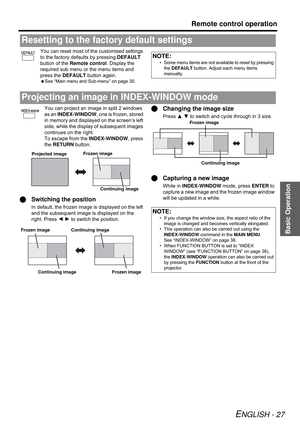

You can project an image in split 2 windows
as an INDEX-WINDOW, one is frozen, stored
in memory and displayed on the screen’s left
side, while the display of subsequent images
continues on the right....

Basic Operation
Remote control operation
ENGLISH - 28

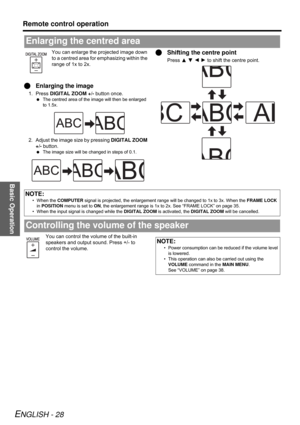

You can enlarge the projected image down
to a centred area for emphasizing within the
range of 1x to 2x.
QEnlarging the image
1. Press DIGITAL ZOOM +/- button once.
 The centred area of the image will then be enlarged
to 1.5x.
2. Adjust the image size by pressing DIGITAL ZOOM
+/- button.
 The image size will be changed in steps of 0.1.
QShifting the centre point
Press F G I H to shift the centre point.
You can control the volume of the built-in...

ENGLISH - 29
Settings

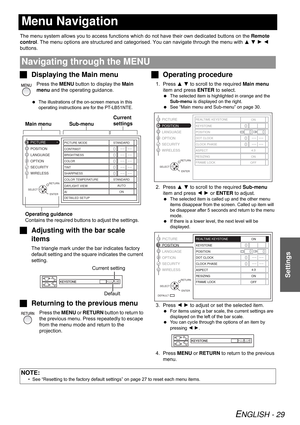

Menu Navigation
The menu system allows you to access functions which do not have their own dedicated buttons on the Remote
control. The menu options are structured and categorised. You can navigate through the menu with F G H I
buttons.
JDisplaying the Main menu
Press the MENU button to display the Main
menu and the operating guidance.
 The illustrations of the on-screen menus in this
operating instructions are for the PT-LB51NTE.
JAdjusting with the bar scale
items
The...

Settings
Menu Navigation
ENGLISH - 30
The Main menu has 6 options. Select the required menu item and press ENTER to display the Sub-menu.
Main menu and Sub-menu
NOTE:
• Some default settings vary by the selected input signal.
•Sub-menu items vary according to the selected input signal.
• Some settings are adjustable without any signals.

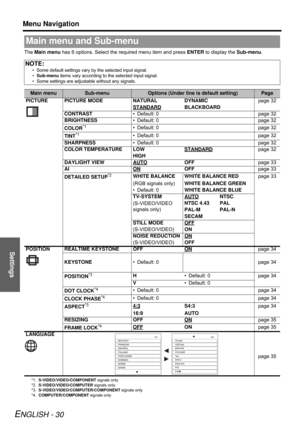

Main menuSub-menuOptions (Under line is default setting)Page
PICTURE PICTURE MODE NATURAL DYNAMICpage 32
STANDARD
BLACKBOARD
CONTRAST• Default: 0 page 32
BRIGHTNESS•...
