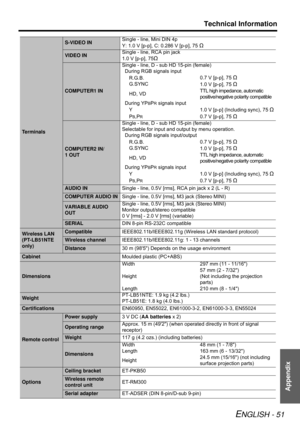

Technical Information
ENGLISH - 51
Appendix
Terminals
S-VIDEO INSingle - line, Mini DIN 4p
Y: 1.0 V [p-p], C: 0.286 V [p-p], 75Ω
VIDEO INSingle - line, RCA pin jack
1.0 V [p-p], 75Ω
COMPUTER1 INSingle - line, D - sub HD 15-pin (female)
During RGB signals input
R.G.B.
G.SYNC0.7 V [p-p], 75
Ω
1.0 V [p-p], 75 Ω
HD, VDTTL high impedance, automatic
positive/negative polarity compatible
During YP
BPR signals input
Y
1.0 V [p-p] (Including sync), 75
Ω
PB,PR0.7 V [p-p], 75 Ω...
Page 52
Appendix Technical Information ENGLISH - 52 Dimensions
Page 53

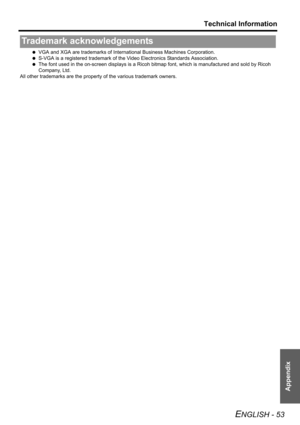

Technical Information ENGLISH - 53 Appendix VGA and XGA are trademarks of Intern ational Business Machines Corporation. S-VGA is a registered trademark of the Video Electronics Standards Association. The font used in the on -screen displays is a Ricoh bitm ap font, which is manufactured and sold by Ricoh Company, Ltd. All other trademarks are the proper ty of the various trademark owners. Trademark acknowledgements
Page 54

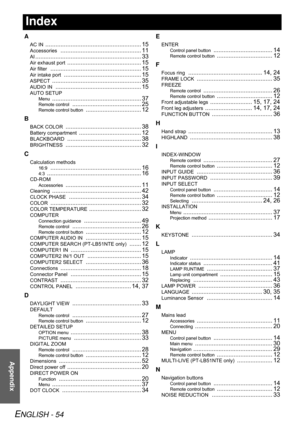

ENGLISH - 54 Appendix Index A AC IN ......................................................... 15 Accessories ................................................ 11 AI............................................................... 33 Air exhaust port ............................................ 15 Air filter ...................................................... 15 Air intake port .............................................. 15 ASPECT ..................................................... 35 AUDIO IN...
Page 55

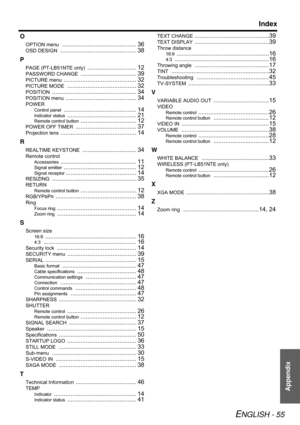

Appendix Index ENGLISH - 55 O OPTION menu ............................................ 36 OSD DESIGN ............................................. 38 P PAGE (PT-LB51NTE only) ............................. 12 PASSWORD CHANGE ................................. 39 PICTURE menu ........................................... 32 PICTURE MODE ......................................... 32 POSITION .................................................. 34 POSITION menu .......................................... 34 POWER...
