Panasonic Pt Lb51e Projector Operating Instructions

ENGLISH - 41
Maintenance

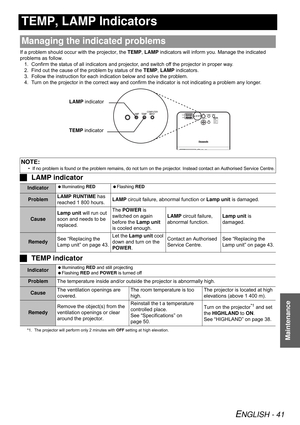

TEMP, LAMP Indicators
If a problem should occur with the projector, the TEMP, LAMP indicators will inform you. Manage the indicated
problems as follow.
1. Confirm the status of all indicators and projector, and switch off the projector in proper way.
2. Find out the cause of the problem by status of the TEMP, LAMP indicators.
3. Follow the instruction for each indication below and solve the problem.
4. Turn on the projector in the correct way and confirm the indicator is not...

ENGLISH - 42

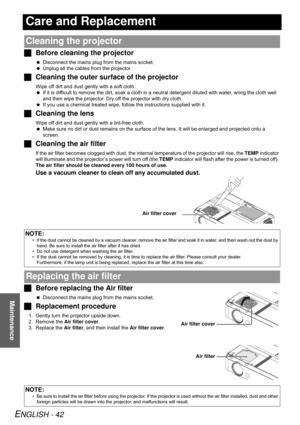

Maintenance
Care and Replacement
JBefore cleaning the projector
 Disconnect the mains plug from the mains socket.
 Unplug all the cables from the projector.
JCleaning the outer surface of the projector
Wipe off dirt and dust gently with a soft cloth.
 If it is difficult to remove the dirt, soak a cloth in a neutral detergent diluted with water, wring the cloth well
and then wipe the projector. Dry off the projector with dry cloth.
 If you use a chemical treated wipe, follow the instructions...

Care and Replacement
ENGLISH - 43
Maintenance

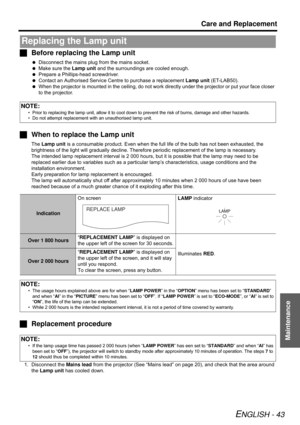

JBefore replacing the Lamp unit
 Disconnect the mains plug from the mains socket.
 Make sure the Lamp unit and the surroundings are cooled enough.
 Prepare a Phillips-head screwdriver.
 Contact an Authorised Service Centre to purchase a replacement Lamp unit (ET-LAB50).
 When the projector is mounted in the ceiling, do not work directly under the projector or put your face closer
to the projector.
JWhen to replace the Lamp unit
The Lamp unit is a consumable...

Maintenance
Care and Replacement
ENGLISH - 44

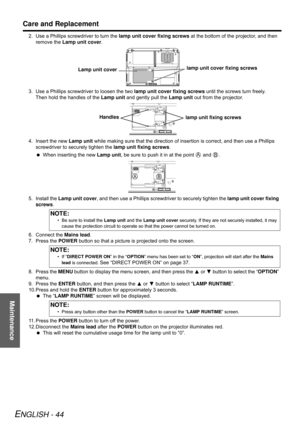

2. Use a Phillips screwdriver to turn the lamp unit cover fixing screws at the bottom of the projector, and then
remove the Lamp unit cover.
3. Use a Phillips screwdriver to loosen the two lamp unit cover fixing screws until the screws turn freely.
Then hold the handles of the Lamp unit and gently pull the Lamp unit out from the projector.
4. Insert the new Lamp unit while making sure that the direction of insertion is correct, and then use a Phillips...

ENGLISH - 45
Maintenance

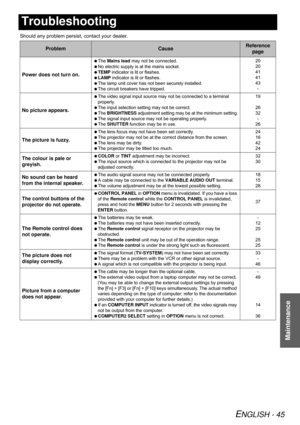

Troubleshooting
Should any problem persist, contact your dealer.
ProblemCauseReference
page
Power does not turn on.
 The Mains lead may not be connected.
 No electric supply is at the mains socket.
 TEMP indicator is lit or flashes.
 LAMP indicator is lit or flashes.
 The lamp unit cover has not been securely installed.
 The circuit breakers have tripped.20
20
41
41
43
-
No picture appears.
 The video signal input source may not be connected to a terminal
properly.
 The input...

ENGLISH - 46
Appendix

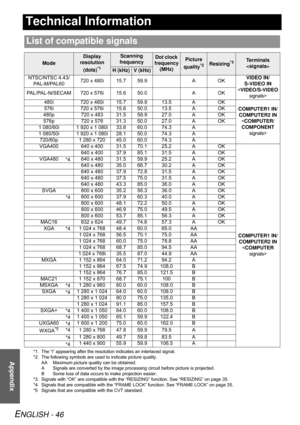

Technical Information
List of compatible signals
Mode
Display
resolution
(dots)
*1
*1. The “i” appearing after the resolution indicates an interlaced signal.
Scanning
frequencyDot clock
frequency
(MHz)Picture
quality
*2
*2. The following symbols are used to indicate picture quality.
AA Maximum picture quality can be obtained.
A Signals are converted by the image processing circuit before picture is projected.
B Some loss of data occurs to make projection easier.
Resizing*3
*3....

Technical Information
ENGLISH - 47
Appendix

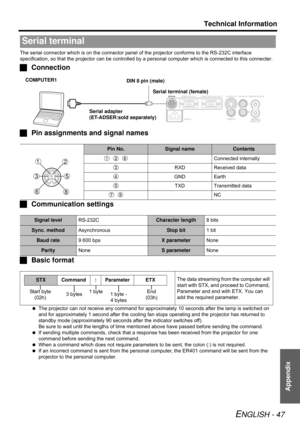

The serial connector which is on the connector panel of the projector conforms to the RS-232C interface
specification, so that the projector can be controlled by a personal computer which is connected to this connecter.
JConnection
JPin assignments and signal names
JCommunication settings
JBasic format
 The projector can not receive any command for approximately 10 seconds after the lamp is switched on
and for approximately 1 second after the cooling fan...

Appendix
Technical Information
ENGLISH - 48

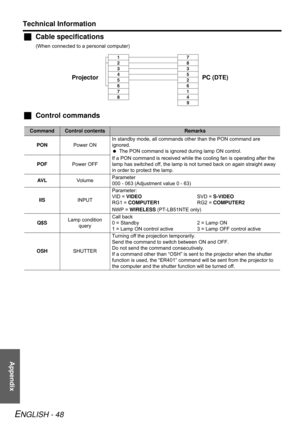

JCable specifications
(When connected to a personal computer)
JControl commands
CommandControl contentsRemarks
PONPower ONIn standby mode, all commands other than the PON command are
ignored.
 The PON command is ignored during lamp ON control.
POFPower OFFIf a PON command is received while the cooling fan is operating after the
lamp has switched off, the lamp is not turned back on again straight away
in order to protect the lamp.
AV LVo l u m eParameter
000...

Technical Information
ENGLISH - 49
Appendix

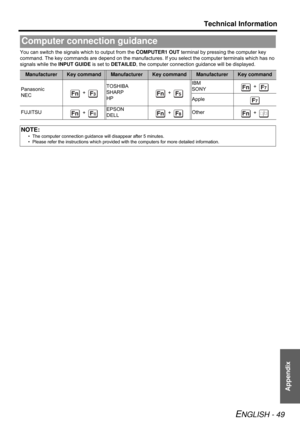

You can switch the signals which to output from the COMPUTER1 OUT terminal by pressing the computer key
command. The key commands are depend on the manufactures. If you select the computer terminals which has no
signals while the INPUT GUIDE is set to DETAILED, the computer connection guidance will be displayed.
Computer connection guidance
ManufacturerKey commandManufacturerKey commandManufacturerKey command
Panasonic
NEC + TOSHIBA
SHARP
HP + IBM
SONY +...

Appendix
Technical Information
ENGLISH - 50

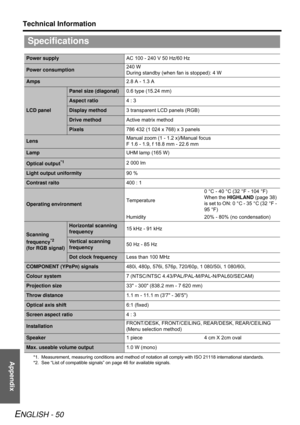

Specifications
Power supplyAC 100 - 240 V 50 Hz/60 Hz
Power consumption240 W
During standby (when fan is stopped): 4 W
Amps2.8 A - 1.3 A
LCD panel
Panel size (diagonal)0.6 type (15.24 mm)
Aspect ratio4 : 3
Display method3 transparent LCD panels (RGB)
Drive methodActive matrix method
Pixels786 432 (1 024 x 768) x 3 panels
LensManual zoom (1 - 1.2 x)/Manual focus
F 1.6 - 1.9, f 18.8 mm - 22.6 mm
LampUHM lamp (165 W)
Optical output*1
*1. Measurement, measuring...
