Panasonic PT P1sdu Projector Operating Instructions

ENGLISH
-21
Getting started
20-E
NGLISH

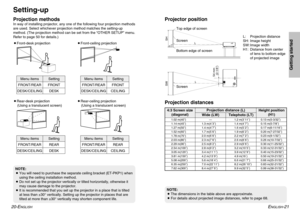

Setting-upProjection methodsIn way of installing projector, any one of the following four projection methods
are used. Select whichever projection method matches the setting-up
method. (The projection method can be set from the “OTHER SETUP” menu.
Refer to page 50 for details.)
B Front-desk projectionBFront-ceiling projection
B Rear-desk projection  (Using a translucent screen)  B Rear-ceiling projection
(Using a translucent screen)
Menu items Setting
FRONT...

ENGLISH
-23
Getting started
22-E
NGLISH

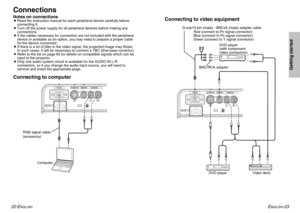

ConnectionsNotes on connectionsBRead the instruction manual for each peripheral device carefully before
connecting it.
B  Turn off the power supply for all peripheral devices before making any
connections.
B  If the cables necessary for connection are not included with the peripheral
device or available as an option, you may need to prepare a proper cable
for the device concerned.
B  If there is a lot of jitter in the video signal, the projected image may...

ENGLISH
-25
Getting started
24-E
NGLISH

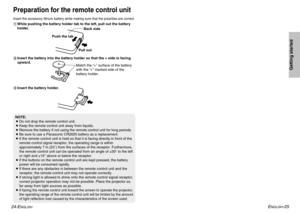

Insert the accessory lithium battery while making sure that the polarities are correct.#While pushing the battery holder tab to the left, pull out the battery
holder.
$  Insert the battery into the battery holder so that the + side is facing
upward.
%  Insert the battery holder.Preparation for the remote control unit
Push the tab
Pull out
Back side
Match the “+” surface of the battery
with the “+” marked side of the
battery holder.
NOTE:BDo not drop the...

Input select button
ENGLISH
-27

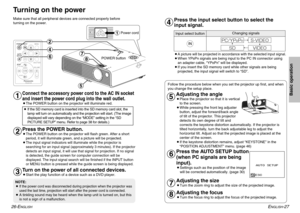

Turning on the power
Connect the accessory power cord to the AC IN socket
and insert the power cord plug into the wall outlet.B The POWER button on the projector will illuminate red.Press the POWER button.BThe POWER button on the projector will flash green. After a short period, it will illuminate green, and a picture will be projected.
BThe input signal indicators will illuminate while the projector is
searching for an input signal (approximately 3 minutes). If the...

POWER AUTO
SETUP  INPUT MENU
SHUTTER VOLUME
ENTER
R O TAT E
RETURN
ENTERSTD
%
ENGLISH
-29
Basic operation

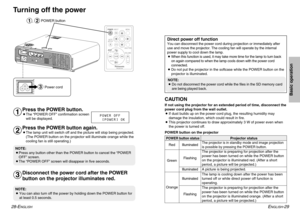

Turning off the power
#
,$
POWER button
POWER button on the projector
POWER button statusRed
Illuminated
The projector is in standby mode and image projection
is possible by pressing the POWER button.A picture is being projected.
The lamp is cooling down after the power has been
turned off or while direct power off function is
operating.
The projector is preparing for projection after the...

ENGLISH
-31
Useful functions
30-E
NGLISH

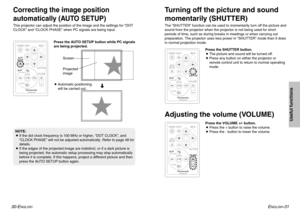

Correcting the image position
automatically (AUTO SETUP)This projector can adjust the position of the image and the settings for “DOT
CLOCK” and “CLOCK PHASE” when PC signals are being input.
Turning off the picture and sound
momentarily (SHUTTER)The “SHUTTER” function can be used to momentarily turn off the picture and
sound from the projector when the projector is not being used for short
periods of time, such as during breaks in meetings or when carrying out...

ENGLISH
-33
Useful functions
32-E
NGLISH

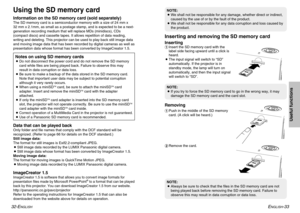

Inserting and removing the SD memory cardInserting#Insert the SD memory card with the
label side facing upward until a click is
heard.
B  The input signal will switch to “SD”
automatically. If the projector is in
standby mode, the lamp will turn on
automatically, and then the input signal
will switch to “SD”.Removing# Push in the middle of the SD memory
card. (A click will be heard.)
$  Remove the card.NOTE:
B  We shall not be responsible for any damage,...

ENGLISH
-35
Useful functions
34-E
NGLISH

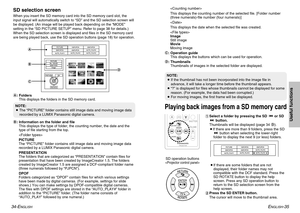

SD selection screenWhen you insert the SD memory card into the SD memory card slot, the
input signal will automatically switch to “SD” and the SD selection screen will
be displayed. (An image will be played back depending on the “MODE”
setting in the “SD PICTURE SETUP” menu. Refer to page 38 for details.)
When the SD selection screen is displayed and files in the SD memory card
are being played back, use the SD operation buttons (page 18) for operation.
A :...

ENGLISH
-37
Useful functions
36-E
NGLISH

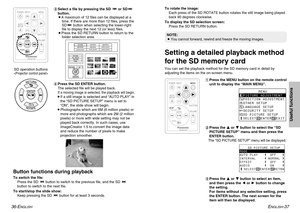

&Press the SD ENTER button.
The selected file will be played back.
If a moving image is selected, the playback will begin.B If a still image is selected and “AUTO PLAY” in
the “SD PICTURE SETUP” menu is set to
“ON”, the slide show will begin.
B Photographs which are 6M (6 million pixels) or  more and photographs which are 2M (2 million
pixels) or more with wide setting may not be
played back correctly. In such cases, use
ImageCreator 1.5 to convert the image...

SLOW
About 30 secondsEFFECTThis sets the effect that is applied
when switching the still images in a
slide show.
OFF
No effect is applied.
WIPE
An image is wiped by the next
image from the left side.
FADE
An image darkens gradually and the
next image appears in turn.
SPLIT
An image is split from the center
and the next image appears.
BLIND
An image is divided into stripe
pattern, and the next image
appears.
ENGLISH
-39
Useful functions
38-E
NGLISH

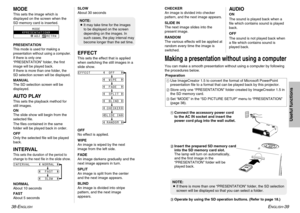

MODEThis sets the image which is
displayed on...
