Panasonic PT P1sdu Projector Operating Instructions

ENGLISH
-41
Adjustments and settings
40-E
NGLISH

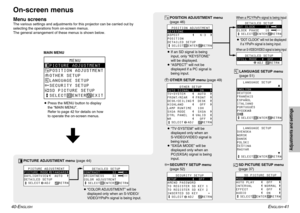

On-screen menusMenu screensThe various settings and adjustments for this projector can be carried out by
selecting the operations from on-screen menus.
The general arrangement of these menus is shown below. MAIN MENU
       MENU
PICTURE ADJUSTMENT
POSITION ADJUSTMENT
OTHER SETUP
LANGUAGE SETUP
SECURITY SETUP
SD PICTURE SETUPSELECT
  ENTER  EXIT
PICTURE ADJUSTMENT menu  (page 44)  PICTURE ADJUSTMENT
PICTURE MODE STANDARD
DAYLIGHTVIEW   AUTO
DETAILED...

ENGLISH
-43
Adjustments and settings
42-E
NGLISH

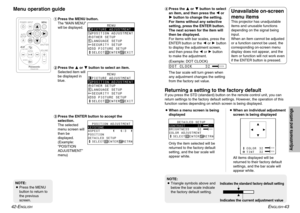

#Press the MENU button.
The “MAIN MENU”
will be displayed.
$ Press the   F
F
or   G
G
button to select an item.
Selected item will
be displayed in
blue.
%  Press the ENTER button to accept the
selection.
The selected
menu screen will
then be
displayed.
(Example:
“POSITION
ADJUSTMENT”
menu)  &
Press the   F
F
or   G
G
button to select
an item, and then press the   I
I
or
H
H  button to change the setting.
For items without any selective...

ENGLISH
-45
Adjustments and settings
44-E
NGLISH

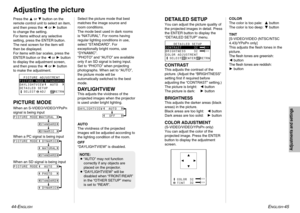

Press the For G button on the
remote control unit to select an item,
and then press the   Ior H button
to change the setting.
For items without any selective
setting, press the ENTER button.
The next screen for the item will
then be displayed.

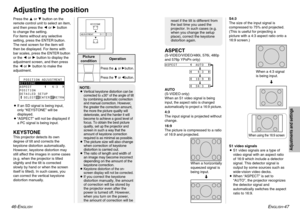

For items with bar scales, press the
ENTER button or the  I or Hbutton
to display the adjustment screen,
and then press the   Ior H button
to make the adjustment.Adjusting the picture
  PICTURE ADJUSTMENT...

ENGLISH
-47
Adjustments and settings
46-E
NGLISH
Press the For G button on the
remote control unit to select an item,
and then press the   Ior H button
to change the setting.
For items without any selective
setting, press the ENTER button.
The next screen for the item will
then be displayed. For items with
bar scales, press the ENTER button
or the   Ior H button to display the
adjustment screen, and then press
the   Ior H button to make the
adjustment.
B  If an SD signal is being input,
only...

ENGLISH
-49
Adjustments and settings
48-E
NGLISH

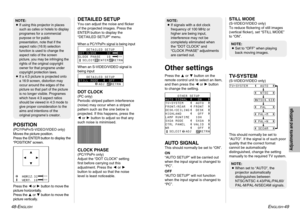

STILL MODE(S-VIDEO/VIDEO only)
To reduce flickering of still images
(vertical flicker), set “STILL MODE”
to “ON”.
This should normally be set to
“AUTO”. If the signal is of such poor
quality that the correct format
cannot be automatically
distinguished, change the setting
manually to the required TV system.TV-SYSTEM      AUTO

[
               NTSC

[
             NTSC4.43

[
               PAL...

ENGLISH
-51
Adjustments and settings
50-E
NGLISH

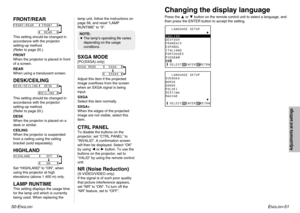

FRONT/REARThis setting should be changed in
accordance with the projector
setting-up method.
(Refer to page 20.)
FRONT
When the projector is placed in front
of a screen.
REAR
When using a translucent screen.DESK/CEILINGThis setting should be changed in
accordance with the projector
setting-up method.
(Refer to page 20.)
DESK
When the projector is placed on a
desk or similar.
CEILING
When the projector is suspended
from a ceiling using the...

ENGLISH
-53
Adjustments and settings
52-E
NGLISH
$

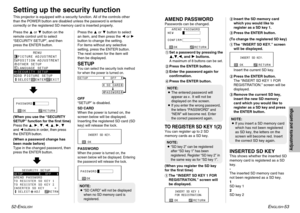

Insert the SD memory card
which you would like to
register as a SD key 1.
%
Press the ENTER button.
(To change the registered SD key)#
The “INSERT SD KEY.” screen
will be displayed.
Insert the current SD key.
$
Press the ENTER button.
The “INSERT SD KEY 1 FOR
REGISTRATION.” screen will be
displayed.
%
Remove the current SD key,
insert the new SD memory
card which you would like to
register as a SD key and press
the ENTER button.
INSERTED SD KEYThis...

ENGLISH
-55
54-E
NGLISH

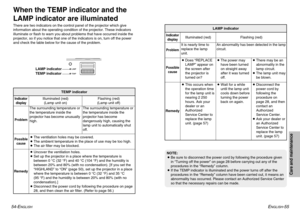

RemedyProblem
Indicator
display
Flashing (red)
It is nearly time to
replace the lamp
unit.  Illuminated (red)
An abnormality has been detected in the lamp
circuit.
B
Does “REPLACE
LAMP” appear on
the screen after
the projector is
turned on?
B  This occurs when
the operation time
for the lamp unit is
nearing 2 250
hours. Ask your
dealer or an
Authorized
Service Center to
replace the lamp
unit. (page 57)
Possible
cause
B  The power may
have been turned
on straight away...

56-E
NGLISH
ENGLISH
-57

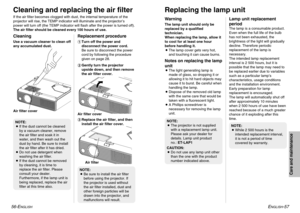

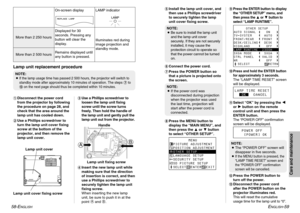

Replacing the lamp unitWarningThe lamp unit should only be
replaced by a qualified
technician.
When replacing the lamp, allow it
to cool for at least one hour
before handling it.
B The lamp cover gets very hot,
and touching it can cause burns.Notes on replacing the lamp
unitB The light generating lamp is
made of glass, so dropping it or
allowing it to hit hard objects may
cause it to burst. Be careful when
handling the lamp.
B  Dispose of the removed old lamp
with the same...

ENGLISH
-59
58-E
NGLISH
' Install the lamp unit cover, and
then use a Phillips screwdriver
to securely tighten the lamp
unit cover fixing screw.
(  Connect the power cord.
)  Press the POWER button so
that a picture is projected onto
the screen.
*  Press the MENU button to
display the “MAIN MENU”, and
then press the   For G button
to select “OTHER SETUP”.
B
A
+
Press the ENTER button to display
the “OTHER SETUP” menu, and
then press the   For G button to
select “LAMP RUNTIME”
.
,
Press and...
