    Page 1 TY-SP65P7W-K Model No. TQZH618 Högtalare för plasma-monitor MonteringsanvisningarInnan arbetet påbörjas ska du noga läsa dessa anvisningar och bruksanvisningen som medföljer plasmaskärmen för att försäkra att arbetet utförs på rätt sätt. (Bevara dessa anvisningar. Du kan behöva anlita dem på nytt för underhåll eller flyttning av hållaren.) Højttalere til plasmaskærm MonteringsvejledningFør arbejdet påbegyndes, skal De omhyggeligt læse disse instruktioner og betjeningsvejledningen til plasmaskærmen for at...
    Page 2 2 English CAUTION After installing the speakers, do not attempt to move the display by lifting the speakers. • The mounting brackets may be damaged, and personal injury may result. Do not suspend the speakers. • Personal injury may result if the speakers fall off. Take particular care to ensure the safety of children. These speakers are designed to be used with the Plasma Display only. • If connecting them to a different amplifier, make sure that the maximum input to the speakers is within their rated...

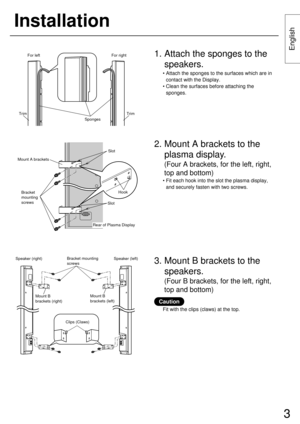

    Page 3 3 English Installation Speaker (right) Speaker (left)Bracket mounting screws Mount B brackets (right)Mount B brackets (left) 2. Mount A brackets to the plasma display. (Four A brackets, for the left, right, top and bottom) • Fit each hook into the slot the plasma display, and securely fasten with two screws. 3. Mount B brackets to the speakers. (Four B brackets, for the left, right, top and bottom) 1. Attach the sponges to the speakers. • Attach the sponges to the surfaces which are in contact with...

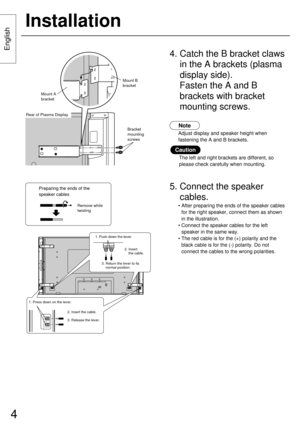

    Page 4 4 English • After preparing the ends of the speaker cables for the right speaker, connect them as shown in the illustration. • Connect the speaker cables for the left speaker in the same way. • The red cable is for the (+) polarity and the black cable is for the (-) polarity. Do not connect the cables to the wrong polarities. 5. Connect the speaker cables.Preparing the ends of the speaker cables Remove while twisting 1. Press down on the lever. 2. Insert the cable. 3. Release the lever.1. Push down the...
