Panasonic Upgrade Utility For Audio Mixer WR-DA7 Version 2.0 Users Guide

3-9

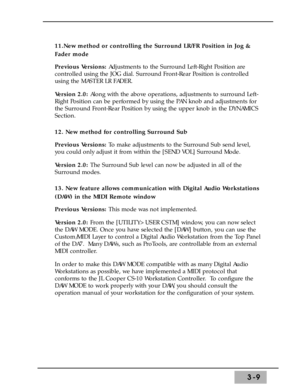

11.New method or controlling the Surround LR/FR Position in Jog &
Fader mode
Previous Versions: Adjustments to the Surround Left-Right Position are
controlled using the JOG dial. Surround Front-Rear Position is controlled
using the MASTER LR FADER.
Version 2.0: Along with the above operations, adjustments to surround Left-
Right Position can be performed by using the PAN knob and adjustments for
the Surround Front-Rear Position by using the upper knob in the DYNAMICS
Section.
12. New method for...

3-10

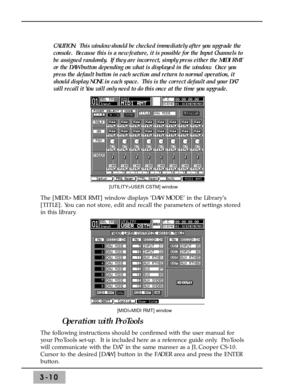

CAUTION:  This window should be checked immediately after you upgrade the
console.  Because this is a new feature, it is possible for the Input Channels to
be assigned randomly.  If they are incorrect, simply press either the MIDI RMT
or the DAW button depending on what is displayed in the window.  Once you
press the default button in each section and return to normal operation, it
should display NONE in each space.  This is the correct default and your DA7
will recall it You will only need to do...

3-11

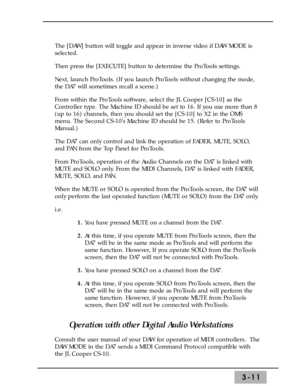

The [DAW] button will toggle and appear in inverse video if DAW MODE is
selected.
Then press the [EXECUTE] button to determine the ProTools settings.
Next, launch ProTools. (If you launch ProTools without changing the mode,
the DA7 will sometimes recall a scene.)
From within the ProTools software, select the JL Cooper [CS-10] as the
Controller type. The Machine ID should be set to 16. If you use more than 8
(up to 16) channels, then you should set the [CS-10] to X2 in the OMS
menu. The Second...

3-12

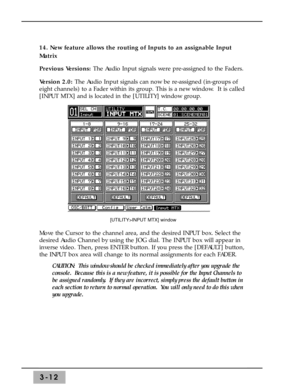

14. New feature allows the routing of Inputs to an assignable Input
Matrix
Previous Versions: The Audio Input signals were pre-assigned to the Faders.
Version 2.0: The Audio Input signals can now be re-assigned (in-groups of
eight channels) to a Fader within its group. This is a new window.  It is called
[INPUT MTX] and is located in the [UTILITY] window group.
Move the Cursor to the channel area, and the desired INPUT box. Select the
desired Audio Channel by using the JOG dial. The INPUT box...

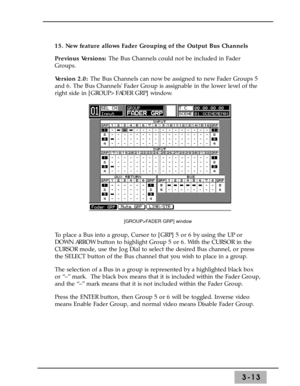

3-13
15. New feature allows Fader Grouping of the Output Bus Channels
Previous Versions: The Bus Channels could not be included in Fader
Groups.
Version 2.0: The Bus Channels can now be assigned to new Fader Groups 5
and 6. The Bus Channels Fader Group is assignable in the lower level of the
right side in [GROUP>FADER GRP] window.
To place a Bus into a group, Cursor to [GRP] 5 or 6 by using the UP or
DOWN ARROW button to highlight Group 5 or 6. With the CURSOR in the
CURSOR mode, use the Jog Dial to...

3-14

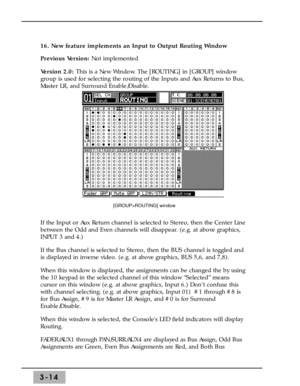

16. New feature implements an Input to Output Routing Window
Previous Version: Not implemented
Version 2.0: This is a New Window. The [ROUTING] in [GROUP] window
group is used for selecting the routing of the Inputs and Aux Returns to Bus,
Master LR, and Surround Enable/Disable.
If the Input or Aux Return channel is selected to Stereo, then the Center Line
between the Odd and Even channels will disappear. (e.g. at above graphics,
INPUT 3 and 4.)
If the Bus channel is selected to Stereo, then the...

3-15
Assignments are Amber. LIBRARY/AUX5 are displayed Master LR Assign,
Master LR Assign is Amber. SEL/MAN/AUX6 is displayed Surround
Enable/Disable, Surround Enable is Amber.

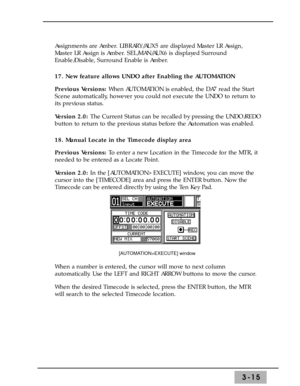

17. New feature allows UNDO after Enabling the AUTOMATION
Previous Versions: When AUTOMATION is enabled, the DA7 read the Start
Scene automatically, however you could not execute the UNDO to return to
its previous status.
Version 2.0: The Current Status can be recalled by pressing the UNDO/REDO
button to return to the previous...

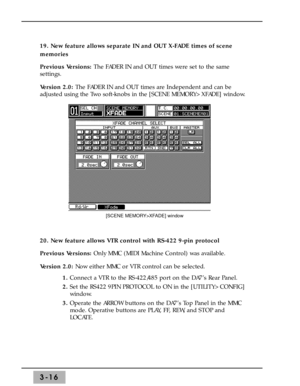

19. New feature allows separate IN and OUT X-FADE times of scene
memories
Previous Versions: The FADER IN and OUT times were set to the same
settings.
Version 2.0: The FADER IN and OUT times are Independent and can be
adjusted using the Two soft-knobs in the [SCENE MEMORY>XFADE] window.
20. New feature allows VTR control with RS-422 9-pin protocol
Previous Versions: Only MMC (MIDI Machine Control) was available.
Version 2.0: Now either MMC or VTR control can be selected.
1. Connect a VTR to the...

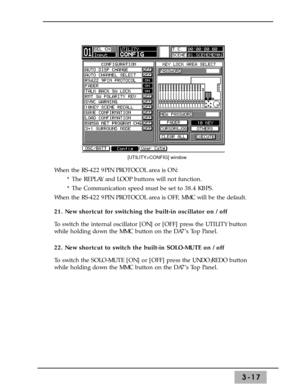

When the RS-422 9PIN PROTOCOL area is ON:
* The REPLAY and LOOP buttons will not function.
* The Communication speed must be set to 38.4 KBPS.
When the RS-422 9PIN PROTOCOL area is OFF, MMC will be the default.
21. New shortcut for switching the built-in oscillator on / off
To switch the internal oscillator [ON] or [OFF] press the UTILITY button
while holding down the MMC button on the DA7’s Top Panel.
22. New shortcut to switch the built-in SOLO-MUTE on / off
To switch the SOLO-MUTE [ON] or [OFF] press...

23. New Threshold level adjustment of analog input PEAK/SIGNAL LEDs
Previous Versions: The Threshold of the PEAK/SIGNAL LED was fixed at
-6.0dB.
Version 2.0: The Threshold of the PEAK/SIGNAL LED can now be adjusted
from -10dB through 0.0dB. In the [UTILITY>OSC/BATT] window, there is a
[PEAK LED THL] knob with a value in middle level of right side.
Cursor to the [PEAK LED THL] knob, and operate JOG dial. Factory
Default value is -6.0dB.
24. Correction of freezing when faders are moved manually during...
